Siemens 6ES7132-6BF00-0BA0 Maintenance-Proven Spare Part for Factory Uptime

Overview

Siemens 6ES7132-6BF00-0BA0 Maintenance-Proven Spare Part for Factory Uptime

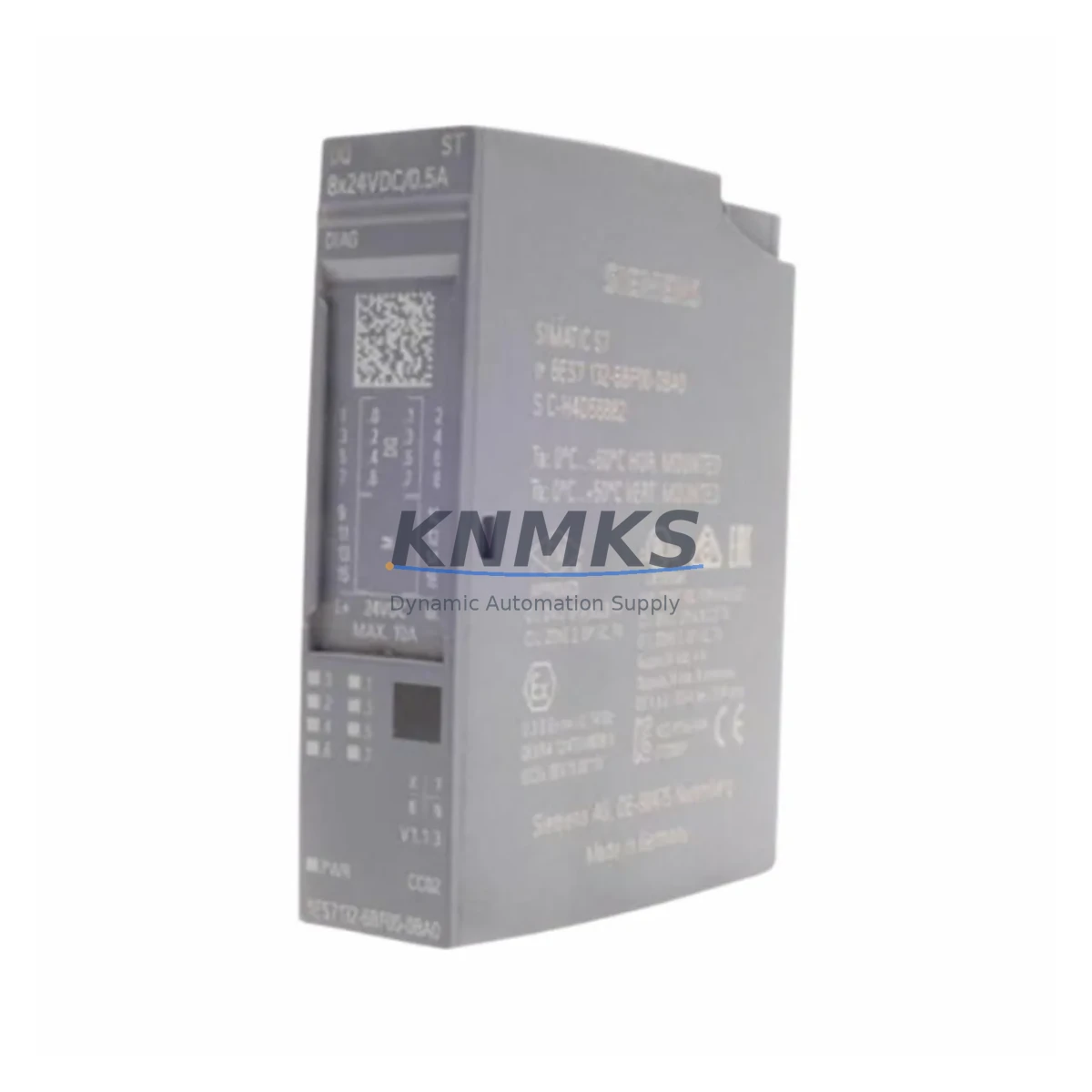

The Siemens 6ES7132-6BF00-0BA0 is an 8-channel 24 VDC digital output module designed for the ET 200SP distributed I/O system. In industrial maintenance environments — from automotive body shops to chemical processing lines — this module is a front-line component in SIMATIC-based control architectures. When a digital output channel fails or the module reaches end-of-service life, unplanned downtime can cascade across an entire production cell. Stocking a verified original 6ES7132-6BF00-0BA0 as a ready spare is the most reliable way to restore output control within a single maintenance window.

Each unit supplied by KNMKS is sourced as an original Siemens component, pre-shipment tested for channel integrity and communication handshake with the ET 200SP backplane, and backed by a support terms confirmed by quotation. Global dispatch from multi-region stock ensures that emergency replacement orders reach site engineers within the shortest possible lead time — critical when a production line is down and every hour carries a cost.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7132-6BF00-0BA0 during a scheduled outage or emergency callout, maintenance engineers should treat the module swap as an opportunity to audit the surrounding electrical environment. The ET 200SP station relies on a healthy BaseUnit — verify that the BU-A0 base unit shows no signs of contact wear or discoloration before seating the new DO module. The 24 VDC load power supply feeding the output channels should be checked for voltage stability; a drifting supply rail is a common root cause of intermittent output faults that are misdiagnosed as module failure.

Inspect the interface module — typically a 6ES7155-6AU00-0BN0 or equivalent IM 155-6 PN — for firmware currency and PROFINET link status. A degraded IM can cause the replacement DO module to report faults even when the module itself is healthy. Terminal block wiring on the BaseUnit should be re-torqued to specification during the replacement; loose field wiring is a leading cause of output channel alarms after a module change.

For stations running mixed I/O, also check adjacent digital input modules such as the 6ES7131-6BF00-0BA0 (8-channel DI counterpart) for channel drift or blown input protection. If the control cabinet includes analog output modules like the 6ES7135-6GB00-0BA0, verify their calibration has not been affected by any transient that caused the DO module failure. Fuse holders and miniature circuit breakers protecting the 24 VDC output circuits should be inspected and replaced if there is any evidence of thermal stress. Where signal isolation is required between the PLC output and field actuators, check that any interposing relay modules or signal isolators in the same DIN rail section are operating within rated coil voltage.

Site Replacement Workflow

Step 1 — Isolate and document. Before removal, capture the current channel assignment and tag mapping from the TIA Portal hardware configuration. Export the device configuration if the project file is not immediately accessible on site.

Step 2 — Power down the load circuit. Switch off the 24 VDC load power supply for the affected station segment. The ET 200SP backplane power (logic supply) may remain live if the IM and other modules must stay online, but the load supply for the DO module must be de-energized before disconnecting field wiring.

Step 3 — Remove the module. Unlock the DO module from the BaseUnit by pressing the release lever and sliding the module upward. The BaseUnit remains in place; field wiring stays connected to the BaseUnit terminal block, which significantly reduces re-wiring time compared to legacy S7-300 I/O systems.

Step 4 — Seat the replacement 6ES7132-6BF00-0BA0. Align the module with the BaseUnit guide rails and press firmly until the locking lever clicks. The module coding key on the BaseUnit prevents incorrect module type insertion.

Step 5 — Restore power and verify. Re-energize the load supply and observe the module’s RUN/ERROR LED. In TIA Portal online mode, confirm that all 8 output channels report correct status. Perform a functional test by forcing each channel output and verifying actuator response at the field device.

Step 6 — Update maintenance records. Log the replacement date, module serial number, and any observations about the failed unit. Return the failed module for failure analysis if root cause investigation is required.

This workflow is compatible with hot-swap procedures supported by the ET 200SP system, minimizing disruption to adjacent I/O stations on the same PROFINET segment. Compared to older SIMATIC S7-300 SM 322 digital output modules, the ET 200SP architecture reduces replacement time from hours to minutes by eliminating the need to re-terminate field wiring.

Spare Parts Support FAQ

Q1: Is the 6ES7132-6BF00-0BA0 compatible with both S7-1500 and S7-1200 controllers?
Yes. The ET 200SP distributed I/O system connects to any SIMATIC controller via PROFINET through the interface module. The 6ES7132-6BF00-0BA0 DO module is compatible with all ET 200SP stations regardless of the upstream CPU, including S7-1500, S7-1200, and third-party PROFINET controllers that support the ET 200SP GSD file.

Q2: How do I verify the module is original and not a counterfeit?
All units supplied by KNMKS are sourced through verified industrial channels and undergo pre-shipment testing that includes channel output verification and backplane communication checks. Each module ships with its original Siemens labeling and a traceable serial number. If your procurement policy requires additional documentation, contact [email protected] before placing your order.

Q3: What is the recommended spare holding quantity for a production facility?
For facilities running ET 200SP stations in critical process or assembly applications, a minimum of two 6ES7132-6BF00-0BA0 modules per station type is recommended. High-cycle applications — such as press lines or packaging machinery — may warrant a higher buffer. KNMKS supports long-term supply agreements to ensure consistent availability without requiring large upfront inventory commitments.

Q4: What support terms and post-shipment support does KNMKS provide?
Every 6ES7132-6BF00-0BA0 supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Pre-shipment testing results are available on request. For support requests or technical support after installation, contact [email protected] or call +86 18359268345.
