Siemens 6ES7132-4BB31-0AA0 Fail-Safe Digital Output Module

Overview

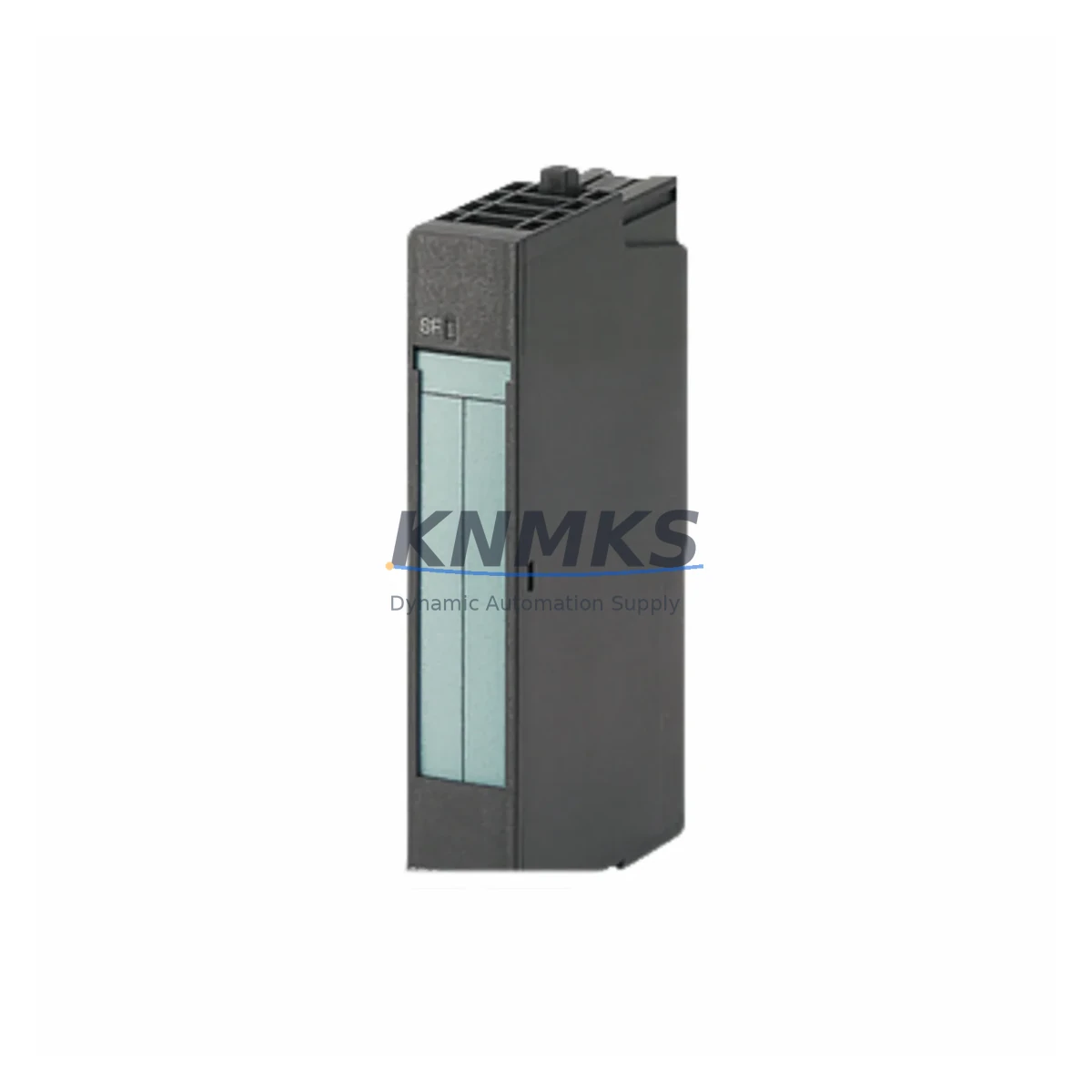

Siemens 6ES7132-4BB31-0AA0 Fail-Safe Digital Output Module for Industrial Control Reliability

The Siemens 6ES7132-4BB31-0AA0 is a fail-safe 2-channel 24 VDC digital output module designed for the ET 200S distributed I/O system, operating within the SIMATIC S7 safety architecture. Engineered to meet IEC 61508 SIL 2 and EN ISO 13849-1 PLe requirements, this module delivers deterministic, fault-tolerant output switching in the most demanding industrial environments — from continuous petrochemical processing lines to high-voltage power distribution substations and underground mining control cabinets.

In critical safety instrumented systems (SIS), unplanned output failures can trigger cascading shutdowns, equipment damage, or personnel hazards. The 6ES7132-4BB31-0AA0 addresses this risk through integrated self-diagnostics, cross-circuit monitoring, and automatic safe-state transition on fault detection. When a wiring short, overload, or internal discrepancy is identified, the module immediately de-energizes the output channel and reports the fault to the F-CPU — eliminating the risk of spurious actuation or undetected dangerous failure that could compromise a safety interlock loop.

Deployed alongside the Siemens 6ES7138-4CA01-0AA0 PM-E F power module, the 6ES7132-4BB31-0AA0 benefits from a dedicated fail-safe power supply rail that maintains output integrity even during main bus voltage fluctuations. In high-EMI environments — such as variable frequency drive (VFD) motor control centers or arc furnace control rooms — the module’s shielded backplane connection and noise-immune PROFIBUS DP or PROFINET interface (via the 6ES7151-1BA02-0AB0 IM 151-1 interface module) ensure signal fidelity without requiring additional filtering hardware.

For control cabinets operating in dusty, humid, or high-vibration conditions — common in cement plants, port crane systems, and offshore platforms — the ET 200S rail-mount form factor provides IP20 protection at the module level, while the overall enclosure strategy can be extended with appropriate cabinet sealing. The module’s compact 15 mm slot width allows dense packing in space-constrained marshalling cabinets, and its hot-swap capability (with appropriate F-CPU configuration) supports maintenance replacement without full system shutdown — a critical advantage in 24/7 continuous production facilities.

When integrated into a safety loop controlling emergency shutdown (ESD) valves, the 6ES7132-4BB31-0AA0 works in concert with Siemens 6ES7326-2BF41-0AB0 F-DI digital input modules to form a complete SIL 2 interlock chain. The input module reads field sensor states — pressure switches, temperature transmitters, or gas detectors — while the 6ES7132-4BB31-0AA0 drives the final control element: solenoid valves, motor contactors, or relay coils. This closed-loop safety architecture is validated for use in IEC 61511-compliant SIS designs across oil and gas, chemical, and water treatment sectors.

Power supply stability is equally critical. Pairing the 6ES7132-4BB31-0AA0 with a Siemens SITOP PSU100S 24V/10A power supply provides regulated, surge-protected 24 VDC with diagnostic output — ensuring the module never experiences undervoltage conditions that could cause nuisance trips or, worse, undetected output de-energization. For applications requiring redundant power, the SITOP redundancy module 6EP1961-2BA11 enables seamless switchover between dual PSU feeds, maintaining output continuity during single-supply failures.

In metallurgical and heavy industrial applications where ground loops and common-mode noise are prevalent, the module’s galvanic isolation between field wiring and backplane logic prevents noise-induced false switching — a failure mode that has caused significant production losses in rolling mill and smelter control systems. The 6ES7132-4BB31-0AA0’s diagnostic coverage (DC) exceeds 99%, meeting the hardware fault tolerance (HFT) requirements for SIL 2 single-channel use without requiring redundant output hardware in most application architectures.

All KNMKS-supplied 6ES7132-4BB31-0AA0 modules undergo pre-shipment functional verification including output switching test, self-diagnostic cycle confirmation, and communication handshake validation with an F-CPU test bench. Units are dispatched with original Siemens packaging, traceable batch documentation, and a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions. Multi-region stock is maintained to support emergency replacement dispatch within 24–72 hours globally.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust ET 200S safety cabinet deployment centers on the 6ES7132-4BB31-0AA0 as the final output switching element, but its reliability depends on the integrity of the surrounding architecture. The Siemens 6ES7315-2FJ14-0AB0 CPU 315F-2 PN/DP serves as the F-CPU host, executing the safety program and performing the periodic proof tests required to maintain SIL 2 certification over the system lifecycle. Communication between the F-CPU and the ET 200S station is handled via the 6ES7151-1BA02-0AB0 IM 151-1 interface module, which provides deterministic PROFIBUS DP cycle times essential for time-critical safety functions.

On the power side, the SITOP PSU100S 6EP1334-2BA20 delivers clean, regulated 24 VDC with integrated diagnostics, while the 6EP1961-2BA11 SITOP redundancy module ensures uninterrupted supply during PSU maintenance or failure. For input-side safety, the 6ES7326-2BF41-0AB0 F-DI module reads field sensor signals with equivalent SIL 2 diagnostic coverage, completing the interlock chain from sensor to actuator. Surge protection on field wiring terminals — using DIN rail-mounted SPDs rated for 24 VDC signal circuits — prevents transient overvoltage from lightning or switching events from reaching the module’s input circuitry, protecting both the 6ES7132-4BB31-0AA0 and the connected field devices.

Cabinet thermal management is addressed through structured airflow design and, where necessary, filtered fan units rated for the ambient temperature range. In high-vibration installations such as ship engine rooms or mining conveyors, DIN rail anti-vibration mounts and cable strain relief clamps prevent mechanical fatigue on module connectors — a common root cause of intermittent output faults in mobile or vibrating plant.

Critical Industrial Safety Applications

The 6ES7132-4BB31-0AA0 is deployed across a broad range of safety-critical industries where output reliability directly impacts personnel safety and process continuity.

In petrochemical and refinery applications, the module drives ESD solenoid valves on high-pressure hydrocarbon lines, where a spurious de-energization or failure to de-energize on demand represents a major process hazard. Its SIL 2 rating satisfies the safety requirements specification (SRS) for most layer of protection analysis (LOPA)-derived safety functions in these environments.

In electric power generation and distribution, the module controls protection relay output circuits and breaker trip coils in substation automation systems, where deterministic response time and fault detection are mandatory for grid stability and equipment protection.

In underground mining, the module is used in conveyor belt emergency stop systems and methane gas interlock circuits, where the fail-safe de-energization behavior ensures the conveyor halts on any control system fault — preventing runaway loads and personnel injury.

In water and wastewater treatment, the module controls pump motor contactors and valve actuators in chlorination and filtration systems, where uncontrolled output states could result in chemical overdosing or process contamination.

In port and terminal automation, the module is integrated into crane anti-collision and overload protection systems, providing the final switching element for brake release and hoist motor control circuits that must fail safe on power or communication loss.

In continuous manufacturing — including automotive body-in-white welding lines and food processing CIP systems — the module supports machine safety category 3 and 4 stop functions, enabling rapid, validated safe-state transitions without requiring full line restart procedures.

Safety and Quality FAQ

Q1: What does the 12-month KNMKS support terms cover for the 6ES7132-4BB31-0AA0?
The support terms confirmed by quotation cover manufacturing defects, premature component failure, and functional non-conformance identified under normal operating conditions as specified in the Siemens datasheet. It does not cover damage resulting from incorrect installation, overvoltage beyond the rated supply range, or unauthorized modification. Support requests are supported with replacement dispatch and failure analysis documentation.

Q2: What pre-shipment tests are performed before dispatch?
Each unit undergoes output channel switching verification, self-diagnostic cycle confirmation (including cross-circuit monitoring activation), and F-CPU communication handshake on a SIMATIC S7-300F test bench. Results are logged and available upon request. Units failing any test criterion are quarantined and not dispatched.

Q3: Is the 6ES7132-4BB31-0AA0 compatible with both PROFIBUS DP and PROFINET ET 200S stations?
Yes. The module is compatible with ET 200S stations using PROFIBUS DP interface modules (e.g., IM 151-1 Standard) and PROFINET interface modules (e.g., IM 151-3 PN). The F-CPU safety program must be configured with the appropriate F-address and PROFIsafe parameters matching the physical slot assignment. KNMKS can provide configuration guidance for common F-CPU and IM module combinations.

Q4: Can KNMKS support long-term supply for scheduled maintenance and planned outages?
Yes. KNMKS maintains multi-region stock of the 6ES7132-4BB31-0AA0 to support both emergency replacement (24–72 hour dispatch) and scheduled outage provisioning. Long-term supply agreements with fixed pricing and reserved stock allocation are available for facilities with annual maintenance windows or multi-site rollout programs. Contact [email protected] to discuss volume and scheduling requirements.
