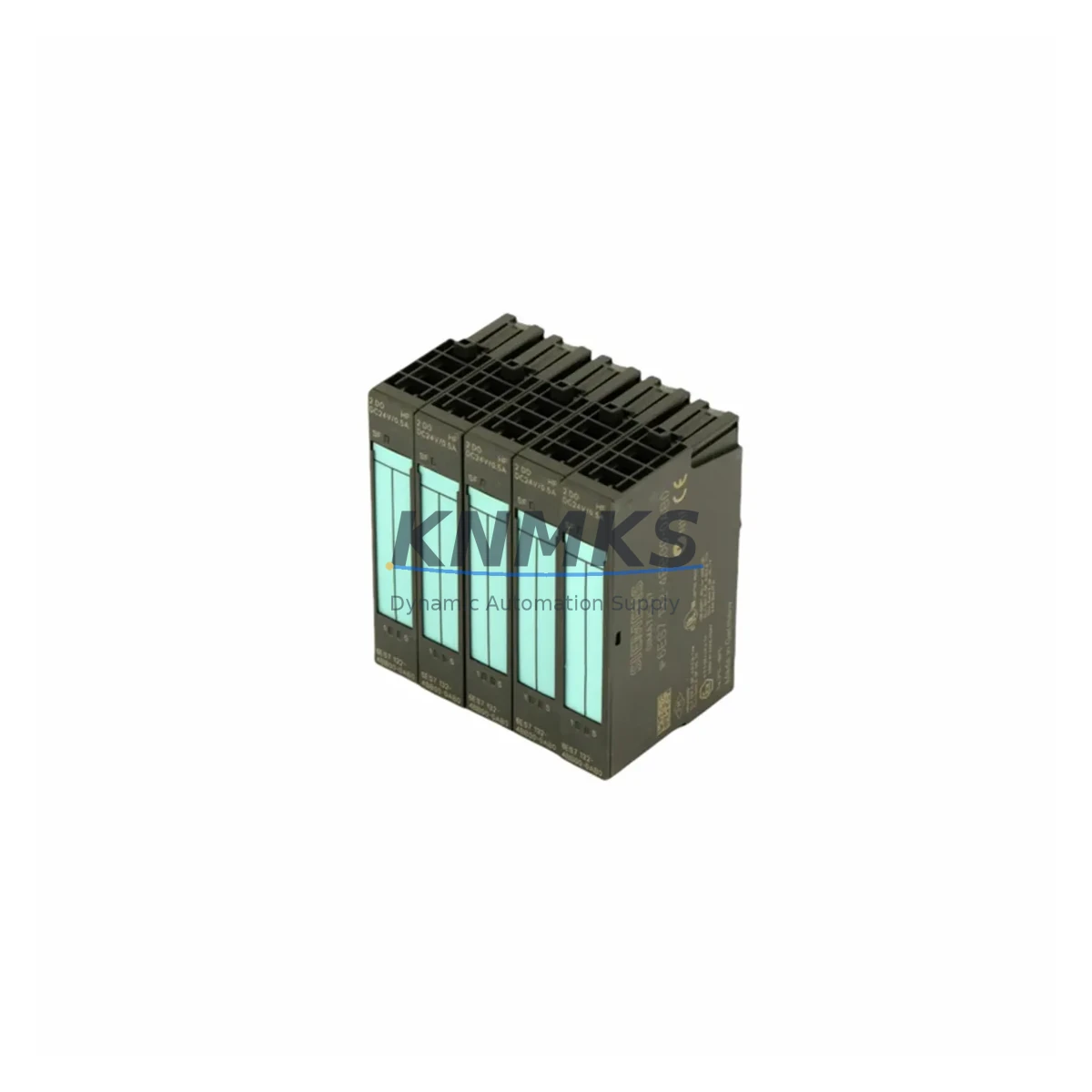

Siemens 6ES7132-4BB30-0AB0 Fail-Safe DO for Industrial Control

Overview

Siemens 6ES7132-4BB30-0AB0 Fail-Safe DO for Industrial Control Reliability

The Siemens 6ES7132-4BB30-0AB0 is a fail-safe digital output module designed for the ET 200S distributed I/O system, engineered to deliver uncompromising safety and control reliability in the most demanding industrial environments. Rated for Safety Integrity Level 2 (SIL 2) and Performance Level d (PLd) / Category 3 per IEC 62061 and EN ISO 13849-1, this 2DO 24 VDC / 0.5 A module is purpose-built for safety-critical shutdown loops, emergency stop circuits, and protective interlock systems where a single output failure cannot be tolerated.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical smelters, and water treatment works — unplanned control interruptions translate directly into safety incidents and multi-million-dollar downtime events. The 6ES7132-4BB30-0AB0 addresses this risk at the hardware level through redundant output switching, internal cross-circuit monitoring, and automatic safe-state activation on fault detection. When integrated with a Siemens S7-300F or S7-400F fail-safe CPU via PROFIBUS DP or PROFINET, the module participates in a fully certified safety loop that continuously validates output integrity without requiring manual intervention.

Signal drift and spurious trips are among the most disruptive failure modes in high-EMI environments such as arc furnace control rooms, variable-frequency drive cabinets, and high-voltage switchgear panels. The 6ES7132-4BB30-0AB0 incorporates robust EMC shielding and surge suppression circuitry that maintains stable output switching even under severe conducted and radiated interference. This makes it a reliable companion to other ET 200S modules — including the 6ES7131-4BF00-0AA0 8DI digital input module and the 6ES7138-4CA01-0AA0 power module — within the same control cabinet, ensuring the entire I/O tier operates coherently under transient load conditions.

Cabinet thermal management is a persistent challenge in heavy-industry control enclosures. The 6ES7132-4BB30-0AB0 operates across a wide ambient temperature range of 0 °C to +60 °C and is rated to IP20, providing adequate protection against dust ingress in standard cabinet installations. When deployed alongside the Siemens 6ES7193-4CA40-0AA0 terminal module and properly routed within a ventilated DIN-rail assembly, the module contributes to a thermally balanced cabinet layout that reduces the risk of overheating-induced nuisance trips. For installations in particularly harsh or humid environments, pairing with conformal-coated variants or sealed enclosure accessories further extends service life.

Power supply stability is foundational to fail-safe output reliability. Voltage sags, micro-interruptions, and inrush transients from large motor starters or solenoid valve banks can corrupt output states if the I/O module lacks adequate hold-up and filtering. The 6ES7132-4BB30-0AB0 is designed to operate from a stable 24 VDC bus, and best practice dictates powering the ET 200S rack through a dedicated Siemens SITOP PSU100S 24V/10A regulated power supply with integrated diagnostics. This combination ensures that power-related anomalies are detected and reported to the safety CPU before they can propagate into unsafe output conditions.

Communication integrity between the safety CPU and the distributed I/O tier is equally critical. The ET 200S interface module — typically the 6ES7151-1BA02-0AB0 IM 151-1 Standard — manages the PROFIBUS DP link that carries both standard and F-capable process data. Any communication timeout or CRC error triggers the fail-safe module to de-energize its outputs and enter the safe state, preventing uncontrolled actuator movement. This deterministic fault response is essential in safety instrumented systems (SIS) where IEC 61511 compliance requires documented and verifiable safe-state behavior for every output channel.

For facilities managing scheduled outages or emergency replacements, the 6ES7132-4BB30-0AB0 is stocked across multiple regional warehouses to support fast global dispatch. Each unit undergoes pre-shipment functional testing — including output switching verification, safe-state activation testing, and insulation resistance checks — before leaving our facility. A support terms confirmed by quotation cover every module against manufacturing defects and premature failure, providing procurement teams with the confidence needed for long-term spare parts planning and maintenance budget forecasting.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust ET 200S safety cabinet is never built around a single module in isolation. The 6ES7132-4BB30-0AB0 performs at its highest reliability when integrated within a coherent protection architecture. On the input side, the 6ES7131-4BF00-0AA0 8DI standard digital input module captures field sensor states — emergency stop buttons, pressure switches, and position sensors — and feeds them to the safety CPU for evaluation. The 6ES7138-4CA01-0AA0 power module distributes the 24 VDC supply rail across the ET 200S backplane, isolating load groups and preventing a single supply fault from collapsing the entire I/O tier.

For applications requiring analog process variable monitoring alongside discrete safety outputs, the 6ES7134-4FB01-0AB0 2AI ±10V analog input module can be installed in the same rack, enabling the safety CPU to correlate analog process values with digital output states for advanced diagnostic logic. On the communication backbone, the 6ES7151-1BA02-0AB0 IM 151-1 interface module maintains the PROFIBUS DP link with deterministic cycle times, ensuring that safety-relevant output commands are transmitted and acknowledged within the required response time window. Surge protection on the 24 VDC supply rail — using a dedicated transient voltage suppressor or a Siemens SITOP PROT selective current limiting module — further shields the output module from inrush and lightning-induced transients that could otherwise trigger nuisance safe-state activations.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6ES7132-4BB30-0AB0 is deployed in emergency shutdown (ESD) systems to control safety valves, blowdown actuators, and deluge system solenoids. Its SIL 2 rating satisfies the requirements of IEC 61511 for process safety instrumented functions, and its deterministic safe-state behavior ensures that actuators reach their fail-safe position within the required process safety time.

In power generation and substation control applications, the module drives protective relay trip coils and circuit breaker shunt trips within the distributed control system (DCS) architecture. The ability to detect cross-circuit faults and report them to the safety CPU without nuisance tripping is critical in grid-connected generation assets where spurious trips carry significant financial and grid-stability consequences.

In mining and mineral processing plants, the 6ES7132-4BB30-0AB0 controls conveyor belt safety brakes, crusher interlock contactors, and ventilation fan starters in environments characterized by heavy vibration, coal dust, and wide ambient temperature swings. Its compact 15 mm width allows dense packing within space-constrained underground control panels.

In water and wastewater treatment facilities, the module manages pump interlock outputs, chemical dosing valve controls, and overflow prevention actuators. The IP20 rating combined with proper cabinet sealing and climate control ensures reliable operation in the high-humidity, corrosive-atmosphere conditions typical of these sites.

In metallurgical and steel mill applications — including continuous casting lines and rolling mill drives — the module’s EMC robustness and surge suppression capability allow it to operate reliably in close proximity to high-current bus bars, induction furnaces, and large DC drive systems that generate intense electromagnetic interference.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 6ES7132-4BB30-0AB0?
The support terms confirmed by quotation cover all manufacturing defects, premature component failure, and functional non-conformance identified under normal operating conditions consistent with Siemens’ published specifications. Support requests are supported with replacement dispatch from regional stock to minimize site downtime.

Q2: What pre-shipment tests are performed on each unit?
Every 6ES7132-4BB30-0AB0 undergoes output switching verification across both channels, safe-state activation testing (confirming outputs de-energize correctly on simulated fault), and insulation resistance measurement before dispatch. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 6ES7132-4BB30-0AB0 compatible with both S7-300F and S7-400F safety CPUs?
Yes. The module operates within the ET 200S distributed I/O system and is compatible with Siemens S7-300F and S7-400F fail-safe CPUs via PROFIBUS DP, as well as S7-1500F systems when used with an appropriate ET 200S interface module. Compatibility with the specific CPU firmware version and F-runtime group configuration should be verified against the Siemens SIMATIC Safety Integrated documentation for the target project.

Q4: Can long-term supply continuity be guaranteed for this module?
We maintain multi-region warehouse stock of the 6ES7132-4BB30-0AB0 specifically to support emergency replacement and scheduled maintenance programs. For facilities with planned outage cycles or long-term maintenance contracts, we offer reserved stock agreements and priority dispatch arrangements. Contact our sales team to discuss supply continuity options tailored to your site’s maintenance schedule.

—
