Siemens 6ES7131-6BH01-0BA0 Maintenance-Proven Spare Part

Overview

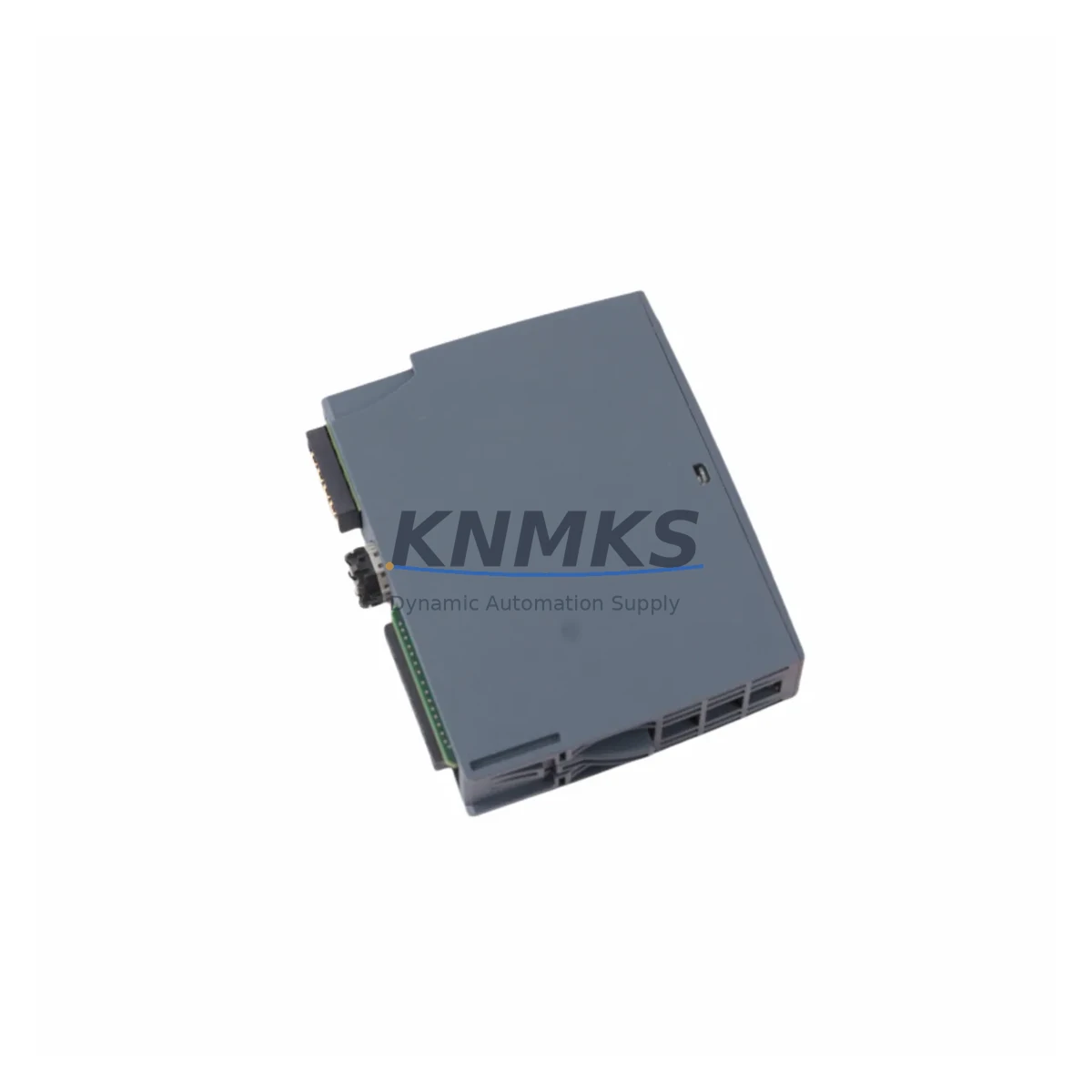

Siemens 6ES7131-6BH01-0BA0 Maintenance-Proven Spare Part for Factory Uptime

The Siemens 6ES7131-6BH01-0BA0 is a 16-channel digital input module designed for the ET 200SP distributed I/O system, fully compatible with Siemens S7-1500 PLC platforms. As a maintenance-proven original spare part, it is a critical component in sustaining continuous factory operation across manufacturing, energy, petrochemical, and infrastructure automation environments. Sourced as an original Siemens component, each unit is inspection-tested prior to shipment and backed by a support terms confirmed by quotation.

Maintenance engineers and procurement teams managing aging S7-1500 or ET 200SP control cabinets rely on this module for rapid fault isolation and same-day replacement workflows. Whether you are executing a planned annual overhaul, responding to an unscheduled line stoppage, or building a strategic spare parts buffer, the 6ES7131-6BH01-0BA0 delivers the compatibility, reliability, and long-term supply assurance your facility demands.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 6ES7131-6BH01-0BA0 in an ET 200SP station, a thorough maintenance engineer will not stop at the module itself. The surrounding electrical environment must be verified to prevent repeat faults and ensure the replacement holds under production load.

Begin by inspecting the ET 200SP BaseUnit (6ES7193-6BP20-0BA0 or equivalent BU15-P16+A0+2D) for contact wear, corrosion, or mechanical damage — a degraded BaseUnit will cause intermittent signal loss even with a new DI module installed. Next, verify the 24 V DC power supply module feeding the ET 200SP rack; voltage sag or ripple beyond ±5% will trigger false input states. Siemens PM-E power modules (e.g., 6ES7138-6AA01-0BA0) integrated into the same station should be checked for output stability under full load.

Inspect all terminal wiring and field-side connectors on the BaseUnit. Loose or corroded 24 V DC field wiring is a leading cause of DI module misdiagnosis in high-vibration environments. If the station includes signal isolators or intrinsic safety barriers between field sensors and the DI inputs, verify their output voltage levels and response times remain within the module’s IEC Type 1/3 input thresholds.

For stations with mixed I/O, also audit adjacent digital output modules (e.g., 6ES7132-6BH01-0BA0 DO 16-ch) and analog input modules (e.g., 6ES7134-6GD01-0BA1 AI 4xU/I) sharing the same backplane bus — a failing module in the same rack can generate bus errors that mask the true fault source. Check the ET 200SP IM 155-6 PN interface module (e.g., 6ES7155-6AU01-0BN0) for PROFINET link status and firmware version compatibility with your S7-1500 CPU.

Finally, review the miniature circuit breakers and fuse protection on the 24 V DC distribution rail supplying the ET 200SP station. A nuisance trip or slow-blow fuse degradation upstream is frequently overlooked during DI module replacement and leads to premature failure of the new spare. Maintaining a documented spare parts list that includes the BaseUnit, power module, interface module, and protective devices alongside the 6ES7131-6BH01-0BA0 is best practice for any facility targeting zero unplanned downtime.

Site Replacement Workflow

Step 1 — Compatibility Verification: Confirm the existing BaseUnit type is BU15-P16+A0+2D (color-coded light blue for 24 V DC DI modules). Cross-reference the TIA Portal hardware configuration to ensure the 6ES7131-6BH01-0BA0 firmware version matches the project’s GSD/GSDML file. No re-parameterization is required if the module order number is identical to the removed unit.

Step 2 — Safe Isolation: Switch the ET 200SP station to STOP mode via the S7-1500 CPU or TIA Portal online view. De-energize the 24 V DC field supply to the affected BaseUnit. Do not remove the module under live bus power — the ET 200SP backplane bus remains active even when field voltage is removed unless the IM module is powered down.

Step 3 — Module Swap: Press the release lever on the BaseUnit, slide out the old 6ES7131-6BH01-0BA0, and snap in the replacement. The module is keyed to prevent incorrect insertion. Re-connect field wiring if the BaseUnit connector was removed.

Step 4 — Recommission and Test: Restore 24 V DC field supply, set the CPU to RUN, and verify all 16 DI channels report correct states in TIA Portal diagnostics or the HMI overview screen. Perform a forced I/O test on each channel if the process permits. Document the replacement date, module serial number, and test results in the maintenance log.

Step 5 — Downtime Recovery: Total replacement time for a trained technician is typically under 15 minutes, making the 6ES7131-6BH01-0BA0 one of the fastest field-swappable modules in the ET 200SP family. Keeping one unit on the shelf at each facility reduces mean time to repair (MTTR) to near zero for this failure mode.

Spare Parts Support FAQ

Q1: Is the 6ES7131-6BH01-0BA0 still available as a new original part?
Yes. KNMKS maintains long-term stock of original Siemens 6ES7131-6BH01-0BA0 modules sourced through authorized industrial distribution channels. Each unit is individually inspected and function-tested before shipment. We support long-term supply commitments for facilities requiring annual or multi-year procurement agreements.

Q2: What is covered under the support terms confirmed by quotation?
All units ship with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. If a module fails within the confirmed support period, KNMKS will provide a replacement or documented resolution support. Support requests require the original order number and a brief fault description.

Q3: Can this module replace an older 6ES7131-4BH01-0AB0 (ET 200S) unit?
No — the 6ES7131-6BH01-0BA0 is designed exclusively for the ET 200SP platform and is not physically or electrically interchangeable with ET 200S modules. If you are migrating from ET 200S to ET 200SP, a full station hardware redesign including new BaseUnits and an ET 200SP interface module is required. Contact our technical team for migration support.

Q4: How do you verify the module before shipment?
Each 6ES7131-6BH01-0BA0 unit undergoes a pre-shipment functional check including visual inspection, label and firmware version verification, and where applicable, a powered bench test confirming channel response. Units are packed in anti-static ESD packaging with a test report included. Express shipping via DHL, FedEx, or UPS is available for urgent maintenance requirements.
