Siemens 6ES7131-6BF00-0BA0 Migration-Ready DI for Legacy ET 200SP

Overview

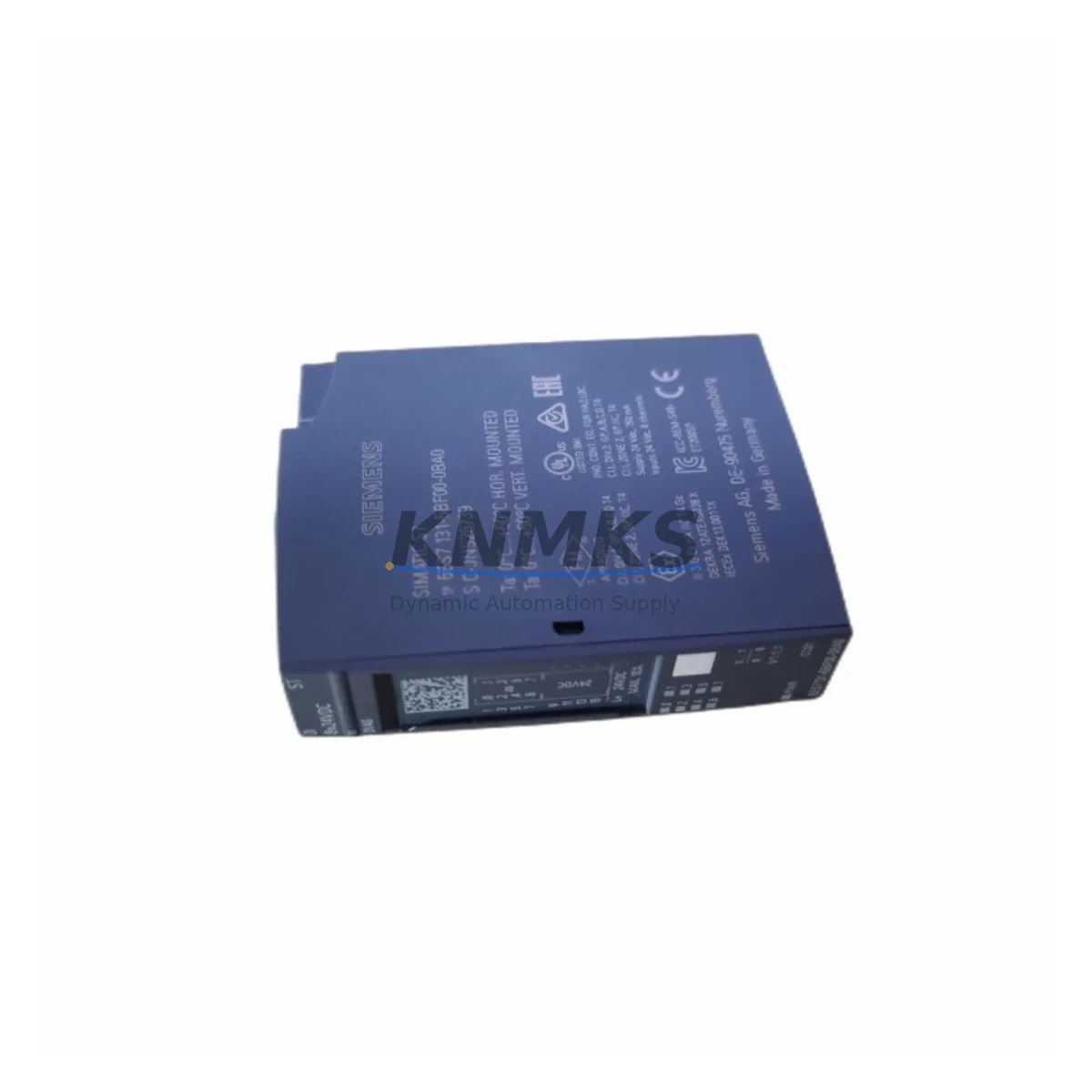

Siemens 6ES7131-6BF00-0BA0 Migration-Ready DI for Legacy ET 200SP Systems

The Siemens 6ES7131-6BF00-0BA0 is an ET 200SP Digital Input module rated for 8 channels at 24 VDC (Standard type), designed for distributed I/O applications within SIMATIC S7-1500 and compatible controller platforms. As legacy S7-300 and S7-400 installations approach end-of-life, this module serves as a critical migration component — enabling engineers to modernize field-level I/O without redesigning the entire control architecture. Whether you are replacing a discontinued IM 151-1 interface module rack, upgrading a PROFIBUS-based ET 200S station to PROFINET, or expanding an existing ET 200SP backplane, the 6ES7131-6BF00-0BA0 delivers a verified drop-in upgrade path with minimal downtime exposure.

Before committing to a retrofit, engineers should confirm several key parameters: the BaseUnit type (BU type A0 is required for this module), terminal wiring compatibility with existing field cables, backplane slot addressing in the TIA Portal hardware configuration, and whether the existing CPU firmware supports the current GSD/GSDML file version for this module. In mixed-generation installations — where an S7-1500 CPU may be managing both new ET 200SP stations and legacy ET 200S or ET 200M racks — careful attention to module addressing and I/O mapping in the PLC program is essential to avoid signal conflicts during commissioning.

Power budget verification is another non-negotiable step. The ET 200SP backplane distributes both the 24 VDC load current and the internal bus supply. Adding or replacing digital input modules affects the total current draw on the BaseUnit power bus. Engineers should cross-reference the power consumption data of the 6ES7131-6BF00-0BA0 against the capacity of the installed PM-E power module — such as the 6ES7138-6AA01-0AA0 — to ensure the supply margin remains within specification, particularly in high-density I/O cabinets where thermal derating may apply.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6ES7131-6BF00-0BA0 typically begins with a full audit of the existing I/O station. In S7-300 installations using SM 321 digital input cards mounted on a central rack, the migration path generally involves introducing an ET 200SP distributed I/O station connected via PROFINET to the new or upgraded CPU — such as a CPU 1515-2 PN or CPU 1516-3 PN/DP. The 6ES7131-6BF00-0BA0 slots into the ET 200SP station alongside other module types, including analog input modules from the 6ES7134-6 series, digital output modules such as the 6ES7132-6BF00-0BA0, and communication modules for serial or IO-Link integration.

For installations that previously relied on PROFIBUS DP — common in ET 200S and ET 200M deployments — the migration to PROFINET requires replacing the interface module. The ET 200SP IM 155-6 PN ST (6ES7155-6AU01-0BN0) is the standard interface module for new PROFINET-based ET 200SP stations and must be installed at the left end of the BaseUnit rail before any I/O modules, including the 6ES7131-6BF00-0BA0, are added. Engineers migrating from PROFIBUS should also verify that the HMI screens — typically running on a TP700 Comfort or similar SIMATIC HMI panel — are updated to reflect the new I/O tag addresses, as PROFINET slot assignments may differ from the legacy PROFIBUS configuration.

Signal isolation requirements should also be reviewed during retrofit planning. In environments with high electrical noise — such as motor control centers or variable frequency drive cabinets — adding a signal isolator or surge protection terminal block between field sensors and the 6ES7131-6BF00-0BA0 input terminals can prevent nuisance faults and protect the module from transient damage. This is especially relevant when reusing existing field wiring from a decommissioned S7-300 installation, where cable shielding and grounding practices may not meet current ET 200SP installation guidelines.

Downtime Control During System Migration

Minimizing production downtime during a control system migration requires a structured cutover strategy. For the 6ES7131-6BF00-0BA0 and the broader ET 200SP station, the recommended approach is to pre-configure and test the new hardware offline — using TIA Portal’s simulation tools or a bench test rack — before the scheduled maintenance window. This includes loading the updated hardware configuration, verifying module diagnostics, and confirming that all 8 digital input channels respond correctly to test signals.

During the physical cutover, field wiring should be transferred terminal by terminal, with each circuit verified against the updated I/O list before the next is disconnected. If the existing installation uses a WAGO or Phoenix Contact marshalling cabinet, pre-wired patch cables can significantly reduce reconnection time. Once the ET 200SP station is powered and the PROFINET link is established, the CPU should perform a warm restart — not a memory reset — to preserve the existing program logic and retain retentive data areas. This approach protects the original ladder or function block program and avoids the need for a full recommissioning cycle.

Post-cutover, a structured functional test should confirm that all field devices connected to the 6ES7131-6BF00-0BA0 inputs are correctly detected, that diagnostic messages are cleared in the CPU fault buffer, and that the HMI displays the correct process states. Our pre-shipment testing protocol ensures that every module shipped has been verified for channel-level functionality, reducing the risk of DOA failures during a time-critical cutover window. Combined with our support terms confirmed by quotation coverage, this gives engineering teams confidence that the replacement module will perform reliably from day one.

Retrofit Support FAQ

Q1: Is the 6ES7131-6BF00-0BA0 a direct replacement for ET 200S digital input modules?
Not a pin-for-pin drop-in — the ET 200SP uses a different BaseUnit and backplane architecture compared to ET 200S. However, it is the recommended functional replacement for 8-channel 24 VDC digital input applications when migrating from ET 200S to ET 200SP. Field wiring can typically be reused with appropriate BaseUnit terminal selection.

Q2: What commissioning steps are required after installing this module?
After physical installation, download the updated TIA Portal hardware configuration to the CPU, perform a warm restart, and verify that the module appears online without fault indicators. Check the I/O address assignment matches your PLC program’s variable table. Run a channel-by-channel input test using a 24 VDC test signal before returning the system to automatic mode.

Q3: Can this module be used in an existing ET 200SP station without replacing the interface module?
Yes — if the existing ET 200SP station already uses a PROFINET interface module (IM 155-6 PN series), the 6ES7131-6BF00-0BA0 can be added or substituted in any available slot with a compatible BU type A0 BaseUnit. No interface module replacement is required. Confirm slot count and power budget before adding modules to an existing station.

Q4: What does the support terms confirmed by quotation cover, and is pre-shipment testing included?
All units are functionally tested prior to shipment, covering channel-level I/O response, backplane communication, and power-on diagnostics. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and expedited replacement to minimize impact on production continuity.
