SIEMENS 6DS1731-8RR Migration-Ready Analog Input for Legacy Systems

Overview

SIEMENS 6DS1731-8RR Migration-Ready Analog Input for Legacy Control Systems

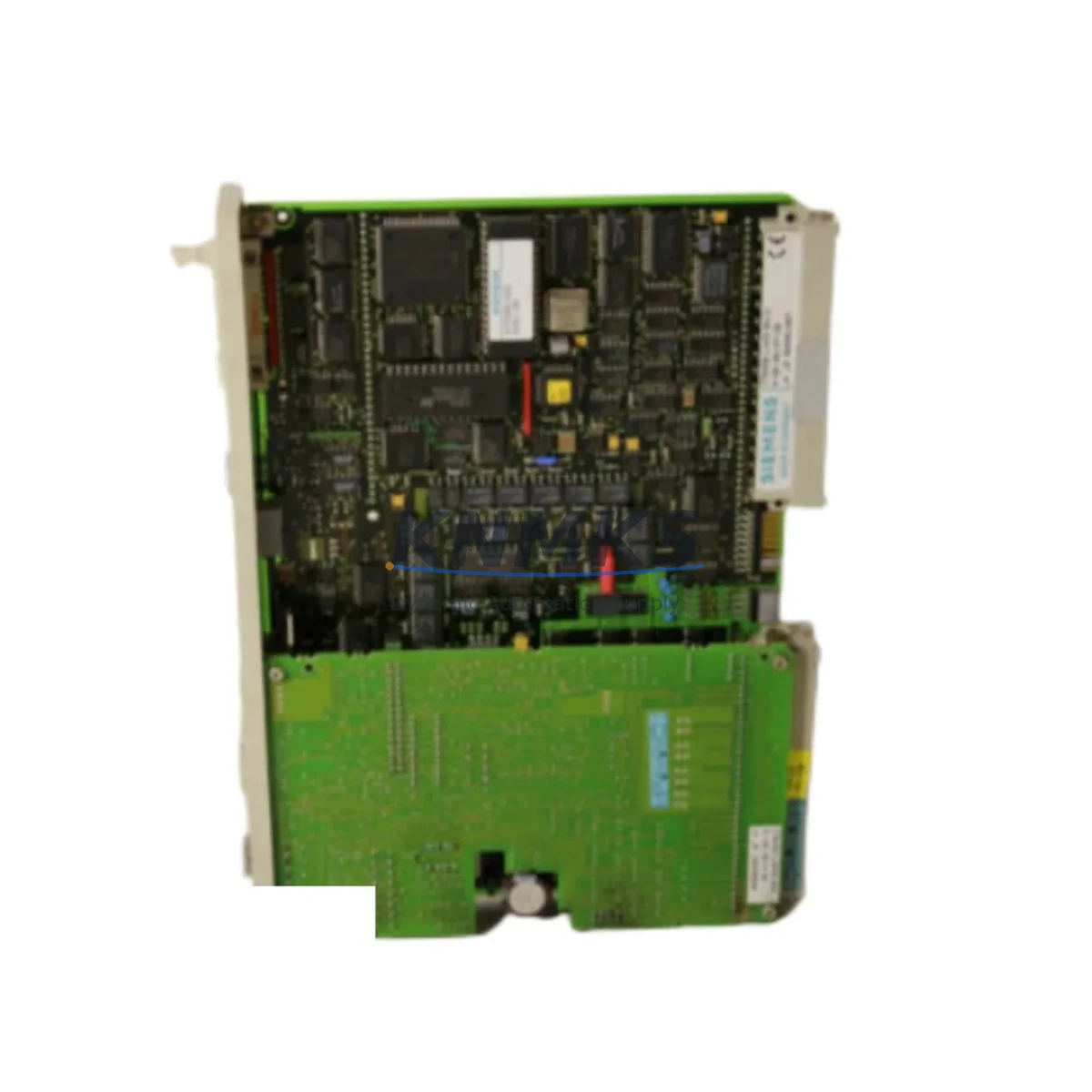

The SIEMENS 6DS1731-8RR is a retrofit-ready analog input module engineered for the TELEPERM M distributed control system (DCS) platform. As legacy TELEPERM M installations approach end-of-life and original spare parts become increasingly scarce, the 6DS1731-8RR serves as a critical component in sustaining operational continuity, extending system lifespan, and supporting structured migration to modern control architectures. Whether you are replacing a failed unit on an active production line, restocking safety-critical spares, or executing a phased control cabinet upgrade, this module provides the electrical and mechanical compatibility required for a reliable, low-risk retrofit.

The 6DS1731-8RR accepts standard analog process signals and interfaces directly with the TELEPERM M backplane, preserving existing terminal wiring, module addressing, and HMI display configurations. Engineers undertaking a replacement must verify the power supply rail capacity within the rack — the TELEPERM M power supply modules such as the 6DS1700-series PSU must be confirmed to support the additional load if multiple modules are being replaced simultaneously. Terminal block wiring should be mapped against the original I/O list before removal of the legacy unit to prevent signal inversion or channel offset errors during recommissioning.

Backplane slot addressing is a common source of commissioning delay during TELEPERM M retrofits. The 6DS1731-8RR must be installed in the correct rack position as defined in the original system configuration database. If the configuration database has been lost or corrupted, the module address must be reconstructed from the HMI faceplate assignments or from archived loop diagrams. Where the original SIEMENS PROGRAF or STEP programming environment is no longer available, third-party configuration tools compatible with the TELEPERM M protocol set may be required to validate channel assignments before live commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TELEPERM M retrofit begins well before the replacement module arrives on site. The first step is a full audit of the control cabinet: document every occupied rack slot, confirm the rack model (typically a 6DS1600-series subrack), and record the current power consumption per rail. If the cabinet also houses a 6DS1702-series power supply module, verify that its output capacity accommodates the full complement of analog and digital I/O modules after replacement. Undersized power supply headroom is a leading cause of intermittent faults following module swaps.

For sites where the TELEPERM M system communicates upstream to a SIEMENS PCS 7 or SIMATIC S7 supervisory layer via a PROFIBUS DP gateway or a CS275 bus coupler, the communication link must be validated after module replacement. A 6DS1731-8RR swap does not alter the bus topology, but any interruption to the backplane during installation can cause the bus coupler to lose its node table. A controlled restart sequence — powering down the affected subrack, inserting the replacement module, and performing a cold restart of the bus coupler — is recommended to restore clean communication.

Where the retrofit scope extends beyond a single module replacement to a broader I/O expansion or control cabinet modernisation, engineers should also assess the availability of compatible 6DS1600-series subracks, 6DS1780-series digital output modules, and 6DS1760-series digital input modules to ensure a consistent hardware generation across the rack. Mixing hardware generations within a single TELEPERM M rack can introduce timing and addressing conflicts that are difficult to diagnose without access to the original system documentation.

For sites transitioning from TELEPERM M to a modern DCS or PLC platform, the 6DS1731-8RR can serve as a bridging component during a phased migration. By maintaining the existing analog input layer while the supervisory and communication layers are upgraded, engineers can preserve field wiring, reduce the scope of loop testing, and limit the migration to one control layer at a time. Signal isolators and marshalling panels may be required at the interface between the legacy TELEPERM M I/O and the new controller backplane to manage signal level differences and ground loop risks.

Downtime Control During System Migration

Minimising unplanned downtime during a TELEPERM M module replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 6DS1731-8RR should be bench-tested against a known-good power supply to confirm that the module powers up correctly and that all channel indicators respond as expected. This pre-shipment functional test, which KNMKS performs on all outgoing units, reduces the risk of discovering a secondary fault during the live replacement window.

On site, the original program logic stored in the TELEPERM M central processing unit should be backed up to an external storage medium before any hardware change is made. If the site uses a SIEMENS PROGRAF programming terminal or a compatible engineering workstation, a full configuration export should be completed and verified. This backup protects against the rare but serious scenario where a backplane disturbance during module removal causes a configuration memory fault in the CPU.

During the physical swap, the field terminal block should be disconnected before the module is withdrawn from the rack. This prevents transient signals from reaching the new module during insertion and avoids nuisance alarms on the HMI. After insertion, the terminal block should be reconnected and each channel verified against the loop diagram before the process is returned to automatic control. A channel-by-channel signal check using a portable process calibrator confirms that the new module is reading correctly across the full input range before handover to the operations team.

For critical process loops where even a brief interruption is unacceptable, a hot-standby bypass strategy using a portable signal conditioner can maintain the control output at its last value while the module is exchanged. This approach is particularly effective for temperature and pressure control loops where a sudden loss of the process variable would trigger a safety interlock or cause a process upset.

Retrofit Support FAQ

Q1: Is the 6DS1731-8RR a direct replacement for the original SIEMENS TELEPERM M analog input module?
Yes. The 6DS1731-8RR is a direct drop-in replacement for the original TELEPERM M analog input module of the same part number. It is mechanically and electrically compatible with the TELEPERM M subrack and backplane. No wiring modifications or configuration changes are required for a like-for-like replacement.

Q2: What commissioning steps are required after installing the 6DS1731-8RR?
After physical installation, verify the module slot address against the system configuration, reconnect the field terminal block, and perform a channel-by-channel signal check using a process calibrator. Confirm that the HMI displays the correct process variable for each channel before returning the loop to automatic control. If the system uses a bus coupler for upstream communication, perform a controlled bus restart to ensure the node table is correctly re-established.

Q3: Does KNMKS provide pre-shipment testing for the 6DS1731-8RR?
Yes. All 6DS1731-8RR units dispatched by KNMKS are functionally tested prior to shipment. Each unit is powered up and channel outputs are verified against specification. A test record is available on request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q4: What is the lead time and stock availability for the 6DS1731-8RR?
The 6DS1731-8RR is held availability confirmed by RFQ and available for immediate dispatch. Standard lead time for in-stock units is 1–3 business days depending on destination. For urgent requirements or bulk orders, contact admin@knmks.com or call +86 18359268345 to confirm availability and arrange priority shipment.
