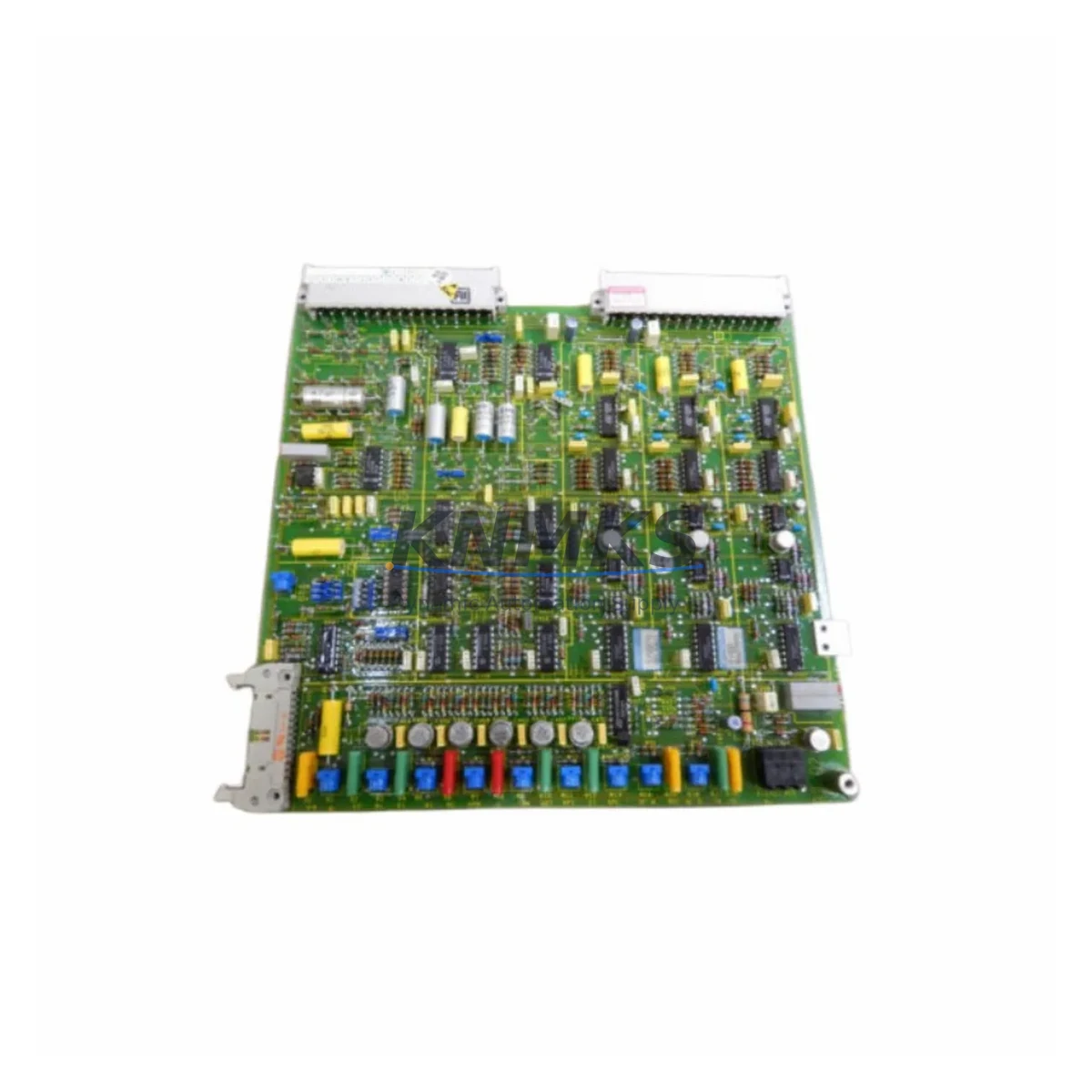

Siemens 6DM1001-2LA02-2 Migration-Ready DC Drive Card

Overview

Siemens 6DM1001-2LA02-2 Migration-Ready DC Drive Card for Legacy Control Systems

The Siemens 6DM1001-2LA02-2 is a DC drive control card engineered for the SIMOREG DC Master platform — one of Siemens’ most widely deployed DC drive series in heavy industrial environments. As legacy SIMOREG installations approach end-of-service milestones and original spare parts become increasingly scarce, the 6DM1001-2LA02-2 serves as a verified, migration-ready replacement card that allows plant engineers to extend the operational life of existing DC drive cabinets without committing to a full drive replacement or control system overhaul.

This card is particularly relevant for facilities operating aging production lines where the SIMOREG DC Master drives are embedded in multi-axis control architectures, coordinated through PROFIBUS-DP networks, or interfaced with legacy Siemens S5 or early S7-300 PLCs. The 6DM1001-2LA02-2 maintains the original board form factor, terminal layout, and firmware interface expected by the host drive chassis, making it a practical choice for minimizing retrofit scope and controlling downtime during card-level replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6DM1001-2LA02-2 into an existing SIMOREG-based control cabinet requires a structured pre-retrofit assessment. Before removing the failed or degraded card, engineers should document the current parameter set using DriveMonitor or a compatible commissioning tool, capturing all drive parameters — particularly P-group settings related to current limits, ramp times, encoder feedback, and field weakening curves — so that the replacement card can be restored to the same operational state without re-engineering the drive application.

Power supply capacity within the control cabinet must be verified. The SIMOREG DC Master platform typically draws regulated 24 VDC logic supply from a dedicated Siemens SITOP power supply module; confirm that the existing SITOP unit can sustain the inrush and steady-state current demand of the replacement card alongside other active modules in the cabinet. If the cabinet also houses a Siemens OP7 or OP17 HMI panel connected to the drive via MPI or PROFIBUS, verify that the HMI screen assignments and drive parameter read/write blocks remain valid after the card swap — HMI variable mappings tied to specific parameter addresses may require re-validation.

For systems where the SIMOREG drive communicates upstream to a Siemens S7-300 CPU via PROFIBUS-DP, the DP slave address configured on the 6DM1001-2LA02-2 must match the address stored in the S7 hardware configuration. Any mismatch will prevent the PLC from establishing a cyclic data exchange with the drive, resulting in a DP bus fault. If the site uses a Siemens CP 342-5 or CP 443-5 communication processor to manage the PROFIBUS segment, confirm that the GSD file loaded in STEP 7 corresponds to the firmware version present on the replacement card.

I/O expansion modules connected to the same control rack — such as Siemens SM 321 digital input modules or SM 331 analog input modules — should be inspected for address conflicts if the retrofit involves any rack reorganization. In multi-drive installations where several SIMOREG units share a common DC bus, the replacement of one control card should be coordinated with a review of the master-follower torque sharing configuration to ensure that the restored drive re-enters the speed or torque control loop correctly after commissioning.

Where the original installation used a Siemens programming cable (PC Adapter USB or MPI/DP adapter) for parameter upload and download, confirm that the cable driver version is compatible with the commissioning software being used on-site. Outdated cable drivers are a common source of communication errors during retrofit commissioning and can significantly extend on-site engineering time if not resolved before the maintenance window begins.

Downtime Control During System Migration

Minimizing production downtime during a DC drive card replacement requires preparation that begins well before the maintenance window. The most effective approach is to pre-configure the replacement 6DM1001-2LA02-2 card off-line using a bench test setup or a spare drive chassis, loading the documented parameter set and verifying basic drive response before the card is transported to the production floor. This eliminates the need for on-site parameter entry during the live maintenance window and reduces the risk of transcription errors under time pressure.

During the physical swap, the original card’s terminal wiring should be photographed and labeled before disconnection. The SIMOREG DC Master card slot uses a combination of plug-in connectors and screw terminals; incorrect re-termination of encoder feedback signals, field current feedback, or analog speed reference inputs will prevent the drive from operating correctly and may trigger protective shutdowns that are difficult to diagnose without the original wiring documentation.

After card installation, the commissioning sequence should follow the standard SIMOREG startup procedure: verify logic supply voltage, confirm PROFIBUS communication status on the PLC diagnostic display, perform a no-load motor test at reduced speed reference, and progressively restore the drive to full operational speed under load. If the system includes a Siemens SIMATIC S7 CPU with a watchdog-controlled safety interlock, ensure that the interlock logic is temporarily bypassed or acknowledged during the commissioning phase to prevent nuisance trips from interrupting the startup sequence.

All replacement cards supplied by KNMKS are subject to pre-shipment functional testing. Each unit is verified for basic electrical integrity and communication response before dispatch, reducing the probability of receiving a non-functional card and the associated risk of a failed maintenance window. A support terms confirmed by quotation cover the replacement card against manufacturing defects and premature failure under normal operating conditions.

Retrofit Support FAQ

Q: Is the 6DM1001-2LA02-2 a direct drop-in replacement for the original SIMOREG DC Master control card?
A: The 6DM1001-2LA02-2 is designed to match the original SIMOREG DC Master card in form factor, terminal layout, and backplane interface. However, firmware version compatibility should be confirmed before installation, as some SIMOREG chassis revisions may require a specific card firmware to operate correctly. Contact our technical team with your drive nameplate data for confirmation.

Q: Can I reuse the existing parameter set from the failed card?
A: If the original card’s parameters were backed up using DriveMonitor or STARTER prior to failure, the parameter file can typically be restored to the replacement card. If no backup exists, parameters will need to be re-entered manually based on the original commissioning documentation or re-derived from the motor nameplate and application requirements.

Q: What should I check regarding PROFIBUS communication after installing the replacement card?
A: Verify that the PROFIBUS node address on the replacement card matches the address configured in the PLC hardware configuration. Confirm that the GSD file version in STEP 7 or TIA Portal is compatible with the card firmware. Check the PROFIBUS cable termination resistors at both ends of the segment, particularly if the SIMOREG drive is the last node on the bus.

Q: What support terms and stock availability does KNMKS provide for this part?
A: All units are supplied with a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions. Stock availability is maintained for prompt dispatch; contact [email protected] or +86 18359268345 for current lead time and quantity confirmation.
