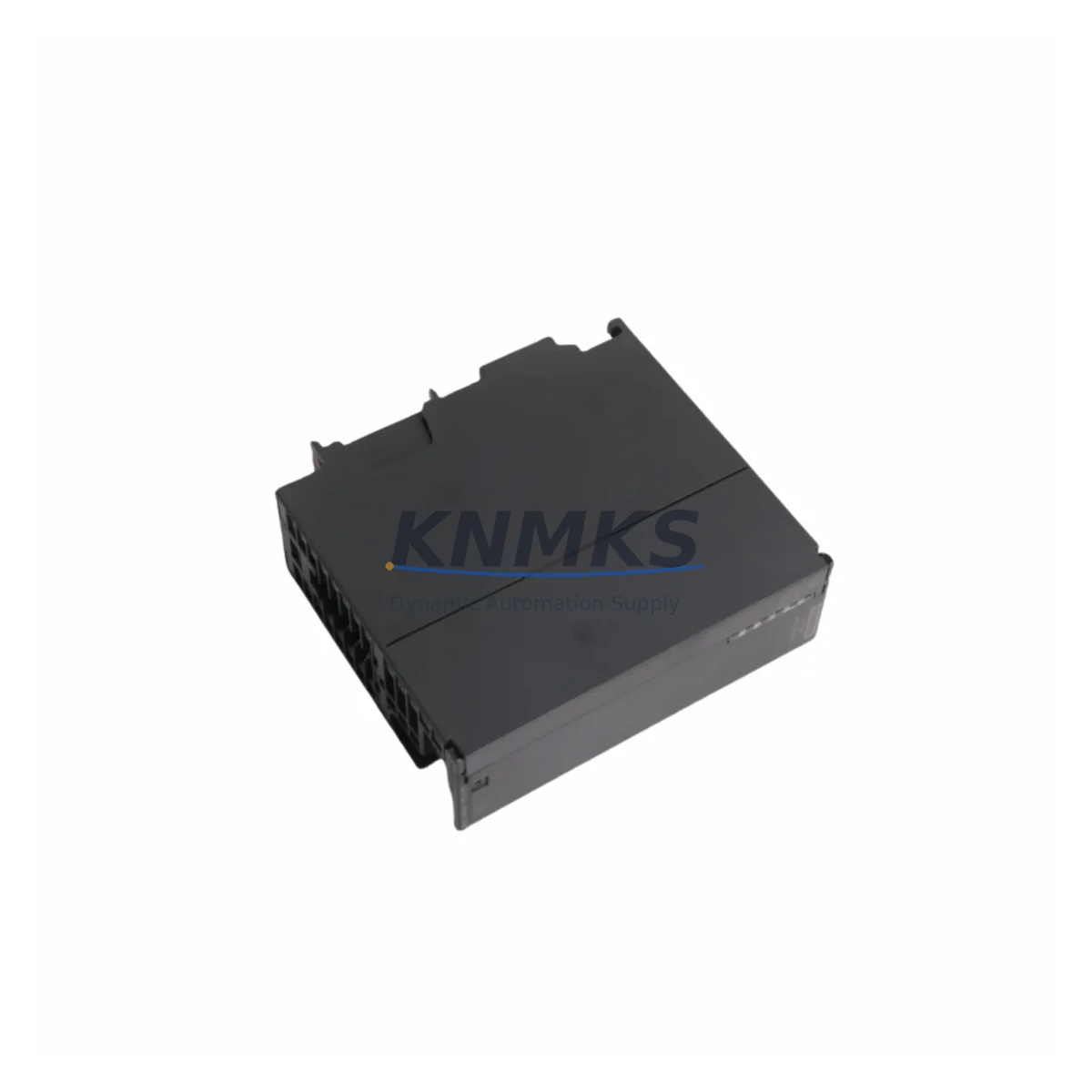

Siemens 6AG1341-1CH02-7AE0 Migration-Ready Serial CP for Legacy Control Systems

Overview

Siemens 6AG1341-1CH02-7AE0 Migration-Ready Serial CP for Legacy Control Systems

The Siemens 6AG1341-1CH02-7AE0 is a SIPLUS-grade serial communication processor designed for the SIMATIC S7-300 platform. Built to operate in extended environmental conditions, this module serves as a direct replacement for the standard CP 341 series and is widely deployed in legacy automation systems across process industries, utilities, and discrete manufacturing. Whether you are managing a scheduled outage upgrade, an emergency replacement of a failed communication module, or a phased migration from an aging S7-300 rack to a modern control architecture, the 6AG1341-1CH02-7AE0 provides a reliable, pre-tested, and immediately deployable solution.

This module supports RS232, RS422, and RS485 serial interfaces, enabling compatibility with a broad range of field devices, third-party controllers, barcode readers, weighing systems, and legacy SCADA terminals. Its conformal-coated PCB and extended temperature tolerance make it suitable for harsh industrial environments where standard modules may fail prematurely. For engineering teams managing end-of-life control cabinets or decommissioning older communication links, this module eliminates the need for protocol conversion hardware and preserves existing wiring infrastructure.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life CP 341 in an active S7-300 rack requires careful pre-migration planning to avoid unplanned downtime and configuration loss. Before removing the existing module, engineers should document the current slot address, the loaded communication driver (such as the Modbus RTU FB or 3964R block), and the parameter assignment data block stored in the CPU. The 6AG1341-1CH02-7AE0 installs in the same physical slot as the original CP 341, and the S7-300 backplane connector transfers both power and data bus signals without modification.

In systems where the CP 341 interfaces with a SIMATIC S7-300 CPU 315-2 DP or CPU 317-2 PN/DP, the module address assignment in STEP 7 HW Config must be verified after replacement to ensure the new module is recognized at the correct logical address. If the rack also contains a CP 343-1 Lean for Ethernet connectivity or a CP 342-5 for PROFIBUS DP, these modules are unaffected by the CP 341 swap and continue operating normally during the replacement window.

For systems using a SIMATIC IM 360/IM 361 expansion rack configuration, confirm that the total current draw on the affected rack remains within the PS 307 power supply capacity after module substitution. In most standard configurations, the 6AG1341-1CH02-7AE0 draws equivalent current to the original CP 341, so no power budget recalculation is required. However, if the rack is near its current limit, a brief audit of all installed modules — including SM 321 digital input modules, SM 331 analog input modules, and any installed FM 350 counter modules — is recommended before proceeding.

Terminal wiring on the RS232 or RS485 port should be photographed and labeled before disconnection. The 6AG1341-1CH02-7AE0 uses the same 9-pin sub-D connector pinout as the standard CP 341, so existing cables can be reconnected directly. For RS485 multi-drop networks, verify termination resistor settings at both ends of the bus before restoring communication.

Downtime Control During System Migration

Minimizing control system downtime during a CP 341 replacement begins with preparation completed before the maintenance window opens. The STEP 7 project file containing the CP 341 parameter assignment FB and the associated data block should be backed up to an offline programming device prior to the swap. If the CPU is a SIMATIC S7-300 with a memory card (MMC), the project can be uploaded directly from the CPU to preserve the current program state, including all communication parameters configured for the 6AG1341-1CH02-7AE0’s predecessor.

During the physical swap, the CPU should be placed in STOP mode to prevent spurious outputs and protect downstream field devices. After installing the 6AG1341-1CH02-7AE0 and reconnecting the serial cable, the parameter assignment function block must be called once during the first CPU RUN cycle to initialize the new module with the correct baud rate, parity, stop bits, and protocol selection. In most S7-300 applications, this initialization completes within the first program scan, and serial communication resumes within seconds of the CPU returning to RUN mode.

For systems where the CP 341 drives a critical HMI link — such as a SIMATIC OP 277 or TP 177B panel communicating via MPI or a serial ASCII protocol — the HMI connection should be tested immediately after the CPU returns to RUN to confirm that process values are updating correctly. If the HMI uses a dedicated serial cable connected directly to the CP 341’s RS232 port, no HMI reconfiguration is required. The replacement module is transparent to the HMI application layer, and existing screen logic, tag assignments, and alarm configurations remain fully intact.

Retrofit Support FAQ

Q: Is the 6AG1341-1CH02-7AE0 a direct drop-in replacement for the standard 6ES7341-1CH02-0AE0?
A: Yes. The SIPLUS 6AG1341-1CH02-7AE0 is functionally equivalent to the standard CP 341 (6ES7341-1CH02-0AE0) and installs in the same S7-300 rack slot without hardware modification. The same STEP 7 parameter assignment FB and data block are used for configuration. The primary difference is the SIPLUS extended environmental rating, which provides additional protection against condensation, temperature extremes, and corrosive atmospheres.

Q: What serial protocols does this module support, and do I need to reload driver blocks after replacement?
A: The 6AG1341-1CH02-7AE0 supports ASCII, 3964(R), RK512, and loadable protocols including Modbus RTU and USS via Siemens-supplied function blocks. After physical replacement, the loadable driver FB stored in the CPU memory remains valid and does not need to be reloaded. Only the parameter assignment data block needs to be re-initialized by calling the configuration FB in the first RUN cycle.

Q: How is the module tested before shipment, and what does the support terms confirmed by quotation cover?
A: Every 6AG1341-1CH02-7AE0 unit undergoes a functional communication test prior to dispatch, verifying serial port operation across all supported interface types. The support terms confirmed by quotation cover hardware defects and communication failures under normal operating conditions. Units that fail within the confirmed support period are replaced or repaired at no additional cost, with priority dispatch to minimize impact on production continuity.

Q: Is stock available for immediate dispatch, and can I order multiple units for a planned migration project?
A: Yes. The 6AG1341-1CH02-7AE0 is held in multi-region stock to support both emergency replacements and scheduled migration projects. Single units and bulk orders are available. For planned outage projects requiring multiple CP 341 replacements across several racks or sites, contact the sales team to confirm availability and lead time before your maintenance window.
