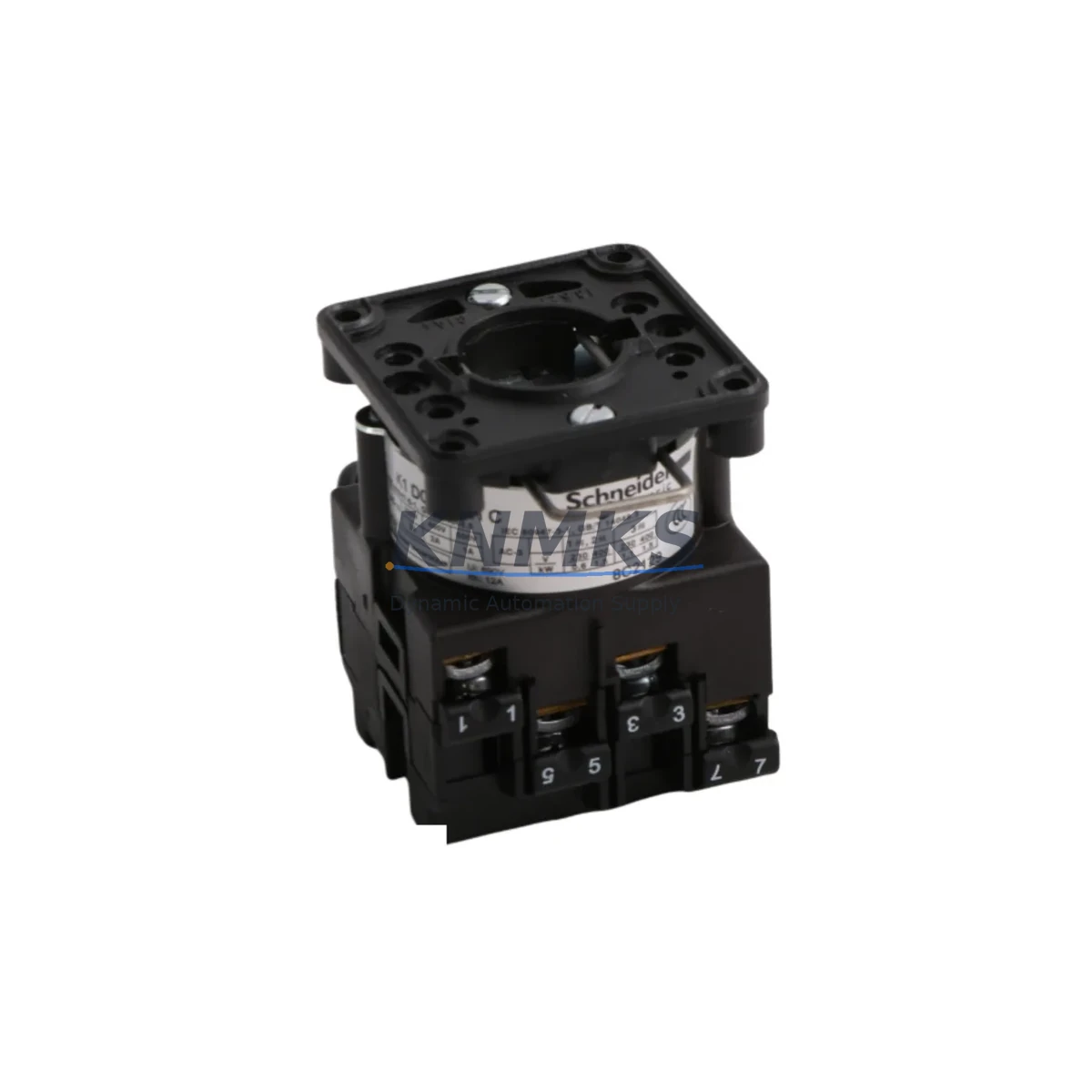

Schneider K1D004NCHC Migration-Ready Cam Switch for Legacy Systems

Overview

Schneider K1D004NCHC Migration-Ready Cam Switch for Legacy Control Systems

The Schneider Electric K1D004NCHC is a 4-position cam changeover switch from the Harmony K series, engineered for direct integration into legacy control panels, retrofit enclosures, and modernization projects across manufacturing, utilities, and process automation sectors. As original-equipment cam switches age out of production cycles or become difficult to source through standard distribution channels, the K1D004NCHC serves as a verified drop-in replacement that preserves existing wiring layouts, panel cutout dimensions, and operator interface conventions — minimizing engineering rework and reducing planned downtime during switchgear upgrades.

Before committing to a retrofit installation, engineers should confirm several critical parameters: terminal block pitch and conductor cross-section compatibility with existing panel wiring (typically 1.5–4 mm² for control circuits), the rotary cam position sequence against the original switching diagram, and the actuator shaft depth relative to the panel door thickness. The K1D004NCHC uses a standard 22 mm mounting footprint consistent across the Harmony K platform, which simplifies direct substitution in cabinets originally built around Telemecanique K-series components — a common scenario in plants operating equipment from the 1990s through early 2000s.

In multi-drive control panels where the K1D004NCHC governs local/remote or manual/automatic changeover logic, it is frequently installed alongside the Schneider Electric TeSys D LC1D series contactor for motor switching and the Harmony XB4 pushbutton and pilot light assemblies for operator command stations. These components share the same 22 mm panel cutout standard, enabling consistent front-panel layouts without custom adapters. Where the control cabinet also houses a Modicon M340 or M580 PLC, the cam switch position feedback is typically wired into discrete input modules — confirm the input voltage level (24 VDC or 110/230 VAC) matches the installed I/O module specification before finalizing the wiring schedule.

For systems migrating from relay-logic panels to PLC-based architectures, the K1D004NCHC provides a mechanically reliable selector interface that does not require firmware changes or protocol configuration — a significant advantage when the surrounding control system is undergoing a phased upgrade. In such projects, the cam switch is often retained as a hardwired safety interlock while the main control logic transitions to a Schneider Electric Modicon TM221 or TM241 controller. Engineers should verify that the new PLC’s discrete input scan time is fast enough to capture the cam switch transition without debounce errors, particularly in applications with rapid mode-switching requirements.

Where communication protocol migration is part of the broader project scope — for example, moving from Uni-Telway or Modbus RTU to Ethernet/IP or Modbus TCP — the K1D004NCHC’s hardwired position outputs remain protocol-agnostic and continue to function independently of the network layer. This makes it a stable anchor point during phased migrations where not all field devices are converted simultaneously. In such architectures, a Schneider Electric BMXNOE0100 or TSXETY110 Ethernet communication module may be added to the existing rack while the cam switch continues to provide local manual override capability without any software dependency.

Stock availability for the K1D004NCHC is maintained to support both immediate replacement needs and planned maintenance schedules. Each unit is pre-shipment tested for contact resistance, mechanical cam detent integrity, and insulation resistance before dispatch. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and contact failure under normal operating conditions. For projects requiring multi-unit procurement or long-term supply agreements (12–36 months), volume pricing and reserved stock arrangements are available — contact the sales team with your project BOM and delivery schedule.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the K1D004NCHC into an existing automation system begins with a thorough audit of the control cabinet’s current population. In a typical legacy panel, the cam switch shares the door with Harmony XB4 or XB5 series pushbuttons and indicator lights, all using the 22 mm cutout standard — confirming that the K1D004NCHC slots into the existing aperture without panel modification. Behind the door, the control circuit typically routes through a Schneider Electric Zelio RSB or RXM relay module for signal amplification before reaching the PLC input card, a wiring topology that remains fully compatible with the K1D004NCHC’s contact outputs.

For cabinets housing a Modicon Premium TSX57 or Quantum 140 series PLC, the cam switch position signals are wired to discrete input modules on the backplane. Engineers should document the existing I/O address assignments and confirm that the replacement switch’s contact numbering aligns with the original wiring schedule — a mismatch here can cause incorrect mode selection in the PLC program without triggering a fault, making pre-commissioning continuity testing essential. Where the original program uses latched coils or SET/RESET logic tied to the cam switch inputs, no program modification is required as long as the contact sequence is preserved.

In panels where a Schneider Electric ATV312 or ATV630 variable speed drive is controlled via the cam switch’s local/remote selection output, verify that the drive’s terminal block assignment for the run-enable and reference-source selection inputs matches the cam switch contact wiring. Some legacy installations used the cam switch to simultaneously switch both the control source and the speed reference source, requiring careful re-termination to avoid unintended drive behavior during commissioning.

Where installation space is constrained — common in retrofit projects where new components must fit within an existing enclosure footprint — the K1D004NCHC’s compact Harmony K body depth is an advantage. Confirm the available depth behind the panel door, accounting for the wiring harness bend radius and any cable duct routing that may have been added during previous modifications.

Downtime Control During System Migration

Minimizing unplanned downtime during a cam switch replacement requires preparation before the maintenance window opens. The recommended approach is to photograph the existing wiring at the switch terminals, record the cam position sequence against the original switching diagram, and prepare a pre-labeled replacement wiring harness that can be transferred directly to the K1D004NCHC terminals without referencing the original documentation under time pressure.

Where the control system cannot tolerate a cold-swap outage, a parallel commissioning approach is possible: install the K1D004NCHC in a temporary test fixture, wire it to a bench PLC or relay test panel, and verify all four cam positions produce the correct contact states before the scheduled maintenance window. This eliminates on-site debugging time and reduces the live outage to the physical swap and re-termination only — typically achievable within a 30–60 minute window for a single cam switch replacement.

For systems where the cam switch governs a safety interlock or emergency stop circuit, confirm with the site safety officer that the replacement procedure complies with local lockout/tagout (LOTO) requirements. The K1D004NCHC’s mechanical cam detent provides a positive position indication that supports LOTO verification without requiring powered circuit testing. After re-energization, perform a full functional test of all cam positions under load before returning the system to automatic operation, and document the commissioning results for the site maintenance record.

Each K1D004NCHC unit shipped by KNMKS has been pre-tested for contact resistance and mechanical integrity, reducing the risk of a defective-unit scenario during a time-critical replacement. The support terms confirmed by quotation provides additional assurance for planned maintenance budgets, and in-stock availability supports same-day or next-day dispatch for urgent breakdown situations.

Retrofit Support FAQ

Q: Is the K1D004NCHC a direct replacement for legacy Telemecanique K1D series cam switches?
A: Yes. The K1D004NCHC is part of Schneider Electric’s Harmony K series, which is the direct successor to the Telemecanique K1D platform. The 22 mm mounting footprint, actuator dimensions, and terminal layout are consistent with the original K1D series, enabling direct substitution in most legacy panel installations. Confirm the cam position sequence and contact numbering against your original wiring diagram before installation.

Q: What pre-shipment testing is performed on each unit?
A: Every K1D004NCHC unit is tested for contact resistance across all cam positions, mechanical cam detent integrity, and insulation resistance between poles before dispatch. A test record is available on request. The unit is covered by a support terms confirmed by quotation from the shipment date.

Q: Can this cam switch be used with both 24 VDC and 110/230 VAC control circuits?
A: The K1D004NCHC’s contact outputs are voltage-agnostic — the switching voltage and current are determined by the control circuit design, not the switch itself. Verify that the selected cam switch contact rating (voltage and current) meets or exceeds the requirements of your specific control circuit before installation. Consult the Schneider Electric Harmony K datasheet for full contact ratings.

Q: Is long-term stock availability guaranteed for maintenance and spare parts planning?
A: KNMKS maintains stock of the K1D004NCHC to support both immediate breakdown replacements and planned maintenance schedules. For projects requiring multi-unit procurement or supply agreements covering 12–36 months of planned maintenance, contact the sales team with your project requirements. Volume pricing and reserved stock arrangements are available for qualified projects.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Schneider Electric
Assorted Brands

Model / Series

K1D004NCHC
Legacy Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Schneider Electric K1D004NCHC
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
