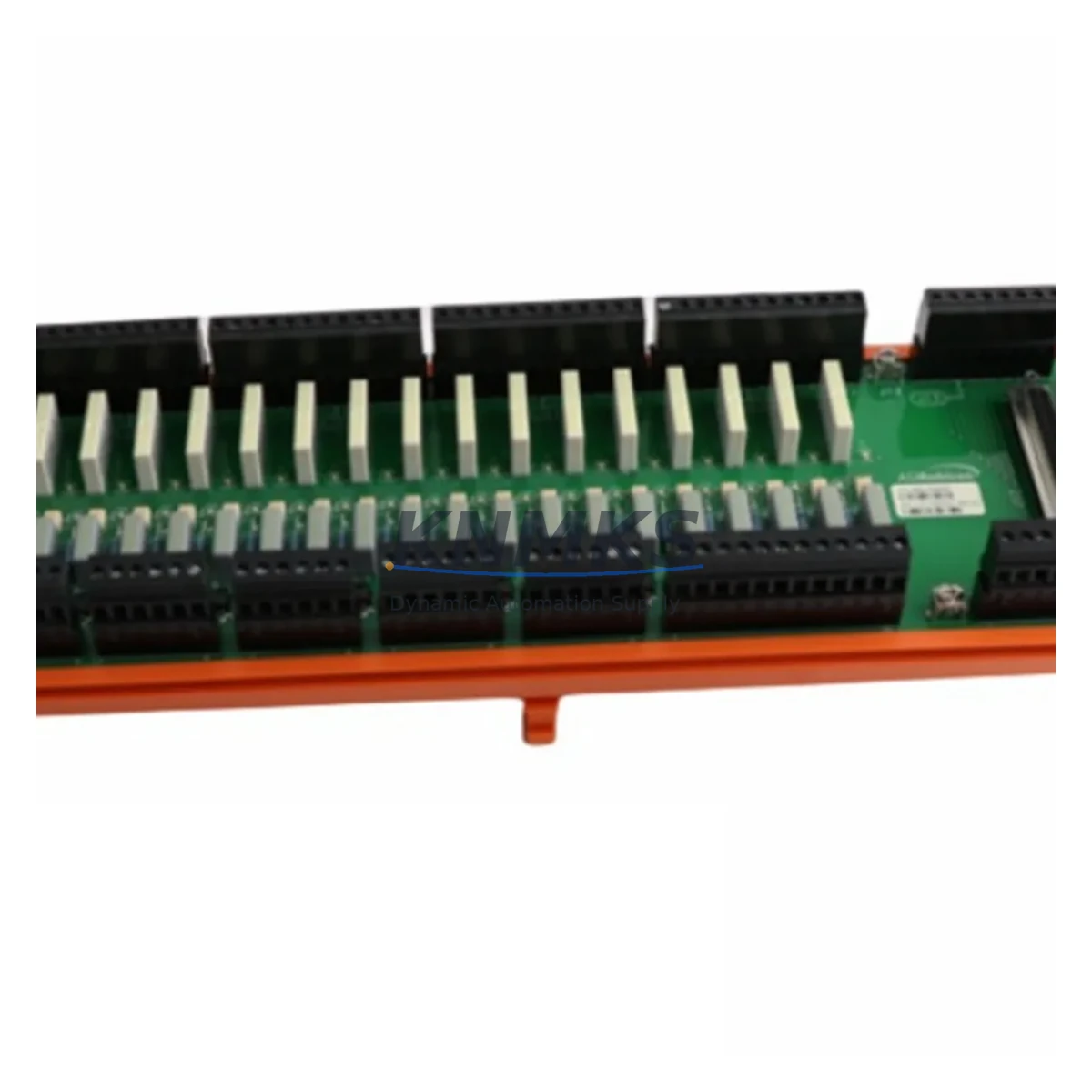

ROBICON A5E01649325 Fail-Safe Gate Signal Breakout Board

Overview

ROBICON A5E01649325 Fail-Safe Gate Signal Breakout Board: Critical Protection for Medium-Voltage Drive Reliability

In continuous-process industries where an unplanned drive trip can cascade into a full-line shutdown, the integrity of every gate signal path inside a medium-voltage variable frequency drive is non-negotiable. The ROBICON A5E01649325 Gate Signal Breakout Board is engineered to maintain precise, noise-immune IGBT firing signals within the Perfect Harmony CHB (Cascaded H-Bridge) power cell architecture — one of the most demanding high-power drive topologies in service today. By providing a clean, isolated interface between the fiber-optic control layer and the power semiconductor gate circuits, this board directly reduces the risk of nuisance trips, gate misfires, shoot-through faults, and uncontrolled motor coast-down events that threaten both production continuity and personnel safety.

Designed for operation inside high-voltage, high-current power cells where electromagnetic interference levels are extreme, the A5E01649325 incorporates robust signal conditioning and isolation barriers that preserve gate pulse fidelity even when adjacent IGBT switching events generate steep dV/dt transients. This is particularly critical in multi-cell CHB configurations where dozens of power cells operate in coordinated phase-shifted PWM sequences — any signal corruption at the gate level can propagate into asymmetric cell loading, DC bus imbalance, or catastrophic overcurrent conditions. Replacing a degraded or failed breakout board with a verified A5E01649325 restores the full protective margin of the original drive design without requiring cell replacement or drive derating.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A medium-voltage CHB drive cabinet is a complex, interdependent system where the failure of a single signal-level component can disable an entire production line. The A5E01649325 Gate Signal Breakout Board sits at the heart of this protection architecture, but its reliability depends on the health of the surrounding control ecosystem. In a properly maintained CHB cabinet, the breakout board works in concert with the ROBICON Perfect Harmony fiber-optic communication boards that carry gate commands from the central controller to each power cell — any degradation in fiber link quality directly stresses the breakout board’s input stage. Upstream, the CHB cell controller board (such as the A5E series cell control PCB) generates the PWM timing signals that the A5E01649325 distributes; a verified replacement of both boards together is recommended when investigating persistent gate fault alarms.

On the power supply side, the DC auxiliary power rails feeding the gate driver circuits must remain stable under the high-frequency switching noise inherent to IGBT operation. Pairing the A5E01649325 replacement with an inspection of the CHB cell auxiliary power supply module eliminates the most common root cause of recurring gate signal anomalies. For cabinets operating in high-humidity or dusty environments — common in cement plants, mining concentrators, and coastal petrochemical facilities — the cabinet air purge and pressurization system and door-mounted filter mats should be serviced concurrently to prevent contamination-induced creepage on the breakout board’s isolation barriers. Where surge events from nearby high-power motor switching are a documented concern, installing transient voltage suppression (TVS) modules on the cabinet’s incoming control power rails provides an additional layer of protection that extends the service life of sensitive signal-level boards including the A5E01649325.

Critical Industrial Safety Applications

The ROBICON A5E01649325 is in active service across some of the most demanding continuous-process and safety-critical industrial environments globally. In petrochemical and refinery applications, Perfect Harmony CHB drives control large compressor trains and boiler feed pumps where an uncontrolled trip triggers emergency shutdown sequences and significant production loss — the gate signal breakout board’s role in preventing nuisance trips directly supports process safety management objectives. In electric power generation and transmission, CHB drives are used for large induced-draft and forced-draft fan control; a gate misfire event in these applications can cause rapid motor deceleration that stresses mechanical couplings and creates hazardous pressure transients in boiler systems.

In underground and open-pit mining, CHB-driven conveyor and hoist systems operate in high-dust, high-vibration environments where control board reliability is a direct safety factor — a drive fault on a loaded hoist is a life-safety event. Municipal and industrial water treatment facilities rely on CHB drives for large pump stations where continuous operation is mandated; the A5E01649325 supports the uninterrupted gate signal integrity that keeps these systems online through grid disturbances and load fluctuations. In metallurgical and steel mill applications, rolling mill drives demand microsecond-level gate timing precision; any signal jitter introduced by a degraded breakout board translates directly into strip thickness variation and potential cobble events. Port and bulk terminal operators running CHB-driven ship loaders and stacker-reclaimers benefit from the board’s ability to maintain reliable operation through the high-EMI environment created by large crane drives and shore power systems operating in close proximity.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the A5E01649325?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions consistent with the ROBICON Perfect Harmony CHB platform specifications. If the board fails to perform its gate signal distribution and isolation function within the confirmed support period, we provide replacement or repair at no additional cost. The confirmed support period begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on each A5E01649325 unit?
Every unit undergoes full functional verification prior to dispatch, including signal path continuity checks, isolation barrier integrity testing, and visual inspection for component-level defects. This process ensures that each board shipped is confirmed operational and free from latent defects that could cause early field failure — a critical requirement for safety-related spare parts in continuous-process industries.

Q3: Is this board compatible with all Perfect Harmony CHB power cell variants?
The A5E01649325 is designed for the ROBICON Perfect Harmony CHB platform. Compatibility depends on the specific cell generation and power rating of your drive system. We recommend confirming your existing cell part number and drive series before ordering. Our technical team can assist with cross-referencing your cell configuration to confirm fitment — contact us at [email protected] with your drive nameplate data.

Q4: Can long-term supply be guaranteed for this end-of-life spare part?
Yes. We maintain dedicated inventory for critical CHB platform spare parts including the A5E01649325, with a long-term supply commitment to support maintenance programs for installed base drives. For facilities with multiple CHB drive systems, we recommend establishing a consignment or scheduled replenishment arrangement to ensure spare availability without lead-time risk during unplanned outages.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

A5E01649325
Assorted Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: Other Brands A5E01649325
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
