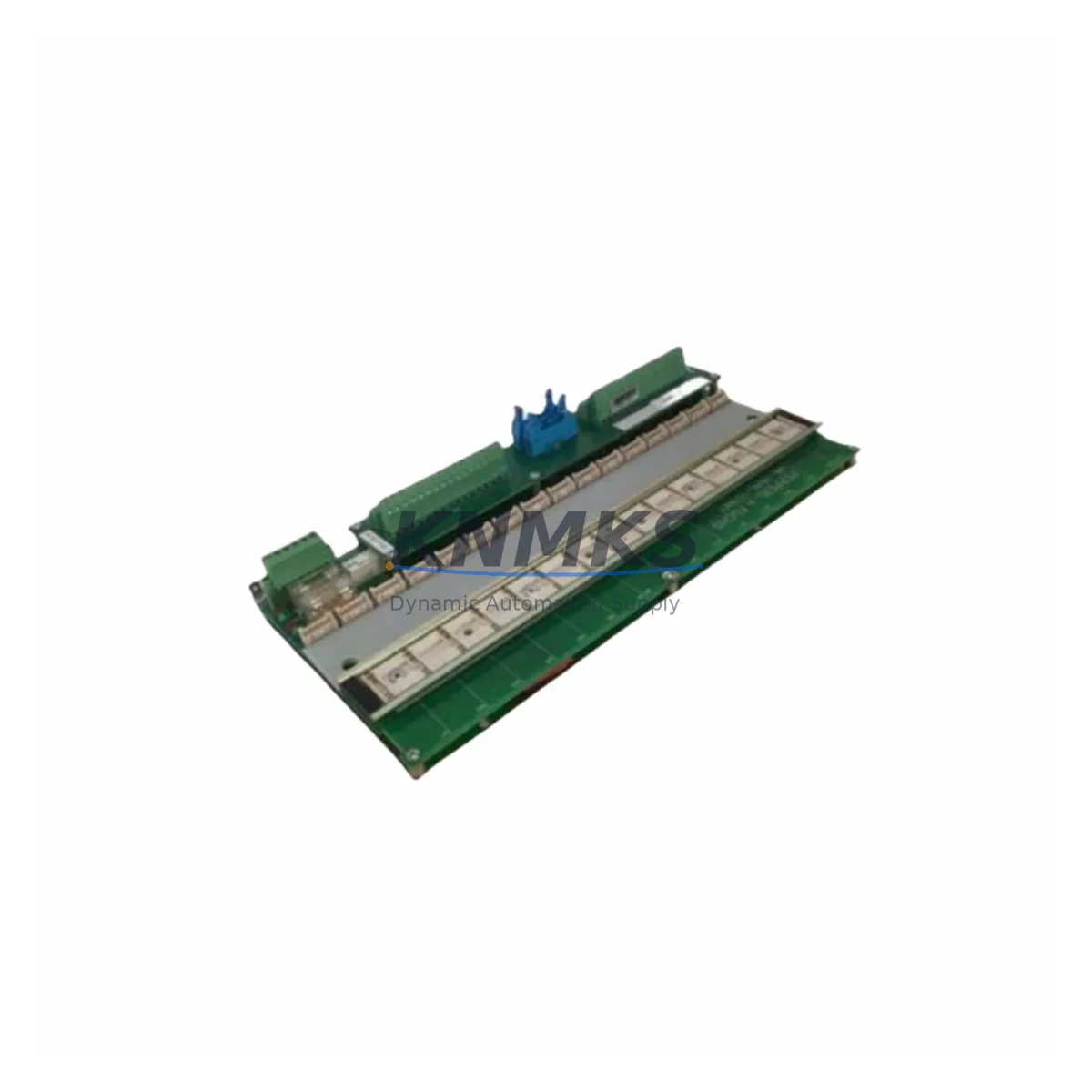

PEPPERL+FUCHS MB-16U5L-103681 DI32 Motherboard for Legacy DCS

Overview

PEPPERL+FUCHS MB-16U5L-103681 DI32 Motherboard for Legacy DCS Migration

The PEPPERL+FUCHS MB-16U5L-103681 is a migration-ready 32-channel digital input motherboard designed as a direct replacement for the discontinued MB-C3-DI32-AKB-131969 within the MB-C3 Series distributed control system platform. As legacy PEPPERL+FUCHS MB-C3 installations approach end-of-support milestones, engineering teams face increasing pressure to source verified, pre-tested replacement modules that preserve existing I/O architecture, terminal wiring, and control logic without requiring full system redesign. The MB-16U5L-103681 addresses this need with a form-fit-function compatible profile, enabling controlled, low-risk retrofits during planned maintenance windows or emergency outages.

This module is engineered for direct backplane insertion into MB-C3 Series racks, maintaining compatibility with the existing MB-C3 motherboard bus and field terminal assignments. Engineers replacing the MB-C3-DI32-AKB-131969 can retain original 32-channel DI wiring, preserving field cable labeling and marshalling cabinet layouts. Before installation, teams should verify backplane slot addressing, confirm 24 VDC field power supply capacity for the full 32-channel load, and review the DCS controller’s I/O map to ensure module address continuity. Where the host controller communicates via PROFIBUS DP or HART, the MB-16U5L-103681 maintains protocol transparency at the field level, avoiding the need for communication link reconfiguration.

In broader MB-C3 retrofit projects, the MB-16U5L-103681 is commonly deployed alongside complementary modules such as the MB-C3-DO16-AKB digital output motherboard for mixed I/O cabinets, the MB-C3-AI8-AKB analog input module for process variable acquisition, and the MB-C3-PS24 power supply module where cabinet power budgets require revalidation after module substitution. Installations involving communication-intensive segments may also require review of the MB-C3-COM gateway module to confirm that updated firmware versions remain compatible with the replacement DI32 board. For sites integrating legacy PEPPERL+FUCHS remote I/O with modern DCS platforms, the KFD2-STC4-Ex1 signal conditioner is frequently used to maintain intrinsic safety barriers on DI channels connected to hazardous area field devices.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful MB-C3 DI32 motherboard replacement begins with a structured pre-outage audit. Engineers should extract the current DCS I/O configuration database to document all 32 channel assignments, signal types (dry contact vs. wet contact), and scan cycle settings associated with the MB-C3-DI32-AKB-131969 slot. This baseline ensures that after the MB-16U5L-103681 is installed, the DCS controller can re-establish all channel mappings without manual re-entry, reducing commissioning time and the risk of signal inversion errors.

Cabinet-level preparation should include verification of the MB-C3-PS24 power supply module output under full 32-channel load, particularly in installations where additional modules — such as the MB-C3-AI8-AKB analog input board or MB-C3-DO16-AKB digital output board — share the same power rail. Thermal margin in the control cabinet should also be assessed, as aging enclosures may have reduced airflow capacity compared to original design specifications. Where intrinsic safety is required on DI channels, the KFD2-STC4-Ex1 signal conditioner wiring should be inspected and re-certified as part of the retrofit scope. For sites using PEPPERL+FUCHS remote I/O segments connected via PROFIBUS DP, the MB-C3-COM gateway module firmware version should be confirmed compatible with the replacement motherboard before the maintenance window begins.

Terminal block integrity is a critical checkpoint. Original MB-C3-DI32-AKB-131969 installations may have aged screw terminals with reduced torque retention. As part of the retrofit, all 32 field terminals should be re-torqued to specification and inspected for corrosion or insulation degradation. This step is particularly important in process industries where field cables run through humid or chemically aggressive environments. Completing this work during the planned outage avoids nuisance trips after the system returns to service.

Downtime Control During System Migration

Minimizing control system downtime during MB-C3 DI32 motherboard replacement requires a phased approach that protects original program logic and maintains field control continuity. Prior to the outage, the DCS engineering team should perform a full controller backup, capturing the I/O configuration, function block logic, HMI tag assignments, and alarm setpoints associated with the 32 DI channels served by the MB-C3-DI32-AKB-131969. This backup serves as the restoration baseline if commissioning of the MB-16U5L-103681 encounters unexpected issues.

During the replacement window, the recommended sequence is: isolate field power to the DI32 slot, remove the legacy MB-C3-DI32-AKB-131969 motherboard, insert the MB-16U5L-103681, restore field power, and initiate a DCS controller I/O scan to confirm all 32 channels report correctly. HMI faceplates associated with the DI32 channels should be monitored in real time during the first scan cycle to verify that signal states match expected field conditions. Any channel showing unexpected state changes should be investigated at the terminal block before the system is returned to automatic control.

For sites where continuous process monitoring is required, a temporary hardwired bypass on critical DI channels — such as emergency shutdown inputs or high-level switches — can maintain safety system integrity during the module swap. This bypass should be documented, approved by the site safety authority, and removed immediately after commissioning is confirmed. Total planned downtime for a single MB-C3 DI32 motherboard replacement, when pre-outage preparation is complete, typically ranges from 30 to 90 minutes depending on cabinet access and the number of channels requiring post-swap verification.

Retrofit Support FAQ

Q1: Is the MB-16U5L-103681 a direct replacement for the MB-C3-DI32-AKB-131969?
Yes. The MB-16U5L-103681 is designed as a form-fit-function replacement for the MB-C3-DI32-AKB-131969 within the PEPPERL+FUCHS MB-C3 Series platform. It installs into the same backplane slot, retains the original 32-channel DI terminal wiring, and maintains compatibility with the MB-C3 bus architecture. Engineers should verify the DCS I/O map and host controller firmware version before commissioning.

Q2: What pre-shipment testing is performed on the MB-16U5L-103681?
Every MB-16U5L-103681 unit undergoes 100% functional testing prior to shipment, including channel-level DI signal verification and backplane interface checks. Each unit ships with a test report and is covered by a support terms confirmed by quotation from the date of delivery. In-stock units are available for same-week dispatch to support emergency replacement requirements.

Q3: Do I need to reconfigure the DCS controller after installing the MB-16U5L-103681?
In most cases, no controller reconfiguration is required if the replacement module is installed in the same backplane slot as the MB-C3-DI32-AKB-131969. The DCS I/O map references the slot address, not the module serial number. However, engineers should perform a full I/O scan after installation and compare channel states against the pre-outage baseline to confirm all 32 DI channels are reporting correctly before returning the system to automatic control.

Q4: What is the lead time and support terms coverage for the MB-16U5L-103681?
The MB-16U5L-103681 is maintained in multi-region stock to support fast global dispatch. Standard lead time for in-stock units is 3–7 business days depending on destination. All units are covered by a support terms confirmed by quotation. For urgent emergency replacement requirements, expedited shipping options are available — contact [email protected] or call +86 18359268345 to confirm current stock availability and dispatch schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

PEPPERL+FUCHS
Assorted Brands

Model / Series

MB-16U5L-103681/MB-C3-DI32-AKB-131969
Legacy Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: PEPPERL+FUCHS MB-16U5L-103681/MB-C3-DI32-AKB-131969
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
