MKS 1179A23CR16V20 Migration-Ready MFC for Legacy Control Systems

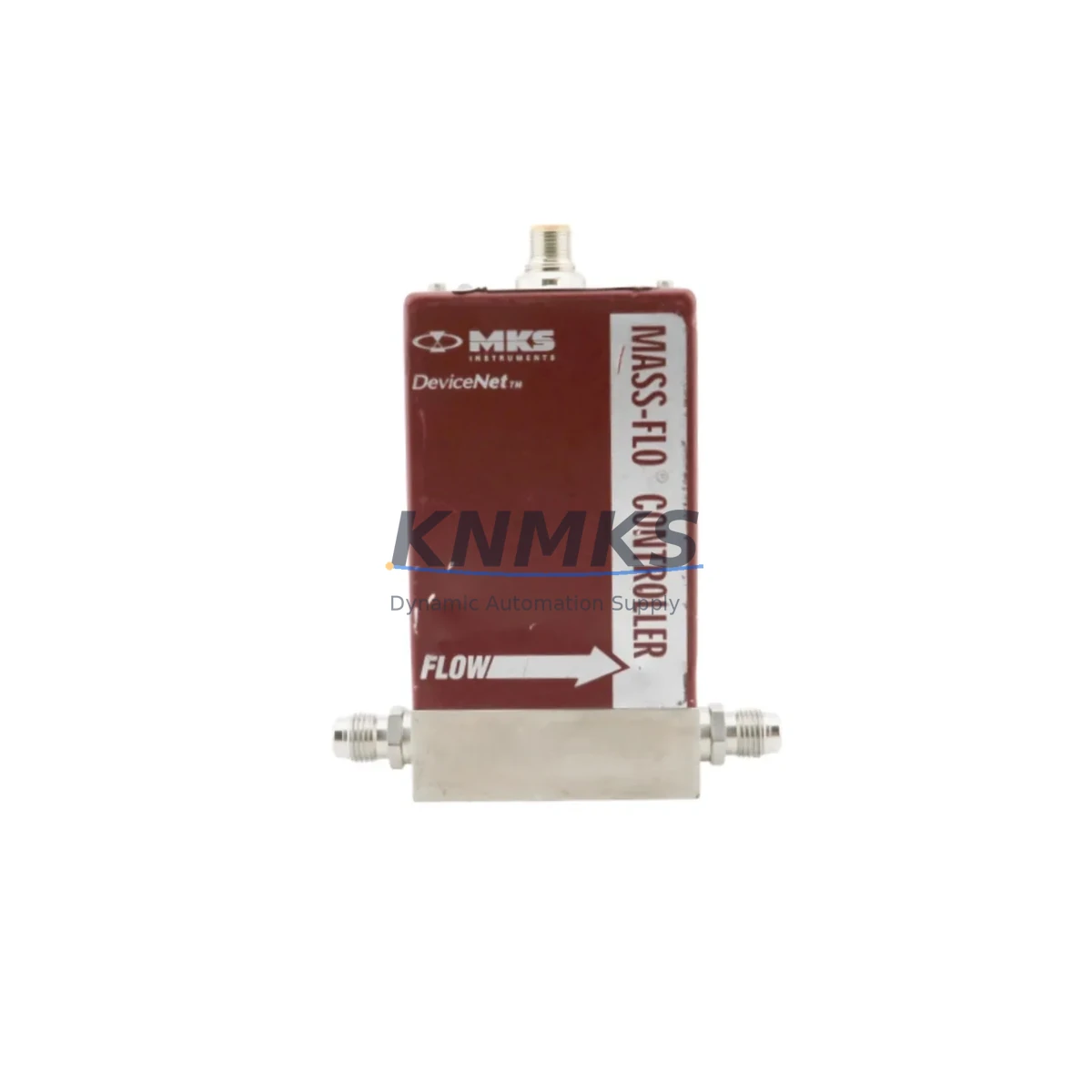

The MKS 1179A23CR16V20 is a migration-ready Mass Flow Controller (MFC) from MKS Instruments’ proven Mass-Flo® series, engineered to serve as a direct replacement for aging or discontinued flow control modules in legacy semiconductor process equipment, chemical vapor deposition (CVD) systems, and industrial gas delivery platforms. As OEM support for first-generation Mass-Flo controllers winds down, facilities managers and process engineers face increasing pressure to source verified replacement units that maintain process integrity without requiring full system redesigns.

This unit — also referenced under part numbers GASBOX2, 810-138047-005, and 800-1931 — delivers analog I/O compatibility with standard 0–5 VDC or 4–20 mA signal interfaces, making it a drop-in candidate for existing gas box assemblies and process tool controllers. Before committing to a retrofit, engineers should verify the following: supply voltage requirements (typically ±15 VDC), valve type and orifice sizing, gas species and full-scale flow range, connector pinout against the existing harness, and calibration gas traceability documentation. Mismatches in any of these parameters can introduce flow deviation errors that compromise process yield.

In legacy tool environments where the original MKS 247C or MKS PR4000B readout and control units remain in service, the 1179A23CR16V20 integrates without requiring firmware updates or protocol conversion — a critical advantage when downtime windows are measured in hours, not days. The analog signal architecture also ensures compatibility with older PLC-based supervisory systems that do not support digital fieldbus protocols such as DeviceNet or EtherNet/IP.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MKS 1179A23CR16V20 into a legacy process tool begins well before the unit arrives on-site. A structured retrofit plan should account for the full gas delivery subsystem, not just the MFC itself. In a typical GASBOX2 assembly, the MFC operates alongside upstream pressure regulators, isolation valves, and downstream pressure transducers — all of which must be evaluated for wear and compatibility before the new unit is commissioned.

Power distribution within the gas box is a common oversight. The ±15 VDC rails that feed the MFC are often shared with other analog instruments, including the MKS 122B or MKS 627D capacitance manometers used for process pressure measurement. If the existing power supply — frequently an MKS PR4000B multi-channel unit or a third-party ±15 VDC linear supply — is operating near its rated current capacity, adding a replacement MFC without auditing the load budget can introduce noise on the analog signal lines, degrading flow control accuracy.

Wiring and connector integrity deserve equal attention. The 15-pin D-sub harness connecting the MFC to the readout unit should be inspected for pin corrosion, insulation cracking, and shield continuity. In tools that have been in service for more than a decade, degraded cabling is a frequent source of erratic flow readings that are incorrectly attributed to the MFC itself. Replacing the harness at the same time as the MFC eliminates this variable and reduces the risk of a repeat service call.

For facilities running multiple process chambers from a shared gas panel, the retrofit sequence matters. Staggering MFC replacements chamber by chamber — rather than replacing all units simultaneously — allows the process team to validate flow performance and recipe repeatability on one chamber before committing the full production line to the new hardware. This approach also preserves the ability to cross-reference flow data between chambers during the qualification period.

Where the existing control architecture includes an MKS 651C or MKS 653B pressure controller managing downstream conditions, the MFC replacement should be coordinated with a review of the pressure control setpoints. Changes in MFC valve response characteristics — even within specification — can interact with downstream pressure control loops in ways that require PID retuning to maintain stable process conditions.

Downtime Control During System Migration

Minimizing unplanned downtime during an MFC replacement requires a disciplined pre-installation protocol. Before the tool is taken offline, the process engineer should document the current flow setpoints, controller gain settings on the MKS 247C or equivalent readout, and any recipe-level flow corrections that have been applied to compensate for drift in the outgoing unit. This baseline data is essential for rapid recommissioning after the new MFC is installed.

The physical swap itself — disconnecting the gas fittings, removing the MFC from the gas panel, installing the 1179A23CR16V20, and reconnecting the harness — can typically be completed within 30 to 60 minutes by a trained technician familiar with Mass-Flo hardware. The more time-intensive steps are the post-installation leak check, zero and span verification, and the flow linearity validation run required before the tool is returned to production. Planning for a total offline window of two to four hours is realistic for a single-MFC replacement in a well-documented tool.

To protect the original program logic and recipe structure, no changes to the host controller or PLC program should be made during the MFC swap. The analog signal interface of the 1179A23CR16V20 is designed to be transparent to the control system — the host sees the same 0–5 VDC or 4–20 mA signal it received from the original unit. If the process recipes reference flow correction factors or K-factors stored in the readout unit, these should be reviewed against the new MFC’s calibration data and updated only if the calibration gas or full-scale range differs from the original specification.

For facilities with strict change control requirements, the MFC replacement should be documented as a like-for-like substitution supported by the calibration certificate and the pre-shipment functional test report provided with each unit. This documentation package supports the qualification record and reduces the scope of the process re-qualification required before the tool returns to full production.

Retrofit Support FAQ

Q: Is the MKS 1179A23CR16V20 a direct drop-in replacement for the original 1179A series units in a GASBOX2 assembly?
A: Yes, for assemblies using the standard 15-pin D-sub connector and ±15 VDC supply. Confirm the gas species, full-scale flow range, and fitting type (VCR or face-seal) match the original specification before installation. Cross-reference part numbers 810-138047-005 and 800-1931 to verify configuration compatibility.

Q: What pre-shipment testing is performed on each unit?
A: Every MKS 1179A23CR16V20 supplied by KNMKS undergoes a full functional test prior to shipment, including power-on verification, zero and span check, and valve response confirmation. A calibration certificate is included with each unit. The support terms confirmed by quotation cover manufacturing defects from the date of shipment.

Q: Will I need to modify my PLC program or HMI screens after replacing the MFC?
A: No program or HMI modifications are required for a like-for-like replacement. The analog signal interface is identical to the original unit. If your system uses an MKS 247C or PR4000B readout, the channel configuration and K-factor settings should be reviewed against the new calibration data, but no changes to the host PLC or SCADA program are necessary.

Q: What is the typical lead time and do you maintain stock?
A: KNMKS maintains inventory of the MKS 1179A23CR16V20 to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. Contact our team to confirm current availability and arrange expedited shipping if your production schedule requires a faster response.
