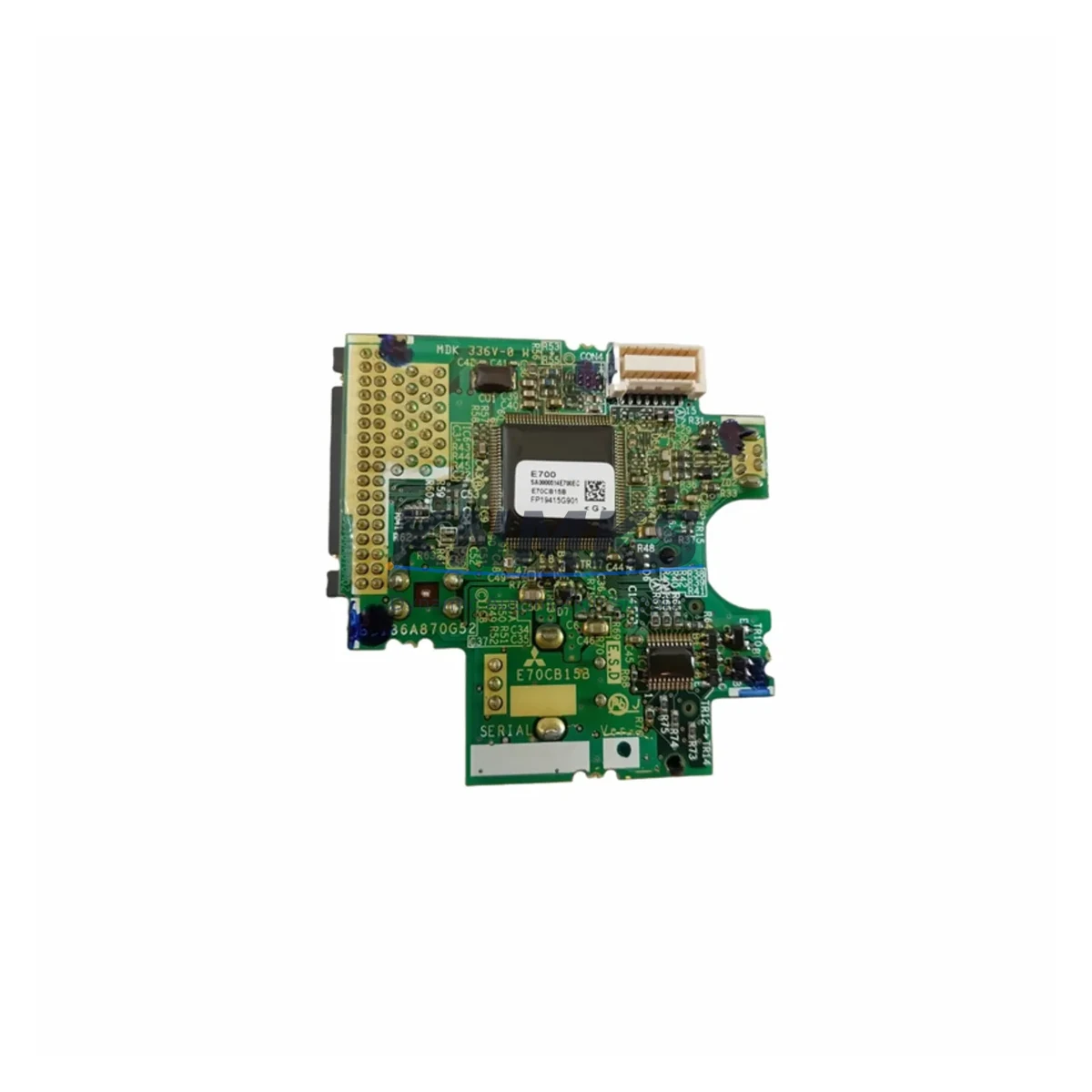

Mitsubishi E70CB15B Migration-Ready CNC CPU for Legacy Systems

Overview

Mitsubishi E70CB15B Migration-Ready CNC CPU for Legacy Systems

The Mitsubishi Electric E70CB15B is a CNC CPU module engineered for the MELDAS 70 Series control platform, widely deployed across legacy machining centers, turning centers, and multi-axis CNC systems. As original equipment reaches end-of-life and OEM support windows close, the E70CB15B has become a critical migration-ready replacement for facilities managing aging CNC infrastructure. This module supports direct substitution in existing MELDAS 70 backplane configurations, preserving original program logic, axis parameter sets, and communication link integrity without requiring full control cabinet redesign.

For maintenance engineers and automation procurement teams, the E70CB15B addresses the most common failure modes in legacy CNC CPU modules: corrupted SRAM, failed battery-backed memory, degraded processor performance, and communication bus faults. When a MELDAS 70 system experiences unplanned downtime due to CPU failure, the E70CB15B provides a verified drop-in path that minimizes machine-off time and avoids the cost and complexity of a full CNC platform migration. Each unit is pre-shipment tested against MELDAS 70 electrical and communication specifications before dispatch.

Retrofit planning for the E70CB15B requires confirmation of several site-specific parameters. Engineers should verify the backplane slot assignment and module address configuration against the existing MELDAS 70 rack layout. Power supply capacity — typically the MELDAS 70 series PSU module — must be confirmed to support the CPU module’s rated draw without margin violation. Terminal wiring for I/O interface boards connected to the CPU bus should be documented prior to removal of the legacy unit. If the installation includes a MELDAS 70 series servo amplifier or spindle drive interface, communication link parameters including baud rate and axis address assignments must be preserved in the replacement module’s initial configuration.

Firmware version compatibility is a key checkpoint in E70CB15B retrofit projects. MELDAS 70 CPU modules operate within a defined firmware ecosystem; mismatched firmware between the CPU and connected servo or I/O modules can result in initialization faults or axis communication errors. Where the original firmware version is unknown, it can typically be recovered from the machine’s parameter backup file or from the HMI screen system information panel. KNMKS supplies E70CB15B units with firmware aligned to the most common MELDAS 70 field deployment versions and can advise on version matching for specific machine configurations upon request.

In multi-axis CNC environments, the E70CB15B retrofit often occurs alongside related component replacements. Facilities managing MELDAS 70 systems frequently require concurrent attention to the MELDAS 70 series I/O unit for signal interface continuity, the FCU7 series communication card for DNC or network-connected machining environments, and the MELDAS 70 series battery unit to protect axis parameter and program memory during power interruption. In control cabinets where the CPU module failure has caused cascading faults, the MELDAS 70 series power supply module and the servo interface board may also require inspection or replacement as part of the same maintenance window.

For facilities operating mixed-generation CNC fleets, the E70CB15B supports a phased modernization approach. Rather than replacing the entire MELDAS 70 control system, maintenance teams can restore full CNC functionality by replacing only the failed CPU module, extending the operational life of the existing servo drives, spindle controllers, and machine mechanical systems. This approach is particularly effective in high-mix, low-volume machining environments where machine-specific programs, tool offset libraries, and axis tuning parameters represent significant accumulated engineering value that would be lost in a full platform migration.

HMI screen compatibility should be confirmed when the E70CB15B is installed in systems using a MELDAS 70 series display unit or an externally connected operator panel. Screen layout files and macro program assignments are stored in the CPU module’s memory; restoring these from a verified backup prior to commissioning the replacement unit eliminates the need for HMI reprogramming and reduces total commissioning time. Where backup files are unavailable, KNMKS technical support can assist with parameter reconstruction guidance based on machine model and original configuration documentation.

All E70CB15B units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment, with pre-shipment functional testing completed on each unit. Global dispatch is supported from multi-region stock, with priority fulfillment available for emergency replacement requirements. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful E70CB15B retrofit projects depend on systematic pre-replacement documentation. Before removing the legacy CPU module, engineers should record all axis parameters, tool offset data, and program memory contents using the MELDAS 70 parameter backup function or an external DNC system. The MELDAS 70 series battery unit should be inspected and replaced if battery voltage is marginal, as memory loss during module swap will require full parameter re-entry.

In installations where the E70CB15B interfaces with a MELDAS 70 series I/O unit, terminal block wiring assignments should be photographed and documented against the machine’s electrical schematic before disconnection. Signal isolation requirements between the CPU module and field devices — particularly for analog I/O channels connected through a signal isolator module — should be verified to ensure the replacement module’s input impedance and signal range specifications match the existing field wiring.

For CNC systems connected to a plant network via a MELDAS 70 series communication card or FCU7 series DNC interface, network address settings, baud rate configuration, and protocol selection (typically RS-232C or Ethernet depending on installation vintage) must be re-entered in the replacement CPU module during commissioning. Where the machine is integrated with a FANUC-compatible or Mitsubishi-compatible HMI panel, screen macro assignments and operator panel key function mappings should be restored from backup before returning the machine to production.

Physical installation confirmation should include slot position verification within the MELDAS 70 rack, secure backplane connector seating, and confirmation that the module address DIP switch or rotary switch settings match the original configuration. Commissioning should proceed with a controlled power-on sequence, monitoring the CPU module’s status indicators for normal initialization before enabling servo drives and spindle systems.

Downtime Control During System Migration

Minimizing unplanned downtime during E70CB15B replacement requires preparation before the maintenance window begins. A complete parameter and program backup — stored on an external device or DNC server — is the single most effective measure for reducing commissioning time after module swap. Where backup files exist, a trained technician can typically complete E70CB15B installation, parameter restore, and initial axis verification within a single shift.

To protect original program logic during the replacement process, the machine’s NC program library should be transferred to an external storage medium prior to CPU module removal. MELDAS 70 systems support program transfer via RS-232C serial connection or, in later configurations, via Ethernet to a connected DNC system. Confirming the transfer method and verifying program file integrity before beginning physical work eliminates the risk of program loss during the maintenance window.

Field control continuity during the migration period can be maintained by pre-staging the replacement E70CB15B with axis parameters and communication settings loaded from the backup file before installation. This approach — sometimes called pre-configuration — allows the replacement module to be installed and powered on in a near-ready state, reducing the time between module swap and first axis movement verification. For facilities with strict production schedules, pre-configuration of the replacement unit is strongly recommended.

Risk reduction during E70CB15B retrofit is further supported by confirming the condition of adjacent modules — particularly the MELDAS 70 series power supply module and servo interface board — before closing the maintenance window. Identifying and addressing secondary component degradation during the same maintenance event prevents repeat downtime from related failures in the weeks following the CPU replacement.

Retrofit Support FAQ

Q: Is the E70CB15B a direct replacement for all MELDAS 70 Series CPU modules?
A: The E70CB15B is designed for MELDAS 70 Series applications. Compatibility depends on the specific machine model, rack configuration, and firmware version in use. KNMKS recommends confirming the original module part number and machine model before ordering to ensure correct fit. Contact [email protected] with your machine details for pre-order compatibility confirmation.

Q: What pre-shipment testing is performed on E70CB15B units?
A: Each E70CB15B unit undergoes functional testing against MELDAS 70 electrical and communication specifications before dispatch. Testing covers power-on initialization, bus communication verification, and memory integrity checks. A support terms confirmed by quotation is provided from the shipment date.

Q: How should I handle wiring and terminal connections during the replacement?
A: Document all terminal block wiring assignments and I/O interface connections before removing the legacy CPU module. Photograph the existing wiring against the machine’s electrical schematic. Re-connect in the same configuration on the replacement unit and verify signal integrity during commissioning before enabling machine axes.

Q: What is the typical lead time and stock availability for the E70CB15B?
A: KNMKS maintains multi-region inventory of the E70CB15B to support both planned maintenance and emergency replacement requirements. Standard dispatch is available for in-stock units, with priority fulfillment for urgent orders. Contact [email protected] or +86 18359268345 for current availability and lead time confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Mitsubishi Electric
Assorted Brands

Model / Series

E70CB15B
Legacy Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Mitsubishi Electric E70CB15B
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
