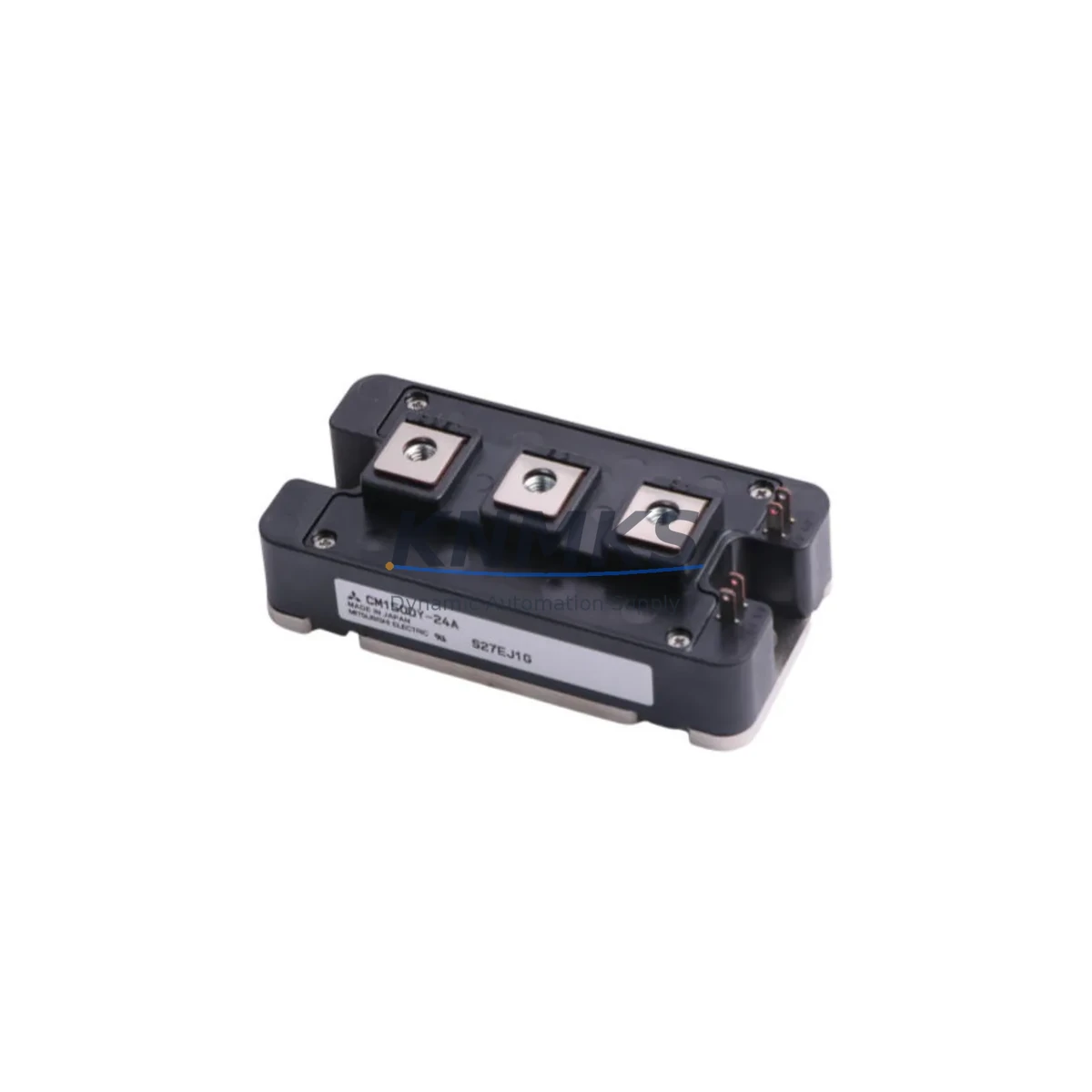

Mitsubishi CM150DY-24A Migration-Ready IGBT Module for Legacy NF Series Control Systems

The Mitsubishi CM150DY-24A is a 150A / 1200V dual IGBT power module engineered for high-reliability retrofit and replacement applications within Mitsubishi NF Series variable frequency drives, servo amplifiers, and legacy inverter control cabinets. As original NF Series drive platforms approach end-of-life and OEM spare part availability declines, the CM150DY-24A has become a critical migration component for maintenance engineers managing aging automation infrastructure across manufacturing, utilities, and process control environments.

This module is a direct drop-in replacement for worn or failed IGBT assemblies in NF Series drive units, eliminating the need for full drive replacement and significantly reducing capital expenditure. Each unit is pre-shipment tested under load conditions to verify switching performance, gate threshold voltage, collector-emitter saturation voltage (VCE(sat)), and thermal resistance parameters before dispatch. Stock is maintained across multiple regional warehouses to support emergency replacement timelines, with same-day dispatch available for confirmed orders.

When planning a CM150DY-24A retrofit, engineers must verify several critical compatibility parameters before installation. Power supply capacity within the control cabinet must be confirmed to sustain the gate drive requirements of the replacement module — particularly if the existing gate driver board (such as the Mitsubishi FR-A7NC or equivalent NF Series driver card) has not been recently serviced. Terminal block wiring and bus bar torque specifications must be re-confirmed against the original NF Series drive wiring diagram, as terminal oxidation or loose connections are a common root cause of premature IGBT failure in legacy installations.

Backplane interface compatibility between the CM150DY-24A and the NF Series drive chassis should be validated prior to module insertion. In multi-axis configurations where the NF Series drive shares a common DC bus with adjacent inverter units, bus voltage balance must be checked to prevent asymmetric loading on the replacement module. Module address configuration is not applicable to this discrete power module type, but the associated control board — typically the Mitsubishi FR-D700 series control PCB or NF Series main control card — must be inspected for fault history and reset before commissioning the replacement IGBT.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CM150DY-24A retrofit within an NF Series drive system requires a structured approach to component verification and sequenced replacement. Before removing the failed IGBT module, the maintenance team should document the existing wiring layout, photograph terminal connections, and record any active fault codes stored in the Mitsubishi FR-D700 series control board or the NF Series keypad interface. This baseline documentation protects the original program logic and prevents configuration loss during the hardware swap.

The gate driver board — often a dedicated Mitsubishi NF Series gate drive PCB or a compatible FR-A7NC interface card — must be inspected for signs of thermal stress, capacitor bulging, or gate resistor degradation before the new CM150DY-24A is installed. A faulty gate driver is a leading cause of repeat IGBT failure and must be addressed as part of the retrofit scope. If the gate driver board is beyond serviceable condition, replacement with a compatible NF Series driver card should be completed before the new IGBT module is commissioned.

For installations where the NF Series drive is integrated into a larger control cabinet alongside Mitsubishi MELSEC Q Series PLCs, FR-E700 series compact inverters, or GOT2000 series HMI panels, the retrofit plan must account for communication link continuity. CC-Link or PROFIBUS-DP network segments connected to the drive must remain active or be safely isolated during the IGBT replacement window to prevent upstream PLC fault propagation. The Mitsubishi MR-J4 series servo amplifier, if present in the same cabinet, should be placed in a safe hold state before DC bus isolation is performed.

I/O signal integrity should be verified after module installation. Analog speed reference signals, digital run/stop commands, and fault relay outputs connected to the NF Series drive terminal block must be re-confirmed against the original wiring diagram. In legacy installations, terminal block corrosion or loose ferrule connections are common and should be remediated during the retrofit window. Signal isolators may be required if ground loop interference is detected after the new module is energized.

Where the NF Series drive is mounted in a confined control cabinet with limited clearance, installation space for the CM150DY-24A must be confirmed before ordering. The module’s flat-base heatsink mounting profile is compatible with standard NF Series heatsink assemblies, but thermal compound application and bolt torque sequence must follow Mitsubishi’s published installation guidelines to ensure adequate heat dissipation at rated load.

Downtime Control During System Migration

Minimizing production downtime during a CM150DY-24A replacement requires advance preparation and a disciplined commissioning sequence. The replacement module should be on-site and pre-inspected before the maintenance window begins. All tools, thermal compound, torque wrenches, and wiring documentation should be staged at the control cabinet location to eliminate delays during the outage period.

Before de-energizing the NF Series drive, the control system operator should confirm that upstream PLC logic — typically running on a Mitsubishi MELSEC iQ-R or Q Series controller — has been placed in a controlled hold state. This prevents unintended actuator movement or process upsets during the drive outage. If the drive controls a critical process pump, conveyor, or compressor, a manual bypass or standby drive should be confirmed available before isolation begins.

DC bus discharge time must be respected after drive de-energization. NF Series drives retain hazardous DC bus voltage for several minutes after AC input isolation. The bus voltage should be measured with a calibrated meter before any contact with internal components. Once the CM150DY-24A is installed and the drive is re-energized, a no-load gate signal verification test should be performed before reconnecting the motor load. This confirms correct switching behavior and eliminates the risk of a second IGBT failure caused by a residual gate driver fault.

After successful no-load commissioning, the drive should be ramped to full load gradually while monitoring output current, heatsink temperature, and DC bus voltage stability. Any deviation from expected parameters should be investigated before returning the system to automatic control. Total planned downtime for a CM150DY-24A replacement in a prepared NF Series drive installation is typically 2–4 hours, including bus discharge, module swap, thermal interface preparation, and load commissioning.

Retrofit Support FAQ

Q: Is the CM150DY-24A a direct replacement for the original IGBT module in all NF Series drive variants?
A: The CM150DY-24A is compatible with NF Series drive models rated for 150A IGBT positions with 1200V DC bus ratings. Engineers should verify the specific NF Series drive model’s IGBT position specification against the CM150DY-24A datasheet before installation. For drive models with different current ratings, alternative Mitsubishi IGBT modules from the CM-DY series may be required.

Q: Does replacing the CM150DY-24A require firmware updates or parameter re-entry?
A: No firmware changes are required for a like-for-like IGBT module replacement. Drive parameters stored in the FR-D700 series control board or NF Series keypad are retained during the module swap, provided the control board remains powered or parameters have been backed up to a parameter unit. It is recommended to back up all drive parameters before beginning the replacement procedure.

Q: What pre-shipment testing is performed on each CM150DY-24A unit?
A: Each CM150DY-24A unit undergoes pre-shipment electrical testing covering gate threshold voltage, VCE(sat) at rated current, leakage current, and insulation resistance between terminals and baseplate. Test records are available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: What is the typical lead time and stock availability for the CM150DY-24A?
A: Stock is maintained for immediate dispatch. Standard orders are processed and shipped within 24 hours of order confirmation. For emergency replacement requirements, same-day dispatch is available for confirmed orders received before the daily dispatch cutoff. Multi-unit orders for planned maintenance programs are accommodated with advance scheduling to ensure continuous stock availability.
