Metso D201463 Migration-Ready DCS Controller for Legacy Systems

Overview

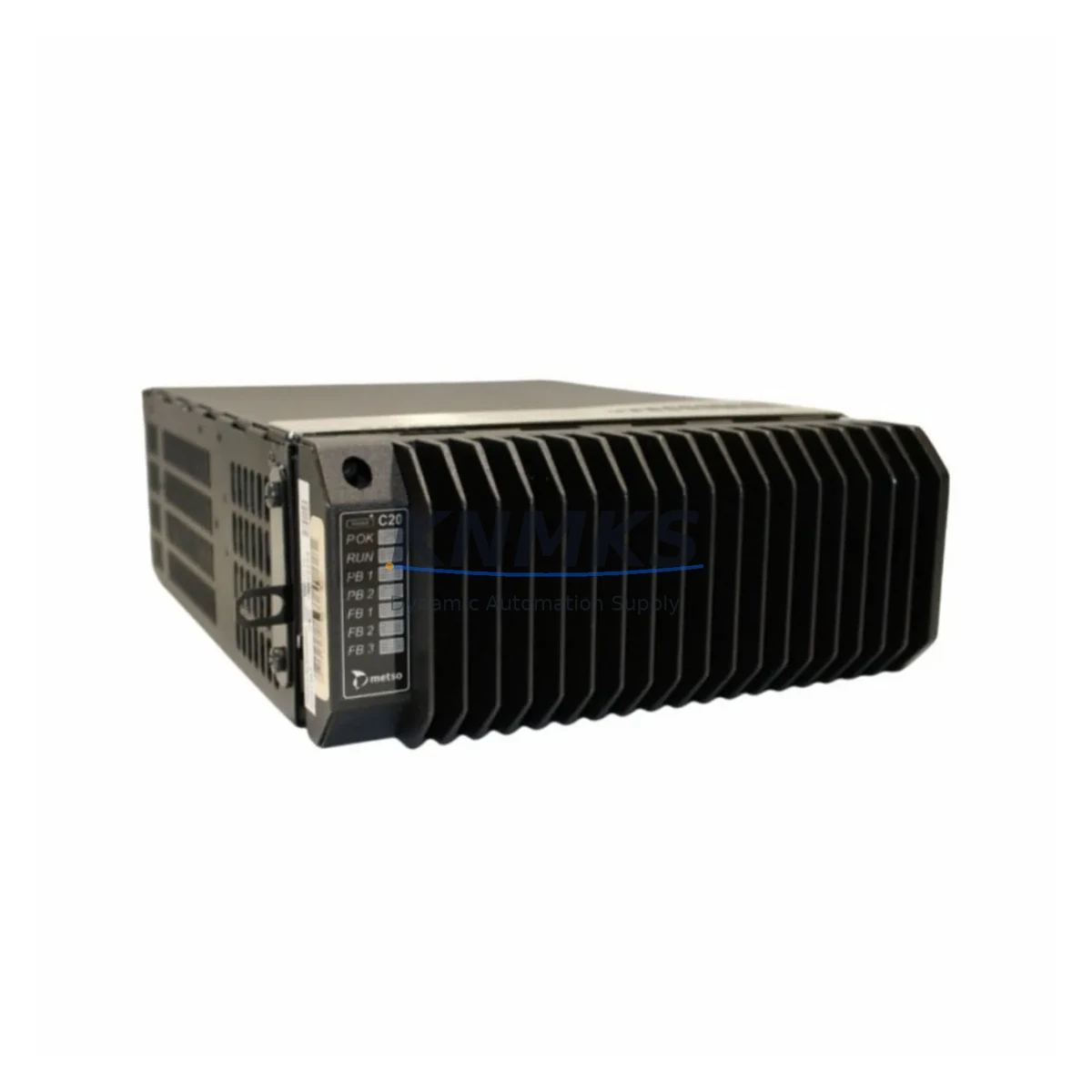

Metso D201463 Migration-Ready DCS Network Controller for Legacy Control Systems

The Metso D201463 is a migration-ready DCS Network Controller engineered to serve as a direct replacement for legacy ACN C20 distributed control system architectures. As process plants and manufacturing facilities face the end-of-life challenges of aging Metso automation platforms, the D201463 provides a validated upgrade path that preserves existing control logic, minimizes engineering rework, and dramatically reduces planned downtime during system changeover. Whether you are managing a phased retrofit of a pulp and paper line, a chemical processing unit, or a power generation facility, the D201463 is designed to slot into your existing control cabinet with minimal mechanical modification.

Before initiating any replacement project, engineers must carefully verify several critical parameters. Power supply capacity is the first checkpoint: the D201463 operates within the standard ACN backplane voltage rails, but aging power supply modules such as the Metso ACN PS-24 may require load recalculation if additional I/O modules have been added to the rack over the years. Terminal wiring compatibility must also be confirmed — field wiring connected to legacy ACN I/O modules, including analog input cards and digital output cards in the ACN series, typically uses the same terminal block pitch, but wire ferrule sizing and torque specifications should be re-verified against the D201463 installation manual before reconnection.

Backplane interface alignment is another area requiring attention. The D201463 uses the standard ACN C20 backplane connector pinout, making it compatible with existing rack assemblies without requiring a new chassis. However, if the existing rack is a first-generation ACN frame, a firmware check on the backplane controller is recommended before installation. Module addressing must also be reconfigured in the engineering workstation: the D201463 node address is set via DIP switch on the module face, and the address must match the legacy configuration stored in the Metso DNA or Metso Automation Manager project file to avoid communication conflicts on the Profibus DP segment.

Program compatibility is a key concern for any migration project. The D201463 supports the same function block library used in ACN C20 applications, meaning that control strategies built in Metso DNA Engineering can be downloaded directly to the replacement module without recompilation in most cases. However, if the original application was developed on an older DNA version, a library version check is strongly recommended. HMI screen bindings should also be validated: tag names and OPC data paths linked to the D201463 in the SCADA or DCS operator station must be confirmed to match the new module’s configuration before cutover.

Communication link integrity is critical during migration. The D201463 connects to the ACN fieldbus segment via its onboard Profibus DP interface, and the segment termination resistors at both ends of the bus must be verified to be active and correctly valued. If the plant network has been extended with Ethernet-based I/O using Metso ACN Ethernet adapters, the D201463’s secondary Ethernet port can be used to maintain supervisory connectivity during the transition period. Installation space confirmation is straightforward for most ACN C20 rack positions, as the D201463 occupies a single slot in the standard 19-inch rack assembly.

Firmware version compatibility should be checked before ordering. The D201463 ships with the latest validated firmware, but if the target system is running an older DNA platform version, a firmware downgrade may be required to maintain compatibility with the existing project. KNMKS can advise on firmware version matching based on your DNA platform version prior to shipment. All units undergo full functional testing and burn-in before dispatch, and each module is supplied with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial service conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the D201463 into an existing ACN-based control system requires a structured pre-engineering phase. The first step is a full audit of the control cabinet to document all installed modules, including the ACN PS-24 power supply module, any ACN AI-16 analog input modules, ACN DO-16 digital output modules, and any ACN communication gateway cards currently in service. This audit establishes the baseline for load calculations and slot mapping.

If the existing system includes Metso ACN Ethernet communication modules for supervisory data exchange, these can remain in service during the D201463 installation, providing a valuable fallback communication path if the primary Profibus segment requires reconfiguration. Similarly, if the control cabinet includes a Metso ACN redundancy controller, the redundancy configuration must be updated in the DNA project to recognize the D201463 as the new primary or secondary node, depending on the system architecture.

For plants that have integrated third-party signal isolators or marshalling panels between the ACN I/O modules and the field instruments, the D201463 installation does not require changes to the signal conditioning layer. The existing wiring from the field to the terminal blocks on the ACN I/O cards remains undisturbed, and only the controller module itself is replaced. If the system includes a Metso ACN programming cable for local firmware updates or diagnostic access, this cable remains compatible with the D201463’s front-panel service port.

Plants operating Metso DNA HMI workstations should prepare a pre-tested DNA project backup before the cutover window. The D201463 supports online download of updated control strategies in most DNA configurations, reducing the need for a full system restart during the migration. This capability is particularly valuable in continuous process environments where even brief interruptions to the control loop can affect product quality or process safety.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a DCS network controller in a live production environment. The D201463 migration process is designed to support a structured hot-swap procedure in systems where ACN redundancy is active. In redundant configurations, the standby controller can be replaced first, validated online, and then promoted to primary before the original primary module is removed — achieving a complete controller replacement with zero process interruption.

For non-redundant systems, the recommended approach is to schedule the D201463 installation during a planned maintenance window. Pre-staging the module with the correct node address, firmware version, and a pre-loaded DNA application image reduces the in-window installation time to under 30 minutes in most cases. Field engineers should prepare a rollback plan that includes the original module, a verified backup of the DNA project, and a communication test procedure for the Profibus segment before the maintenance window begins.

Protecting the original program logic is non-negotiable. Before any hardware change, the existing DNA project must be archived from the engineering workstation and stored on an isolated backup medium. The D201463’s onboard memory retains the downloaded application through power cycles, but the authoritative copy must always reside in the DNA engineering database. After installation, a full I/O force test and loop check should be completed before returning the system to automatic control, confirming that all analog and digital signals are correctly mapped and that the HMI operator displays reflect accurate process values.

Retrofit Support FAQ

Q: Is the Metso D201463 a direct drop-in replacement for the ACN C20 controller without any wiring changes?
A: Yes, in the vast majority of ACN C20 installations the D201463 occupies the same rack slot and uses the same backplane connector, requiring no field wiring modifications. The only configuration steps are node address setting via DIP switch and DNA project download from the engineering workstation.

Q: How do I confirm firmware compatibility before installation?
A: Provide your Metso DNA platform version and the existing ACN controller firmware version to KNMKS at the time of order. Our technical team will confirm the correct firmware build for your D201463 unit and can arrange pre-shipment firmware configuration if a specific version is required.

Q: Does KNMKS perform functional testing before shipment?
A: Yes. Every D201463 unit undergoes a full power-on functional test and communication verification before dispatch. Units are supplied with a test report and are covered by a support terms confirmed by quotation against manufacturing defects and operational failures under normal industrial service conditions.

Q: What is the typical lead time and do you maintain stock?
A: KNMKS maintains inventory of the D201463 to support urgent replacement requirements. Standard orders ship within 3–5 business days. For critical plant shutdowns or emergency replacements, expedited dispatch is available — contact [email protected] or call +86 18359268345 to confirm current stock availability.
