KLA-Tencor 23663-001 Migration-Ready Communications Board

Overview

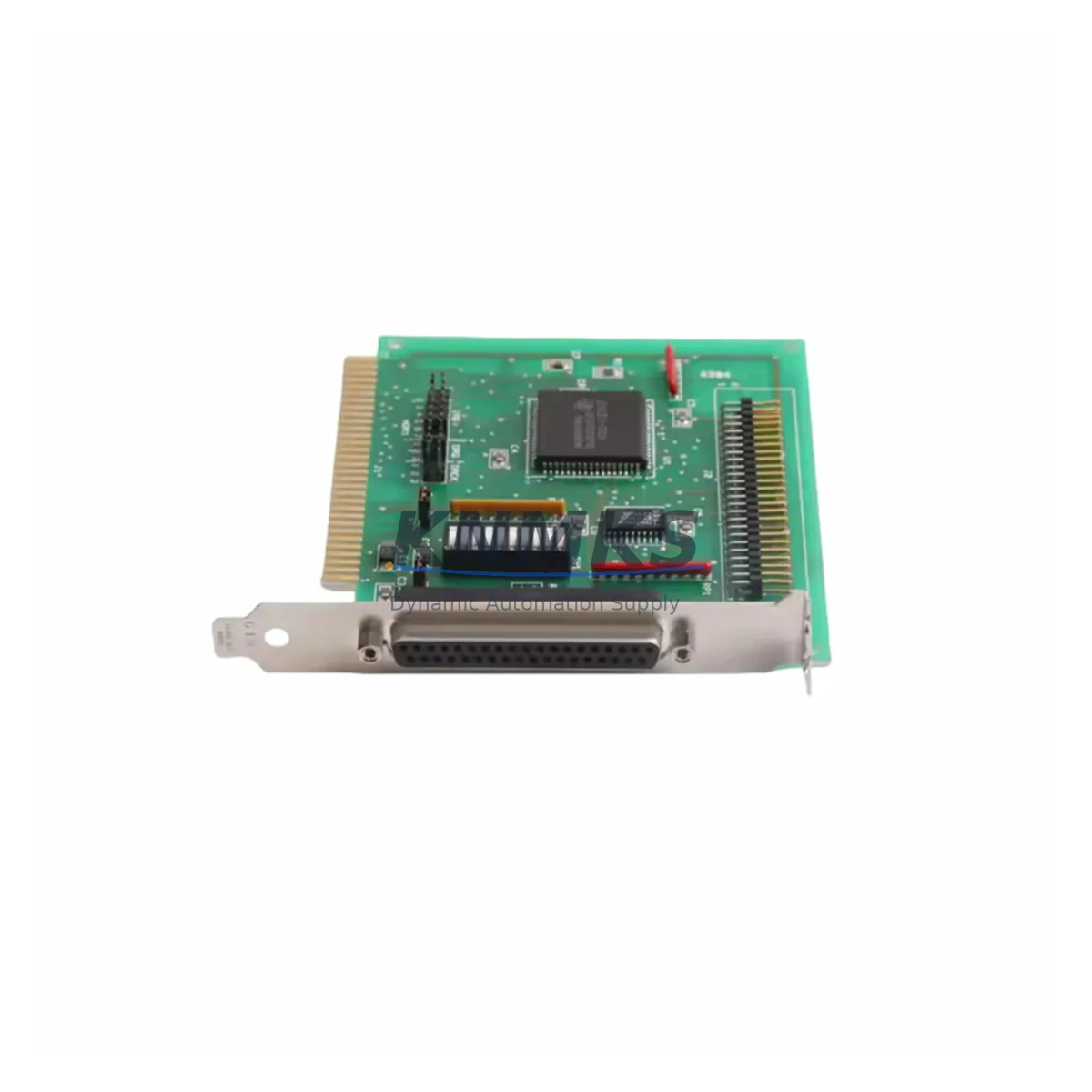

KLA-Tencor 23663-001 Migration-Ready Communications Board for Legacy Semiconductor Control Systems

The KLA-Tencor 23663-001 is a migration-ready communications board engineered for direct replacement of the discontinued FAB 23662-000 and 941302 modules in KLA-Tencor wafer inspection, metrology, and process control platforms. As semiconductor fabs face increasing pressure to extend the operational life of legacy equipment — or execute controlled decommissioning — the 23663-001 provides a verified, pre-tested drop-in solution that eliminates the risk of unplanned downtime caused by end-of-life communications hardware.

This board handles critical inter-subsystem communication within KLA-Tencor inspection systems, managing data transfer between the motion controller, image acquisition subsystem, host computer interface, and real-time process monitoring modules. When the original FAB 23662-000 fails or becomes unavailable through OEM channels, the 23663-001 restores full system communication integrity without requiring firmware re-architecture or hardware redesign.

Before installation, engineers should confirm the following: backplane slot assignment and board address configuration, power rail compatibility (typically +5 V and ±12 V from the system backplane), connector pinout alignment with the existing ribbon cable harness, firmware revision compatibility with the host controller software version, and available rack space for the board’s form factor. In systems where the communications board interfaces with a KLA-Tencor motion control card or a real-time image processing module, signal integrity across the backplane must be validated prior to live operation.

For fabs executing a phased migration — moving from legacy KLA-Tencor 2xxx-series platforms toward modern inspection architectures — the 23663-001 is frequently deployed as a bridge component during Phase 1 stabilization. It maintains existing HMI screen mappings, preserves recipe-driven inspection parameters, and keeps communication links to upstream MES and SPC systems intact while the broader migration plan is finalized. This approach avoids the need to retrain operators or remap process variables during the transition window.

In multi-board configurations, the 23663-001 is commonly installed alongside a KLA-Tencor 23660-001 backplane interface board, a 23664-002 signal conditioning module, and a 23670-000 power distribution card — all of which may require simultaneous replacement in aging systems where board-level corrosion or connector fatigue is present. Technicians should inspect the backplane edge connectors and verify torque specifications on all board retention hardware before powering the system.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the KLA-Tencor 23663-001 requires a structured pre-installation review. Begin by documenting the current board address settings using the system’s diagnostic software or the onboard DIP switch configuration — mismatched addresses are the most common cause of communication failure after a board swap. Next, verify that the backplane’s power rails are within specification; degraded power supplies in aging systems can cause intermittent communication errors that are incorrectly attributed to the replacement board itself.

In systems where the 23663-001 interfaces with a KLA-Tencor 23680-000 host interface card or a 23690-001 real-time data acquisition board, the communication protocol stack must be validated end-to-end after installation. This includes confirming that interrupt vectors, DMA channel assignments, and I/O port mappings remain consistent with the original board configuration. If the system uses a KLA-Tencor 23650-002 system controller card as the master communication node, the controller’s firmware must recognize the 23663-001’s device signature before the system will initialize correctly.

For systems that have been in continuous operation for more than five years, it is advisable to replace the backplane termination resistor pack and inspect all ribbon cable assemblies for insulation fatigue simultaneously with the board replacement. This prevents latent failures from masking the performance improvement delivered by the new communications board. Technicians should also verify that the HMI display — whether a legacy CRT-based operator panel or a more recent flat-panel upgrade — correctly reflects the restored communication status after the swap.

Downtime Control During System Migration

Minimizing downtime during a communications board replacement on a KLA-Tencor inspection system requires preparation before the maintenance window opens. The original program logic, recipe files, and calibration data should be backed up to an external storage medium prior to any hardware change. In systems where the 23663-001 is part of a larger migration — for example, a transition from a legacy VME-based architecture to a more modern PCI or PCIe backplane platform — the board swap should be sequenced as the final step after all upstream software and firmware changes have been validated in a test environment.

During the replacement, maintain a live record of all connector positions, cable routing, and board orientation before removal. Photograph the existing installation from multiple angles. After installing the 23663-001, power the system incrementally: apply backplane power first, confirm rail voltages, then enable the board and observe the system’s diagnostic LED sequence before allowing the host controller to initialize. This staged power-up procedure protects the original program logic and prevents the host from writing incorrect configuration data to the new board during its first boot cycle.

Once communication is restored, run the system’s built-in self-test routine and verify that all subsystem status indicators — including the motion controller, image acquisition module, and MES communication link — report normal operation before returning the tool to production. Document the board serial number, installation date, and firmware version in the site’s maintenance log to support future support requests and lifecycle planning.

Retrofit Support FAQ

Q1: Is the KLA-Tencor 23663-001 a direct drop-in replacement for the FAB 23662-000 and 941302?
Yes. The 23663-001 is designed as a form-fit-function replacement for both the FAB 23662-000 and the 941302. The board address configuration and backplane connector pinout are compatible. However, engineers should confirm the host controller firmware revision is consistent with the replacement board’s device signature before installation, as firmware mismatches can prevent system initialization.

Q2: What pre-shipment testing is performed on each unit?
Every 23663-001 unit undergoes full functional testing prior to dispatch, including power-on self-test, communication bus verification, and connector integrity inspection. Units are shipped with an ESD-protective bag and a test report confirming pass status. A support terms confirmed by quotation from the date of shipment covers all verified functional defects.

Q3: How do I confirm the correct board address before installation?
The board address is typically set via onboard DIP switches or jumper blocks. Refer to the KLA-Tencor system documentation for the specific slot-to-address mapping for your platform. If documentation is unavailable, the existing FAB 23662-000 or 941302 board’s switch configuration should be photographed and replicated exactly on the 23663-001 before installation.

Q4: What is the lead time and do you maintain stock for emergency replacements?
We maintain multi-region stock of the 23663-001 to support both scheduled maintenance and emergency replacement scenarios. Same-day or next-business-day dispatch is available for in-stock units. Express international freight options are available for critical fab environments where extended downtime is not acceptable. Contact our team to confirm current stock levels and shipping options for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

23663-001 FAB 23662-000 941302
Assorted Series

Product Family

Communication Modules

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Network range

Ethernet, fieldbus and gateway modules

Common needs

Protocol, port and controller family

Project support

Machine networking and data integration

Inquiry Support

• Industrial Ethernet and fieldbus module inquiry
• Protocol compatibility review
• Integration project inquiry support

What to Send Us

• Brand and exact model number: Other Brands 23663-001 FAB 23662-000 941302
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
