KEB 15F5G1E-Y001 Migration-Ready VFD for Legacy Control Systems

Overview

KEB 15F5G1E-Y001 Migration-Ready VFD for Legacy Control Systems

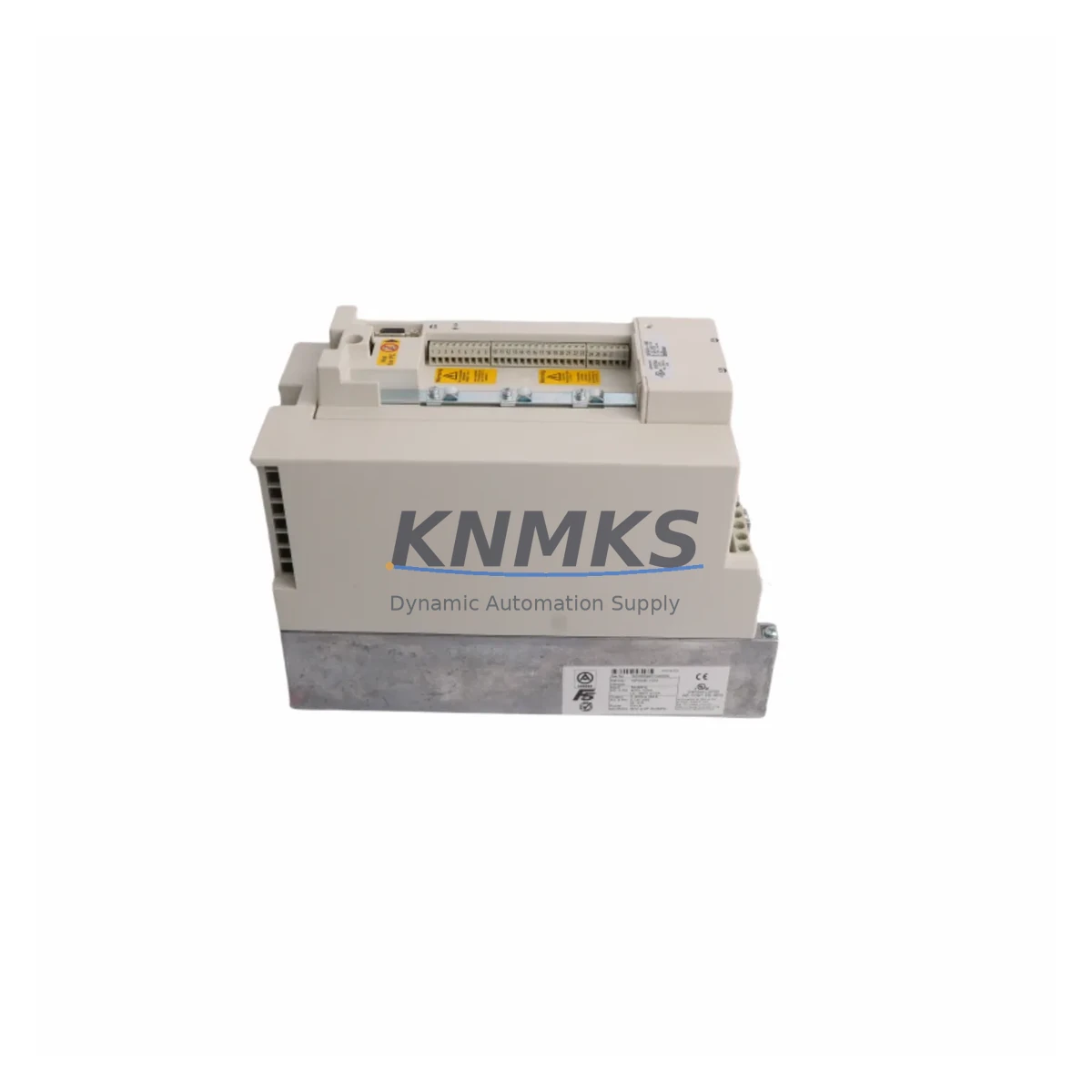

The KEB 15F5G1E-Y001 is a migration-ready variable frequency drive from KEB’s COMBIVERT F5 series, engineered to serve as a direct replacement for aging or discontinued drive units in legacy automation environments. Whether your facility is managing an end-of-life drive failure, executing a planned control cabinet upgrade, or transitioning from an obsolete communication architecture, the 15F5G1E-Y001 provides a verified, field-tested solution that minimizes engineering risk and reduces unplanned downtime.

This unit is particularly relevant in retrofit scenarios where the original COMBIVERT F5 drive has reached its service limit or where spare parts availability has become a critical supply chain concern. The 15F5G1E-Y001 maintains dimensional and electrical compatibility with the F5 platform, allowing installation teams to reuse existing mounting rails, terminal wiring, and control cabinet layouts without structural modification. Before installation, engineers should confirm the power supply capacity at the cabinet level — the 15F5G1E-Y001 operates within the standard F5 input voltage range, but aging transformer outputs and bus bar ratings must be verified against the unit’s rated input current to avoid nuisance tripping or thermal overload during commissioning.

Terminal wiring compatibility is a key checkpoint during any F5-series replacement. The 15F5G1E-Y001 preserves the standard control terminal layout of the COMBIVERT F5 family, including analog input/output assignments, digital I/O mapping, and relay output configuration. However, if the legacy installation used custom terminal jumper configurations or non-standard shielding practices, these should be documented and replicated during the swap. Backplane interface alignment is equally important — the drive must be seated correctly within the rack or DIN rail assembly, and any shared bus connections to adjacent modules such as the KEB COMBIVERT F5 brake chopper module or external braking resistor must be re-verified for continuity and polarity.

Module addressing and parameter migration are among the most time-sensitive steps in a live-system replacement. The 15F5G1E-Y001 supports parameter upload and download via the KEB COMBIVERT programming interface, allowing technicians to transfer the existing drive parameter set from a backup file or from a functioning unit of the same series. If the original drive’s parameter set was stored on a KEB F5 operator panel or via PC software, this data can be loaded directly into the replacement unit, preserving ramp times, PID configurations, motor nameplate data, and fault response settings. Teams should also verify that the firmware version on the 15F5G1E-Y001 is compatible with the parameter file format used in the original installation — mismatched firmware revisions can cause parameter import errors or silent value truncation that only surfaces during load testing.

In systems where the COMBIVERT F5 communicates over PROFIBUS-DP, CANopen, or a proprietary KEB fieldbus interface, the communication link must be re-established and verified after the drive swap. The 15F5G1E-Y001 supports the standard F5 communication option card architecture, meaning that if the original drive was equipped with a PROFIBUS option module or a CANopen gateway card, the same card can typically be transferred to the replacement unit. Node address settings, baud rate configuration, and PLC master station polling cycles should be confirmed before returning the drive to automatic mode. In installations where the drive interfaces with a Siemens S7 or Allen-Bradley ControlLogix PLC, the GSD file or EDS file used for the original drive registration should remain valid for the 15F5G1E-Y001, provided the firmware version is within the same major revision family.

HMI screen mapping is another area that requires attention during migration. If the control system uses a KEB COMBIVERT operator panel, a third-party HMI terminal, or a SCADA visualization layer that reads drive status registers, the register map of the 15F5G1E-Y001 should be cross-referenced against the original drive’s documentation to confirm that all monitored parameters — output frequency, motor current, fault codes, and run/stop status — are mapped to the same addresses. Discrepancies in register mapping between firmware versions can cause HMI display errors or incorrect alarm triggering that complicates post-commissioning sign-off.

Installation space confirmation is straightforward for like-for-like F5 replacements, as the 15F5G1E-Y001 shares the standard COMBIVERT F5 mechanical envelope. However, in cabinets where thermal management has degraded over time — due to clogged filters, failed cooling fans, or inadequate airflow baffling — the replacement drive’s thermal performance should be evaluated before closing the cabinet. Ensuring that the ambient temperature within the enclosure remains within the drive’s rated operating range is essential for long-term reliability, particularly in high-cycle applications such as conveyor systems, pump stations, or compressor drives.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the KEB 15F5G1E-Y001 typically begins with a full audit of the existing drive installation. This includes documenting the current parameter set, photographing terminal wiring, recording the communication option card type, and noting the firmware version displayed on the operator panel or via the programming software. In multi-drive installations — such as those found in material handling systems, HVAC plants, or water treatment facilities — it is common for the 15F5G1E-Y001 to be installed alongside other COMBIVERT F5 units sharing a common DC bus or a synchronized speed reference signal. In these cases, the replacement drive must be configured to match the speed reference scaling and acceleration/deceleration profiles of the adjacent drives to prevent process disruption.

Power supply integrity is a prerequisite for any drive replacement. Before installing the 15F5G1E-Y001, verify that the incoming supply voltage is within specification and that the upstream circuit breaker or fused disconnect is rated appropriately for the drive’s input current. In older installations, the KEB COMBIVERT F5 power supply module or line filter may also require inspection — a degraded EMC filter or a failing input choke can introduce voltage distortion that affects the replacement drive’s performance and longevity. If the system uses a KEB COMBIVERT F5 braking resistor assembly or a shared regenerative braking unit, the braking circuit wiring and resistor thermal rating should be confirmed before energizing the new drive.

I/O expansion is another common requirement in retrofit projects. If the original installation relied on a KEB COMBIVERT F5 I/O expansion module to handle additional analog or digital signals — such as process feedback from pressure transmitters, flow meters, or position encoders — the expansion module’s compatibility with the 15F5G1E-Y001 should be verified. Similarly, if the system includes a KEB COMBIVERT operator panel for local speed reference and fault reset, the panel’s communication protocol and connector type should be confirmed as compatible with the replacement drive before the panel is remounted.

In installations where the drive is integrated into a Siemens S7-300 or S7-400 control system via PROFIBUS-DP, the PLC’s hardware configuration may need to be updated to reflect the replacement drive’s GSD file version. In Allen-Bradley environments using a ControlLogix or CompactLogix PLC with an EtherNet/IP or DeviceNet gateway, the drive’s EDS file registration should be reviewed. Signal isolation requirements should also be assessed — if the original installation used a signal isolator or galvanic separator between the PLC analog output and the drive’s frequency reference input, this component should be retained in the retrofit to prevent ground loop interference.

Downtime Control During System Migration

Minimizing downtime during a KEB 15F5G1E-Y001 replacement requires a structured pre-commissioning preparation process. The most effective approach is to pre-configure the replacement drive offline — loading the parameter set, setting the communication node address, and verifying the motor nameplate data — before the scheduled maintenance window begins. This reduces the in-cabinet work time to a mechanical swap, terminal reconnection, and a brief functional verification sequence.

Protecting the original program logic is equally critical. If the PLC controlling the drive uses a sequence program that monitors drive fault codes or status bits, the replacement drive’s fault code mapping should be reviewed to ensure that the PLC logic does not misinterpret a normal startup condition as a fault state. In systems where the drive’s run/stop command is issued via a hardwired relay or a digital output from a safety relay module, the interlock logic should be tested in manual mode before returning the system to automatic operation.

Maintaining field control continuity during the swap is best achieved by isolating the drive from the process load before de-energizing. In pump or fan applications, this means closing the discharge valve or damper before stopping the drive. In conveyor or hoist applications, the load should be brought to a safe rest position before the drive is powered down. After the 15F5G1E-Y001 is installed and energized, a no-load run test at low speed should be performed to verify motor rotation direction, encoder feedback (if applicable), and communication link status before the process load is re-engaged.

Reducing retrofit risk also involves having a rollback plan. Retaining the original drive in a serviceable condition — or having a second verified replacement unit on standby — provides a recovery path if the commissioning process reveals an unexpected compatibility issue. Given that the 15F5G1E-Y001 is maintained availability confirmed by RFQ for immediate dispatch, procurement of a backup unit is a practical risk mitigation measure for critical process applications.

Retrofit Support FAQ

Q1: Can the KEB 15F5G1E-Y001 directly replace my existing COMBIVERT F5 drive without rewiring?
In most cases, yes. The 15F5G1E-Y001 shares the standard COMBIVERT F5 terminal layout and mechanical envelope, allowing a direct swap without rewiring or cabinet modification. However, you should verify the power class match and confirm that any communication option cards installed in the original drive are compatible with the replacement unit before proceeding.

Q2: How do I transfer the parameter set from the old drive to the 15F5G1E-Y001?
Parameters can be transferred using the KEB COMBIVERT programming software via the drive’s serial interface, or by using a KEB F5 operator panel with upload/download functionality. Ensure that the firmware version on the 15F5G1E-Y001 is within the same major revision as the original drive to avoid parameter import errors. If a parameter backup file is not available, KNMKS can provide technical documentation to assist with manual parameter reconstruction.

Q3: Is the 15F5G1E-Y001 pre-tested before shipment, and what does the support terms confirmed by quotation cover?
Yes. Every unit undergoes functional testing prior to dispatch to verify power stage integrity, control board operation, and communication interface functionality. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. Support requests are supported with technical documentation and replacement unit dispatch where applicable.

Q4: What is the typical lead time, and is stock available for emergency replacement orders?
The KEB 15F5G1E-Y001 is maintained availability confirmed by RFQ for immediate dispatch. Standard global shipping timelines apply, with expedited options available for emergency replacement scenarios. Contact the sales team to confirm current stock levels and arrange priority dispatch for time-critical applications.
