Honeywell TC-FXX132 Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell TC-FXX132 Maintenance-Proven Spare Part for Factory Uptime

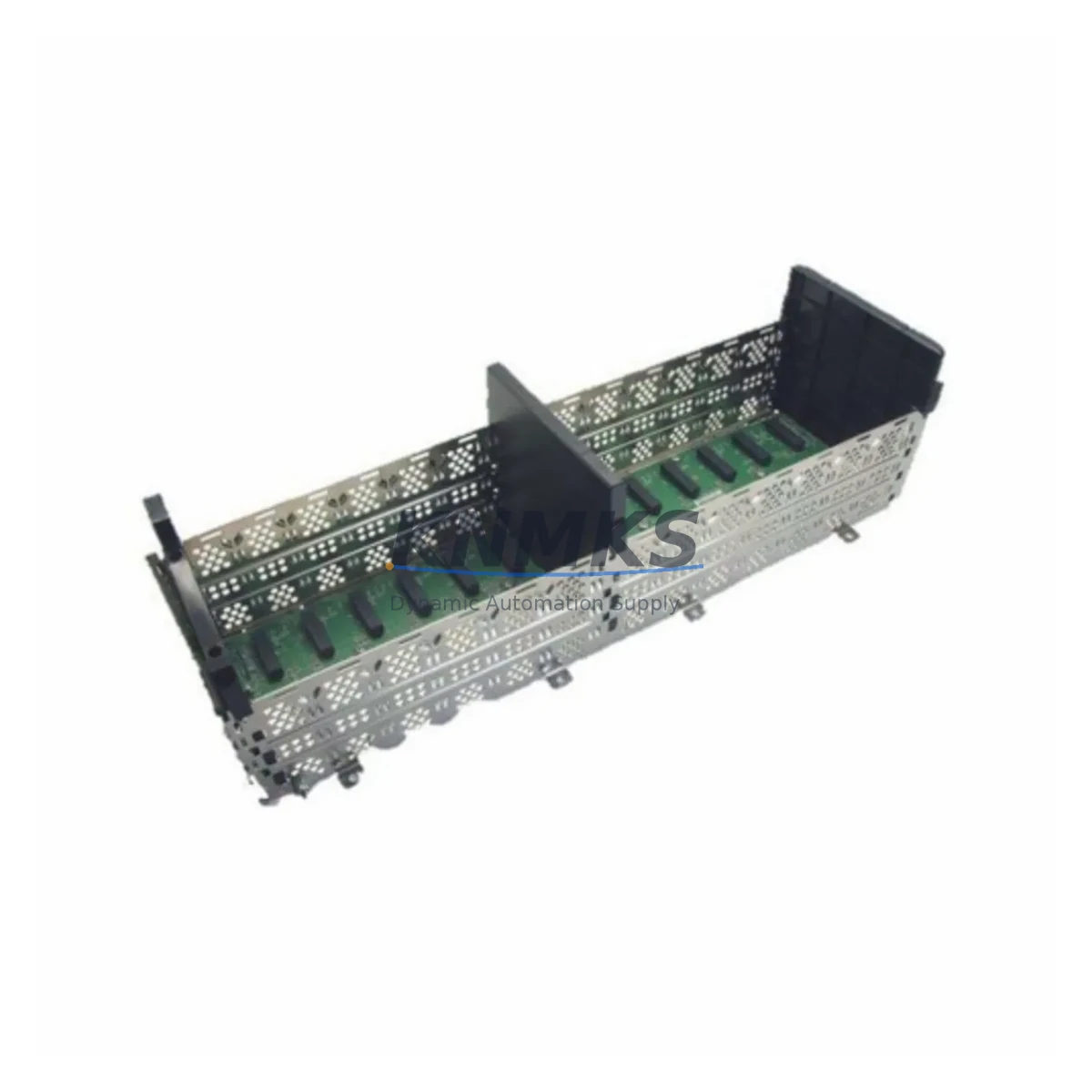

The Honeywell TC-FXX132 is a 13-slot High-Performance Manager (HPM) chassis designed for use within the TotalPlant Solution (TPS) and TDC 3000 Distributed Control System architecture. As a structural backbone of the HPM subsystem, this chassis houses the processor, I/O link modules, and field interface cards that sustain continuous process control across petrochemical, refining, power generation, and heavy industrial facilities. Sourced as an original Honeywell component and subjected to pre-shipment functional verification, the TC-FXX132 available through KNMKS is backed by a support terms confirmed by quotation and supported by long-term spare parts availability — critical factors for maintenance engineers managing aging TPS installations where OEM production has been discontinued or lead times are unpredictable.

For plants operating TDC 3000 or TPS-based control systems, the HPM chassis is not a commodity item. Its mechanical integrity, backplane signal routing, and slot alignment directly affect the reliability of every module installed within it. A degraded or failed chassis can cause intermittent I/O faults, communication dropouts between the HPM and the Local Control Network (LCN), and in worst cases, unplanned process shutdowns. Maintaining a verified TC-FXX132 in your critical spare inventory eliminates the risk of extended downtime caused by chassis-level failures — a scenario that procurement engineers in continuous-process industries cannot afford.

KNMKS stocks the TC-FXX132 to support emergency replacement, scheduled turnaround maintenance, and long-cycle spare parts planning for facilities with 12- to 36-month maintenance horizons. Each unit is inspected, tested, and shipped with documentation to support site acceptance and commissioning records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a TC-FXX132 chassis replacement is scheduled — whether during an emergency callout or a planned annual turnaround — maintenance engineers should treat the event as an opportunity to audit the entire HPM subsystem. The chassis itself is the structural and electrical foundation for all modules it carries, so a chassis swap is the ideal moment to inspect and, where necessary, replace adjacent components that share the same failure exposure window.

Begin with the HPM Processor Module (TC-FPCXX2), which plugs directly into the chassis backplane. If the chassis has experienced thermal stress, vibration, or moisture ingress, the processor module’s connector pins and internal capacitors should be evaluated. Similarly, the I/O Link Interface Module, which manages communication between the HPM and remote Field Termination Assemblies (FTAs), should be checked for firmware currency and connector integrity. Any degradation in the I/O link path will manifest as intermittent field signal faults that are difficult to diagnose without a known-good chassis baseline.

The HPM Power Supply modules — typically the TC-PPXX11 or TC-PPXX22 series — should be load-tested during the chassis replacement window. Power supply aging is a leading cause of HPM instability in systems that have been in service for more than ten years. Redundant power supply configurations should be verified for proper failover behavior before the replacement chassis is commissioned.

Field Termination Assemblies connected to the HPM via marshalling cabinets should also be inspected for terminal corrosion, loose wiring, and label legibility. FTA cables and connectors are frequently overlooked during chassis-focused maintenance events, yet they are a common source of post-replacement signal anomalies. If the facility uses Honeywell Smart Transmitter Interface Modules (STIMs) or analog input cards within the HPM, their calibration records should be reviewed and updated as part of the chassis replacement documentation package.

For plants running parallel LCN segments, the LCN cable connections at the HPM chassis level — including coaxial terminators and tap assemblies — should be inspected for impedance continuity. A degraded LCN tap can cause network-wide communication instability that is misdiagnosed as a processor or chassis fault. Finally, the Universal Station (US) or Application Station (AS) HMI nodes that communicate with the HPM over the LCN should be confirmed as operationally stable before and after the chassis swap to establish a clean before/after baseline for the maintenance record.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the TC-FXX132 replacement chassis part number against the existing unit’s label and the plant’s HPM configuration record. Verify slot count (13-slot) and backplane revision compatibility with installed processor and I/O link modules. Cross-reference with the TPS System Definition Report to confirm no slot-specific module assignments will be disrupted.

Step 2 — Safe Shutdown and Module Extraction: Follow Honeywell HPM maintenance procedures for controlled HPM shutdown. Remove modules in reverse installation order, labeling each by slot position. Photograph the wiring and module layout before extraction. Retain all module retaining screws and grounding straps.

Step 3 — Chassis Installation: Mount the TC-FXX132 replacement chassis in the existing rack position. Verify rack grounding continuity. Reinstall modules in their original slot positions. Reconnect power supply cables and LCN tap assemblies. Confirm all module ejector handles are fully seated and latched.

Step 4 — Power-Up and Diagnostics: Apply power and observe HPM status LEDs. Use the TPS Engineer’s Console or Universal Station to confirm HPM online status, I/O link communication, and field signal integrity. Run a full I/O point check against the pre-replacement baseline. Document any discrepancies before returning the HPM to automatic control.

Step 5 — Documentation and Spare Parts Update: Update the plant’s spare parts register to reflect the consumed TC-FXX132 chassis. Initiate a replenishment order to maintain minimum critical spare inventory levels. Record the replacement event in the HPM maintenance log with date, technician, and post-replacement test results.

Spare Parts Support FAQ

Q: Is the TC-FXX132 compatible with both TPS and TDC 3000 HPM systems?
A: Yes. The TC-FXX132 13-slot HPM chassis is designed for use across Honeywell’s TPS and TDC 3000 DCS platforms. Compatibility should be confirmed against your specific HPM revision and backplane configuration prior to installation. KNMKS can assist with compatibility verification based on your system documentation.

Q: What pre-shipment testing is performed on the TC-FXX132?
A: Each TC-FXX132 unit is functionally inspected and tested prior to shipment. Testing covers backplane continuity, slot connector integrity, and mechanical condition. A test report is available upon request. All units are shipped with protective packaging to prevent transit damage.

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from improper installation, electrical overstress, or environmental conditions outside the specified operating range. KNMKS provides direct support terms support without requiring return to the OEM.

Q: Can KNMKS supply multiple TC-FXX132 units for a multi-site spare parts program?
A: Yes. KNMKS supports blanket orders and multi-unit procurement for facilities managing spare parts across multiple plants or control rooms. Long-term supply agreements are available to ensure consistent availability for annual maintenance cycles and emergency reserve requirements. Contact [email protected] to discuss volume pricing and delivery scheduling.
