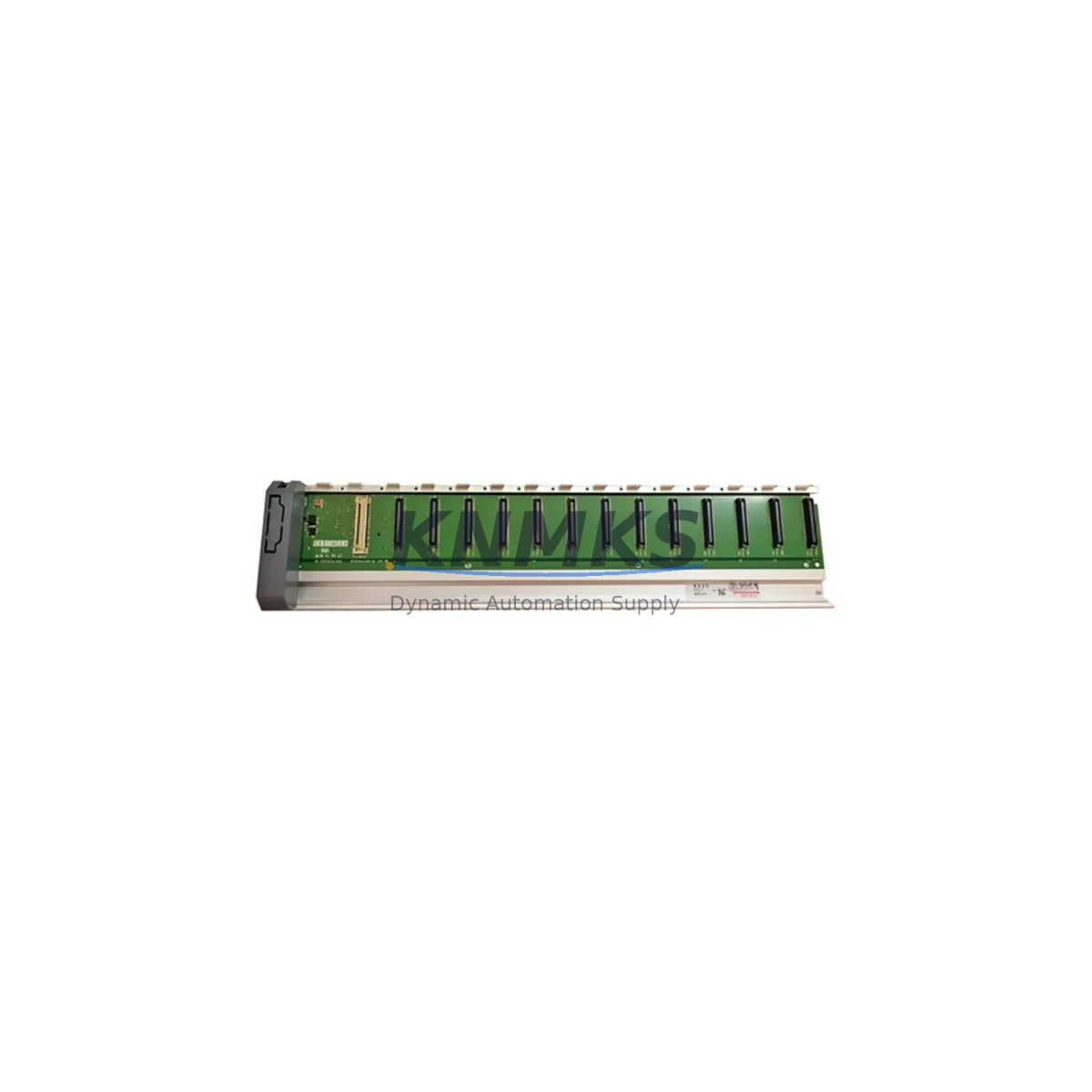

Honeywell 2MLB-M12A-CC Fail-Safe DCS Main Base Chassis

Overview

Honeywell 2MLB-M12A-CC Fail-Safe DCS Main Base Chassis: Fault-Protected Industrial Control Reliability

The Honeywell 2MLB-M12A-CC is a 12-slot DCS main base chassis engineered for the Experion PKS distributed control system platform. Designed to anchor mission-critical control architectures in continuous process industries, this chassis provides the structural and electrical backbone for controller modules, I/O cards, and communication interfaces that must perform without interruption — even under the harshest field conditions. Whether deployed in a petrochemical refinery, a power generation facility, or a water treatment plant, the 2MLB-M12A-CC delivers the fail-safe reliability that modern industrial safety strategies demand.

In high-stakes control environments, the main base chassis is far more than a passive mounting structure. It is the central node through which power distribution, signal integrity, and inter-module communication are maintained. A compromised chassis can cascade into full control loop failure, unplanned shutdowns, or — in safety-critical applications — dangerous process excursions. The 2MLB-M12A-CC is built to eliminate these risks through robust mechanical construction, low-impedance backplane design, and compatibility with Honeywell’s redundancy architecture.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 2MLB-M12A-CC is most effective when integrated as part of a comprehensive control cabinet protection strategy. In a typical Experion PKS cabinet, the chassis hosts the Honeywell C300 Process Controller alongside redundant I/O link modules, forming the core of a fault-tolerant control loop. To protect the chassis and its hosted modules from power-side disturbances, pairing it with a Honeywell CC-PWRR01 Redundant Power Supply ensures that a single power unit failure does not interrupt backplane operation.

Signal integrity across the backplane is further protected when the cabinet includes proper grounding bars and shielded cable terminations — particularly important in high-EMI environments such as variable frequency drive (VFD) rooms or motor control centers. In such installations, the Honeywell CC-SCMB01 System Cabinet Module Base provides additional structural support and grounding continuity for adjacent chassis assemblies.

For safety instrumented system (SIS) integration, the 2MLB-M12A-CC can coexist in the same cabinet with Honeywell FSC (Fail Safe Controller) modules, provided proper segregation of safety and basic process control (BPCS) wiring is maintained per IEC 61511 guidelines. Communication continuity between the DCS and field devices is maintained through Honeywell FIM4 (Field Interface Module) cards installed in adjacent slots, supporting FOUNDATION Fieldbus and HART protocol loops without signal degradation.

In environments with significant thermal load — such as large motor control cabinets or outdoor enclosures in tropical climates — supplementing the cabinet with forced-air cooling and monitoring cabinet temperature via the Honeywell Experion PKS System Status Display helps prevent backplane thermal stress that could shorten chassis service life. Proper thermal management is a non-negotiable element of long-term chassis reliability.

Critical Industrial Safety Applications

Petrochemical & Refining: In continuous distillation, catalytic cracking, and hydroprocessing units, the 2MLB-M12A-CC serves as the control backbone for critical interlock loops. Its ability to host redundant controller pairs ensures that a single module failure does not trigger an emergency shutdown, protecting both personnel and production continuity. The chassis’s surge-protected power rails guard against voltage transients generated by large rotating equipment in the same electrical zone.

Power Generation: Thermal and combined-cycle power plants rely on DCS platforms to manage boiler controls, turbine sequencing, and emissions monitoring. The 2MLB-M12A-CC’s low-impedance backplane minimizes signal latency between the C300 controller and I/O modules, ensuring that control loop scan times remain within specification even under high-load conditions. This is critical for maintaining grid synchronization and preventing turbine trip events.

Mining & Mineral Processing: Crusher control, flotation cell management, and conveyor interlock systems in mining operations are subject to extreme vibration, dust ingress, and wide temperature swings. The 2MLB-M12A-CC’s vibration-rated construction and panel-mount design allow it to be installed in ruggedized enclosures that meet the demands of these environments, reducing the risk of control interruption during peak production cycles.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require 24/7 control of pumping stations, chemical dosing systems, and filtration processes. The chassis supports the redundant I/O architecture needed to maintain continuous monitoring of flow, pressure, and chemical concentration — preventing both process upsets and regulatory compliance failures.

Metallurgy & Steel Production: Electric arc furnace (EAF) and continuous casting operations generate severe electrical noise and thermal stress. The 2MLB-M12A-CC’s EMI-shielded backplane and grounded chassis frame provide the signal isolation needed to maintain reliable communication between the DCS controller and field instruments in these electrically hostile environments.

Port & Marine Applications: Automated crane control, ship loading systems, and terminal management platforms require control hardware that can withstand salt-laden air, humidity, and vibration from heavy machinery. The chassis’s humidity tolerance and robust mechanical construction make it suitable for deployment in port-side control rooms and marine vessel automation systems.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 2MLB-M12A-CC?
The support terms confirmed by quotation cover all manufacturing defects and functional failures that occur under normal operating conditions from the date of shipment. This includes backplane communication failures, power rail defects, and mechanical integrity issues. Support requests are supported by our technical team, and replacement units are dispatched promptly to minimize your downtime.

Q2: What pre-shipment testing is performed on this chassis?
Every 2MLB-M12A-CC unit undergoes functional verification testing prior to shipment, including backplane continuity checks, power rail voltage verification, and slot interface testing. Units sourced from our inventory are inspected for physical integrity and confirmed against the original Honeywell part number to ensure full compatibility with Experion PKS systems.

Q3: Is the 2MLB-M12A-CC compatible with both C200 and C300 Experion PKS controllers?
Yes. The 2MLB-M12A-CC is designed for use within the Honeywell Experion PKS platform and is compatible with C200 and C300 series process controllers, as well as standard and safety-rated I/O modules. If you are integrating this chassis into an existing system, our technical team can confirm compatibility with your specific controller firmware version and I/O configuration.

Q4: Can you guarantee long-term supply availability for this part?
We maintain dedicated inventory of Honeywell Experion PKS components, including the 2MLB-M12A-CC, to support both planned maintenance and emergency replacement requirements. Our sourcing network allows us to fulfill orders for both single units and bulk quantities. For facilities with long-term maintenance contracts or planned turnaround schedules, we recommend contacting our sales team to discuss reserved stock arrangements.
