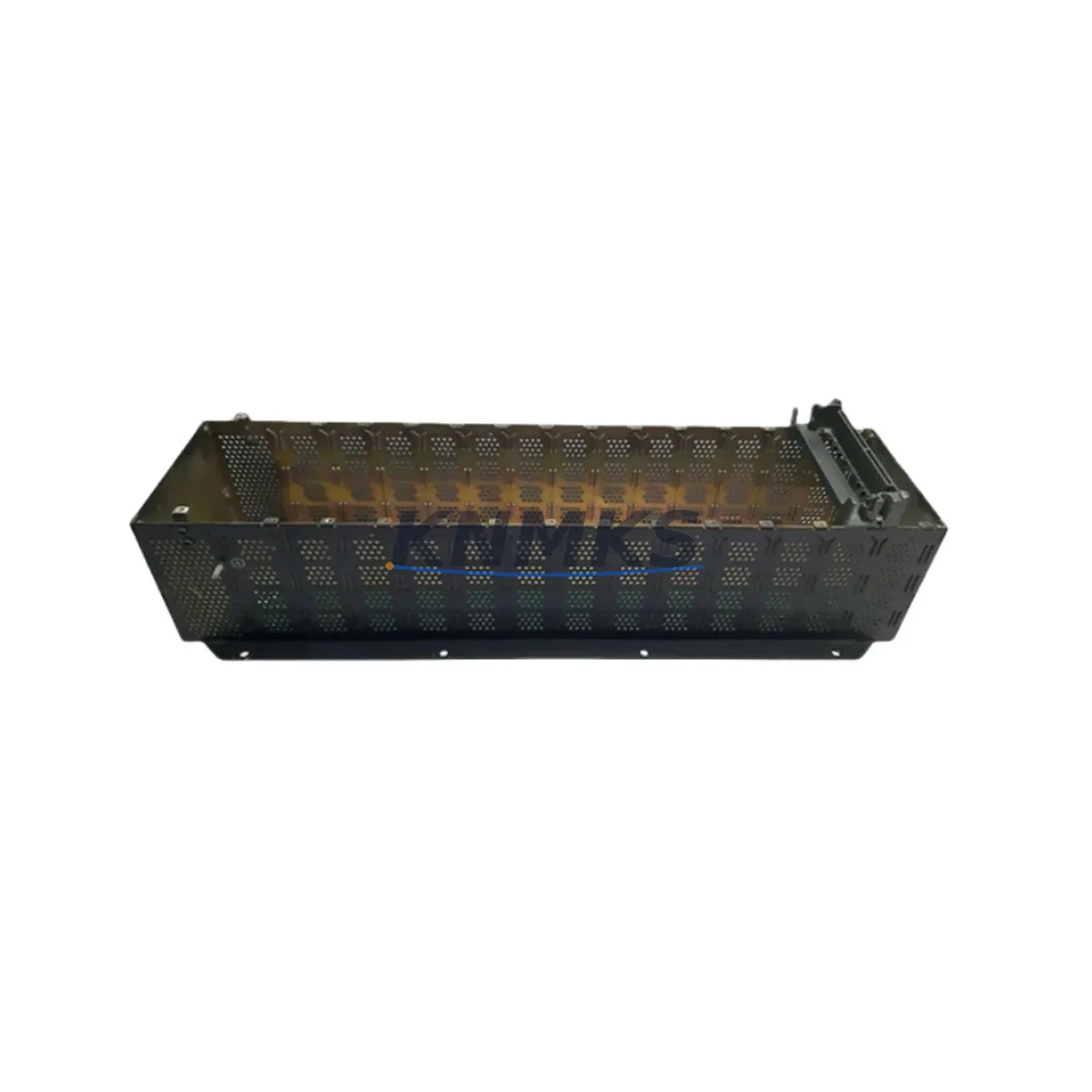

Honeywell TC-FXX102 Fail-Safe DCS Backplane for Control Reliability

Overview

Honeywell TC-FXX102 Fail-Safe DCS Backplane for Control Reliability

In continuous process industries — petrochemical, power generation, metallurgy, water treatment, and port logistics — the integrity of the distributed control system (DCS) backplane is not a peripheral concern. It is the structural backbone of every control loop, every safety interlock, and every real-time command path. The Honeywell TC-FXX102 / TK-FXX102 10-slot DCS backplane rack is engineered to meet the uncompromising demands of critical field environments where unplanned downtime is measured not in hours, but in production losses, safety incidents, and regulatory exposure.

Designed for integration within Honeywell’s TotalPlant Solution (TPS) and PlantScape DCS architectures, the TC-FXX102 provides a mechanically robust, electrically isolated, and thermally stable mounting platform for I/O modules, controller cards, and communication interface units. Its fail-safe design philosophy ensures that even under abnormal operating conditions — including power transients, ground faults, or partial module failures — the backplane maintains signal integrity and does not propagate faults across adjacent slots.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The TC-FXX102 backplane does not operate in isolation — its reliability is amplified when deployed as part of a coordinated control cabinet protection strategy. In high-stakes control enclosures, the backplane interfaces directly with Honeywell TC-CCR014 HPM Controller Cards, which manage real-time process execution and redundant control path switching. Power delivery to the backplane is typically sourced through Honeywell TC-PRS021 Power Supply Modules, which provide regulated 24 VDC with built-in overvoltage and short-circuit protection — ensuring that upstream power anomalies do not reach the backplane bus.

For field termination, Honeywell TC-FTA series Field Termination Assemblies connect directly to the backplane slots, providing a clean, labeled, and surge-protected interface between field wiring and the DCS I/O modules. In environments with high electromagnetic interference — such as variable frequency drive (VFD) rooms, arc furnace control areas, or high-voltage switchgear bays — the addition of Honeywell TC-IAH161 Analog Input Modules with differential signal conditioning further reduces the risk of signal drift and false readings that could trigger nuisance trips or mask genuine process deviations.

Communication integrity is maintained through Honeywell TC-RPCXX1 Redundant Controller Link Modules, which provide dual-path data transmission between the backplane and the supervisory control layer. In the event of a primary link failure, automatic switchover occurs within milliseconds — preserving loop control continuity without operator intervention. For cabinet thermal management, pairing the TC-FXX102 installation with properly rated enclosure cooling units and thermal sensors ensures that the backplane operates within its rated temperature envelope even during peak summer ambient conditions or high-density module loading.

Critical Industrial Safety Applications

The Honeywell TC-FXX102 / TK-FXX102 backplane rack is deployed across a broad spectrum of safety-critical and continuous-process industries where control system interruption carries severe operational and safety consequences.

In petrochemical and refinery operations, the backplane serves as the integration hub for emergency shutdown (ESD) interlock I/O, burner management system (BMS) signals, and high-integrity pressure protection (HIPPS) loops. Its per-slot fault isolation ensures that a failed I/O module does not cascade into adjacent safety loops — a critical requirement under IEC 61511 functional safety standards.

In thermal and hydroelectric power generation, the TC-FXX102 supports turbine governor control, boiler drum level regulation, and generator excitation monitoring. The backplane’s surge-protected bus architecture withstands the high-energy transients common in generator step-up transformer switching events.

In mining and mineral processing, where dust ingress, vibration, and wide ambient temperature swings are routine, the TC-FXX102’s robust mechanical construction and sealed slot connectors maintain reliable module seating and signal continuity across extended maintenance intervals.

In municipal water and wastewater treatment, the backplane supports SCADA-integrated pump control, chemical dosing automation, and effluent quality monitoring — applications where a control system failure can result in regulatory non-compliance or public health risk.

In port and marine terminal automation, the TC-FXX102 is used in crane control systems, conveyor interlocking, and hazardous area monitoring panels, where the combination of salt-air corrosion risk and high-cycle mechanical loading demands a backplane with proven long-term connector integrity.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the TC-FXX102 / TK-FXX102?
The support terms confirmed by quotation cover all manufacturing defects, connector failures, bus integrity faults, and functional failures arising under normal operating conditions. Support requests are supported by our technical team with replacement dispatch typically within 2–3 business days. Extended support terms and long-term supply agreements are available for high-volume or critical-site customers.

Q2: What pre-shipment testing is performed before dispatch?
Every TC-FXX102 / TK-FXX102 unit undergoes a full functional verification test including slot bus continuity checks, power rail integrity measurement, and a burn-in cycle under load. Units that do not meet Honeywell’s original factory acceptance criteria are quarantined and not dispatched. A test report is available upon request.

Q3: Is the TC-FXX102 compatible with all Honeywell TPS I/O modules and HPM controllers?
Yes. The TC-FXX102 / TK-FXX102 is designed for direct compatibility with the full range of Honeywell TPS I/O modules, HPM High-Performance Process Manager controllers, and TC-FTA Field Termination Assemblies. If you are integrating with a specific firmware revision or a mixed-generation TPS cabinet, our technical team can confirm compatibility prior to shipment.

Q4: Can you support long-term or repeat supply for ongoing maintenance programs?
Yes. We maintain forward buffer stock of the TC-FXX102 / TK-FXX102 to support planned maintenance cycles, spare parts programs, and emergency replacement requirements. Long-term supply agreements with guaranteed lead-time commitments are available for customers operating multiple Honeywell TPS sites. Contact our sales team to discuss volume pricing and scheduled delivery options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

TC-FXX102 TK-FXX102
Experion PKS Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: Honeywell TC-FXX102 TK-FXX102
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
