Honeywell MU-TPIX12 51304084-100 Spare Part for Factory Uptime

Overview

Honeywell MU-TPIX12 51304084-100 Spare Part for Factory Uptime

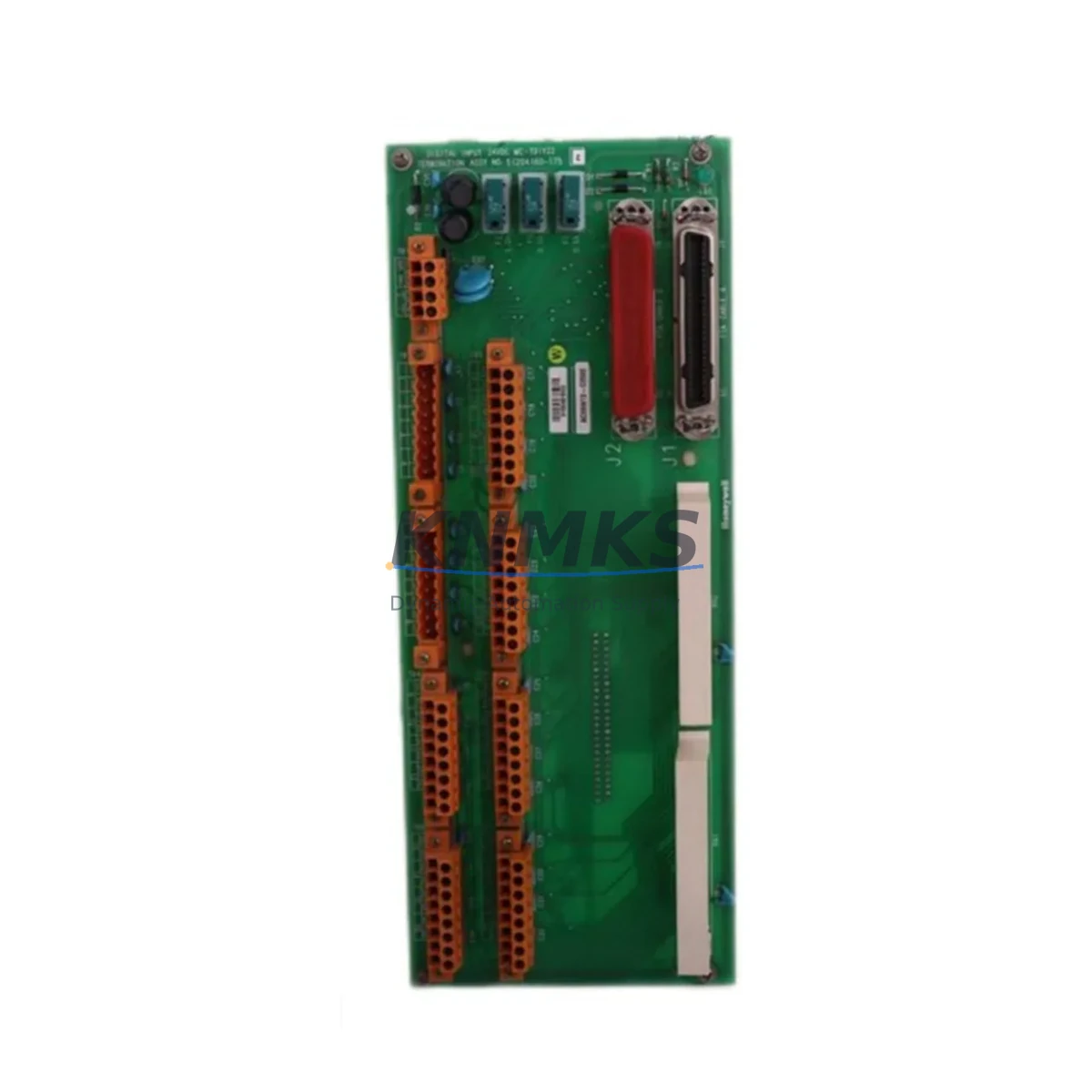

The Honeywell MU-TPIX12 (P/N 51304084-100) is a field-proven DCS termination board designed for the Experion PKS (Process Knowledge System) platform. In continuous-process industries — refining, petrochemical, power generation, and pharmaceutical manufacturing — this termination assembly serves as the critical interface between field wiring and the C300 Controller or associated I/O modules. When this board fails or degrades, the result is immediate signal loss, spurious trips, or complete loop dropout. Maintaining a qualified spare on the shelf is not optional; it is a core element of any responsible maintenance strategy.

At KNMKS, every MU-TPIX12 51304084-100 unit is sourced from verified supply channels, visually inspected, and functionally tested prior to shipment. Each unit ships with a support terms confirmed by quotation and full traceability documentation, giving maintenance engineers and procurement teams the confidence to stock and deploy without hesitation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Termination boards like the MU-TPIX12 sit at the intersection of field instrumentation and the DCS control layer. A structured maintenance plan must account for every component in the same signal path. When scheduling replacement or inspection of the MU-TPIX12 51304084-100, maintenance engineers should simultaneously verify the condition of the following associated components:

C300 Controller Module: The C300 is the primary processing node that communicates with the termination board. Any firmware mismatch or hardware fault in the C300 will manifest as erratic behavior at the termination level. Confirm controller firmware revision compatibility before swapping the termination board.

IOTA (I/O Termination Assembly): The IOTA assemblies paired with the MU-TPIX12 carry analog and digital I/O signals from field devices. Inspect IOTA connector pins for oxidation and verify that field cable shields are properly grounded at the termination point.

Field Junction Cables and Marshalling Wiring: Corroded or loose field wiring at the marshalling cabinet is a leading cause of intermittent faults that are incorrectly attributed to the termination board itself. Before condemning the MU-TPIX12, perform a point-to-point continuity check on all field cables entering the termination assembly.

Power Supply Modules (e.g., Honeywell CC-PWR01 or equivalent 24 VDC rail supply): Termination boards require stable DC power from the cabinet power rail. A sagging or noisy power supply will cause signal instability across all I/O channels. Measure rail voltage under load and replace any power supply showing ripple beyond specification.

Fuses and Protection Components: Individual channel fuses or polyfuses on the termination assembly protect field loops from overcurrent events. During annual inspection, test each fuse for continuity and replace any that show elevated resistance — a common sign of thermal fatigue in high-cycle environments.

Communication Modules and FTE Network Cards: In Experion PKS architectures, the Fault Tolerant Ethernet (FTE) network underpins controller-to-server communication. If the MU-TPIX12 replacement is part of a broader controller cabinet rebuild, verify that FTE switch ports and network cards are functioning correctly to avoid post-maintenance communication faults.

Stocking the MU-TPIX12 51304084-100 alongside these associated components — particularly IOTA assemblies, power supply modules, and field cable connectors — reduces mean time to repair (MTTR) and eliminates the risk of a secondary component failure extending an already costly unplanned outage.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed or suspect board’s part number (MU-TPIX12, P/N 51304084-100) against the cabinet drawing and the Experion PKS hardware configuration. Verify that the replacement unit’s revision level is compatible with the installed C300 firmware.

Step 2 — Safe Isolation: Place the affected controller or I/O subsystem in a safe state per site MOC (Management of Change) procedure. For live cabinet work, coordinate with the control room operator to confirm all loops served by the termination board are in manual or safe-hold mode.

Step 3 — Field Wiring Documentation: Photograph or record all field wire terminations before disconnection. Label each wire with its channel designation. This step is critical in older PKS installations where as-built drawings may not reflect field modifications made over years of operation.

Step 4 — Board Removal and Inspection: Remove the MU-TPIX12 and inspect the cabinet backplane connector for bent pins or contamination. Clean the connector area with approved contact cleaner before installing the replacement unit.

Step 5 — Installation and Loop Check: Seat the replacement MU-TPIX12 51304084-100 firmly, reconnect all field wiring per documentation, and perform a channel-by-channel loop check from the field device to the Experion PKS operator station. Confirm signal values are within expected range before returning loops to automatic control.

Step 6 — Documentation and Spare Replenishment: Update the maintenance management system (CMMS) with the replacement record and immediately initiate a purchase order to replenish the consumed spare. A single-unit spare inventory for a critical termination board is insufficient for facilities running continuous processes; a minimum of two units is recommended for high-criticality loops.

Spare Parts Support FAQ

Q1: Is the MU-TPIX12 51304084-100 compatible with all Experion PKS revisions?
The MU-TPIX12 is designed for the Experion PKS platform and is compatible with C300-based cabinet configurations across multiple PKS software revisions. However, hardware revision levels of the termination board should be matched to the installed IOTA and controller firmware. KNMKS can assist with revision-level verification prior to shipment — contact [email protected] with your system’s current hardware and software revision details.

Q2: What testing is performed before shipment?
Every MU-TPIX12 51304084-100 unit supplied by KNMKS undergoes visual inspection for physical damage, connector integrity check, and functional verification where test equipment is applicable. Units are packed in anti-static, shock-protected packaging. A support terms confirmed by quotation cover defects in materials and workmanship from the date of shipment.

Q3: Can this termination board replace older or discontinued Honeywell termination assemblies?
The MU-TPIX12 is a specific assembly within the PKS termination family. Direct substitution for other termination board part numbers requires engineering review of the I/O channel type, wiring configuration, and IOTA pairing. KNMKS recommends confirming compatibility with your site’s PKS hardware documentation before ordering a cross-reference replacement.

Q4: What is the recommended spare inventory strategy for this part?
For facilities with Experion PKS systems supporting critical process loops, a minimum of two MU-TPIX12 51304084-100 units should be held in the site spare parts store. Annual turnarounds are an appropriate time to inspect on-shelf spares for storage-related degradation and to rotate stock. KNMKS supports long-term supply agreements and can provide scheduled replenishment to maintain your site’s minimum stock levels without requiring repeated spot purchases.
