Honeywell MU-TLPA02 551309204-125 Fail-Safe DCS Power Adapter

Overview

Honeywell MU-TLPA02 551309204-125 Fail-Safe DCS Power Adapter for Industrial Control Reliability

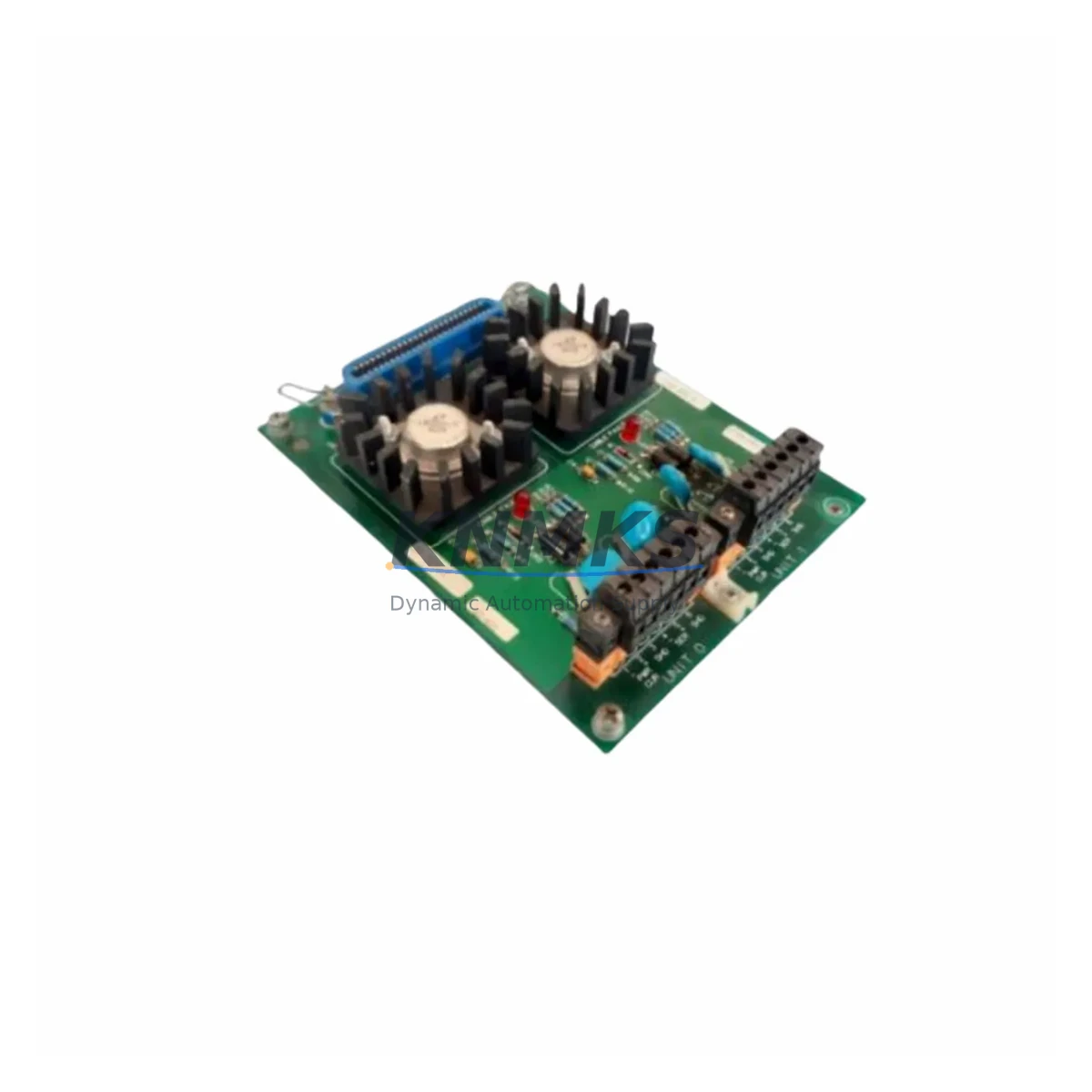

The Honeywell MU-TLPA02 (P/N 551309204-125) is a mission-critical DCS power adapter board engineered for continuous, fail-safe operation within Honeywell TDC 3000 and Experion PKS distributed control systems. Designed to sustain stable, conditioned power delivery to field termination assemblies and I/O modules under the most demanding industrial conditions, this adapter board is a cornerstone component for plants where unplanned downtime carries severe operational, safety, and financial consequences.

In continuous process industries — petrochemical complexes, power generation facilities, mineral processing plants, water treatment stations, and metallurgical operations — the integrity of the DCS power rail is non-negotiable. Voltage fluctuations, transient surges, ground loops, and high-frequency electromagnetic interference generated by variable frequency drives, large motor starters, and arc furnaces can propagate through inadequately protected power distribution paths, causing I/O signal drift, spurious trips, controller faults, and cascading interlock failures. The MU-TLPA02 addresses these failure vectors directly, providing a hardened, regulated power interface that isolates sensitive control circuitry from the harsh electrical environment of the plant floor.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable DCS operation depends not on any single component, but on the coordinated integrity of the entire control cabinet ecosystem. The MU-TLPA02 power adapter board functions as the regulated power interface between the cabinet’s 24 VDC distribution bus and the field termination assemblies — but its effectiveness is maximized when paired with a properly engineered cabinet protection strategy.

On the power supply side, the Honeywell MC-PDOX02 / 51304485-150 Power Distribution Module provides the upstream regulated 24 VDC rail that feeds the MU-TLPA02. Ensuring this module is in good condition — with no capacitor degradation or output ripple — is the first line of defense against power-induced I/O faults. For cabinets operating in environments with significant load switching, supplementing the power path with a Honeywell MC-PSIM11 Power Supply Input Module adds an additional layer of input conditioning and redundancy monitoring.

On the I/O side, the MU-TLPA02 directly supports field termination assemblies such as the Honeywell MU-TAIH02 / 51304453-150 Analog Input Termination Assembly and the MU-TAOH02 Analog Output Termination Assembly, both of which rely on stable, low-noise power to maintain signal accuracy across 4–20 mA loops. In high-vibration or high-dust environments — common in mining headframes, cement plants, and port crane control rooms — periodic inspection of the termination assembly connectors and the MU-TLPA02 board seating is recommended as part of the preventive maintenance cycle.

For communication integrity, the Honeywell CC-PCNT01 / 51405047-175 Control Firewall Module and associated Experion PKS C300 Controller depend on clean, stable power from the termination layer upward. A degraded or failed MU-TLPA02 can manifest as intermittent controller communication faults, false I/O diagnostics, or unexplained loop deviations — symptoms that are frequently misdiagnosed as software or network issues before the power adapter board is identified as the root cause.

Critical Industrial Safety Applications

The MU-TLPA02 is deployed across a wide range of critical process industries where control system reliability directly impacts personnel safety, environmental compliance, and production continuity.

In petrochemical and refinery operations, the board supports the power integrity of emergency shutdown (ESD) interlock loops, high-integrity pressure protection systems (HIPPS), and fired heater safety circuits. A power adapter failure in these environments can trigger spurious shutdowns or, more critically, mask a genuine process deviation by corrupting the I/O signal path — both outcomes carry significant safety and regulatory consequences.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the MU-TLPA02 sustains the DCS power rail for turbine control, boiler management, and grid synchronization I/O. These applications demand zero-tolerance for power-induced signal errors, particularly during load transients and grid disturbances when the electrical environment is at its most hostile.

In mining and mineral processing, where heavy equipment switching generates severe voltage transients and ground potential differences, the board’s transient suppression capability protects the downstream I/O modules from damage that would otherwise require extended unplanned outages to diagnose and repair.

In water and wastewater treatment, the MU-TLPA02 supports continuous monitoring and control of dosing, filtration, and pumping systems — applications where a control interruption can result in regulatory non-compliance or public health risk.

In metallurgical and steel production environments, characterized by extreme heat, vibration, and electromagnetic interference from induction furnaces and rolling mill drives, the board’s robust design ensures that the DCS power layer remains stable even as the surrounding environment challenges every other system in the cabinet.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the MU-TLPA02?
The support terms confirmed by quotation cover all parts and workmanship defects identified under normal operating conditions consistent with the Honeywell TDC 3000 / Experion PKS installation specifications. If the board fails within the confirmed support period due to a manufacturing or component defect, KNMKS will provide a replacement unit at no additional cost, including pre-shipment functional testing on the replacement.

Q2: What pre-shipment testing is performed before dispatch?
Every MU-TLPA02 unit undergoes 100% functional testing prior to shipment. This includes power-on verification, output voltage regulation checks, and visual inspection for connector integrity and board condition. Units that do not pass functional testing are not dispatched. A test report is available upon request for critical plant applications.

Q3: Is the MU-TLPA02 551309204-125 compatible with both TDC 3000 and Experion PKS systems?
Yes. The MU-TLPA02 with part number 551309204-125 is designed for use across Honeywell TDC 3000 and Experion PKS platforms, specifically within the field termination assembly power distribution architecture. Compatibility should be confirmed against the specific cabinet revision and termination panel configuration at your site. Our technical team can assist with cross-referencing if you provide your cabinet drawing or system revision details.

Q4: Can KNMKS support long-term or scheduled supply agreements for MU-TLPA02 boards?
Yes. KNMKS maintains multi-region stock of the MU-TLPA02 to support both emergency replacement requirements and planned maintenance schedules. For plants with recurring demand — such as those managing aging TDC 3000 infrastructure or executing phased Experion PKS migrations — we can discuss scheduled supply agreements to ensure stock availability aligned with your maintenance windows and outage planning calendar.
