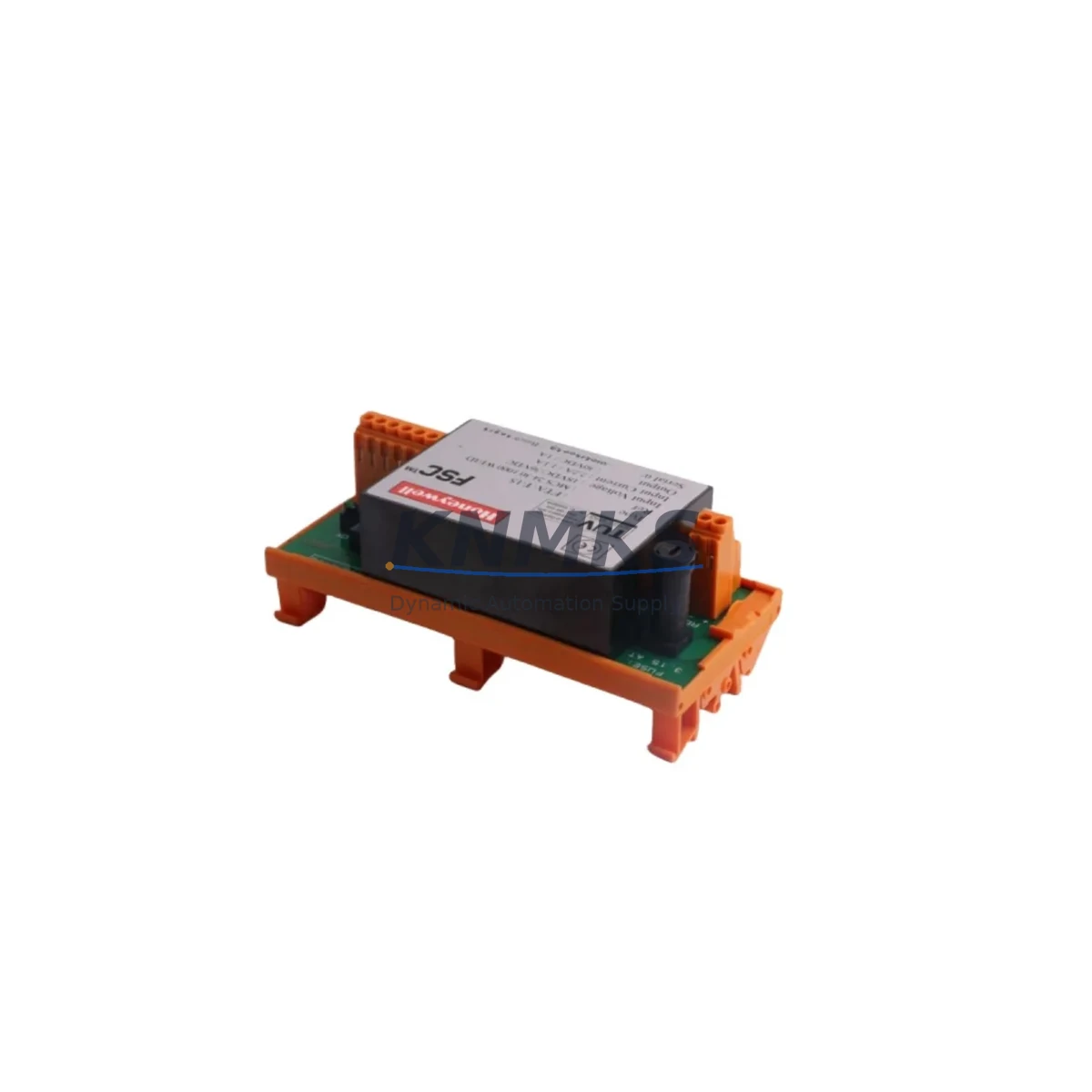

Honeywell FTA-T-15 Migration-Ready Field Termination Assembly

Overview

Honeywell FTA-T-15 Migration-Ready Field Termination Assembly: Legacy System Retrofit and Compatibility Upgrade

The Honeywell FTA-T-15 is a Field Termination Assembly (FTA) designed for use within the Honeywell Experion PKS distributed control system platform. As legacy DCS installations age and original FTA variants reach end-of-life or become discontinued, the FTA-T-15 serves as a reliable retrofit-ready replacement that preserves existing field wiring infrastructure while enabling seamless integration with current Experion PKS I/O modules and controller backplanes. Whether you are managing a planned control system upgrade, responding to an unplanned spare parts shortage, or executing a phased migration from an older TDC 3000 or PlantScape architecture, the FTA-T-15 provides the terminal density, signal compatibility, and mechanical form factor required to minimize engineering rework and reduce overall project risk.

Before committing to a replacement, engineers should verify several critical parameters: the power supply rail voltage available at the marshalling cabinet, the terminal block pitch and wiring gauge compatibility with existing field cables, the backplane slot assignment and I/O module address configuration within the Experion PKS chassis, and whether the associated IOLINK or FOUNDATION Fieldbus segment requires any firmware revision on the connected C300 Controller or IOTA module. In many retrofit scenarios, the FTA-T-15 can be installed without re-terminating field wiring, provided the existing cable schedule and loop drawings are cross-referenced against the FTA-T-15 terminal map prior to commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful FTA-T-15 retrofit begins well before the physical installation. During the planning phase, the project team should audit the existing marshalling cabinet layout to confirm that the FTA mounting rail spacing is compatible with the FTA-T-15 form factor. In many Experion PKS installations, the FTA-T-15 is used alongside the Honeywell IOTA-T module, which provides the physical backplane connection between the FTA terminal block and the upstream I/O Link segment. If the existing IOTA-T is being retained, engineers must confirm that its firmware is current and that the associated C300 Controller has sufficient I/O capacity to absorb the migrated channel count without requiring an additional chassis expansion.

For sites migrating from older TDC 3000 High-Performance Process Manager (HPPM) or Advanced Process Manager (APM) architectures, the FTA-T-15 retrofit typically involves parallel operation during the cutover window. The legacy HPM I/O cards and their associated FTAs remain energized while the new Experion PKS IOTA and FTA-T-15 assemblies are wired and loop-checked in the background. This approach allows the control room operator to maintain process visibility through the existing HMI displays while the migration team validates signal integrity on the new infrastructure. Once loop checks are complete and the Experion PKS Control Builder configuration has been downloaded and verified, the cutover can be executed loop-by-loop or by functional group, significantly reducing the risk of extended process downtime.

Signal isolation requirements should also be evaluated during the planning stage. In applications where the field device generates high common-mode noise or where intrinsic safety barriers are required, a signal isolator or Zener barrier assembly may need to be inserted between the field cable and the FTA-T-15 terminal block. Similarly, if the migration involves transitioning from a 4–20 mA analog I/O architecture to a FOUNDATION Fieldbus or HART-enabled segment, the FTA-T-15 must be paired with the appropriate IOTA variant that supports the target communication protocol. In some cases, a dedicated HART Multiplexer or FIM (Fieldbus Interface Module) will be required to bridge the legacy analog infrastructure with the new digital field network.

Cabinet space planning is another critical factor. The FTA-T-15, when installed with its associated IOTA module and cable management accessories, requires a defined vertical clearance on the mounting rail. Projects that are consolidating multiple legacy FTA assemblies into a smaller footprint should verify that the new layout does not compromise airflow around adjacent power supplies or communication modules. The Honeywell PM-series Power Module, which supplies 24 VDC to the FTA bus, should be load-calculated to confirm that the addition of new FTA-T-15 assemblies does not exceed the rated output current of the existing power distribution architecture.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any live plant migration. The FTA-T-15 retrofit strategy is designed to support a phased cutover approach that preserves the original control logic and HMI display hierarchy throughout the transition. Before any physical work begins, a full backup of the Experion PKS Control Builder database should be archived, including all controller configurations, tag definitions, alarm setpoints, and historian collection parameters. This backup serves as the recovery baseline in the event that a configuration error is introduced during the migration sequence.

During the cutover itself, the recommended practice is to maintain the legacy FTA and its associated I/O module in service until the new FTA-T-15 assembly has been fully loop-checked and the corresponding Experion PKS controller module has confirmed healthy channel status. The transition from the old to the new I/O path should be executed during a planned maintenance window, with the process unit in a safe, stable operating state. For critical control loops, a manual bypass or field-mounted local controller should be available to maintain process stability during the brief period when the I/O signal is being transferred between the legacy and new FTA assemblies.

Post-cutover verification should include a systematic review of all migrated channels in the Experion PKS Station display, confirmation that alarm and interlock logic is functioning correctly on the new I/O path, and a 24-hour monitoring period before the legacy FTA assembly is de-energized and removed from service. Field technicians should document any wiring modifications, terminal reassignments, or address changes made during the migration for inclusion in the as-built drawing package. All FTA-T-15 units supplied by KNMKS are pre-tested prior to shipment, reducing the risk of infant mortality failures during the commissioning phase and supporting a faster return to normal operations.

Retrofit Support FAQ

Q1: Can the FTA-T-15 directly replace older discontinued Honeywell FTA variants without rewiring field cables?
In most Experion PKS retrofit scenarios, the FTA-T-15 can be installed using the existing field cable terminations, provided the terminal block layout and channel assignment are verified against the original loop drawings. Minor wiring adjustments may be required if the legacy FTA used a different terminal numbering convention. Always cross-reference the FTA-T-15 wiring diagram with the existing cable schedule before proceeding.

Q2: What commissioning steps are required after installing the FTA-T-15 in an existing Experion PKS chassis?
After physical installation, the technician should confirm that the IOTA module recognizes the FTA-T-15 on the backplane, verify channel addressing in Control Builder, perform a loop check on each I/O channel, and confirm that all associated HMI faceplates are displaying correct process values. If the I/O module address has changed, the Control Builder configuration must be updated and downloaded to the C300 Controller before the channels are placed in automatic control.

Q3: How do I confirm firmware compatibility between the FTA-T-15 and my current Experion PKS release?
The FTA-T-15 is compatible with Experion PKS R500 and above. For sites running earlier releases, a firmware upgrade of the associated IOTA module may be required. Contact your Honeywell system integrator or refer to the Experion PKS Compatibility Matrix document for your specific release version. KNMKS technical support can assist with compatibility verification prior to order placement.

Q4: What support terms and testing coverage is provided with the FTA-T-15 supplied by KNMKS?
All FTA-T-15 units are covered by a support terms confirmed by quotation against manufacturing defects and functional failure under normal operating conditions. Each unit undergoes a 100% functional pre-shipment test before dispatch. A test report is available upon request. In-stock units are available for immediate shipment to support urgent maintenance and unplanned outage scenarios.
