Honeywell FTA-T-14 Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell FTA-T-14 Maintenance-Proven Spare Part for Factory Uptime

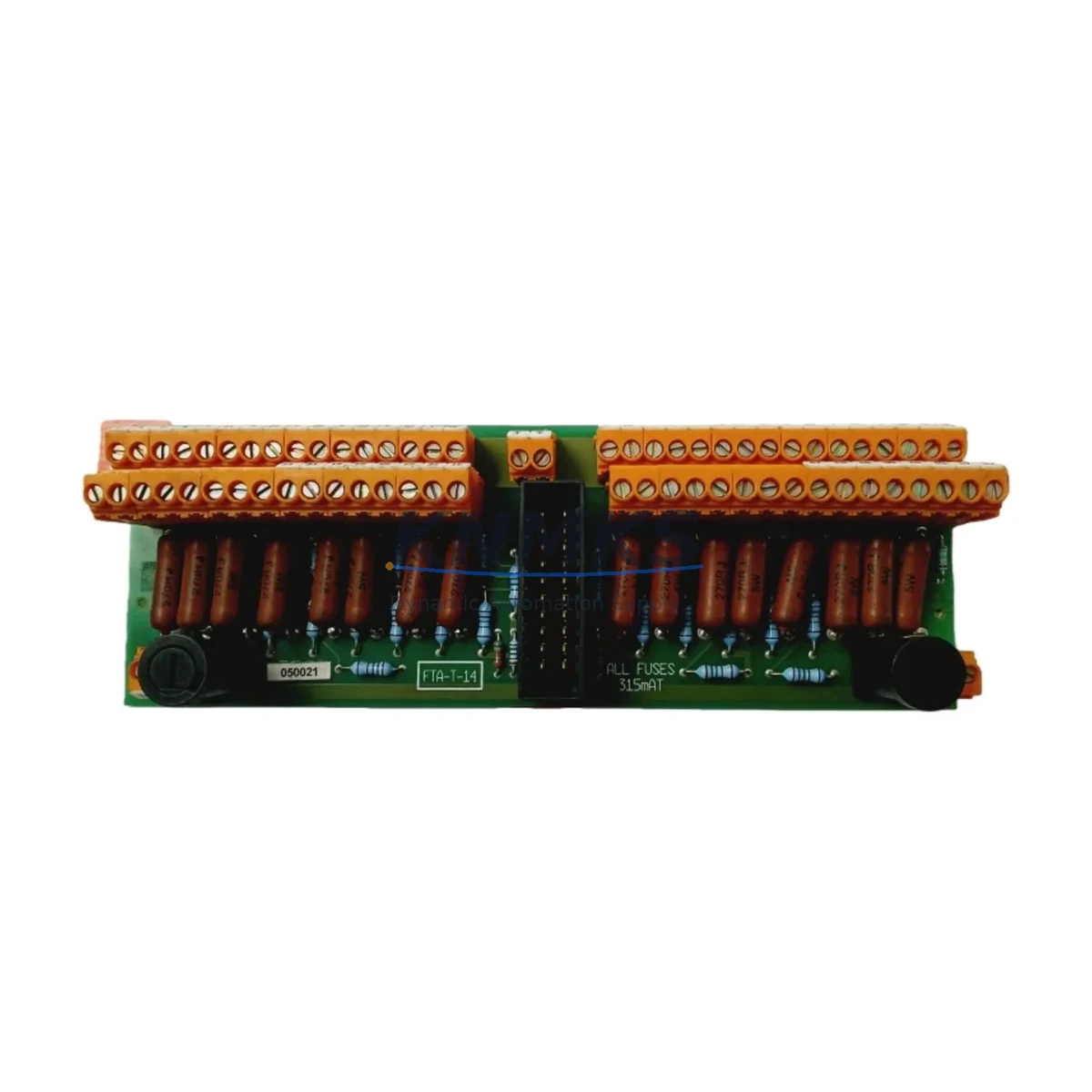

The Honeywell FTA-T-14 is an original Field Termination Assembly (FTA) engineered for use within Honeywell’s High-Performance Process Manager (HPM) and Experion PKS distributed control systems. Designed to interface analog input signals from field instruments directly to the I/O Link, the FTA-T-14 serves as a critical junction point in process automation architectures across refining, petrochemical, power generation, and continuous manufacturing environments. Maintaining a verified stock of FTA-T-14 units is a cornerstone of any proactive spare parts strategy for facilities running legacy or active Honeywell DCS infrastructure.

For maintenance engineers, the FTA-T-14 is most commonly encountered during scheduled turnarounds, corrective maintenance following signal loss alarms, and annual control cabinet inspections. Its terminal block design allows field wiring to remain connected while the FTA module is swapped, significantly reducing loop restoration time during unplanned outages. Procurement engineers sourcing this part should confirm the revision level and cable compatibility with the associated I/O module — typically the Honeywell MC-TAIH02 or MC-TAIH12 analog input card — to ensure a drop-in replacement without reconfiguration.

When replacing the FTA-T-14 in the field, a disciplined site workflow is essential. Before removal, verify that the associated analog input channel is placed in manual mode at the DCS console to prevent false process alarms or interlock trips. Inspect the field cable connector and the 40-pin ribbon cable linking the FTA to the I/O card for signs of corrosion, pin damage, or insulation wear. It is equally important to check the condition of the Honeywell MC-TAIH02 analog input module itself — a degraded FTA is sometimes symptomatic of upstream card issues, and replacing only the FTA without verifying the I/O card can result in repeat failures within weeks.

During cabinet-level inspections, the FTA-T-14 should be evaluated alongside adjacent components in the same I/O nest. Maintenance teams should simultaneously inspect the HPM I/O Link cable, the nest backplane connectors, and any signal isolators or barriers installed in the marshalling cabinet. Fuse integrity on the FTA’s field power rails should be confirmed, and terminal screw torque should be verified to prevent intermittent signal faults caused by loose connections — a common root cause of unexplained analog drift in aging DCS installations.

From a spare parts inventory perspective, facilities operating more than four HPM cabinets are advised to maintain a minimum of two FTA-T-14 units on-site. Given the age profile of many HPM installations, lead times from OEM channels can extend to several weeks, making pre-positioned stock essential for meeting maintenance KPIs. KNMKS supplies the FTA-T-14 from verified inventory, with each unit undergoing functional inspection and continuity testing prior to shipment. All units are shipped with original packaging where available and are covered by a support terms confirmed by quotation against manufacturing defects.

Beyond the FTA-T-14 itself, a comprehensive HPM spare parts kit for analog input circuits should include the Honeywell MC-TAIH02 or MC-TAIH12 I/O module, the 40-pin FTA cable assembly, and a selection of replacement terminal screws and fuse elements rated for the FTA’s field power circuit. Facilities managing mixed analog and digital I/O should also consider stocking the Honeywell FTA-D-14 for discrete input terminations and the FTA-R-14 for relay output circuits, ensuring that a single cabinet fault does not cascade into a multi-loop outage due to unavailable spares. For systems integrated with Experion PKS, the associated C200 or C300 controller modules and their redundancy links should be included in the annual spare parts review cycle.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for HPM-based control systems requires a holistic view of the analog input circuit — from field instrument to DCS controller. When the FTA-T-14 is identified as a replacement candidate, the maintenance window should be used to inspect the full signal chain. The 40-pin ribbon cable connecting the FTA to the MC-TAIH02 analog input card is a frequent source of intermittent faults in systems with more than ten years of service; cable replacement should be budgeted alongside the FTA itself.

At the marshalling cabinet level, signal isolators and intrinsic safety barriers installed upstream of the FTA-T-14 should be tested for drift and response time. Zener barriers and galvanic isolators in hazardous-area installations have defined service lives and should be replaced on a scheduled basis rather than reactively. Terminal blocks and DIN rail mounting hardware in the same cabinet section should be inspected for corrosion, particularly in coastal or high-humidity plant environments.

For facilities running Experion PKS alongside legacy HPM nodes, the C200 or C300 controller’s I/O Link health should be reviewed in the Experion Station during the same maintenance cycle. A degraded I/O Link can mask FTA-level faults and lead to misdiagnosis. The HPM I/O nest backplane and its power supply module — typically a Honeywell MC-PDPY1 or equivalent — should be included in the inspection checklist to rule out power-related signal anomalies.

Procurement teams should also evaluate the availability of the Honeywell FTA-D-14 and FTA-R-14 as companion spares, covering discrete input and relay output terminations respectively. Stocking these alongside the FTA-T-14 ensures that a single cabinet inspection can address the full range of FTA types without requiring separate procurement cycles.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Place all affected analog input channels in manual mode at the DCS operator station. Document current process values and alarm setpoints for post-replacement verification. Notify the control room of the planned maintenance activity and estimated restoration time.

Step 2 — Cabinet Access and Isolation: Open the HPM I/O cabinet and locate the FTA-T-14 in the marshalling section. Photograph the existing field wiring layout before disconnection. Verify that field power to the FTA terminal block is de-energized using a calibrated multimeter.

Step 3 — FTA Removal: Disconnect the 40-pin ribbon cable from the FTA-T-14. Loosen and remove field wiring terminals, labeling each wire with its loop tag number. Remove the FTA from its DIN rail mounting. Inspect the vacated mounting position for debris, corrosion, or moisture ingress.

Step 4 — Replacement Installation: Mount the new FTA-T-14 onto the DIN rail. Reconnect field wiring in accordance with the as-built loop drawing, verifying terminal torque to the manufacturer’s specification. Reconnect the 40-pin ribbon cable, ensuring full seating of the connector.

Step 5 — Restoration and Verification: Re-energize field power and return analog input channels to automatic mode at the DCS. Verify that all loop readings are within expected range and that no new alarms are active. Document the replacement in the plant maintenance management system (CMMS) with the new FTA serial number and installation date.

This workflow minimizes loop downtime to typically under 45 minutes per FTA position and ensures full traceability for audit and reliability reporting purposes.

Spare Parts Support FAQ

Q1: Is the FTA-T-14 compatible with both HPM and Experion PKS systems?
Yes. The FTA-T-14 is designed for use in Honeywell HPM I/O nests and is also compatible with Experion PKS installations that retain HPM I/O architecture. Compatibility should be confirmed against the specific I/O module revision installed in your cabinet — KNMKS technical support can assist with cross-referencing if you provide your cabinet configuration details.

Q2: What pre-shipment testing is performed on FTA-T-14 units?
Each FTA-T-14 unit supplied by KNMKS undergoes visual inspection, continuity testing across all terminal positions, and connector integrity verification before shipment. Units are packaged in anti-static materials with original documentation where available. A test report can be provided upon request for quality-critical procurement processes.

Q3: How should the FTA-T-14 be stored as a long-term spare?
Store the FTA-T-14 in a dry, temperature-controlled environment between 0°C and 40°C, away from direct sunlight and electromagnetic interference sources. Anti-static packaging should be maintained until installation. For long-term storage exceeding 24 months, a periodic inspection of terminal block integrity and connector condition is recommended.

Q4: What is the support terms coverage and what does it include?
All FTA-T-14 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Support requests are processed within 5 business days of receipt of the returned unit.
