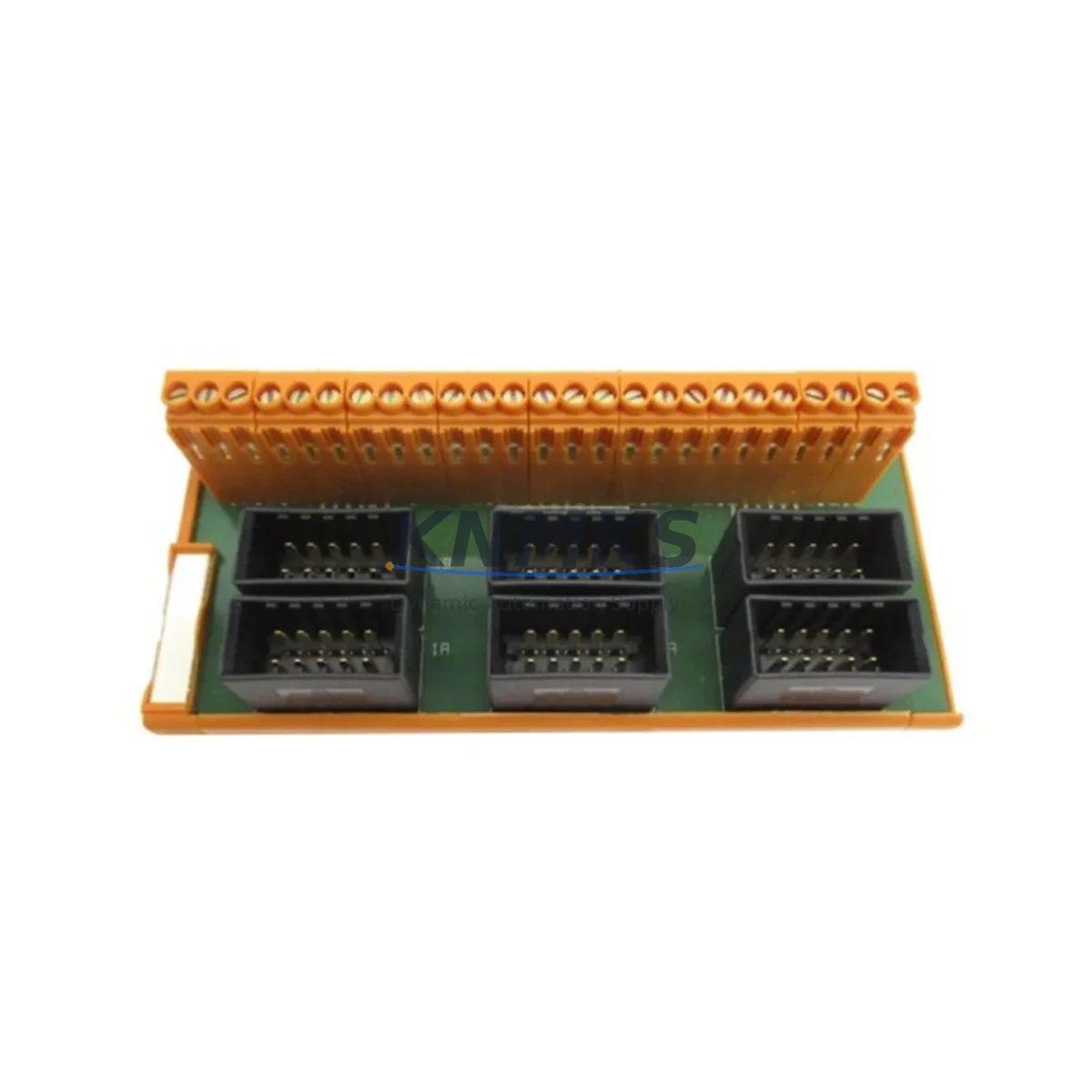

Honeywell FTA-T-02 Migration-Ready FTA for Legacy Control Systems

Overview

Honeywell FTA-T-02 Migration-Ready FTA for Legacy Control Systems

The Honeywell FTA-T-02 (Field Termination Assembly) is a migration-ready I/O termination module designed to support legacy TPS (TotalPlant Solution) and Experion PKS control system environments. As Honeywell progressively phases out TPS-era hardware, the FTA-T-02 remains a critical interface component for plants that are either extending the life of existing control cabinets or executing a phased migration toward Experion PKS R500 and later platforms. Its screw-terminal field wiring interface, standardized 32-channel layout, and direct compatibility with the HC900 and C300 controller families make it a preferred choice for retrofit engineers managing brownfield upgrades without full panel replacement.

For facilities operating legacy TPS nodes — including the HPM (High-Performance Process Manager) and APM (Advanced Process Manager) — the FTA-T-02 provides a direct termination path that preserves existing field wiring, reduces re-termination labor, and eliminates the need to reroute signal cables during cabinet upgrades. When combined with the Honeywell MC-TAIH02 Analog Input FTA or the MC-TDID12 Digital Input/Output FTA, the FTA-T-02 supports a modular I/O expansion strategy that allows engineers to add channels incrementally rather than replacing entire I/O racks at once.

Migration projects involving the FTA-T-02 typically require careful pre-installation verification across several dimensions. Power supply capacity must be confirmed — the FTA-T-02 draws from the cabinet’s 24 VDC bus, and any shared rail with Honeywell PS-0024 power supply modules must be load-checked before adding termination assemblies. Terminal block wiring must be mapped against the existing I/O assignment sheets, particularly when migrating from older HPM I/O link configurations where channel addressing differs from Experion PKS conventions. Backplane interface compatibility between the FTA-T-02 and the target I/O card — such as the MC-PAIH03 Analog Input card — must be verified against the Experion PKS hardware compatibility matrix prior to installation.

Module addressing is another critical checkpoint. In TPS environments, I/O modules are addressed via physical slot position on the I/O link; in Experion PKS, addressing is software-defined through Control Builder. Engineers migrating from TPS to Experion PKS must remap all I/O point addresses in the control strategy, update HMI display faceplates that reference legacy tag names, and verify that communication links between the C300 controller and the FTA-T-02 termination layer are correctly configured in the Experion PKS network topology. Failure to align tag addresses before cutover is one of the most common causes of extended downtime during DCS migration projects.

Firmware compatibility is equally important. The FTA-T-02 is compatible with Experion PKS R400 through R520 firmware releases. Plants running earlier TPS firmware versions should confirm that the target Experion PKS release supports the specific I/O card paired with the FTA-T-02 before scheduling the cutover window. Where firmware upgrades are required, these should be staged in a test environment using a Honeywell FTE (Fault Tolerant Ethernet) switch and validated against a backup copy of the control strategy before live deployment.

Physical installation space is a practical constraint that is frequently underestimated. The FTA-T-02 mounts on a standard 19-inch DIN rail within the I/O cabinet and requires a minimum clearance of 50 mm on each side for cable management. In dense retrofit scenarios where existing HPM I/O racks occupy most of the cabinet space, engineers may need to evaluate whether a Honeywell CC-TAIX11 I/O Link Extender or an additional cabinet section is required to accommodate the new termination layer without compromising airflow or maintenance access.

Pre-shipment testing at KNMKS includes functional verification of all terminal connections, continuity checks across the field wiring interface, and visual inspection of the PCB and connector housing. Each FTA-T-02 unit is shipped with a test report and is covered by a support terms confirmed by quotation from the date of delivery. Units are available from stock and can be dispatched within 2–3 business days of order confirmation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful FTA-T-02 retrofit begins with a thorough audit of the existing control cabinet. Engineers should document all active I/O channels, confirm the current HPM or APM I/O link configuration, and identify which field instruments are wired to the legacy termination layer. The FTA-T-02’s screw-terminal interface allows existing field cables to be re-terminated directly without cutting or splicing, which significantly reduces installation time and the risk of wiring errors.

In parallel, the control strategy should be exported from the legacy TPS environment and reviewed for any custom function blocks or proprietary logic that may not have a direct equivalent in Experion PKS Control Builder. Where gaps exist, engineers should plan for logic rewriting and schedule additional commissioning time accordingly. The Honeywell MC-PAIH03 Analog Input card paired with the FTA-T-02 supports 4–20 mA HART signals, enabling field device diagnostics to be surfaced in the Experion PKS operator station without additional signal conditioning hardware.

For plants migrating communication protocols from legacy TPS Hiway to Experion PKS FTE, the FTA-T-02 termination layer must be integrated into the new FTE network segment. This typically involves installing a Honeywell FTE switch in the control cabinet, configuring the C300 controller’s network parameters, and verifying that all I/O modules on the FTE segment are correctly enumerated in the Experion PKS Server configuration. Signal isolators — such as the Pepperl+Fuchs KFD2-STC4-Ex1 isolator — may be required for intrinsically safe field loops where the existing barrier arrangement does not meet the new system’s safety integrity requirements.

I/O expansion during the retrofit can be handled by adding additional FTA-T-02 assemblies to the cabinet, provided that the power supply budget and cabinet space allow. Each additional FTA-T-02 adds 32 field termination channels, and the modular architecture of the Experion PKS I/O subsystem means that new channels can be brought online without interrupting existing control loops — a significant advantage in continuous process environments where planned shutdowns are costly.

Downtime Control During System Migration

Minimizing downtime during a DCS migration involving the FTA-T-02 requires a structured cutover plan that separates field wiring work from control system configuration changes. The recommended approach is to install the FTA-T-02 and the new Experion PKS I/O cards in the cabinet while the legacy TPS system remains in service, using temporary jumpers to maintain field signal continuity. Once the new termination layer is physically installed and wiring is verified, the cutover can be executed as a single, time-bounded event — typically during a planned maintenance window.

Before the cutover window opens, all control strategy changes should be downloaded to the C300 controller in a staged environment and validated against a process simulation or a hardware-in-the-loop test bench. HMI faceplates should be updated to reference the new Experion PKS tag names, and operator training on the new display layouts should be completed. A rollback plan — including a documented procedure for reverting to the legacy TPS configuration if the cutover encounters critical issues — should be prepared and reviewed by the project team before the maintenance window begins.

During the cutover itself, field instrument loop checks should be performed channel by channel using the Experion PKS Station’s I/O diagnostic tools. Any discrepancies between expected and actual signal values should be investigated and resolved before the process is returned to automatic control. Post-cutover monitoring for a minimum of 24 hours is recommended to confirm that all control loops are performing within specification and that no latent wiring or configuration issues remain.

Retrofit Support FAQ

Q1: Is the FTA-T-02 a direct replacement for the legacy TPS FTA termination layer?
Yes. The FTA-T-02 is designed as a drop-in replacement for the TPS-era FTA termination layer. Field wiring can be re-terminated directly to the FTA-T-02 screw terminals without modification, provided that the I/O card paired with the FTA-T-02 is compatible with the existing field instrument signal types. Compatibility should be verified against the Experion PKS hardware compatibility matrix before ordering.

Q2: What commissioning steps are required after installing the FTA-T-02?
After physical installation, engineers must remap all I/O point addresses in Experion PKS Control Builder, update HMI faceplates to reference the new tag names, and perform loop checks on all channels. Communication link configuration between the C300 controller and the FTA-T-02 termination layer must also be verified in the Experion PKS Server configuration. A full functional test of all control loops should be completed before returning the process to automatic control.

Q3: Does KNMKS provide pre-shipment testing for the FTA-T-02?
Yes. Every FTA-T-02 unit shipped by KNMKS undergoes pre-shipment functional verification, including terminal continuity checks and visual PCB inspection. A test report is included with each shipment. Units are covered by a support terms confirmed by quotation from the date of delivery. For urgent requirements, expedited dispatch within 1 business day is available — contact [email protected] for availability.

Q4: What is the lead time and stock availability for the FTA-T-02?
The FTA-T-02 is available from stock at KNMKS. Standard lead time is 2–3 business days from order confirmation. For large-quantity orders or projects requiring multiple units, please contact our sales team at [email protected] or +86 18359268345 to confirm availability and arrange a dedicated supply allocation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

FTA-T-02
Experion PKS Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: Honeywell FTA-T-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
