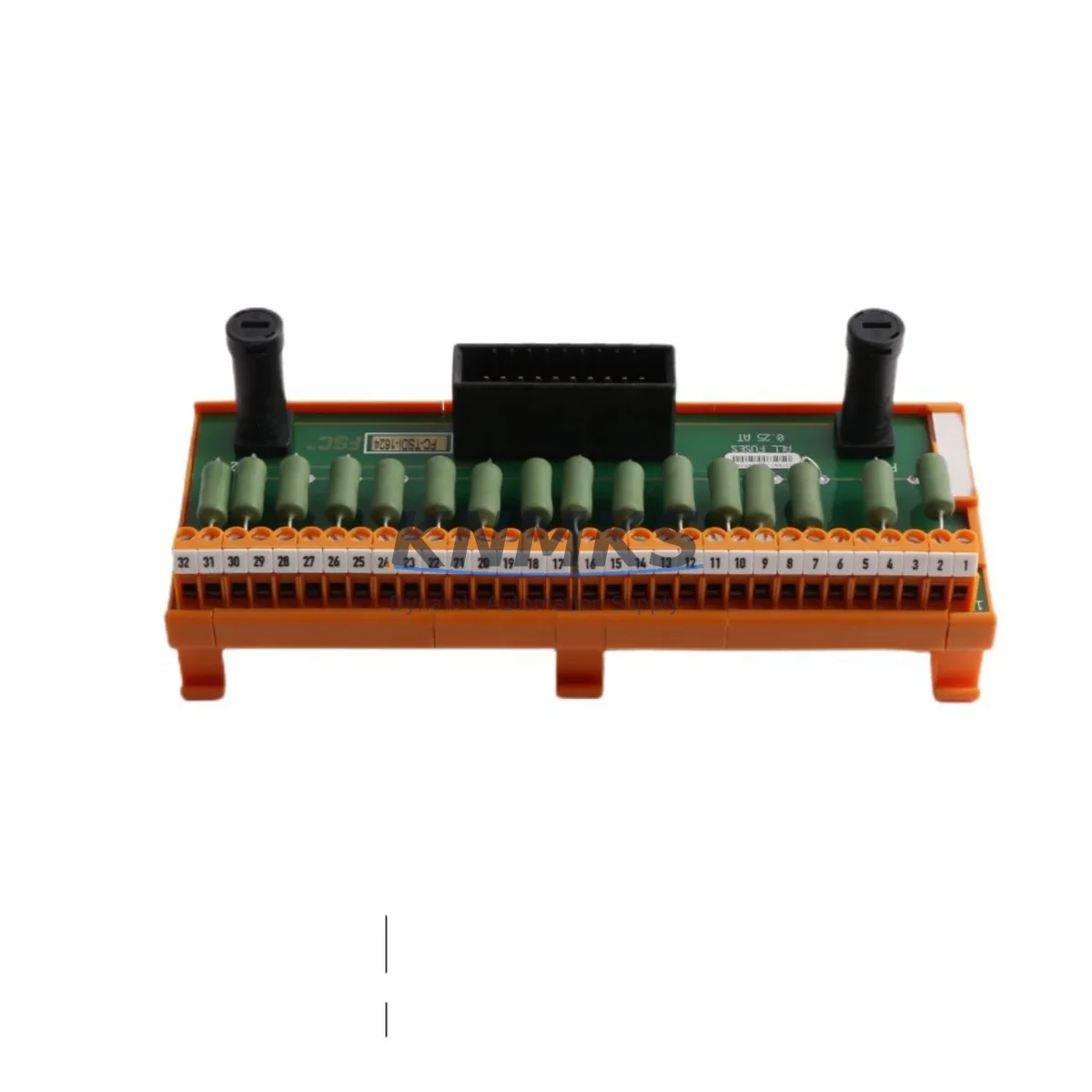

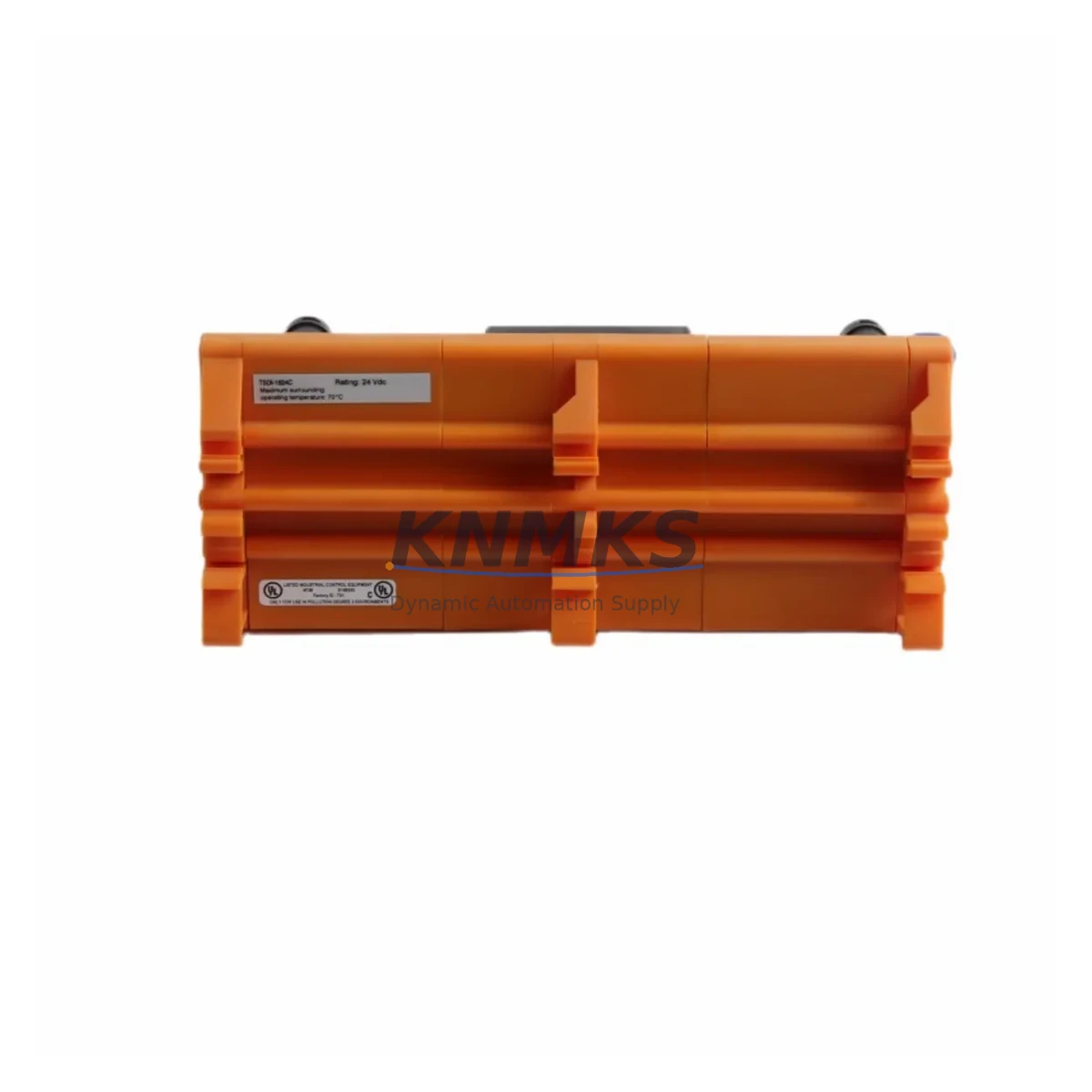

Honeywell FC-TSDI-1624 V1.0 Migration-Ready Digital Input for Legacy DCS

Overview

Honeywell FC-TSDI-1624 V1.0 Migration-Ready Digital Input for Legacy DCS

The Honeywell FC-TSDI-1624 V1.0 is a 16-channel digital input module engineered for the TotalPlant Solution (TPS) distributed control system platform. As legacy TPS installations approach end-of-support milestones, plant engineers and automation managers face increasing pressure to source verified replacement modules that maintain full backward compatibility with existing I/O termination assemblies, backplane interfaces, and control logic. The FC-TSDI-1624 V1.0 addresses this challenge directly — offering a tested, in-stock solution for facilities executing phased DCS modernization programs without full system replacement.

This module accepts 16 discrete digital input signals and interfaces directly with the TPS High-Performance Process Manager (HPM) or Application Module (AM) via the Universal Control Network (UCN) backplane. Field wiring connects through the existing FC-TSIM termination assembly, eliminating the need to re-terminate field cables during module swap. Engineers replacing a failed or end-of-life FC-TSDI-1624 should verify the installed firmware revision on the host controller to confirm compatibility with V1.0 module behavior, particularly for plants running mixed-revision I/O subsystems.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FC-TSDI-1624 V1.0 into an operating TPS environment requires a structured pre-installation review. Begin by auditing the target card cage slot: confirm the slot is assigned to a digital input function block in the HPM configuration database, and that the associated FC-TSIM termination assembly is intact and correctly wired. If the plant is also upgrading adjacent I/O, the FC-TSDO-0824 digital output module occupies the same card cage format and can be replaced in the same maintenance window, reducing total downtime exposure.

Power budget verification is a critical step often overlooked during module-level replacements. The TPS I/O card cage draws regulated 24 VDC from the HPM power supply module — typically an FC-PSU series unit. Before inserting the replacement FC-TSDI-1624, confirm that the card cage power supply has sufficient headroom to support the module’s inrush and steady-state current draw, particularly in fully populated cages where multiple I/O modules share a common rail.

For plants executing broader control system upgrades — such as migrating from TPS to Experion PKS — the FC-TSDI-1624 V1.0 can serve as a bridge solution, maintaining field I/O continuity while the host controller migration is staged. In this scenario, the existing UCN communication infrastructure, including UCN cables, UCN taps, and the Network Interface Module (NIM), remains in service during the transition period. Engineers should document all module slot addresses, I/O point assignments, and alarm setpoints before beginning any controller-level migration to ensure accurate reconstruction of the control strategy in the new environment.

HMI screen validation is another key checkpoint. Operator displays built in Honeywell’s GUS (Global User Station) or later Experion Station environments reference specific tag names and I/O point addresses. A direct module swap with no configuration change will preserve all existing tag associations. However, if the replacement is part of a broader I/O reorganization, HMI graphics must be reviewed and updated to reflect any point address changes before returning the system to automatic control.

Signal isolation requirements should also be assessed during retrofit planning. In mixed-signal environments where digital inputs share a common return with analog I/O — such as FC-TSAI or FC-TSAO series analog modules — ground loop isolation between field devices and the DCS I/O bus must be verified. Signal isolators or barriers may be required to prevent interference that could cause false input states on the FC-TSDI-1624 channels.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint for any live-system module replacement. For the FC-TSDI-1624 V1.0, the recommended approach is a hot-standby swap procedure where the HPM is placed in manual control mode for the affected I/O group before the module is physically removed. This preserves the last known output states on associated control loops and prevents process upsets caused by loss of digital input feedback during the swap interval.

Before removal, capture a full snapshot of the HPM configuration for the affected node using Honeywell’s Control Builder or equivalent configuration tool. This snapshot serves as the recovery baseline if the replacement module requires re-initialization or if the slot configuration is inadvertently cleared during the swap. The FC-TSDI-1624 V1.0 shipped from our facility has been pre-tested and initialized to factory defaults — no firmware flashing is required prior to installation, reducing on-site commissioning time.

After insertion, the HPM will automatically detect the new module and perform a self-test sequence. Monitor the module status LEDs and the HPM diagnostic display to confirm successful initialization. Re-enable automatic control only after all 16 input channels have been verified against known field device states. For critical process inputs — such as emergency shutdown signals or interlock inputs — perform a point-by-point functional test with field technicians before releasing the loop to automatic.

All FC-TSDI-1624 V1.0 units shipped by KNMKS undergo a full functional test prior to dispatch, including channel-level input verification, backplane communication handshake, and power consumption measurement. A test report is available upon request. Combined with our support terms confirmed by quotation from shipment date, this ensures that the replacement module performs to specification from the moment it is installed.

Retrofit Support FAQ

Q1: Is the FC-TSDI-1624 V1.0 a direct replacement for all FC-TSDI-1624 revisions?
The V1.0 designation refers to the hardware revision of this specific unit. In most TPS installations, V1.0 modules are interchangeable with later hardware revisions at the slot level. However, plants running early HPM firmware versions should confirm firmware compatibility with their Honeywell service representative or by reviewing the TPS I/O Module Compatibility Matrix before installation.

Q2: Do I need to modify my HPM control strategy or function block configuration after replacing the module?
For a direct 1:1 slot replacement with no I/O point reassignment, no control strategy modification is required. The HPM will recognize the replacement module using the existing slot address and I/O point configuration. If the replacement is part of a broader I/O reorganization, configuration changes will be necessary and should be tested in a simulation environment before deployment.

Q3: What is the lead time and how is the module tested before shipment?
In-stock units are typically dispatched within 1–3 business days. Each FC-TSDI-1624 V1.0 undergoes a full functional test covering all 16 input channels, backplane interface verification, and power consumption check. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q4: Can this module be used in a TPS-to-Experion PKS migration project?
Yes. The FC-TSDI-1624 V1.0 is compatible with TPS HPM nodes and can continue to serve as the field I/O interface during a phased migration to Experion PKS. In a C300 controller migration scenario, field I/O is typically migrated to CHARM I/O or Series C I/O at a later phase. The FC-TSDI-1624 can remain in service on the TPS side until the field I/O migration phase is executed, providing continuity of process control throughout the project.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

FC-TSDI-1624 V1.0
Legacy Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell FC-TSDI-1624 V1.0
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
