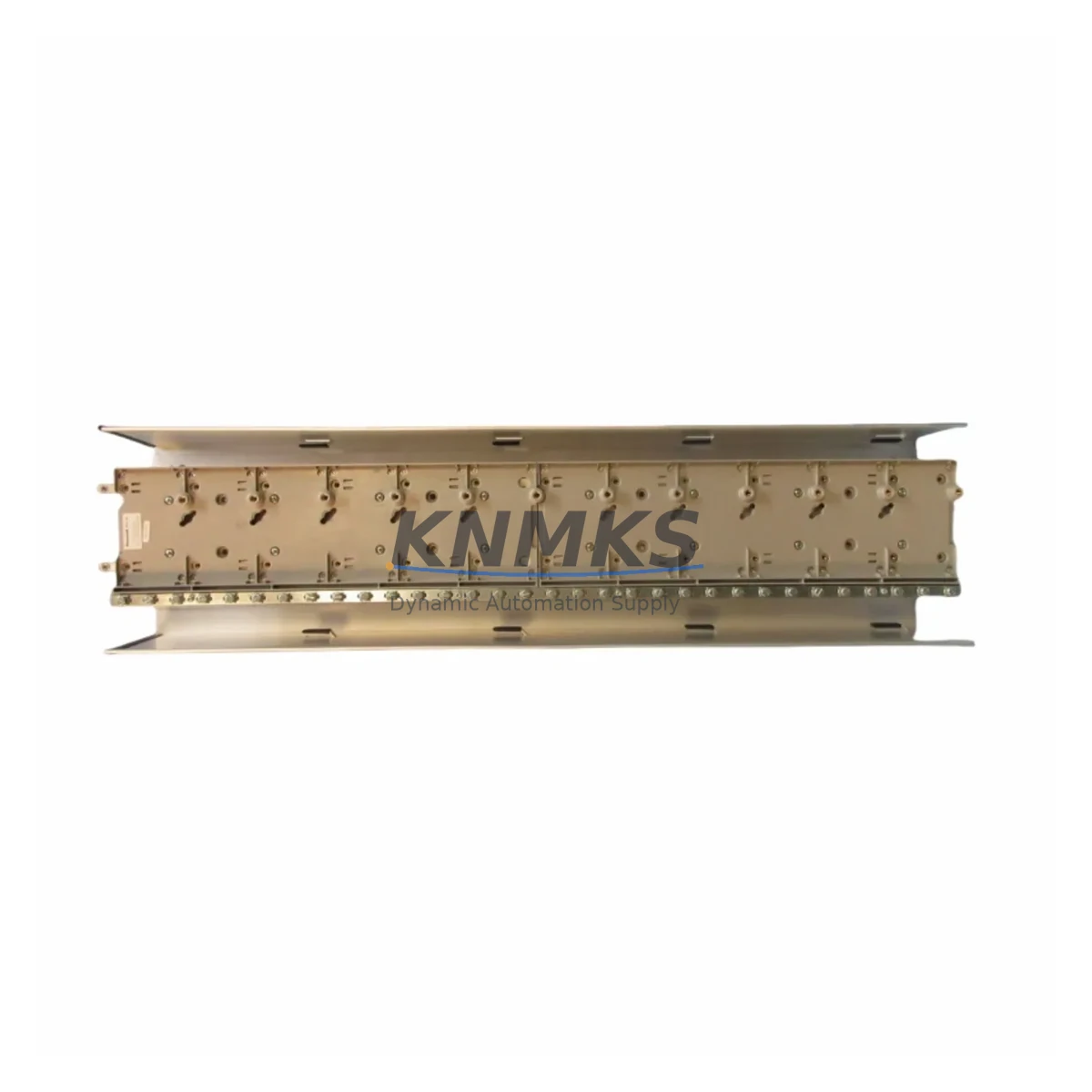

Honeywell CC-MCAR01 Migration-Ready Carrier for Legacy C300 Systems

Overview

Honeywell CC-MCAR01 Migration-Ready Carrier for Legacy C300 Systems

The Honeywell CC-MCAR01 is a field-proven carrier assembly engineered for Experion PKS C300 controller deployments in distributed control system (DCS) environments. As legacy Honeywell TDC 3000 and PlantScape systems approach end-of-life, plant engineers and automation integrators increasingly rely on the CC-MCAR01 as a structurally compatible, wiring-preserving carrier that bridges the gap between aging infrastructure and modern Experion PKS architecture. Whether you are executing a phased migration, replacing a failed carrier in a live production environment, or consolidating redundant control cabinets, the CC-MCAR01 delivers the dimensional and electrical compatibility required to minimize retrofit risk and protect existing field wiring investments.

The CC-MCAR01 mounts directly onto standard Honeywell Series C backplanes, accepting C300 controller modules and associated I/O link interface modules without requiring structural modifications to the control cabinet. Terminal block wiring from legacy IOTA assemblies can be preserved in most retrofit scenarios, significantly reducing rewiring labor and the risk of field wiring errors during cutover. Engineers should verify terminal block compatibility against the existing IOTA model — common pairings include the CC-TCNT01 and CC-TCNT11 terminal assemblies — before finalizing the retrofit bill of materials.

Power budget verification is a critical pre-installation step. The CC-MCAR01 draws supply from the cabinet’s 24 VDC power rail, and the total load must be calculated against the capacity of the installed power supply module, typically a CC-PWR001 or equivalent redundant power supply pair. When adding C300 controllers to an existing rack alongside CHARM I/O modules or Series C I/O carriers, the aggregate current draw must remain within the backplane’s rated capacity. Failure to validate power margins before cutover is one of the most common causes of unexpected shutdowns during DCS migration projects.

Backplane slot addressing and module configuration must be confirmed in Experion PKS Control Builder prior to commissioning. The C300 controller hosted on the CC-MCAR01 requires a unique node address on the FTE (Fault Tolerant Ethernet) network, and any address conflicts with existing controllers — including redundant C300 pairs — will prevent the module from coming online. Engineers should document the existing FTE topology and reserve address ranges before beginning physical installation. Firmware version alignment between the CC-MCAR01-hosted C300 and the Experion PKS server is equally important; mismatched firmware revisions can cause communication faults that are difficult to diagnose without access to the server event log.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CC-MCAR01 retrofit begins well before the physical carrier is installed. During the planning phase, engineers must audit the existing control cabinet layout to confirm available rail space, backplane slot count, and the routing paths for FTE network cables. In cabinets where legacy Honeywell MC-TDPR22 or MC-PAIH03 modules occupy adjacent slots, the physical clearance around the new carrier must be verified to ensure proper airflow and cable management.

I/O architecture decisions made during the retrofit planning phase directly affect the CC-MCAR01 deployment. If the migration strategy calls for retaining existing Series C I/O carriers alongside new CHARM I/O modules, the C300 hosted on the CC-MCAR01 must be configured to manage both I/O link segments simultaneously. This requires careful attention to I/O link loading limits and the assignment of I/O module addresses in Control Builder. In projects where the I/O count exceeds a single C300’s capacity, a second CC-MCAR01 with an additional C300 controller may be required, connected via the same FTE segment.

Communication infrastructure upgrades frequently accompany CC-MCAR01 installations. Where legacy coaxial LCN (Local Control Network) segments are being retired, the FTE switch infrastructure must be validated for port density, VLAN configuration, and cable routing to the new carrier location. In some facilities, the migration from LCN to FTE also requires updates to HMI graphics in Experion PKS Station, as tag names and controller references embedded in display pages may need to be remapped to reflect the new C300 node structure.

Signal isolation requirements should be reviewed for any analog I/O channels that previously relied on legacy isolator modules. In modernized cabinets, discrete signal isolators or loop-powered isolators may be required between field devices and the new I/O terminals to maintain signal integrity and protect the C300 I/O circuitry. Programming cable access — typically via a USB-to-serial adapter compatible with the C300’s local port — should also be confirmed before the cutover window begins, as on-site firmware loading or configuration recovery may be required during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a CC-MCAR01 installation requires a structured cutover plan that accounts for both the physical replacement sequence and the software reconfiguration steps. The recommended approach is to pre-configure the replacement C300 controller offline in Control Builder, download the control strategy to the module before installation, and verify the configuration checksum against the backup taken from the outgoing controller. This offline preparation eliminates the need for live programming during the cutover window and reduces the risk of logic errors being introduced under time pressure.

Where process continuity is critical, a parallel run strategy can be employed: the new CC-MCAR01 and C300 are installed in an adjacent backplane slot and brought online in shadow mode, monitoring the same field signals as the legacy controller without assuming control. Once the shadow controller’s outputs are verified to match the legacy controller’s outputs under representative process conditions, the cutover can be executed as a controlled switchover rather than a hard replacement. This approach is particularly effective in continuous process applications where even brief control interruptions can cause product quality deviations or safety system activations.

Post-cutover verification should include a systematic check of all I/O channel statuses in Experion PKS Operations, confirmation that all FTE communication links are active and fault-free, and a review of the server alarm log for any unexpected events generated during the transition. HMI display pages should be tested for correct tag resolution, and any operator-facing faceplate configurations that reference the replaced controller should be updated to reflect the new C300 node address. Documenting the as-built configuration — including terminal block assignments, FTE addresses, and firmware versions — immediately after commissioning protects against future troubleshooting delays.

Retrofit Support FAQ

Q: Is the CC-MCAR01 a direct replacement for the carrier assembly in my existing C300 installation?
A: In most C300 retrofit scenarios, the CC-MCAR01 is dimensionally and electrically compatible with existing Series C backplane slots. However, the specific IOTA terminal assembly model installed in your cabinet must be verified for wiring compatibility before the carrier is swapped. Our technical team can assist with compatibility confirmation based on your existing cabinet documentation.

Q: What commissioning steps are required after installing the CC-MCAR01?
A: After physical installation, the hosted C300 controller must be assigned a unique FTE node address in Experion PKS Control Builder, the control strategy must be downloaded and verified, and all I/O channel statuses must be confirmed as healthy in the Experion PKS Operations display. Firmware version alignment with the server should be checked before the download is initiated.

Q: Has the CC-MCAR01 been tested before shipment?
A: Yes. Each CC-MCAR01 unit undergoes pre-shipment functional testing to verify backplane interface integrity and module seating. Units are shipped with a test report and are covered by a support terms confirmed by quotation from the date of shipment. In-stock units are available for rapid dispatch from our Xiamen warehouse.

Q: What is the lead time and support terms coverage for the CC-MCAR01?
A: In-stock units ship within 1–3 business days from Xiamen. All units carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available for urgent plant maintenance requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

CC-MCAR01
Experion PKS Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: Honeywell CC-MCAR01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
