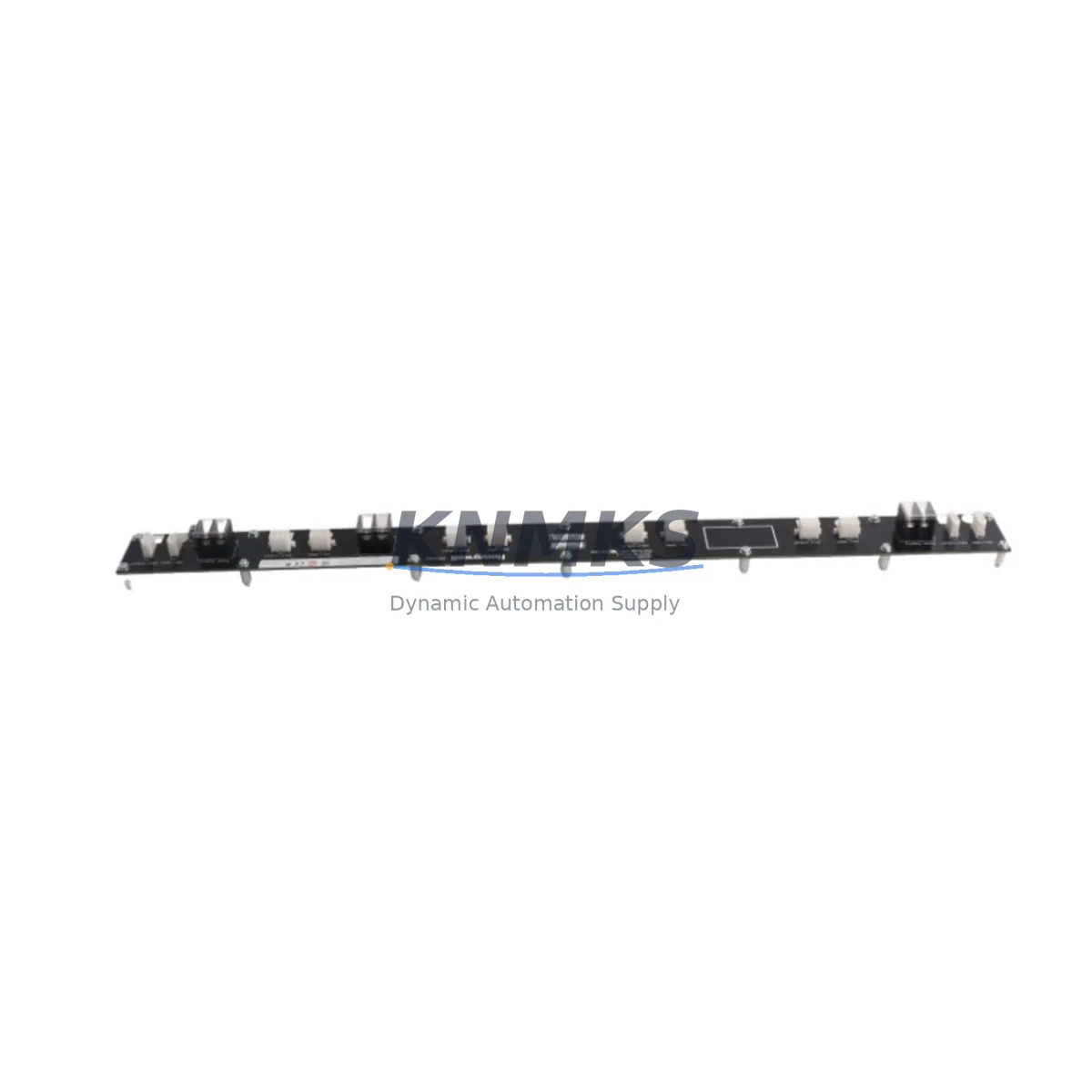

Honeywell 8C-SHEDA1 Fail-Safe DCS Header Board for Industrial Control

Overview

Honeywell 8C-SHEDA1 Fail-Safe DCS Header Board for Industrial Control Reliability

The Honeywell 8C-SHEDA1 (P/N 51307186-175) is a safety-enhanced DCS header board engineered for the Experion PKS C300 Controller platform. Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, water treatment stations, and heavy manufacturing lines — this header board delivers the fail-safe signal integrity and control loop protection that mission-critical automation systems demand.

In continuous production environments where unplanned downtime translates directly into lost output and safety risk, the 8C-SHEDA1 provides a hardened interface layer between field I/O modules and the C300 controller backplane. Its surge-protected signal paths and EMI-resistant architecture guard against the voltage transients, ground loops, and electromagnetic interference that routinely degrade control performance in high-density control cabinets. Signal drift, false trips, and nuisance shutdowns — common failure modes in aging DCS header assemblies — are systematically mitigated by the board’s precision-matched termination design.

For facilities operating under IEC 61511 or ISA-84 safety instrumented system requirements, maintaining the integrity of every node in the safety loop is non-negotiable. The 8C-SHEDA1 supports reliable communication between the C300 controller and connected I/O link modules, ensuring that critical interlock signals — emergency shutdown triggers, high-pressure cutoffs, and motor protection relays — are transmitted without latency or corruption. When paired with Honeywell CC-TAIX01 analog input modules and CC-TDOB01 digital output modules within the same C300 chassis, the header board maintains consistent backplane signal quality across the full I/O complement.

Control cabinet thermal management is a persistent challenge in high-density automation installations. The 8C-SHEDA1 is rated for extended operation across a wide ambient temperature range, making it suitable for cabinets in foundry environments, offshore platforms, and tropical process facilities where internal temperatures regularly exceed standard limits. Its compact form factor integrates directly into the standard C300 controller chassis without requiring additional mounting hardware, simplifying both initial installation and field replacement.

Power supply stability is equally critical to header board longevity. Facilities using Honeywell CC-PWR001 redundant power supply modules benefit from clean, regulated DC input to the C300 backplane, reducing the risk of brownout-induced controller resets that can cascade into process upsets. In installations where the control network relies on FTE (Fault Tolerant Ethernet) infrastructure, the 8C-SHEDA1 supports uninterrupted controller-to-server communication by maintaining stable backplane connectivity even during network switchover events.

For facilities managing spare parts programs under a planned maintenance strategy, the 8C-SHEDA1 is a recommended critical spare. Its direct compatibility with the C300 platform — including chassis variants used in legacy Experion R310 through current R520 installations — means a single stocked unit covers a broad range of replacement scenarios. KNMKS maintains forward stock of the 8C-SHEDA1 with rapid dispatch capability, supporting both emergency breakdown replacements and scheduled turnaround maintenance windows. Each unit undergoes pre-shipment functional verification to confirm backplane connector integrity, signal path continuity, and surge protection component status before dispatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust Experion PKS control cabinet depends on the coordinated reliability of every component in the signal chain. The 8C-SHEDA1 header board anchors the I/O interface layer, but its fail-safe performance is amplified when the surrounding cabinet architecture is equally hardened. In high-EMI environments — such as those adjacent to variable frequency drives, large motor starters, or arc furnace controls — pairing the 8C-SHEDA1 with properly shielded CC-TAIX01 analog input modules prevents common-mode noise from corrupting 4–20 mA process signals before they reach the controller.

On the digital side, CC-TDOB01 digital output modules within the same chassis provide the discrete switching capability needed for motor control relays, solenoid valve actuators, and emergency shutdown contactors. Maintaining clean separation between high-current output circuits and the header board’s signal paths — through proper cable routing and ferrite suppression — is essential to preserving the 8C-SHEDA1’s signal integrity over extended operating cycles.

Power quality directly affects header board lifespan. Installations using CC-PWR001 redundant power supply modules eliminate single-point power failure risk and provide the stable DC rail that the C300 backplane requires. For sites with known utility power quality issues, upstream UPS systems and surge protective devices (SPDs) rated for DCS panel applications provide an additional layer of protection against voltage spikes that can degrade backplane connector contacts over time.

Communication continuity is maintained through the FTE switch infrastructure connecting C300 controllers to Experion servers. In redundant controller configurations, the header board’s stable backplane interface ensures that controller switchover events — whether scheduled or fault-triggered — do not introduce I/O scan gaps that could cause false process alarms or interlock activations. For facilities also operating Honeywell Safety Manager or FSC (Fail Safe Controller) systems in the same plant, maintaining a consistent spare parts inventory across both the C300 and safety system platforms reduces overall maintenance complexity and emergency response time.

Critical Industrial Safety Applications

The Honeywell 8C-SHEDA1 is deployed across a wide range of critical industrial sectors where control system reliability directly impacts process safety and regulatory compliance.

In petrochemical and refining facilities, the 8C-SHEDA1 supports C300 controllers managing distillation column temperature control, reactor feed ratio regulation, and emergency depressurization interlocks. Any header board failure in these applications risks loss of control over exothermic reactions or flammable material handling — making pre-qualified spare availability essential.

In power generation plants — including coal, gas turbine, and combined-cycle facilities — the C300 platform with 8C-SHEDA1 header boards manages boiler combustion control, turbine speed governing, and grid synchronization sequences. The board’s EMI resistance is particularly valuable in generator hall environments where high-frequency switching transients from power electronics are pervasive.

In mining and mineral processing operations, the 8C-SHEDA1 supports conveyor interlock systems, crusher protection circuits, and flotation cell level control in environments characterized by heavy vibration, airborne particulate, and wide temperature swings. Its robust backplane connector design maintains reliable contact even under sustained mechanical stress.

In water and wastewater treatment facilities, the board supports pump sequencing, chemical dosing control, and SCADA-integrated alarm management. Continuous operation requirements in these facilities — where manual backup is limited — make fail-safe header board performance a direct contributor to public health protection.

In metallurgical and steel production environments, the 8C-SHEDA1 operates within C300 systems controlling electric arc furnace electrode positioning, ladle transfer sequences, and rolling mill speed regulation — all applications where microsecond-level control response and zero-tolerance for signal errors are standard requirements.

Safety and Quality FAQ

Q1: What support terms coverage applies to the Honeywell 8C-SHEDA1?
All 8C-SHEDA1 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported with direct technical assistance and priority replacement dispatch.

Q2: What pre-shipment testing is performed on each unit?
Every 8C-SHEDA1 undergoes a pre-shipment inspection protocol that includes backplane connector pin integrity verification, signal path continuity testing, and surge protection component functional check. Units that do not pass all test criteria are quarantined and not dispatched.

Q3: Is the 8C-SHEDA1 compatible with all Experion PKS C300 chassis variants?
Yes. The 8C-SHEDA1 (51307186-175) is compatible with C300 controller chassis used across Experion PKS releases from R310 through R520. It is a direct replacement for the original Honeywell-supplied header board and requires no firmware modification or reconfiguration upon installation.

Q4: Can KNMKS support long-term or repeat supply requirements for the 8C-SHEDA1?
Yes. KNMKS maintains forward stock of the 8C-SHEDA1 to support both emergency breakdown replacements and planned maintenance programs. Long-term supply agreements and scheduled delivery arrangements are available for facilities requiring guaranteed spare parts availability across multi-year maintenance cycles.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

8C-SHEDA1 51307186-175
Experion PKS Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: Honeywell 8C-SHEDA1 51307186-175
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
