Honeywell 51304493-250 Migration-Ready PM Modem for Legacy DCS

Overview

Honeywell 51304493-250 Migration-Ready PM Modem for Legacy DCS: Retrofit and Compatibility Upgrade Guide

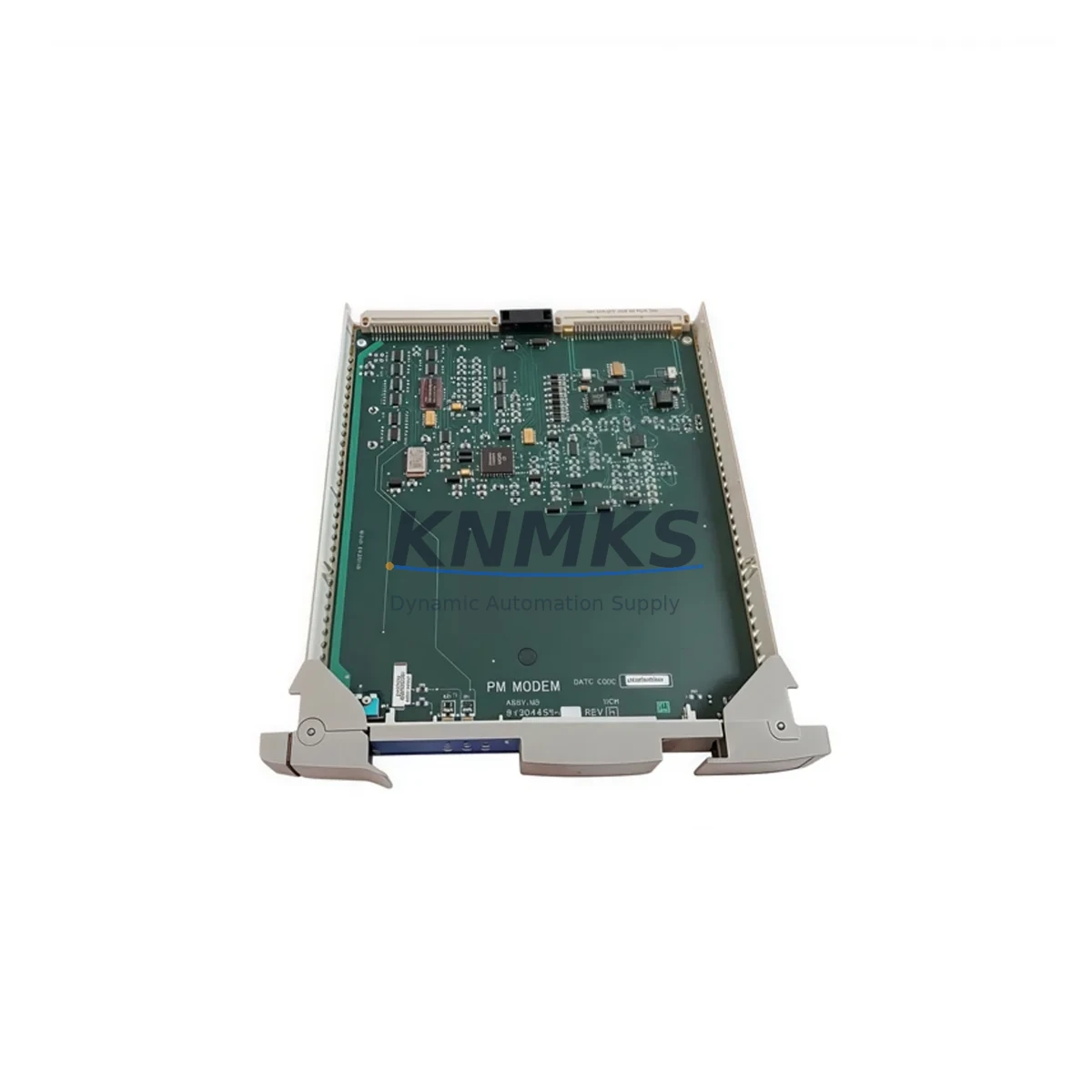

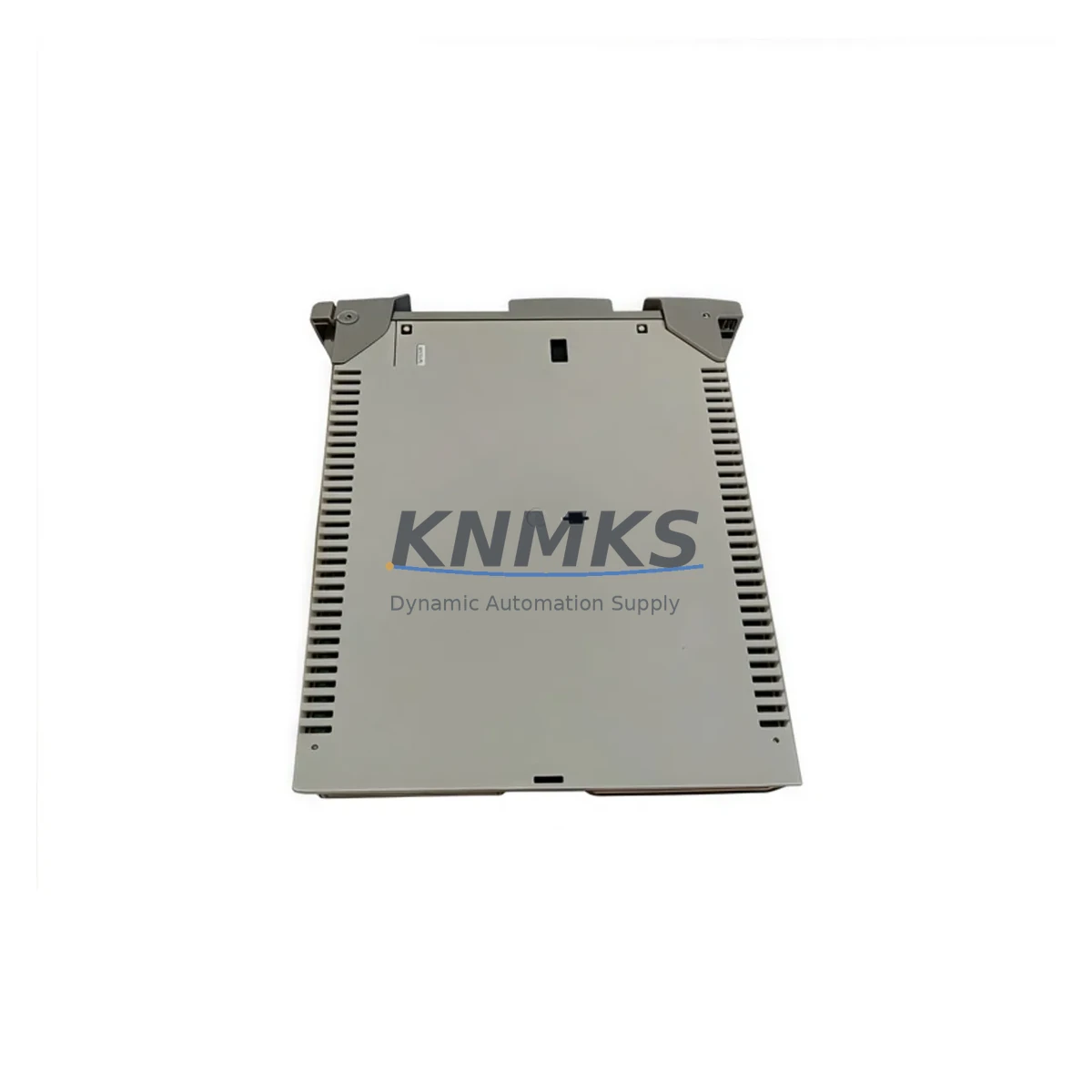

The Honeywell 51304493-250 is a PM (Process Manager) Modem Circuit Board designed for the TDC-3000 Distributed Control System platform — one of the most widely deployed legacy DCS architectures in the refining, petrochemical, and power generation industries. As Honeywell has progressively discontinued support for TDC-3000 hardware, the 51304493-250 has become a critical spare for facilities that continue to operate aging control infrastructure or are in the process of a phased migration to Experion PKS or other modern platforms.

For maintenance engineers and automation managers responsible for keeping legacy TDC-3000 systems operational, sourcing a verified replacement for the 51304493-250 PM Modem is often the difference between a controlled shutdown and an unplanned production outage. This module handles the communication link between the Process Manager and the Local Control Network (LCN), making it a foundational component in the TDC-3000 architecture. Failure of this board typically results in loss of PM-to-LCN communication, which can cascade into loss of regulatory control across entire process units.

KNMKS maintains ready stock of the 51304493-250, sourced from decommissioned systems and verified through functional testing prior to shipment. Each unit ships with a support terms confirmed by quotation and full documentation support.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit or spare replacement involving the 51304493-250, engineers must account for the broader TDC-3000 ecosystem. The PM Modem does not operate in isolation — it is part of a tightly integrated architecture that includes the PM Card File backplane, the Local Control Network coaxial cable infrastructure, and the Universal Station (US) or Enhanced Universal Station (EUS) operator consoles. Before swapping the 51304493-250, it is essential to confirm that the PM Card File backplane is in good condition and that the LCN coaxial tap and termination resistors are properly configured.

In many retrofit scenarios, the 51304493-250 is replaced alongside other aging TDC-3000 components. The Honeywell 51304485-100 PM Personality Module is frequently replaced in the same maintenance window, as both modules are subject to similar wear patterns and are often sourced together to minimize future downtime. Similarly, the 51401544-100 LCN Interface Module may require inspection or replacement if LCN communication errors persist after the PM Modem swap.

For facilities undertaking a broader control system upgrade — migrating from TDC-3000 to Experion PKS — the 51304493-250 often serves as a bridge component, keeping the legacy PM operational while new Experion C300 controllers are commissioned in parallel. During this transition period, the Honeywell 51198947-100 Power Supply Module should be verified for adequate capacity, as adding new hardware to an aging card file can stress aging power infrastructure. The 51309276-175 Data Hiway Gateway Module is another component that frequently appears in migration BOMs, particularly when facilities need to maintain communication between legacy TDC-3000 nodes and newer Experion network segments.

Terminal wiring compatibility is another critical checkpoint. The 51304493-250 connects to the PM backplane via edge connector — no field wiring is directly terminated to this board. However, the associated I/O modules in the same PM Card File (such as the 51304516-150 Analog Input Module) do have field terminal connections that must be verified for correct wiring, shielding, and signal range before the PM is returned to service. Incorrect terminal assignments or floating shield grounds can introduce noise that manifests as communication errors on the LCN, which may be misdiagnosed as a PM Modem fault.

Module address configuration is handled through the PM personality load rather than physical DIP switches on the 51304493-250 itself. After installing the replacement board, the PM must be reloaded with the correct personality file from the Universal Station. Engineers should confirm that the personality file version is compatible with the installed firmware revision and that the LCN node address does not conflict with other active nodes on the network segment.

Downtime Control During System Migration

Minimizing downtime during a 51304493-250 replacement requires careful pre-staging and a structured commissioning sequence. The recommended approach is to pre-configure the replacement module offline — verifying firmware revision and performing a bench-level functional test — before scheduling the actual swap during a planned maintenance window.

Prior to removing the failed PM Modem, the control program logic should be saved and backed up from the Universal Station. TDC-3000 PM programs are stored in battery-backed RAM on the PM Personality Module; however, best practice is to maintain an up-to-date backup on the US hard drive or an external archive system. This ensures that if the personality module is disturbed during the card swap, the program can be reloaded without loss of control logic.

During the swap, the PM will go offline and regulatory control loops will transfer to manual or to redundant PM nodes if the system is configured for PM redundancy. Operators should be briefed in advance and manual control procedures should be reviewed. The physical swap of the 51304493-250 typically takes less than five minutes; the majority of the downtime is consumed by the PM reload sequence and LCN re-synchronization, which can take 10–20 minutes depending on the size of the personality load and the number of configured I/O points.

After the PM returns to service, all LCN communication links should be verified from the Universal Station, and each regulatory control loop should be checked for correct process variable reading and output response before returning to automatic control. HMI displays on the operator console should be reviewed to confirm that all faceplates are updating correctly and that no alarm floods are present. A post-maintenance functional test report is recommended for documentation and compliance purposes.

Retrofit Support FAQ

Q: Is the 51304493-250 a direct drop-in replacement for earlier PM Modem revisions such as the 51304493-150?
A: In most TDC-3000 configurations, yes. The -250 revision is backward compatible with earlier PM Modem revisions at the backplane interface level. However, engineers should verify that the installed PM firmware revision supports the -250 hardware. If the PM is running a firmware version earlier than R500, a firmware update may be required before the replacement module will initialize correctly.

Q: Does the replacement 51304493-250 require re-addressing or re-configuration after installation?
A: The LCN node address and PM configuration are stored in the PM Personality Module, not in the PM Modem itself. In most cases, installing the 51304493-250 and reloading the PM personality from the Universal Station is sufficient to restore full operation. No physical address switches need to be set on the modem board.

Q: What pre-shipment testing is performed on KNMKS-supplied 51304493-250 units?
A: Each unit undergoes a functional power-on test and LCN communication verification using a TDC-3000 test bench. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request. All units ship with a support terms confirmed by quotation covering functional defects.

Q: What is the typical lead time and do you maintain stock?
A: KNMKS maintains ready inventory of the 51304493-250 and can typically ship within 1–3 business days of order confirmation. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST. Global shipping is supported with DHL Express, FedEx International Priority, and UPS Worldwide Expedited options.
