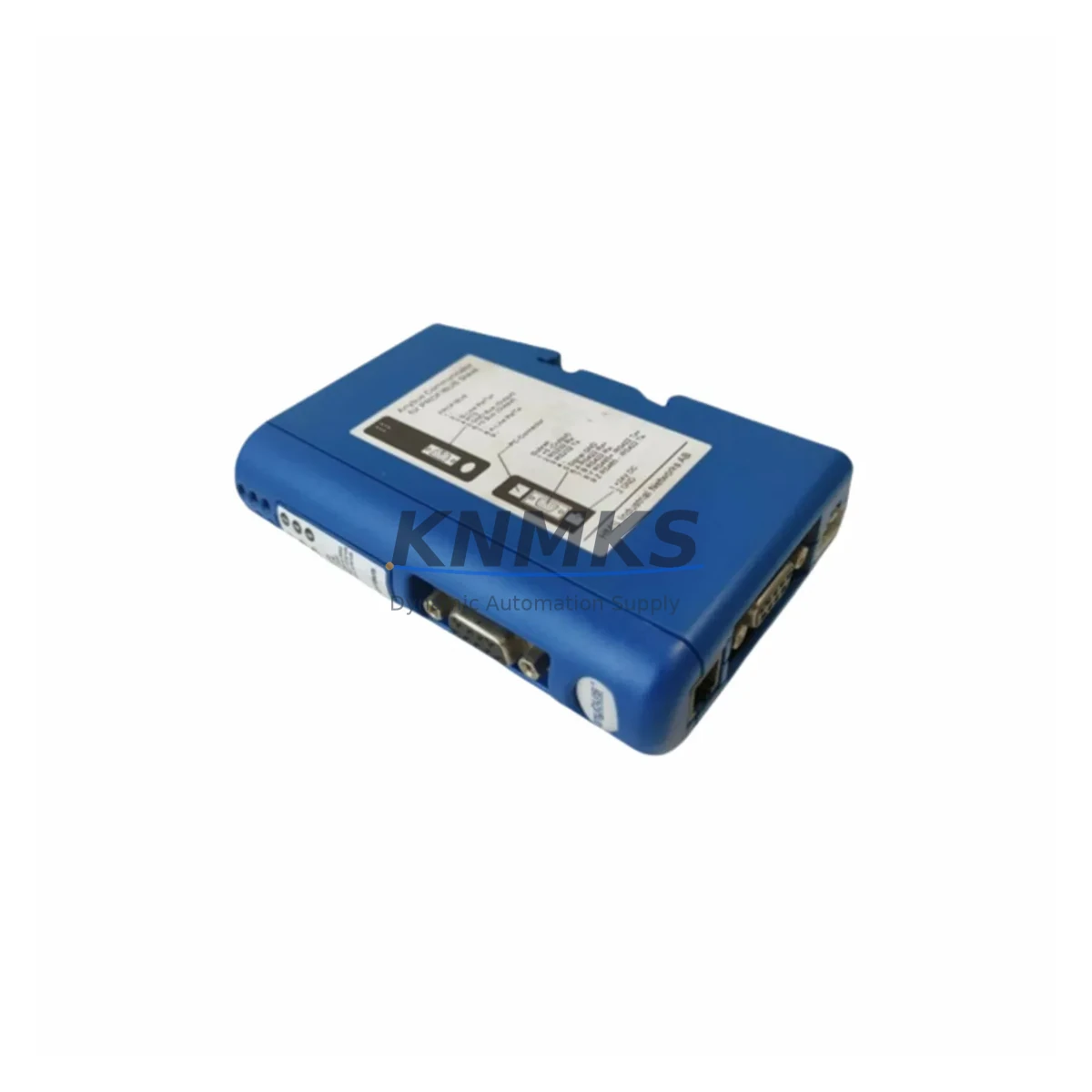

HMS Anybus AB7065-C Migration-Ready PROFIBUS DP-V1 to Modbus RTU Gateway for Legacy Control Systems

The HMS Anybus AB7065-C is a migration-ready industrial protocol gateway engineered to bridge PROFIBUS DP-V1 master networks with Modbus RTU slave devices — a critical link in legacy control system modernization projects. As automation engineers face increasing pressure to retire aging PROFIBUS-based PLCs and DCS platforms while preserving existing Modbus RTU field instrumentation, the AB7065-C provides a validated, drop-in conversion path that eliminates the need for full field rewiring or instrument replacement. Pre-tested before shipment, backed by a support terms confirmed by quotation, and available from multi-region stock, this gateway is purpose-built for scheduled outages, emergency replacements, and phased migration programs across process, energy, and discrete manufacturing industries.

In retrofit scenarios involving legacy Siemens SIMATIC S7-300 or S7-400 PLCs — which commonly served as PROFIBUS DP masters — the AB7065-C allows engineering teams to retain downstream Modbus RTU instruments such as flow meters, drives, and transmitters without reconfiguring field wiring. This is particularly valuable when migrating to newer control platforms such as the Siemens S7-1500 or ABB AC500-eCo, where PROFIBUS DP master capability may require an additional CP communication processor module. The AB7065-C absorbs this protocol translation burden at the gateway level, reducing the scope of PLC program changes and shortening commissioning time.

For sites running Schneider Electric Modicon M340 or Premium PLCs with existing PROFIBUS DP master cards, the AB7065-C supports a controlled migration to Modbus RTU subsystems without disrupting the field device layer. Engineers can maintain existing Modbus RTU wiring topology — including RS-485 trunk cables, termination resistors, and device addressing — while the gateway handles all DP-V1 cyclic and acyclic data exchange on the PROFIBUS side. This approach significantly reduces the risk of introducing wiring errors during cutover and preserves validated instrument calibration records.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the AB7065-C into a legacy control system requires a structured pre-migration assessment. Before installation, engineers should audit the existing PROFIBUS DP segment to confirm the master PLC’s GSD file library supports the AB7065-C device profile. In Siemens STEP 7 or TIA Portal environments, the GSD file must be imported and the gateway configured as a DP slave with the correct I/O byte mapping before any physical wiring changes are made. Failure to align the GSD configuration with the actual Modbus register map of downstream devices is one of the most common causes of commissioning delays.

On the Modbus RTU side, engineers must verify the RS-485 wiring topology — including cable type (typically shielded twisted pair), total segment length, termination resistor placement (120 Ω at each end), and the baud rate setting of all connected slave devices. The AB7065-C’s Modbus RTU port must be configured to match the baud rate, parity, and stop bit settings of the existing slave devices. If the site uses a Modbus RTU to PROFIBUS DP converter from a different vendor — such as a Siemens DP/PA coupler or a Pepperl+Fuchs segment coupler — the AB7065-C replaces that conversion layer entirely, simplifying the network architecture.

Power supply capacity in the control cabinet must be confirmed before adding the AB7065-C. In cabinets already running at near-capacity with existing I/O modules, communication processors, and 24 VDC power supply units, the additional current draw of the gateway (typically under 200 mA at 24 VDC) should be factored into the PSU load calculation. If the existing PSU is marginal, a supplementary 24 VDC rail-mount power supply module should be added as part of the retrofit BOM.

For sites migrating from older Honeywell Experion PKS or Yokogawa CENTUM VP DCS platforms with legacy PROFIBUS DP master cards, the AB7065-C can serve as a protocol bridge to preserve Modbus RTU field devices during a phased DCS migration. This avoids the cost and schedule risk of replacing field instruments before the new DCS platform is fully validated. The gateway’s acyclic DP-V1 capability also supports diagnostic data exchange, which is valuable for maintaining alarm and event logging continuity during the transition period.

Downtime Control During System Migration

Minimizing unplanned downtime during protocol gateway replacement is a primary concern for operations and maintenance teams. The AB7065-C supports a hot-swap preparation strategy: the replacement gateway can be pre-configured offline using the HMS Anybus Configuration Manager, with the Modbus register map and PROFIBUS DP slave parameters fully validated on a test bench before the scheduled maintenance window. This approach reduces the in-cabinet commissioning time to a physical swap, address verification, and a short functional test — typically achievable within a two-hour planned outage.

To protect existing PLC program logic during cutover, engineers should export and archive the current PROFIBUS DP configuration from the master PLC (including GSD assignments, I/O byte offsets, and diagnostic addresses) before removing the legacy gateway. If the AB7065-C is replacing a failed unit rather than a planned upgrade, the archived configuration allows rapid restoration of the DP slave parameters without re-engineering the data mapping from scratch. In Siemens TIA Portal environments, the hardware configuration can be exported as an XML file and re-imported after the replacement gateway is installed.

Field control continuity during the cutover window can be maintained by placing the affected PROFIBUS DP segment in a safe state — typically by switching the PLC to manual mode or activating a bypass interlock — before disconnecting the legacy gateway. After the AB7065-C is installed and powered, the PROFIBUS DP master should be brought online first, followed by a sequential poll of each Modbus RTU slave device to confirm data integrity before returning the system to automatic control. This staged restart sequence reduces the risk of process upsets caused by stale or incorrect data during the initial seconds of gateway operation.

Retrofit Support FAQ

Q1: Is the AB7065-C a direct replacement for the AB7065 (non-C variant)?
The AB7065-C is the current production revision of the AB7065 and is functionally compatible with the same PROFIBUS DP-V1 master and Modbus RTU slave configurations. However, engineers should verify that the firmware version on the replacement unit is compatible with the existing GSD file and Anybus Configuration Manager project file. If the original configuration file was created with an older ACM version, a firmware update on the AB7065-C may be required before importing the legacy project.

Q2: What commissioning steps are required after installing the AB7065-C?
After physical installation and wiring, the commissioning sequence includes: (1) verify PROFIBUS DP address via rotary switches matches the GSD configuration in the master PLC; (2) confirm Modbus RTU baud rate, parity, and slave addresses match all downstream devices; (3) power up the gateway and check the status LEDs for PROFIBUS and Modbus link status; (4) perform a live data poll from the PLC to confirm all Modbus registers are mapped correctly; (5) validate alarm and diagnostic data exchange if DP-V1 acyclic services are in use.

Q3: Can the AB7065-C be used in a system with mixed Modbus RTU baud rates?
No — the AB7065-C operates at a single Modbus RTU baud rate per gateway instance. If the existing Modbus RTU segment contains devices operating at different baud rates, each baud rate group must be served by a separate gateway instance. In practice, most well-maintained Modbus RTU segments are configured at a uniform baud rate (typically 9600 or 19200 baud), so this is rarely a constraint in retrofit projects.

Q4: What support terms and stock availability does KNMKS provide for the AB7065-C?
KNMKS supplies the AB7065-C with a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. All units are pre-tested for PROFIBUS DP-V1 and Modbus RTU protocol translation before dispatch. Multi-region stock is maintained to support both emergency replacement orders and scheduled maintenance programs. Contact [email protected] or +86 18359268345 for lead time confirmation and volume pricing.
