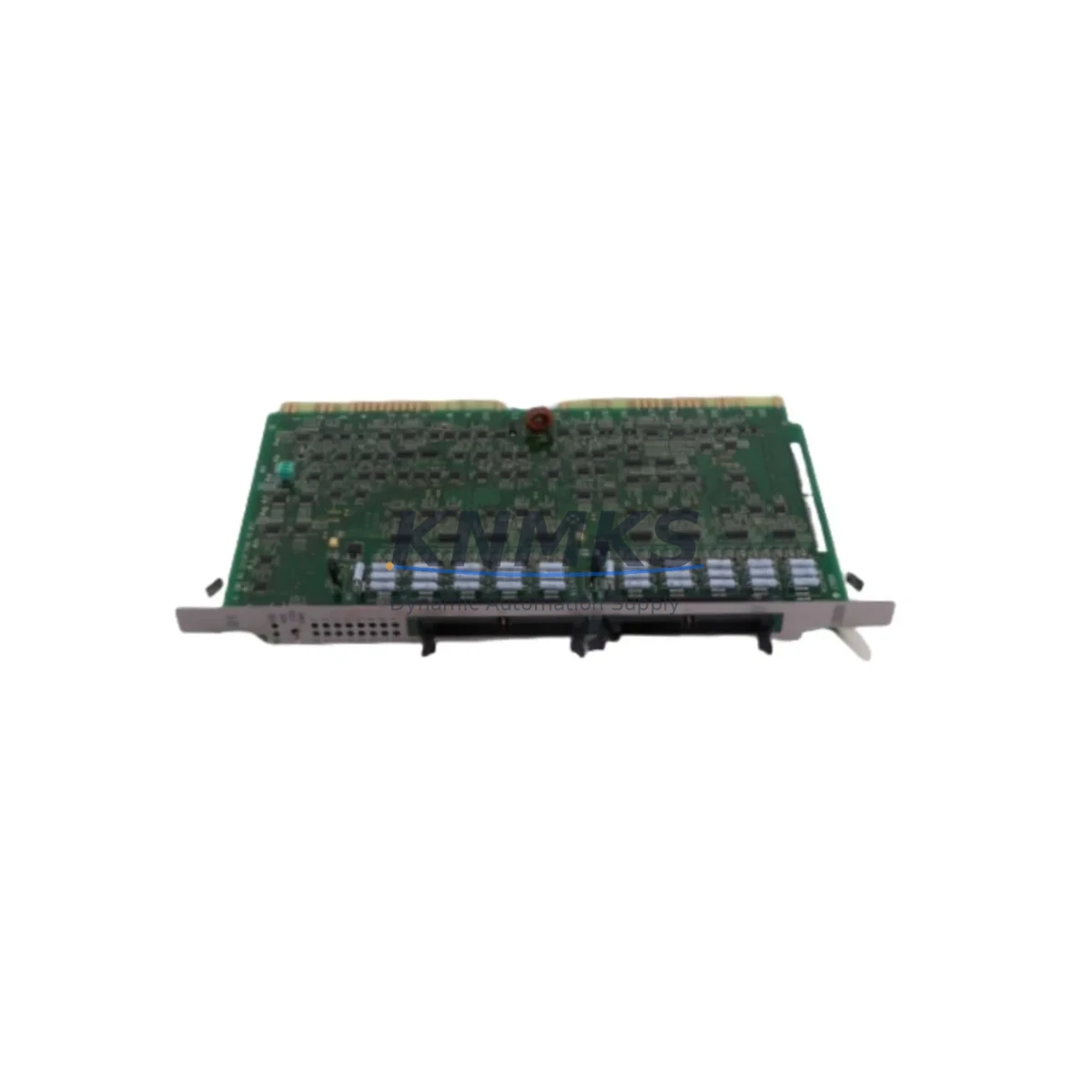

Hitachi AEH002A Migration-Ready Analog Input Card for Legacy DCS

Overview

Hitachi AEH002A Migration-Ready Analog Input Card for Legacy DCS: Retrofit and Upgrade for HISEC EX Control Systems

The Hitachi AEH002A is a retrofit-ready analog input card engineered for the HISEC EX Distributed Control System platform. As legacy DCS installations approach end-of-life and OEM support windows close, the AEH002A remains one of the most sought-after replacement modules for engineers tasked with sustaining production continuity without full system overhauls. Whether you are replacing a failed card in an operating refinery, upgrading a chemical plant’s aging control infrastructure, or extending the service life of a power generation DCS, the AEH002A delivers the signal conditioning, channel density, and backplane compatibility required for a reliable drop-in retrofit.

Before committing to a replacement, engineers must verify several critical parameters. Power supply capacity at the rack level must be confirmed — the AEH002A draws from the HISEC EX backplane bus, and adding or swapping modules in a populated rack requires checking that the existing Hitachi PS-series power supply unit can sustain the aggregate load without triggering undervoltage faults. Terminal wiring must be mapped against the original I/O assignment sheets; field signal cables connected to the legacy card’s terminal block must be re-terminated or adapted to match the AEH002A’s connector pinout, particularly for 4–20 mA current loop and 1–5 V voltage input channels.

Backplane slot addressing is another key checkpoint. The HISEC EX architecture assigns module addresses based on physical slot position within the rack chassis. When the AEH002A is installed into the same slot as the removed card, the address assignment is typically preserved, but engineers should confirm via the engineering workstation that the module address table reflects the correct channel mapping before re-energizing the loop. If the replacement is installed into a different slot — for example, due to physical damage to the original slot connector — the module address must be reassigned in the DCS configuration database, and all associated control logic referencing that address must be updated accordingly.

Program compatibility is a frequent concern during HISEC EX retrofits. Control strategies built in Hitachi’s proprietary function block language reference I/O tags by module address and channel number. Provided the AEH002A occupies the same slot and the tag database is intact, existing control programs require no modification. However, if the retrofit is part of a broader migration — for instance, moving from an older HISEC generation to HISEC EX, or integrating with a supervisory SCADA layer via Modbus RTU or PROFIBUS DP — the communication link configuration must be reviewed. The AEH002A supports standard HISEC EX inter-module communication protocols, but any gateway or protocol converter sitting between the DCS and an upstream historian or HMI must be reconfigured to reflect updated tag addresses.

HMI screen updates are often overlooked during card-level replacements. If the plant’s operator interface — whether a dedicated Hitachi HMI panel or a third-party SCADA workstation — displays analog values sourced from the AEH002A channels, the display tags must be verified against the updated I/O map. Discrepancies between the HMI tag database and the DCS configuration can result in incorrect readings or alarm suppression, both of which carry operational risk during the post-retrofit commissioning window.

Installation space confirmation is straightforward for like-for-like replacements: the AEH002A occupies a standard HISEC EX single-width module slot. For retrofits involving rack consolidation or cabinet redesign, engineers should account for cable management clearance and module extraction space, particularly in densely populated control cabinets where adjacent modules such as digital output cards or communication interface modules leave limited working room.

Firmware version compatibility should be checked against the HISEC EX system software revision running on the controller. Hitachi periodically releases firmware updates that affect module initialization sequences and diagnostic reporting. Confirm that the AEH002A firmware revision is compatible with the installed system software version before powering up. If a firmware update is required, this should be performed during the planned maintenance window rather than during live production.

All AEH002A units supplied by KNMKS are pre-shipment tested under simulated HISEC EX rack conditions, with analog channel accuracy verified across the full input range. Stock is maintained for immediate dispatch, supporting urgent replacement scenarios where production downtime must be minimized. Each unit is covered by a support terms confirmed by quotation from the date of shipment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AEH002A retrofit requires coordinated planning across multiple system layers. At the rack level, engineers should audit the HISEC EX chassis to confirm that the backplane connector in the target slot is undamaged and that the rack’s Hitachi PS-series power supply module is operating within its rated output capacity. In multi-rack configurations, the rack interconnect cables and termination resistors should be inspected as part of the pre-retrofit checklist.

Signal isolation is a common requirement when field instruments operate at different ground potentials or when long cable runs introduce noise into the 4–20 mA loop. Signal isolators or loop-powered barriers installed between the field device and the AEH002A terminal block can prevent ground loop interference from corrupting analog readings after the retrofit. This is particularly relevant in older plants where cable shielding practices were inconsistent.

For sites where the HISEC EX DCS communicates with upstream systems via a serial communication module or a PROFIBUS DP interface card, the communication link must remain active during the module swap to avoid triggering supervisory alarms. Coordinating the replacement sequence with the control room operator ensures that the affected analog loops are placed in manual mode before the card is removed, preventing spurious control actions during the changeover.

In control cabinets where the AEH002A is installed alongside digital I/O modules, relay output cards, and power distribution components, the physical retrofit sequence should be planned to avoid accidental contact with energized terminals. Labeling all field cables before disconnection and photographing the original wiring configuration provides a reliable reference during re-termination.

Where the retrofit is part of a broader migration from an older Hitachi HISEC generation to HISEC EX, the engineering workstation running the DCS configuration software must be updated to recognize the AEH002A’s module type and channel parameters. Importing the updated I/O configuration file and performing a consistency check before downloading to the controller reduces the risk of configuration mismatches that could cause loop failures at startup.

Downtime Control During System Migration

Minimizing production downtime during an AEH002A replacement requires a structured approach that begins well before the maintenance window opens. The first priority is to place all control loops sourced from the affected analog input channels into manual mode at the DCS operator station. This prevents the controller from acting on stale or invalid input values during the card swap and protects downstream equipment from spurious commands.

The original control program logic should be backed up to the engineering workstation before any hardware changes are made. Even in a like-for-like replacement where no configuration changes are expected, having a verified backup ensures that the system can be restored to its last known good state if an unexpected issue arises during commissioning.

Once the AEH002A is installed and the terminal wiring is re-terminated, a loop check should be performed on each analog input channel before returning the loops to automatic mode. This involves applying a known reference signal at the field instrument end and verifying that the DCS displays the correct engineering unit value. Any channel that fails the loop check should be investigated before the loop is returned to service.

Communication links to upstream SCADA systems or historian servers should be monitored throughout the replacement process. If the DCS generates communication alarms during the module swap, these should be acknowledged and cleared before the post-retrofit loop checks begin, to ensure that the alarm management system accurately reflects the post-retrofit system state.

With pre-tested stock dispatched from KNMKS and a structured commissioning checklist, most AEH002A replacements can be completed within a single planned maintenance window, keeping unplanned downtime to a minimum and preserving the integrity of the existing control program logic.

Retrofit Support FAQ

Q: Is the AEH002A a direct drop-in replacement for the existing analog input card in my HISEC EX rack?
A: Yes, provided the replacement is installed in the same backplane slot as the original card. The module address is preserved by slot position, and no changes to the DCS control program are required for a like-for-like replacement. If the slot changes, the module address must be reassigned in the configuration database.

Q: What pre-shipment testing is performed on AEH002A units?
A: Each unit undergoes full analog channel accuracy testing under simulated HISEC EX rack conditions prior to dispatch. Input range linearity and signal conditioning performance are verified across all channels. A support terms confirmed by quotation is provided from the date of shipment.

Q: How do I confirm wiring compatibility before installation?
A: Compare the AEH002A terminal block pinout against your existing I/O assignment sheets and field cable labels. For 4–20 mA current loop inputs, verify loop power supply polarity and confirm that any signal isolators or barriers in the loop are rated for the AEH002A’s input impedance. Contact our technical team at [email protected] if you require pinout documentation.

Q: What is the lead time and stock availability for the AEH002A?
A: Stock is maintained for immediate dispatch. For urgent replacement requirements, same-day or next-business-day shipment is available. Contact [email protected] or call +86 18359268345 to confirm current inventory levels and shipping options.
