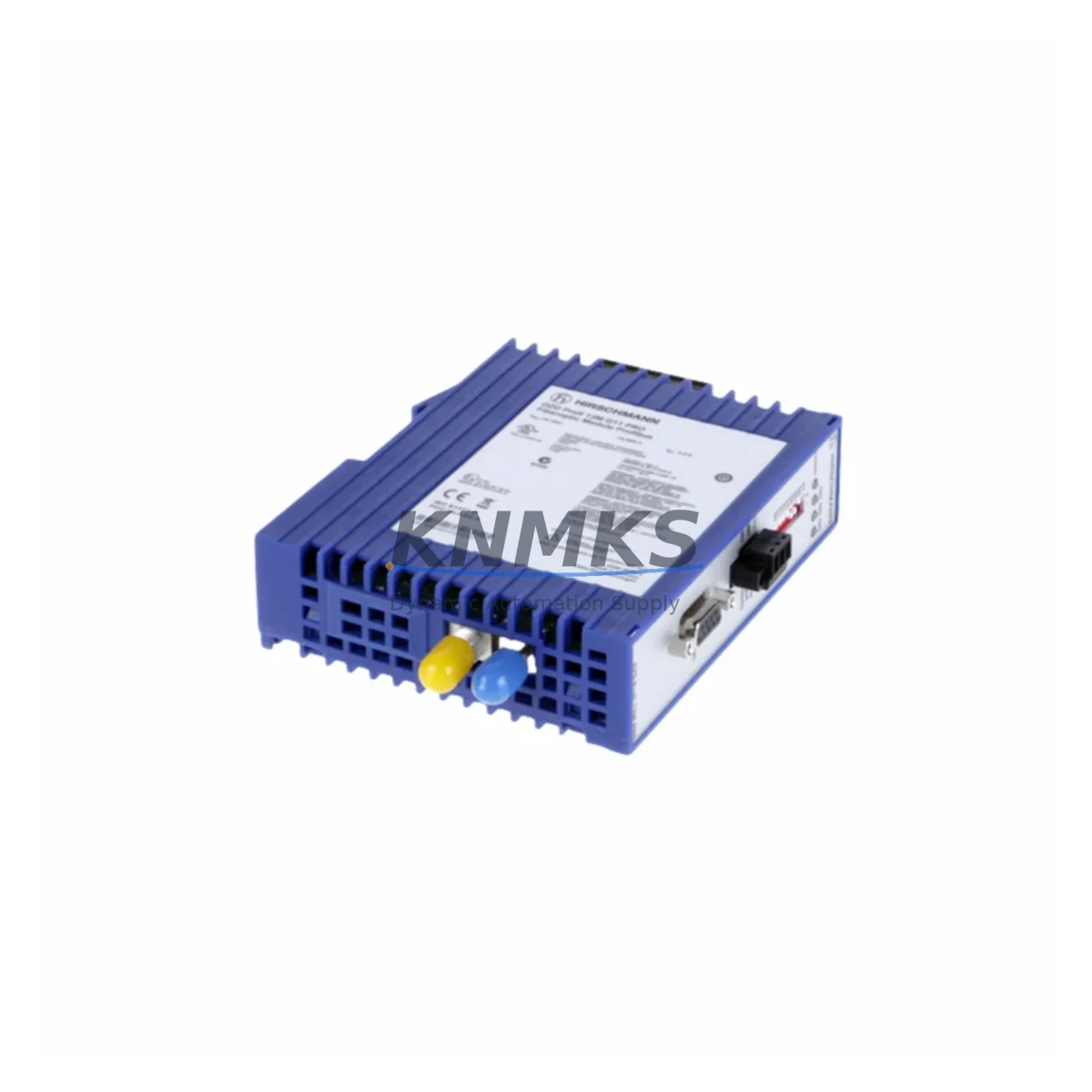

Hirschmann OZD PROFI 12M G12 PRO Migration-Ready Fiber Optic Converter for Legacy Control Systems

The Hirschmann OZD PROFI 12M G12 PRO is a PROFIBUS DP fiber optic repeater and converter designed for industrial automation environments where legacy fieldbus infrastructure must be preserved, extended, or migrated to modern control architectures. Operating at up to 12 Mbps and equipped with a G12 optical port, this unit provides a direct, drop-in replacement path for aging PROFIBUS DP segments in manufacturing plants, process facilities, and critical infrastructure sites. Whether you are executing a phased migration from an older Siemens SIMATIC S5 or S7-300 control platform, or consolidating distributed I/O nodes across a multi-segment PROFIBUS network, the OZD PROFI 12M G12 PRO delivers the optical isolation, signal regeneration, and baud rate transparency required to maintain fieldbus integrity throughout the transition.

For engineering teams managing end-of-life automation equipment, this converter addresses one of the most common retrofit challenges: maintaining PROFIBUS DP communication continuity while replacing or upgrading PLCs, remote I/O racks, or drive systems. The unit supports all standard PROFIBUS DP baud rates from 9.6 kbps to 12 Mbps, making it compatible with legacy masters such as the Siemens CP 5611 or CP 5613 communication processors, as well as modern DP masters integrated into current-generation controllers. Its G12 fiber port accepts standard 62.5/125 µm multimode fiber, which is commonly already installed in older plant cabling infrastructure, eliminating the need for fiber recabling during the retrofit.

Before installation, engineers should verify the following parameters against the existing system: available 24 VDC supply capacity at the control cabinet, DB9 PROFIBUS connector pinout and termination resistor status at both segment ends, fiber patch cable type and connector format (ST or SC adapter compatibility), maximum segment length relative to the installed fiber run, and the number of active DP slaves on each optical segment. The OZD PROFI 12M G12 PRO regenerates the PROFIBUS signal between electrical and optical segments, so correct termination on both the electrical side and the optical ring or line topology is critical to avoid reflection-induced communication errors during commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the OZD PROFI 12M G12 PRO into a running plant requires a structured retrofit plan that accounts for all interdependent components in the PROFIBUS segment. In a typical legacy control cabinet, the PROFIBUS DP master — often a Siemens S7-300 CPU with integrated DP port or a dedicated CP 5613 A2 communication processor — connects to field devices such as ET 200M remote I/O stations, Siemens SINAMICS G120 or Altivar 71 variable frequency drives, and distributed valve terminals via a mixed electrical and optical bus topology. The OZD PROFI 12M G12 PRO sits at the electrical-to-optical transition point, regenerating and converting the RS-485 signal to fiber for long-distance or electrically isolated segments.

When planning the retrofit, engineers must map the existing PROFIBUS segment structure: identify each OLM (Optical Link Module) or existing fiber converter in the ring, confirm the fiber cable type and connector format at each node, and document the GSD file versions loaded in the DP master configuration tool (typically Siemens STEP 7 or TIA Portal). If the existing system uses an older Hirschmann OZD PROFI 12M G12 without the PRO designation, the G12 PRO is a functional drop-in replacement with identical fiber port geometry and the same DIP switch termination logic, minimizing reconfiguration effort.

For cabinets where the PROFIBUS segment also carries signals to Siemens IM 153-2 interface modules or Profibus PA segment couplers, the converter’s transparent baud rate operation ensures that mixed-speed segments remain stable after the swap. Engineers should also verify that the 24 VDC power rail supplying the OZD PROFI 12M G12 PRO has sufficient current headroom, particularly in cabinets where the same rail feeds multiple I/O modules, signal isolators, and communication modules simultaneously. A dedicated fused spur from the cabinet power supply is recommended for the converter to prevent nuisance trips during segment initialization.

If the migration scope includes replacing the PLC backplane or expanding the I/O rack, the OZD PROFI 12M G12 PRO can remain in service throughout the transition, maintaining optical segment continuity while the electrical segment master is swapped. This is particularly valuable in phased migrations where the new controller — such as a Siemens S7-1500 with CM 1542-5 PROFIBUS module — must coexist with the legacy S7-300 during parallel operation and program validation.

Downtime Control During System Migration

Minimizing unplanned downtime during a PROFIBUS segment migration is the primary operational concern for plant engineers. The OZD PROFI 12M G12 PRO supports this objective through its plug-and-play replacement design: no firmware upload, no IP address assignment, and no software licensing are required. The unit is ready for installation immediately upon receipt, having been pre-shipment tested against PROFIBUS DP protocol compliance at all supported baud rates.

To protect the original program logic during the migration, engineers should export and archive the current STEP 7 or TIA Portal project — including all hardware configuration files, GSD device descriptions, and network topology diagrams — before making any physical changes to the segment. If the migration involves replacing the DP master CPU, the archived project provides the baseline for importing into the new controller environment, preserving slave addresses, I/O mapping, and diagnostic alarm configurations.

For segments where continuous process control is required, a hot-standby approach using a redundant fiber ring topology (supported by the OZD PROFI 12M G12 PRO in conjunction with compatible OLM units) allows the new converter to be inserted into the ring without breaking communication to active DP slaves. Once the new unit is confirmed operational — verified by checking the green PROFIBUS activity LED and confirming slave status in the DP master diagnostics — the legacy converter can be removed cleanly. This approach reduces the migration window to the time required for a single DIN rail swap and fiber patch reconnection, typically under 15 minutes per segment node, keeping production impact to a minimum.

Retrofit Support FAQ

Q1: Is the OZD PROFI 12M G12 PRO a direct replacement for the OZD PROFI 12M G12?
Yes. The G12 PRO is the current production successor to the standard G12 variant. It uses the same G12 fiber port, identical DB9 electrical interface, and the same DIP switch termination configuration. No changes to the PROFIBUS master hardware configuration or GSD files are required for a like-for-like swap.

Q2: What commissioning steps are required after installation?
After mounting on the DIN rail and connecting the 24 VDC supply, fiber patch cables, and PROFIBUS DB9 connector, verify termination resistor status at both ends of the electrical segment using the DIP switch. Power on the unit and confirm the PROFIBUS activity LED is green. Check the DP master diagnostics in STEP 7 or TIA Portal to confirm all slaves on the optical segment are online. No additional software configuration is needed.

Q3: Can this unit be used in a PROFIBUS PA or PROFINET environment?
The OZD PROFI 12M G12 PRO is designed exclusively for PROFIBUS DP (RS-485 electrical, fiber optical). It is not compatible with PROFIBUS PA segment coupler outputs or PROFINET (Ethernet-based) networks. For PROFINET migration projects, a separate media converter or managed switch with PROFINET support is required.

Q4: What does the support terms confirmed by quotation cover, and is stock available for emergency orders?
All units are pre-shipment tested for PROFIBUS DP protocol compliance and optical port integrity before dispatch. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Multi-region stock is maintained to support emergency replacement orders with fast global dispatch. Contact [email protected] or +86 18359268345 for lead time confirmation and volume availability.
