Hirschmann OZD-PROFI-12M-G12-1300-PRO Maintenance-Proven Spare Part for Factory Uptime

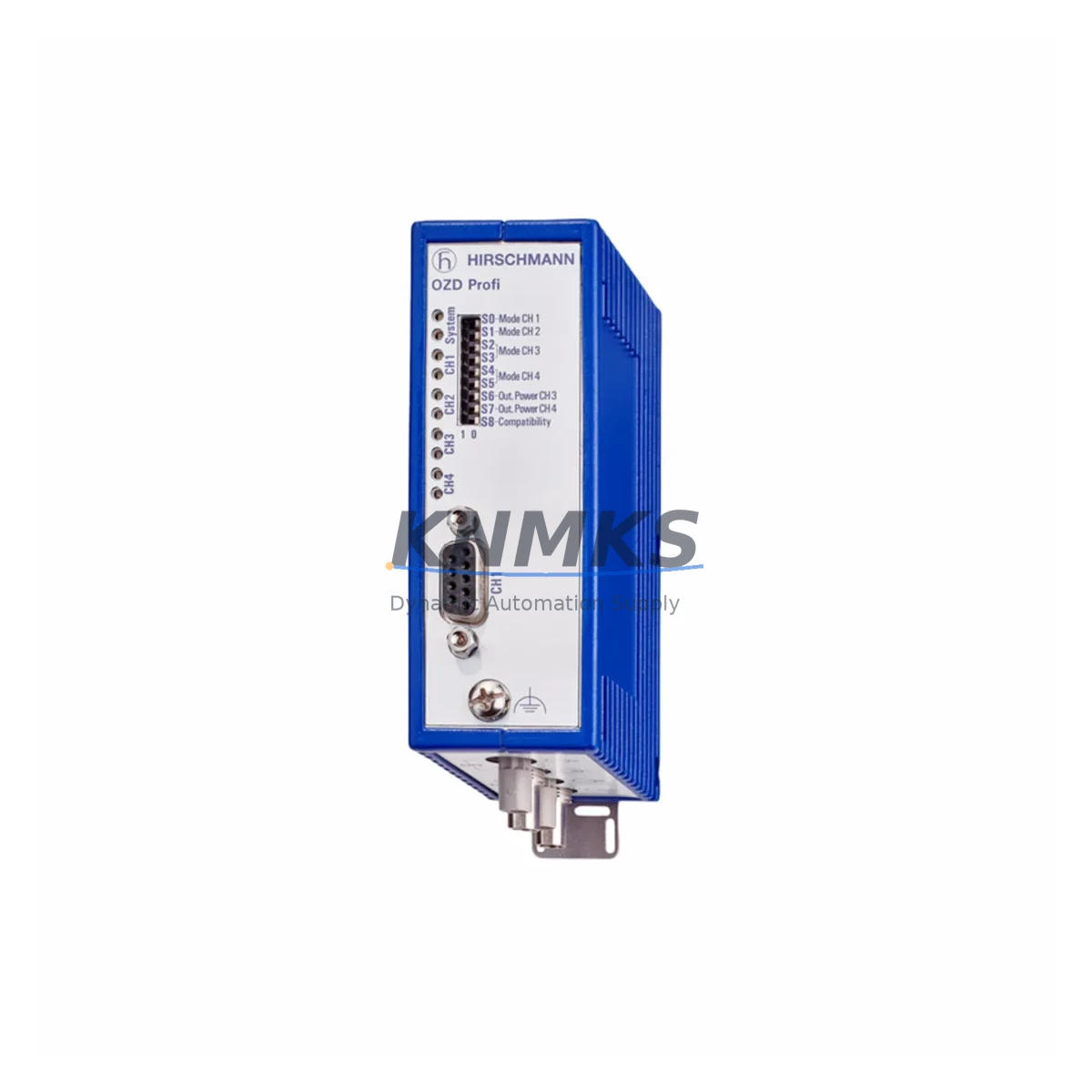

The Hirschmann OZD-PROFI-12M-G12-1300-PRO is a PROFIBUS fiber optic repeater from the OZD PROFI series, engineered for reliable signal transmission in industrial automation networks. Designed for 1300 nm multimode fiber, this unit bridges electrical and optical PROFIBUS segments, enabling noise-immune, long-distance communication in demanding plant environments including automotive assembly, chemical processing, power generation, and discrete manufacturing.

For maintenance engineers managing aging PROFIBUS networks, the OZD-PROFI-12M-G12-1300-PRO represents a critical link in the communication chain. Signal degradation, connector wear, or repeater failure can cascade into full segment outages, halting production lines and triggering costly unplanned downtime. Stocking a verified replacement unit — pre-tested, original-specification, and ready for immediate installation — is the most effective strategy to minimize mean time to repair (MTTR) and protect factory uptime commitments.

KNMKS supplies the OZD-PROFI-12M-G12-1300-PRO as an original spare, sourced from Germany, with full pre-shipment functional testing and a support terms confirmed by quotation. Multi-region stock ensures fast global dispatch for both emergency replacements and scheduled outage windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the OZD-PROFI-12M-G12-1300-PRO in a live PROFIBUS network, a disciplined inspection of the surrounding electrical and communication infrastructure is essential to prevent repeat failures and ensure a clean restoration.

Begin with the 24 V DC power supply feeding the repeater. Voltage ripple, undersized wiring, or a failing PSU can stress the repeater’s internal circuitry and shorten service life. Verify output voltage under load and inspect terminal connections for corrosion or looseness. If the cabinet houses a Hirschmann RS20 or RS30 managed switch for Ethernet segments running in parallel, confirm its power rail is stable and isolated from the PROFIBUS supply.

Inspect the PROFIBUS cable termination resistors at both ends of the affected segment. Incorrect or missing termination is a leading cause of signal reflection and repeater overload. Check the 9-pin Sub-D connectors on both the electrical port of the OZD-PROFI-12M-G12-1300-PRO and the connected PROFIBUS master or slave devices — connector pin wear and shield grounding faults are common in high-vibration environments.

On the fiber side, clean and inspect the BFOC/2.5 (ST) fiber connectors and the multimode fiber patch cables. Contaminated or cracked ferrules are a frequent cause of optical link budget loss. If the segment uses a Hirschmann OZD-PROFI-12M-G12-850-PRO (850 nm variant) at the opposite end of the fiber run, verify wavelength compatibility and fiber type consistency across the link.

Review the PROFIBUS DP slave addresses and baud rate settings stored in the repeater. After replacement, confirm that the new unit is configured to match the network baud rate — OZD PROFI repeaters typically support auto-baud detection, but manual verification against the GSD file and master configuration is recommended before going live.

For cabinets with mixed I/O, also inspect signal isolators or PROFIBUS repeaters from the same segment, such as the Hirschmann OZD-PROFI-12M-G12-1300 (non-PRO variant), to rule out cascading degradation. Check fuse holders and miniature circuit breakers protecting the 24 V DC bus — a blown fuse upstream of the repeater is easily overlooked during fault isolation. Finally, if the system includes a Hirschmann SPIDER or GECKO unmanaged switch for auxiliary Ethernet diagnostics, verify its link status to confirm the broader network topology is intact before returning the segment to service.

Site Replacement Workflow

Step 1 — Isolate and document. Before removing the failed OZD-PROFI-12M-G12-1300-PRO, record the current PROFIBUS segment topology, baud rate, and slave address list from the master PLC or DCS engineering station. Photograph the wiring and fiber routing for reference.

Step 2 — Power down the segment. De-energize the 24 V DC supply to the repeater. Do not disconnect fiber connectors under power — optical transceivers are sensitive to hot-plug events on active segments.

Step 3 — Remove and inspect. Unclip the unit from the DIN rail. Inspect the Sub-D connector pins, fiber ferrules, and power terminals for damage. Clean fiber connectors with an appropriate IEC 61300-3-35 compliant tool before installing the replacement.

Step 4 — Install the replacement unit. Mount the new OZD-PROFI-12M-G12-1300-PRO on the DIN rail. Reconnect the 24 V DC supply, PROFIBUS electrical cable, and fiber patch cables. Confirm correct polarity on the power terminals.

Step 5 — Verify and restore. Power up the segment and confirm the repeater’s status LEDs indicate a healthy optical link and active PROFIBUS communication. From the master PLC (e.g., Siemens SIMATIC S7-300/400 or ABB AC500), verify all slave devices on the segment are online and error-free. Document the replacement in the maintenance log with date, technician, and part serial number.

This workflow minimizes segment downtime to under 30 minutes for a prepared maintenance team and ensures system compatibility is maintained without requiring network reconfiguration.

Spare Parts Support FAQ

Q1: Is the OZD-PROFI-12M-G12-1300-PRO compatible with my existing PROFIBUS DP network?
Yes. The OZD-PROFI-12M-G12-1300-PRO is a standard PROFIBUS DP/FMS fiber optic repeater compatible with all PROFIBUS masters and slaves that conform to IEC 61158. It operates with Siemens SIMATIC S7, ABB AC500, Schneider Modicon, Yokogawa CENTUM VP, and other PROFIBUS-compliant systems. Confirm the fiber type (multimode, 1300 nm) and connector style (BFOC/2.5) match your existing infrastructure before installation.

Q2: What pre-shipment testing is performed on each unit?
Every OZD-PROFI-12M-G12-1300-PRO dispatched by KNMKS undergoes functional verification including optical link integrity, electrical port continuity, power-up self-test, and LED status confirmation. Units that do not pass testing are not shipped. A support terms confirmed by quotation cover all dispatched units against manufacturing defects and functional failure under normal operating conditions.

Q3: How should I manage long-term spare parts inventory for OZD PROFI repeaters?
For plants with 5 or more OZD PROFI repeaters in service, maintaining a minimum of one cold-standby unit per critical segment is recommended. Given that the OZD-PROFI-12M-G12-1300-PRO is a legacy product with limited OEM availability, securing a multi-unit stock agreement with a specialist supplier like KNMKS ensures long-term supply continuity. Annual inventory audits aligned with scheduled outage windows help prevent stockout risk during emergency replacements.

Q4: Can KNMKS support long-term or recurring supply of this part?
Yes. KNMKS maintains multi-region stock of the OZD-PROFI-12M-G12-1300-PRO and can support both emergency single-unit dispatch and long-term supply agreements for maintenance programs. Contact our team to discuss volume pricing, lead time commitments, and consignment stock options tailored to your plant’s maintenance schedule.
