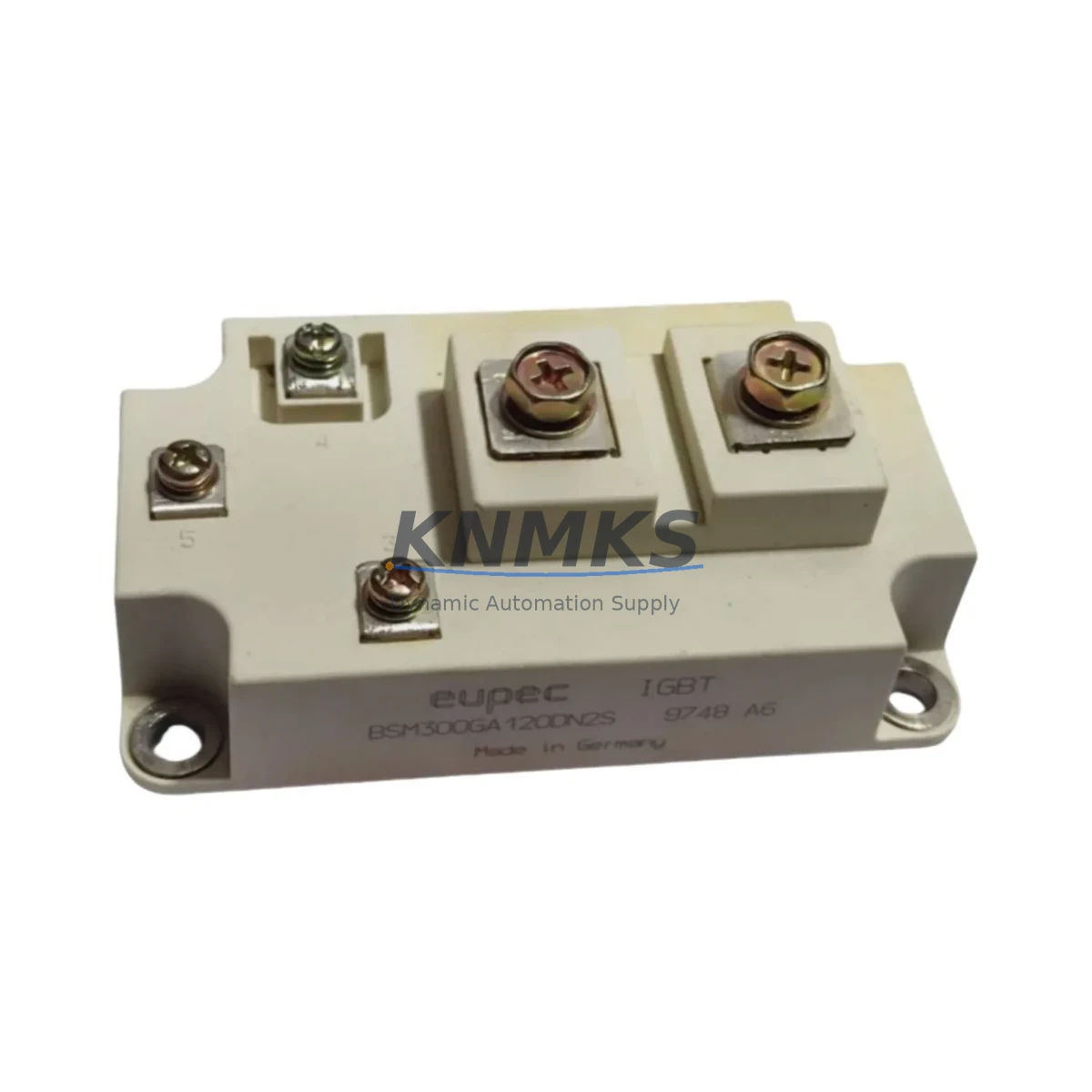

EUPEC BSM300GA120DN2S Maintenance-Proven Spare Part

Overview

EUPEC BSM300GA120DN2S Maintenance-Proven Spare Part for Factory Uptime

The EUPEC BSM300GA120DN2S is a high-power FF Series IGBT module rated at 300A / 1200V, engineered for demanding industrial drive, converter, and inverter applications. As a maintenance-proven spare part, it is a critical component in sustaining continuous factory operation across steel mills, paper plants, chemical processing lines, and heavy-duty automation systems. Sourced as an original EUPEC component, each unit undergoes pre-shipment functional testing and is backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams the confidence to stock and deploy with minimal risk.

For maintenance engineers managing aging drive cabinets or executing planned annual shutdowns, having a verified BSM300GA120DN2S on the shelf eliminates the most dangerous variable in unplanned downtime: lead time. When a drive trips on an IGBT fault, every hour of delay translates directly into production loss. A pre-qualified spare in your local inventory converts a potential multi-day outage into a same-shift recovery.

Procurement engineers sourcing this module should verify compatibility with the host drive platform — particularly the gate driver board interface, thermal interface material specification, and DC bus voltage rating — before committing to bulk orders. The BSM300GA120DN2S uses the industry-standard FF (flat base) package, which is mechanically interchangeable across a wide range of Siemens SIMOVERT, ABB ACS, and legacy EUPEC-based drive platforms, but electrical gate parameters must always be confirmed against the OEM drive schematic.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the BSM300GA120DN2S in a drive cabinet is rarely an isolated task. A disciplined maintenance engineer will treat an IGBT module failure as a signal to inspect the entire power conversion chain. Before returning the drive to service, the following components should be checked or replaced as part of the same maintenance window:

The gate driver board is the first component to inspect after an IGBT failure. A shorted or degraded IGBT can back-feed voltage spikes into the gate driver circuit, damaging optocouplers or gate resistors. Verify gate signal integrity with an oscilloscope before powering up the replacement module. Similarly, the DC bus capacitor bank should be checked for capacitance loss and ESR drift — capacitors in the same cabinet that have been exposed to the same thermal cycling as the failed IGBT are likely approaching end-of-life.

The thermal interface pad or thermal grease between the module base and the heatsink must be renewed during every IGBT replacement. Reusing degraded thermal interface material is one of the most common causes of premature IGBT failure after a maintenance event. Torque the mounting screws to the manufacturer’s specification to ensure uniform contact pressure across the flat base.

In systems using current sensors or Hall-effect transducers on the AC output phases, verify sensor calibration after module replacement — a shorted IGBT can saturate or damage current sensors in the same phase leg. For drives with integrated brake chopper modules (such as the BSM150GB120DN2 or similar chopper-rated variants in the same FF Series family), inspect the chopper IGBT and its associated resistor bank for signs of thermal stress.

On the control side, check the 24VDC auxiliary power supply feeding the gate driver and control board. Voltage sags or ripple on the auxiliary rail during a fault event can corrupt firmware or damage control ICs. If the drive uses a PROFIBUS, PROFINET, or DeviceNet communication module, verify that the communication link is restored and that no fault codes related to communication loss were latched during the fault event. For older systems using analog I/O signal isolators between the PLC and the drive, confirm that the isolator output signals are within calibrated range before resuming automatic control.

Finally, inspect the input fuses or semiconductor fuse links (such as aR-type fuses rated for IGBT protection) on the DC bus. A hard IGBT short-circuit event may have partially degraded fuse elements without blowing them completely — a degraded fuse presents a latent risk of nuisance tripping under load. Replace any fuse that shows signs of discoloration or has experienced a fault current event.

Site Replacement Workflow

When replacing the BSM300GA120DN2S on-site, follow this structured workflow to minimize downtime and ensure system compatibility:

Step 1 — Isolation and Lockout/Tagout: De-energize the drive and verify that the DC bus has fully discharged (typically below 50V) using a calibrated multimeter before opening the power section. Do not rely solely on the drive’s internal discharge indicator.

Step 2 — Document the Existing Configuration: Photograph the existing module orientation, busbar connections, and gate driver wiring before disassembly. Note the torque values on the busbar bolts and the gate connector pinout. This documentation is critical for systems where the drive schematic is no longer available.

Step 3 — Remove the Failed Module: Disconnect the gate driver connector, remove the busbar connections, and unscrew the module mounting bolts in the sequence specified by the heatsink manufacturer. Clean the heatsink surface thoroughly, removing all residual thermal interface material.

Step 4 — Prepare and Install the Replacement BSM300GA120DN2S: Apply fresh thermal interface material evenly to the module base. Position the module on the heatsink, align the mounting holes, and torque the mounting screws in a cross pattern to the specified value. Reconnect the busbar connections and gate driver connector, verifying polarity and pinout against the original documentation.

Step 5 — Pre-Power Verification: Before energizing, perform an insulation resistance test between the DC bus and the heatsink (chassis ground) to confirm the new module is not shorted. Verify gate driver supply voltage and gate signal waveform at low duty cycle before applying full load.

Step 6 — Commissioning and Load Test: Restore power progressively, monitoring drive output current, heatsink temperature, and gate driver status signals. Run the drive at reduced load for a minimum of 15 minutes before returning to full production speed. Log the commissioning data for the maintenance record.

This workflow applies equally to legacy EUPEC-based drives and to modern platforms where the BSM300GA120DN2S is used as a direct drop-in replacement for older or discontinued module variants. The FF Series flat base package ensures mechanical compatibility across a wide installed base, reducing the engineering effort required for cross-platform substitution.

Spare Parts Support FAQ

Q1: Is the BSM300GA120DN2S a direct replacement for older EUPEC FF Series modules in my existing drive?
A: The BSM300GA120DN2S uses the standard FF flat base package and is electrically rated at 300A / 1200V, making it a direct mechanical and electrical replacement for modules with the same footprint and ratings in most EUPEC-based and compatible third-party drive platforms. However, always verify the gate driver voltage, gate resistance, and desaturation protection settings against the OEM drive documentation before installation. If your drive was originally fitted with a module from the same FF Series family, compatibility is highly likely but must be confirmed against the specific drive model’s service manual.

Q2: What testing is performed before shipment, and what does the support terms confirmed by quotation cover?
A: Every BSM300GA120DN2S unit is functionally tested prior to shipment, including collector-emitter voltage verification, gate threshold testing, and insulation resistance measurement. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated parameters. Support requests are supported with a return and replacement process — contact [email protected] for RMA procedures.

Q3: How should I manage long-term spare parts inventory for IGBT modules like the BSM300GA120DN2S?
A: For critical production lines, we recommend maintaining a minimum of one spare BSM300GA120DN2S per drive cabinet, with a review cycle aligned to your annual maintenance shutdown. IGBT modules in high-cycle or high-ambient-temperature applications should be considered for proactive replacement every 5–7 years, regardless of apparent condition. Store spare modules in their original anti-static packaging in a dry, temperature-controlled environment (10°C–30°C, <75% RH). Avoid storing modules near strong magnetic fields or in areas subject to vibration.

Q4: Can you support blanket orders or long-term supply agreements for the BSM300GA120DN2S?
A: Yes. For customers managing multi-site maintenance programs or large installed bases of EUPEC-based drives, we support blanket purchase orders and scheduled release agreements to lock in pricing and ensure supply continuity. Contact our sales team at [email protected] or +86 18359268345 to discuss volume pricing, lead time commitments, and consignment stock arrangements tailored to your maintenance planning cycle.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

BSM300GA120DN2S
Assorted Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: Other Brands BSM300GA120DN2S
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
