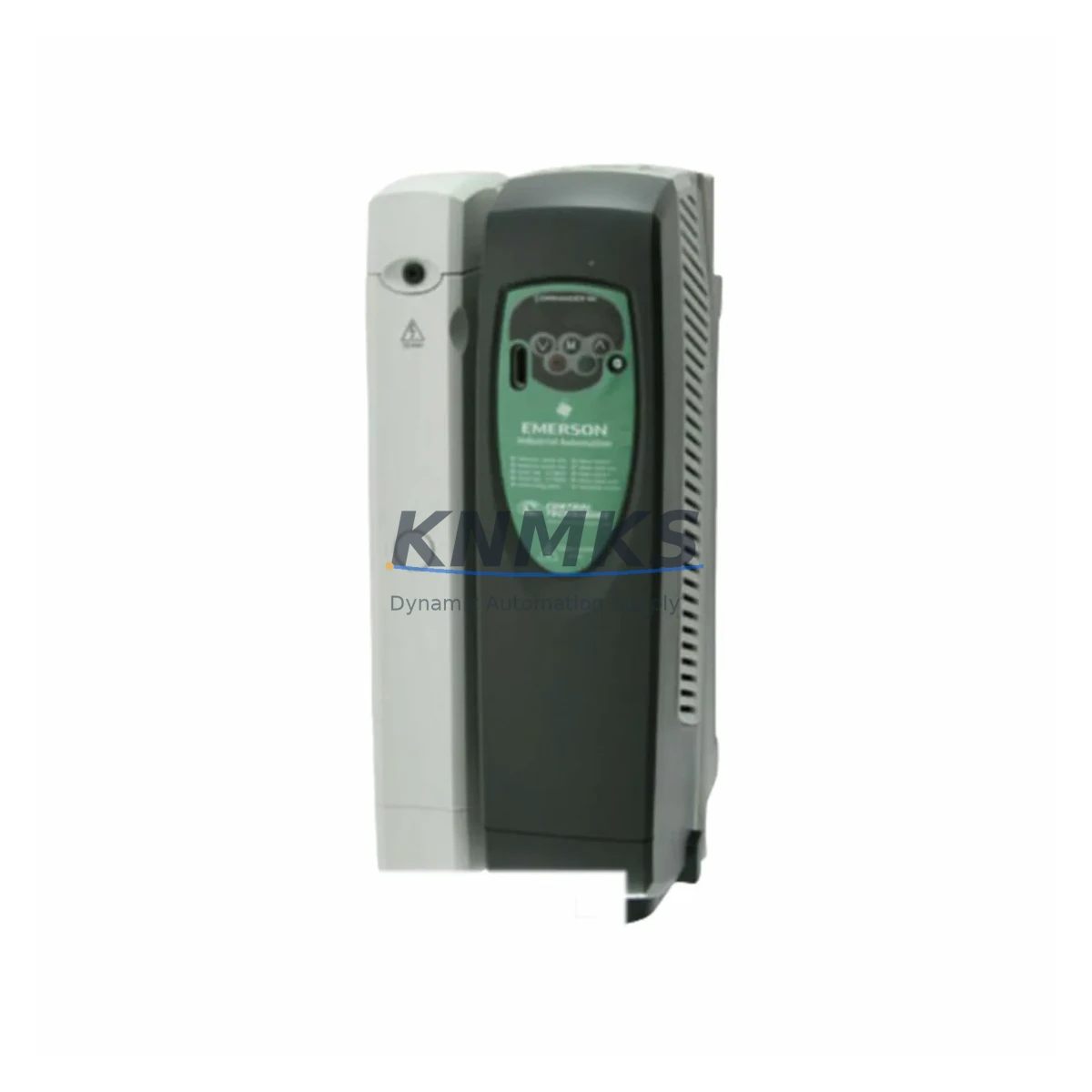

EMERSON BM11M1 Fail-Safe AC Drive Module

Overview

EMERSON BM11M1 Fail-Safe AC Drive Module: Fault-Protected Reliability for Critical Industrial Control

The EMERSON BM11M1 is a high-performance AC variable speed drive module from the Unidrive SP series, engineered by Control Techniques (Emerson) for demanding industrial environments where control interruption is not an option. Designed to deliver fail-safe motor speed regulation across continuous production lines, critical interlock circuits, and heavy-duty control cabinets, the BM11M1 addresses the full spectrum of field-level risks — from signal drift and power fluctuation to electromagnetic interference, surge impact, and unplanned shutdown events.

In industries where process continuity defines operational safety — petrochemical refining, power generation, mining extraction, water treatment, metallurgical processing, port logistics, and marine propulsion — the BM11M1 provides the fault-tolerant drive architecture that engineering teams depend on. Its robust internal design suppresses EMI-induced noise, absorbs transient voltage surges, and maintains stable output frequency even under fluctuating supply conditions, protecting both the driven motor and the upstream control system from cascading failure.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The BM11M1 is most effective when integrated as part of a coordinated control cabinet protection architecture. In high-power motor control centers (MCCs) and variable frequency drive (VFD) panels, the module works in conjunction with the Unidrive SP SM-I/O Plus expansion module to extend digital and analog I/O capacity, enabling tighter interlock logic and fault relay mapping without additional PLC overhead. For applications requiring functional safety certification, the SM-Safety option module adds SIL 2-rated Safe Torque Off (STO) and Safe Stop 1 (SS1) functions directly to the BM11M1 drive axis — eliminating the need for external safety contactors in many interlock circuits.

Cabinet-level power quality is equally critical. Upstream line reactors (3–5% impedance) are recommended to limit harmonic distortion and protect the BM11M1’s rectifier bridge from supply-side disturbances, particularly in facilities with multiple large drives sharing a common bus. Where surge exposure is elevated — such as in outdoor substations, port crane control rooms, or mining surface installations — a dedicated Type 2 SPD (Surge Protective Device) at the panel incomer provides a first line of defense before voltage transients reach the drive’s internal MOV network.

For communication-intensive installations using PROFIBUS DP or Modbus RTU networks, the SM-PROFIBUS option module integrates cleanly with the BM11M1 to enable real-time speed reference, torque limit, and fault status exchange with upstream PLCs such as the Siemens SIMATIC S7-300 or ABB AC500 series. Proper cable shielding, ferrite core suppression on signal cables, and physical separation of power and signal wiring within the cabinet are essential to maintaining communication integrity in high-EMI environments. Additionally, Unidrive SP keypad and parameter cloning tools allow rapid parameter backup and restoration during planned maintenance or emergency module replacement, minimizing reconfiguration time during critical outages.

Critical Industrial Safety Applications

Petrochemical & Refining: In continuous process plants, the BM11M1 controls pump and compressor drives within safety instrumented systems (SIS). Its STO function integrates with emergency shutdown (ESD) logic to de-energize motor torque within the IEC 61508 response time envelope, preventing runaway conditions during process upsets without requiring mechanical brake intervention.

Power Generation & Utilities: Cooling water pump drives, induced draft fan controls, and auxiliary motor circuits in thermal and hydroelectric plants benefit from the BM11M1’s stable closed-loop vector control. Frequency stability under load transients is critical in grid-tied generation facilities where motor speed variation can affect auxiliary bus voltage regulation.

Mining & Mineral Processing: Underground conveyor drives, slurry pump stations, and ventilation fan systems in mining operations are exposed to extreme dust loading, humidity cycling, and mechanical vibration. The BM11M1’s IP20 module design, combined with a properly sealed control cabinet (IP54 or higher enclosure), provides reliable operation in these harsh surface and underground environments.

Water & Wastewater Treatment: Variable-speed control of submersible pump drives, aeration blowers, and sludge dewatering centrifuges demands consistent torque delivery across wide speed ranges. The BM11M1’s RFC-A sensorless vector mode maintains accurate torque control without encoder feedback, reducing sensor maintenance burden in wet, corrosive pump station environments.

Metallurgy & Steel Processing: Rolling mill auxiliary drives, cooling bed conveyors, and fume extraction fans in steel plants operate under high thermal load and significant electrical noise from arc furnaces and induction heaters. The BM11M1’s EMC filter and robust thermal management sustain reliable operation where lesser drives experience nuisance trips or IGBT degradation.

Port Logistics & Marine: Container crane hoist and travel drives, ship-to-shore conveyor systems, and vessel auxiliary drives require drives that tolerate salt-laden air, wide ambient temperature swings, and frequent load cycling. The BM11M1’s proven Unidrive SP platform has established field reliability in port and marine control applications across multiple continents.

Safety and Quality FAQ

Q1: What support terms coverage does the BM11M1 carry?
Every BM11M1 unit shipped by KNMKS carries a support terms confirmed by quotation from the date of dispatch. This covers manufacturing defects, component failure under normal operating conditions, and functional non-conformance identified during installation. Support requests are supported by our technical team with replacement dispatch typically within 48–72 hours for in-stock units.

Q2: What pre-shipment testing is performed on each unit?
All BM11M1 modules undergo a full functional test protocol prior to dispatch, including power-on verification, output frequency sweep, digital I/O channel check, and communication port validation. Units that do not pass the complete test sequence are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the BM11M1 compatible with existing Unidrive SP installations?
Yes. The BM11M1 is a direct form-fit-function replacement within the Unidrive SP modular drive family. It accepts all standard SM option modules (SM-I/O Plus, SM-Safety, SM-PROFIBUS, SM-DeviceNet, SM-CANopen) and is parameter-compatible with existing Unidrive SP configurations. Parameter files cloned from the outgoing unit can be restored to the BM11M1 via the Unidrive SP keypad or CT Soft commissioning software, enabling rapid like-for-like replacement without full recommissioning.

Q4: Can KNMKS support long-term or scheduled supply for the BM11M1?
Yes. KNMKS maintains multi-region stock of the BM11M1 and key Unidrive SP series modules to support both emergency replacement and planned maintenance programs. Long-term supply agreements (LTSAs) are available for customers requiring guaranteed stock reservation, priority dispatch, and fixed pricing over 12–36 month horizons. Contact our sales team to discuss volume and scheduling requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Emerson
Assorted Brands

Model / Series

BM11M1
Assorted Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: Emerson BM11M1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
