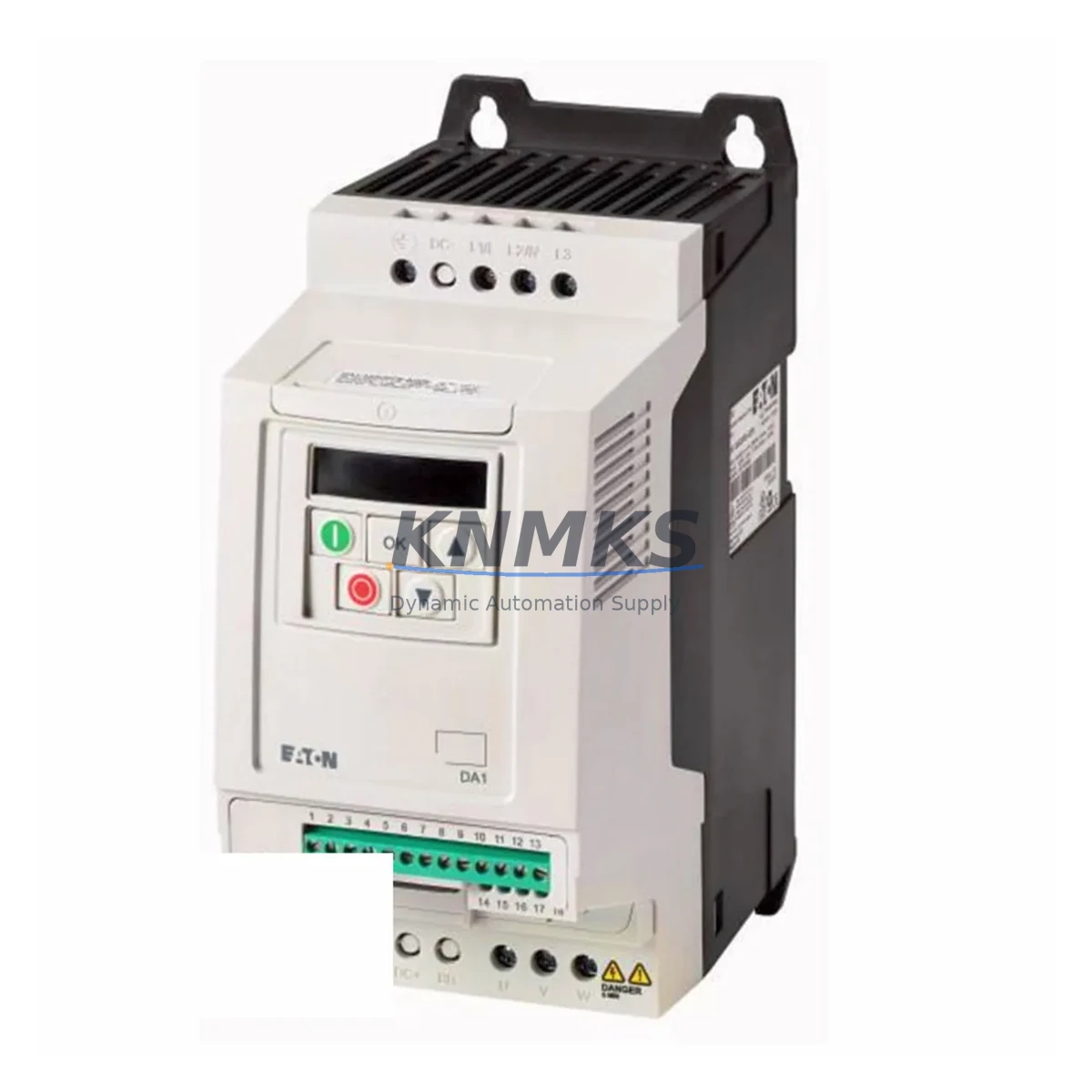

The Eaton DA1-34090FN-B55N is a 90A, 400V three-phase variable frequency drive from Eaton’s DA1 Series — a platform widely deployed across pump stations, conveyor systems, HVAC installations, compressor lines, and general-purpose motor control applications in process and discrete manufacturing environments. As a maintenance-proven original spare part, the DA1-34090FN-B55N is stocked, pre-shipment tested, and dispatched with a support terms confirmed by quotation to support emergency replacement, planned overhaul cycles, and long-term spare parts inventory programs.

For maintenance engineers managing aging drive infrastructure, the DA1-34090FN-B55N represents a direct, drop-in replacement for failed or degraded units within the DA1 platform. Its compact footprint, integrated EMC filter (B55N suffix), and native compatibility with Eaton’s SmartWire-DT and standard I/O wiring conventions make it a reliable choice for minimizing reconfiguration time during unplanned downtime events. Procurement engineers benefit from confirmed OEM lineage, traceable batch documentation, and a supply chain capable of supporting multi-unit orders for regional spare parts depots.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DA1-34090FN-B55N in the field, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure safe recommissioning. Maintenance engineers should begin by verifying the incoming supply voltage at the drive’s L1/L2/L3 terminals — voltage imbalance exceeding 2% is a common root cause of IGBT stress and premature drive failure. The upstream circuit breaker or fused disconnect should be rated correctly for the 90A output class; Eaton’s NZM or PKZ series motor-protective circuit breakers are frequently paired with DA1 drives in the same control cabinet and should be inspected for contact wear or trip history.

The motor cable between the DA1-34090FN-B55N and the driven motor should be checked for insulation integrity using a megohmmeter — degraded cable insulation can cause nuisance earth fault trips on the new drive. If the installation uses a dV/dt output filter or sine filter to protect motor windings on long cable runs, confirm that the filter is rated for the 90A output and has not suffered thermal damage. The DA1-34090FN-B55N’s analog input wiring (0–10V or 4–20mA speed reference signals) should be re-verified against the PLC or DCS output module providing the setpoint — signal drift or wiring faults at the AI terminals are a frequent source of erratic speed control after drive replacement.

For installations using Modbus RTU communication, the RS485 termination resistor and cable shielding should be inspected before the new drive is commissioned. If the control system includes an Eaton XV-series HMI or a third-party SCADA panel, confirm that the drive’s node address and baud rate parameters are correctly restored from the site’s parameter backup. Brake resistor assemblies, where fitted, should be tested for correct resistance value and thermal condition before reconnection to the DA1-34090FN-B55N’s braking chopper terminals. Finally, the 24VDC auxiliary control supply feeding the drive’s control board and any associated I/O expansion modules should be verified for voltage stability — a weak or noisy 24V rail is a known cause of intermittent control faults in DA1 installations.

Site Replacement Workflow

The DA1-34090FN-B55N is a direct replacement for any DA1 Series unit of equivalent current rating within the 34xxx (400V, 3-phase) product family. Before removing the failed drive, document all parameter settings using Eaton’s movisuite or the drive’s keypad upload function if a parameter backup is not already available from the site’s maintenance records. Isolate the drive from the supply using the upstream isolator and verify absence of voltage at L1/L2/L3 and U/V/W terminals before disconnecting any wiring.

Mount the replacement DA1-34090FN-B55N in the same panel position, reconnect power and motor cables to the original terminal designations, and restore the parameter set from backup before energizing. On first power-up, verify that the drive’s display shows the correct rated current and that no fault codes are active. Run the motor at low speed (5–10Hz) under no-load conditions to confirm correct rotation direction and absence of output phase faults before returning the drive to automatic control from the PLC or DCS. This structured workflow minimizes recommissioning time and reduces the risk of introducing new faults during the replacement process, supporting rapid production line recovery.

Spare Parts Support FAQ

Q1: Is the DA1-34090FN-B55N a direct replacement for my existing DA1 Series drive?
Yes. The DA1-34090FN-B55N is a direct OEM replacement for any DA1 Series 90A, 400V unit with an integrated EMC filter. Parameter sets from the original drive can be restored directly to the replacement unit using Eaton’s standard parameter upload/download procedure, eliminating the need for full recommissioning.

Q2: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional and insulation testing. Support requests are supported with batch traceability documentation and direct technical coordination.

Q3: How do I verify compatibility before ordering?
Confirm the supply voltage (380–480V, 3-phase), rated output current (90A), and EMC filter requirement (B55N = integrated Class C2 filter) against your existing installation. If your site uses SmartWire-DT or a specific fieldbus option module, confirm the option slot configuration matches your current drive before dispatch.

Q4: Can you support long-term or multi-unit procurement for spare parts inventory programs?
Yes. Multi-unit orders for regional spare parts depots and annual maintenance contracts are supported. Staggered delivery schedules, batch documentation, and extended supply commitments are available on request. Contact the sales team to discuss volume pricing and inventory reservation options.
