Danfoss CARD 175H3828 DT2 Fail-Safe Inverter Control

Overview

Danfoss CARD 175H3828 DT2 Fail-Safe Inverter Control: Fault-Tolerant Reliability for Critical Industrial Sites

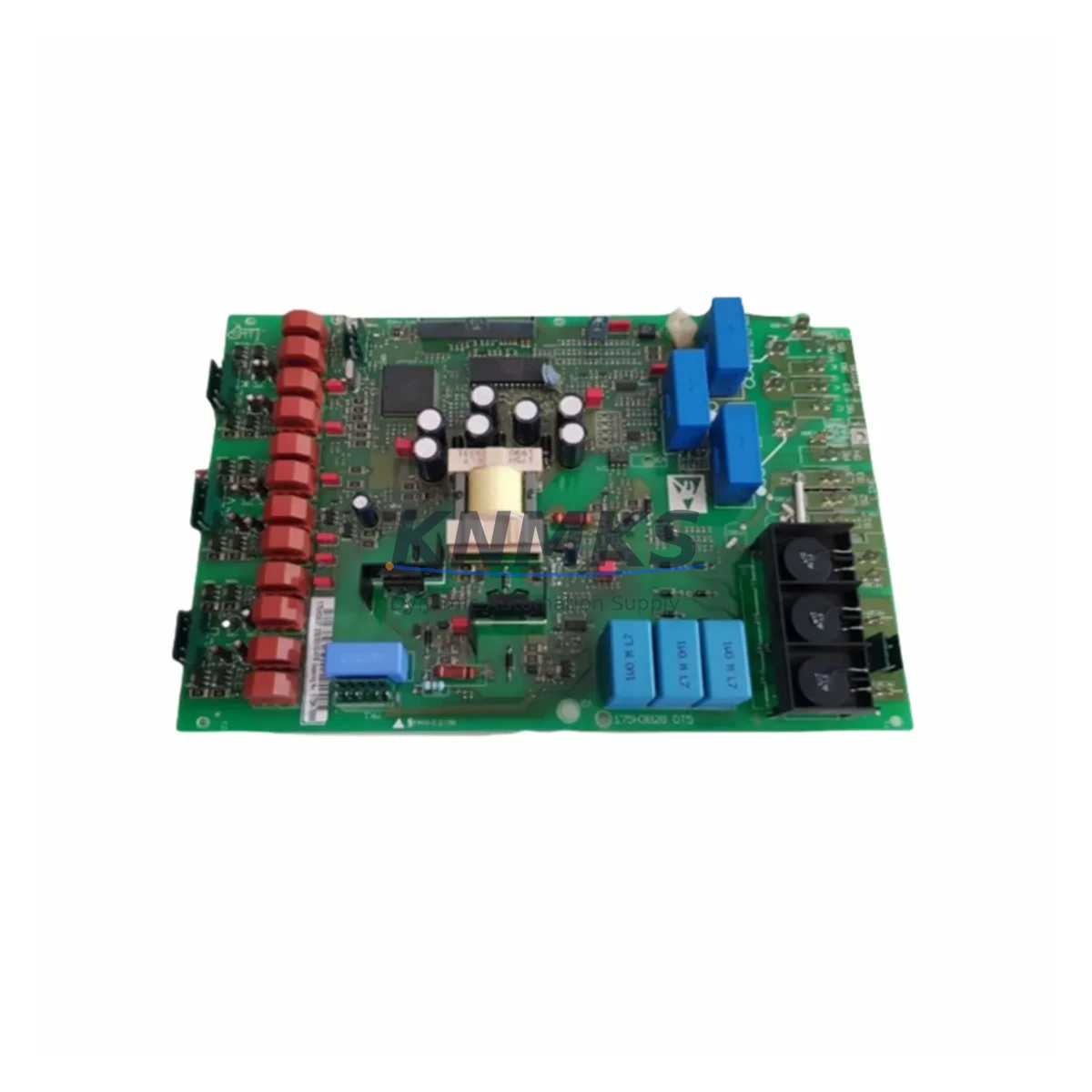

The Danfoss CARD 175H3828 DT2 is a precision-engineered inverter control board designed for the VLT® series of variable frequency drives. In continuous production environments — petrochemical plants, power generation facilities, mining conveyors, water treatment stations, and heavy metallurgical lines — an unplanned drive fault is not merely an inconvenience; it is a safety event. The CARD 175H3828 DT2 is built to eliminate that risk through robust hardware design, fail-safe signal processing, and proven compatibility with Danfoss VLT drive platforms operating under the most demanding field conditions.

This control board governs the core logic of the VLT drive: speed reference processing, gate-drive signal generation, fault detection, and protective shutdown sequencing. Its architecture is optimized to maintain stable operation across wide temperature swings, high-vibration enclosures, and environments with elevated electromagnetic interference — conditions routinely encountered in motor control centers (MCCs), heavy-duty control cabinets, and outdoor switchgear installations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered motor control cabinet, the CARD 175H3828 DT2 does not operate in isolation. Its reliability is interdependent with the quality of surrounding components. The IGBT power module — which the control board directly drives — must be matched in switching characteristics to avoid gate-signal timing mismatches that can cause overcurrent trips or shoot-through faults. Similarly, the DC bus capacitor bank must maintain stable voltage to prevent the control board from registering false undervoltage faults during load transients.

On the input side, a properly rated EMC line filter (such as those used with Danfoss VLT drives) is essential to prevent conducted interference from upstream switchgear from corrupting the analog reference signals processed by the CARD 175H3828 DT2. In high-interference environments — arc furnaces, large motor starts, variable loads — without adequate filtering, signal drift on the speed reference input can cause erratic drive behavior that mimics a faulty control board.

The control board also interfaces with the drive’s LCP (Local Control Panel) and any installed fieldbus option cards, such as the Danfoss VLT PROFIBUS or DeviceNet option modules. Communication faults between the control board and these option cards are a common source of nuisance trips in networked drive systems. Ensuring firmware compatibility between the CARD 175H3828 DT2 and installed option cards eliminates this failure mode entirely.

For cabinet thermal management, the control board’s operating envelope is directly affected by the performance of the drive’s internal cooling fan assembly and heat sink. In high-ambient or poorly ventilated enclosures, thermal derating of the control board’s logic circuits can occur, increasing the risk of intermittent faults. Pairing the CARD 175H3828 DT2 replacement with an inspection of the cooling fan and heat sink condition is standard practice in any planned maintenance or emergency replacement scenario.

Finally, in safety-critical interlocking applications, the control board’s digital I/O interface connects directly to the plant’s safety relay or safety PLC. Verifying the integrity of this interface — including the 24 VDC control supply and the safe-stop (STO) wiring — is a mandatory step before returning a drive to service after a control board replacement.

Critical Industrial Safety Applications

The Danfoss CARD 175H3828 DT2 is deployed across a wide range of critical industrial sectors where drive availability directly impacts process safety and production continuity.

In petrochemical and refinery environments, VLT drives controlled by this board manage pump and compressor speeds in hazardous area motor control centers. A control board failure in these applications can trigger emergency shutdowns affecting entire process trains. Having a pre-tested, in-stock replacement available eliminates the multi-week lead times associated with OEM procurement and keeps planned turnaround schedules on track.

In power generation facilities — including thermal, hydro, and wind — the CARD 175H3828 DT2 supports auxiliary drive systems such as cooling water pumps, fuel feed conveyors, and pitch control mechanisms. These are not production-optional systems; their failure directly affects plant output and grid stability.

In mining and mineral processing, VLT drives with this control board are used on conveyor belt drives, crusher feed systems, and slurry pump stations. The high-vibration, high-dust environment of a mine makes conformal-coated, vibration-tolerant control boards a non-negotiable specification.

In water and wastewater treatment, the CARD 175H3828 DT2 supports pump station drives operating in humid, chemically aggressive environments. Continuous operation requirements in these facilities mean that any unplanned drive outage directly impacts regulatory compliance and public health obligations.

In port and marine applications — including crane drives, winch systems, and vessel auxiliary drives — the board’s tolerance for humidity, salt-laden air, and vibration makes it a preferred replacement component for fleet maintenance programs.

In continuous manufacturing — paper mills, textile lines, food processing — where production stoppages translate directly to scrap, rework, and contractual penalties, the CARD 175H3828 DT2 provides the fail-safe control logic that keeps drive systems running through shift changes, load variations, and environmental fluctuations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the CARD 175H3828 DT2?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions. Every unit is pre-tested before dispatch to verify full electrical and functional performance. If a unit fails within the confirmed support period due to a covered defect, we provide a replacement or documented resolution support — no extended RMA delays.

Q2: How is each CARD 175H3828 DT2 tested before shipment?
Every board undergoes a full functional test protocol prior to dispatch, including power-on verification, I/O signal integrity checks, and communication interface validation. This pre-shipment testing process ensures that the unit you receive is ready for immediate installation — eliminating the risk of receiving a DOA (dead-on-arrival) component in a time-critical replacement scenario.

Q3: Is the CARD 175H3828 DT2 a direct drop-in replacement for my existing VLT drive?
Yes — the CARD 175H3828 DT2 is designed as a direct replacement for compatible Danfoss VLT drive platforms. We recommend verifying the drive’s firmware version and any installed option card compatibility before installation. Our technical support team can assist with compatibility confirmation for your specific drive configuration.

Q4: Can you guarantee long-term supply for ongoing maintenance programs?
Yes. We maintain multi-region inventory of the CARD 175H3828 DT2 to support both emergency replacements and scheduled maintenance programs. For customers with fleet maintenance requirements or planned outage schedules, we offer long-term supply agreements to guarantee stock availability and priority dispatch — eliminating the procurement uncertainty associated with end-of-life or low-volume OEM parts.
