Danfoss 175H4669 DT3 Maintenance-Proven Spare Part for Factory Uptime

Overview

Danfoss 175H4669 DT3 Maintenance-Proven Spare Part for Factory Uptime

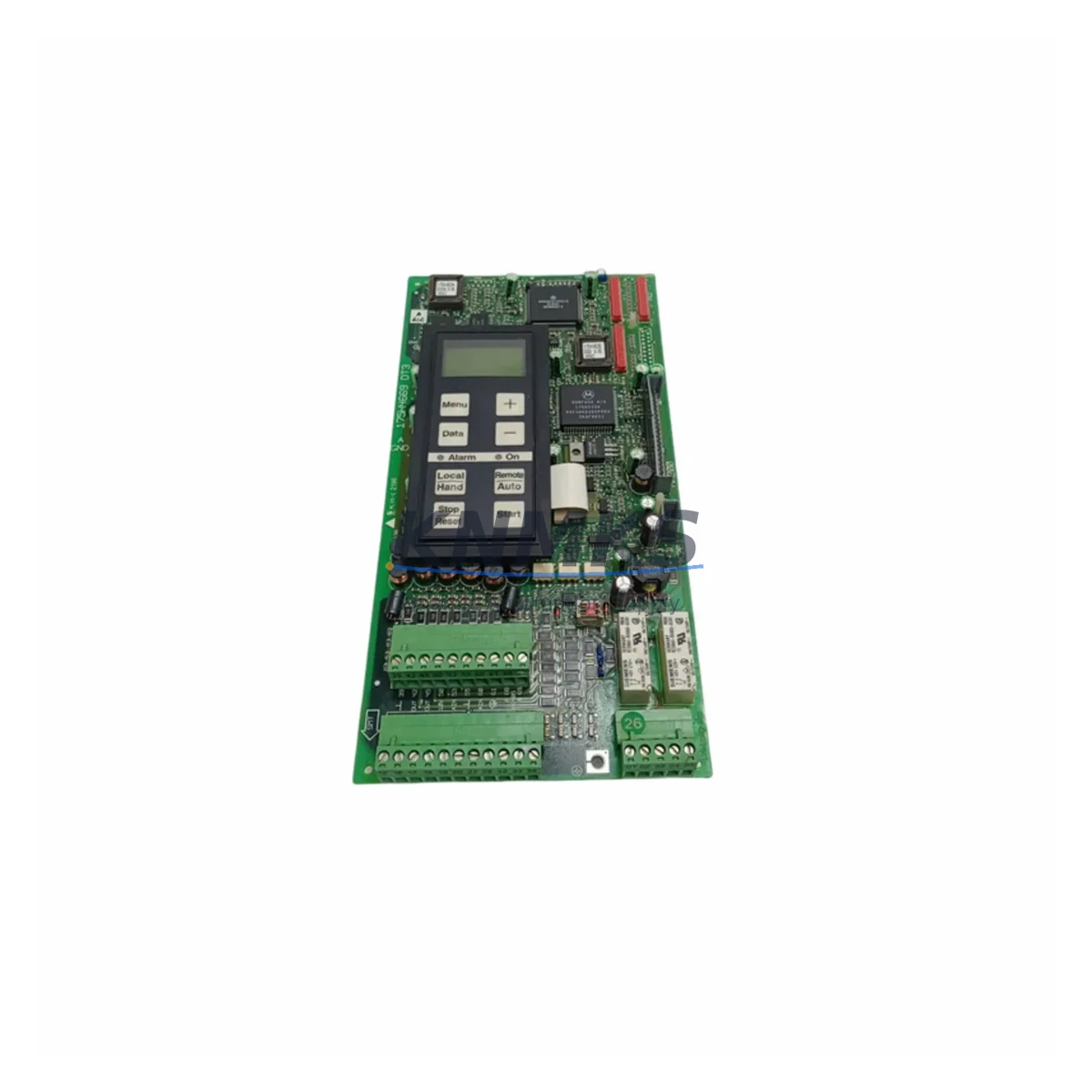

The Danfoss 175H4669 DT3 is the original control card for the VLT AutomationDrive FC302 series — one of the most widely deployed variable frequency drives in process industries, HVAC, water treatment, and discrete manufacturing. When this card fails, the entire drive becomes inoperable, making rapid access to a verified replacement critical for minimizing unplanned downtime. KNMKS maintains ready stock of the 175H4669 DT3 to support emergency replacements, scheduled outages, and long-term spare parts inventory programs. Every unit is pre-tested before dispatch and backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams the confidence to act fast without compromising system integrity.

The FC302 platform is engineered for demanding industrial environments, and the control card is the intelligence layer of the drive — managing motor control algorithms, fieldbus communication, I/O processing, and parameter storage. A failed or degraded 175H4669 DT3 typically presents as drive fault codes, loss of communication with the SCADA or PLC, erratic speed control, or complete drive lockout. Identifying and replacing this card promptly is the fastest path to restoring production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 175H4669 DT3 control card is rarely an isolated task. Experienced maintenance engineers treat a control card failure as a trigger for a broader inspection of the drive cabinet and associated electrical circuit. Before returning the FC302 to service, the following components should be checked or replaced as part of a disciplined maintenance workflow:

The LCP (Local Control Panel) — typically the LCP 102 or LCP 101 — should be inspected for display faults and communication errors, as a degraded LCP can mask underlying control card issues or cause parameter upload failures after card replacement. The FC302 power card and gate drive card should be visually inspected for burn marks, capacitor swelling, or thermal damage, particularly if the control card failure was preceded by overcurrent or overvoltage faults. The 24 VDC internal power supply that feeds the control card logic should be verified with a multimeter before installing the new 175H4669 DT3 — a marginal supply voltage is a common root cause of repeated control card failures.

On the I/O side, inspect all terminal block connections on control terminals 1–42, checking for loose wires, corrosion, or incorrect signal levels that could damage the new card’s analog or digital inputs. If the drive uses a fieldbus option card — such as the FC302 PROFIBUS, DeviceNet, or EtherNet/IP option — verify that the option card is firmly seated and that the communication cable is undamaged. A faulty option card can generate fault codes that appear identical to control card failures, leading to unnecessary replacements.

For drives installed in harsh environments, check the IP54 or IP55 enclosure seals and the condition of the cooling fan and heatsink. Contamination ingress is a leading cause of premature control card degradation. Additionally, review the EMC filter and input line reactor condition — these components protect the drive from upstream power quality issues that can stress the control electronics over time.

Procurement teams building a resilient spare parts inventory for FC302-based systems should consider stocking the 175H4669 DT3 alongside the FC302 power card, LCP panel, and a fieldbus option card matched to the site’s communication protocol. This combination covers the most common failure modes and enables full drive restoration without waiting for multiple separate deliveries.

Site Replacement Workflow

Step 1 — Isolate and de-energize. Follow site LOTO (Lockout/Tagout) procedures. Allow the DC bus to fully discharge (minimum 4 minutes after power-off) before opening the drive enclosure.

Step 2 — Document current parameters. If the drive is still partially functional, use the LCP or Danfoss MCT10 Motion Control Tool software to back up all parameters to a PC or USB. If the LCP is non-functional, retrieve parameters from the site’s SCADA historian or commissioning records.

Step 3 — Remove the faulty control card. Disconnect all control terminal wiring (photograph terminal assignments before removal). Release the card retaining clips and slide the 175H4669 DT3 out of the drive chassis. Note the DT3 hardware revision marking for records.

Step 4 — Install the replacement 175H4669 DT3. Seat the new card firmly until the retaining clips engage. Reconnect all control terminals per the documented wiring layout. Verify that the fieldbus option card (if fitted) is correctly re-seated.

Step 5 — Power-up and parameter restore. Apply power and allow the drive to initialize. Restore parameters from backup using LCP or MCT10. Verify motor nameplate data, ramp times, and protection settings match the original configuration.

Step 6 — Functional test before returning to service. Run the drive in local control mode at low speed to confirm motor rotation direction, speed reference tracking, and fault-free operation. Verify fieldbus communication with the PLC or DCS before switching to remote control mode.

This workflow minimizes re-commissioning time and reduces the risk of introducing new faults during the replacement process. KNMKS supplies the 175H4669 DT3 pre-tested and ready for installation, eliminating the need for incoming inspection delays on the production floor.

Spare Parts Support FAQ

Q1: Is the 175H4669 DT3 compatible with all FC302 power ratings?
Yes. The 175H4669 DT3 control card is the standard control card for the VLT AutomationDrive FC302 platform across its full power range. It is not power-rating-specific, making it a universal spare for multi-drive FC302 installations. Always confirm the hardware revision (DT3) matches your existing card before installation.

Q2: How do I verify the card is genuine and not a counterfeit?
KNMKS sources the 175H4669 DT3 directly from authorized distribution channels. Each unit carries the original Danfoss part number label, production date code, and hardware revision marking. Pre-shipment testing confirms electrical functionality before dispatch. A certificate of conformity is available on request.

Q3: What is the lead time and can you support emergency orders?
KNMKS maintains multi-region stock of the 175H4669 DT3 to support both emergency replacements and planned maintenance programs. Standard orders ship within 1–3 business days. Emergency dispatch with same-day or next-day shipping is available — contact [email protected] or call +86 18359268345 to confirm availability and arrange priority shipment.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of dispatch. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental limits. KNMKS provides direct support terms support — no third-party RMA process required.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Other Brands
Assorted Brands

Model / Series

175H4669 DT3
Assorted Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: Other Brands 175H4669 DT3
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
