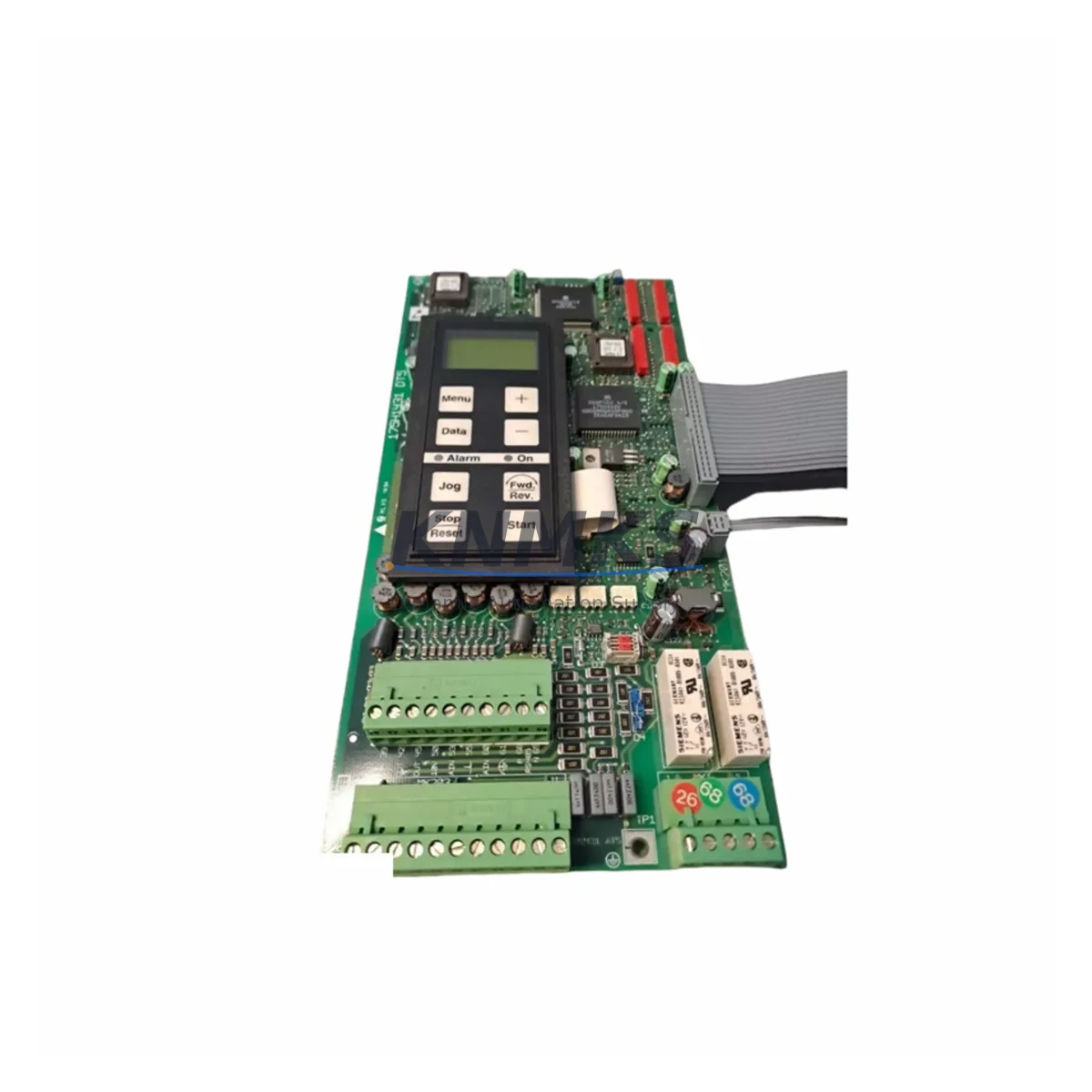

Danfoss 175H3828 DT5 175H7068 Fail-Safe VFD Power Board: Fault Protection and Critical Industrial Field Reliability

The Danfoss 175H3828 DT5 175H7068 is a precision-engineered VFD power board designed for the Danfoss VLT FC Series variable frequency drive platform — one of the most widely deployed drive families in continuous process industries worldwide. In demanding industrial environments where unplanned downtime carries severe operational and safety consequences, this power board delivers the fault-tolerant performance and electrical resilience that critical control cabinets require.

Engineered to operate within the VLT FC Series drive architecture, the 175H3828 DT5 175H7068 power board manages DC bus distribution, gate drive signal conditioning, and power conversion stage protection. Its robust design addresses the most common failure modes in high-cycle industrial drives: voltage transients, ground fault events, thermal stress, and EMI-induced signal corruption. For facilities running continuous production lines, chemical dosing systems, or high-inertia fan and pump loads, this board provides the electrical backbone that keeps the drive — and the process — running safely.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully protected VLT FC Series control cabinet, the 175H3828 DT5 175H7068 power board does not operate in isolation — it functions as part of an integrated protection architecture. The power board works in coordination with the Danfoss VLT FC 302 Control Card, which manages closed-loop feedback, safety interlock logic, and fieldbus communication. Together, these two boards form the core of the drive’s fault detection and response system.

On the power supply side, the Danfoss VLT FC Series Rectifier Module conditions incoming AC power before it reaches the DC bus managed by this power board. In sites with unstable grid conditions — common in mining, port crane operations, and heavy manufacturing — the rectifier module and power board combination provides a two-stage buffer against voltage sag, harmonic distortion, and phase imbalance events that would otherwise trigger nuisance trips or damage the IGBT power stage.

For cabinet-level thermal management, the Danfoss VLT Cooling Fan Assembly maintains airflow across the power board’s heat-generating components. In high-ambient-temperature environments such as outdoor substations or enclosed process buildings, inadequate cooling is the leading cause of power board degradation. Ensuring the cooling fan assembly is serviceable and correctly matched to the drive frame size is a prerequisite for achieving the rated thermal operating range of the 175H3828 DT5 175H7068.

Communication integrity is equally critical. The Danfoss VLT FC Series PROFIBUS or PROFINET Option Card — depending on the site’s fieldbus architecture — connects the drive to the plant DCS or PLC safety layer. Signal dropouts or communication timeouts at this interface can trigger uncontrolled motor coast-to-stop events in safety-critical applications. The power board’s stable DC bus output directly supports the option card’s supply rail, reducing the risk of communication anomalies caused by internal power instability.

Finally, for sites requiring safe torque off (STO) or emergency stop integration, the Danfoss VLT FC Series Safety Option MCB 150/151 interfaces directly with the drive’s safety input circuit. The power board’s gate drive signal conditioning ensures that STO commands are executed cleanly, without residual gate charge that could cause unintended motor movement during a safety stop event.

Critical Industrial Safety Applications

The Danfoss 175H3828 DT5 175H7068 VFD power board is deployed across a broad range of safety-critical and continuous-process industrial sites:

Petrochemical and Refinery Plants: In pump and compressor drive applications, this power board supports continuous operation of process-critical motors where an unplanned stop can trigger pressure relief events or process upsets. Its surge protection capability is essential in environments where switching of large inductive loads generates repetitive transient voltages on the DC bus.

Electric Power Generation and Transmission: Cooling water pump drives and auxiliary fan drives in power stations rely on VLT FC Series drives for variable-speed control. The power board’s thermal stability and EMI resistance ensure reliable operation in proximity to high-voltage switchgear and transformer bays.

Mining and Mineral Processing: Conveyor belt drives, crusher feed drives, and slurry pump systems in underground and open-cut mining environments expose drive components to extreme vibration, dust ingress, and humidity cycling. The 175H3828 DT5 175H7068’s robust construction and pre-shipment testing protocol ensure it arrives site-ready for these demanding conditions.

Water and Wastewater Treatment: Aeration blower drives and effluent pump drives in municipal water treatment facilities operate continuously, often without redundant backup. A power board failure in this context can result in regulatory non-compliance and environmental incidents. Stocking a verified replacement board is a standard risk mitigation practice for facility maintenance teams.

Metallurgy and Steel Production: Rolling mill auxiliary drives and furnace fan drives operate in environments with intense electromagnetic interference from arc furnaces and induction heating systems. The power board’s shielded signal architecture maintains gate drive integrity even under these extreme EMI conditions.

Port and Marine Applications: Ship-to-shore crane drives and vessel auxiliary drives require components that can withstand salt-laden air, humidity, and vibration from vessel movement. The 175H3828 DT5 175H7068’s environmental tolerance profile makes it a reliable choice for marine-grade drive maintenance programs.
