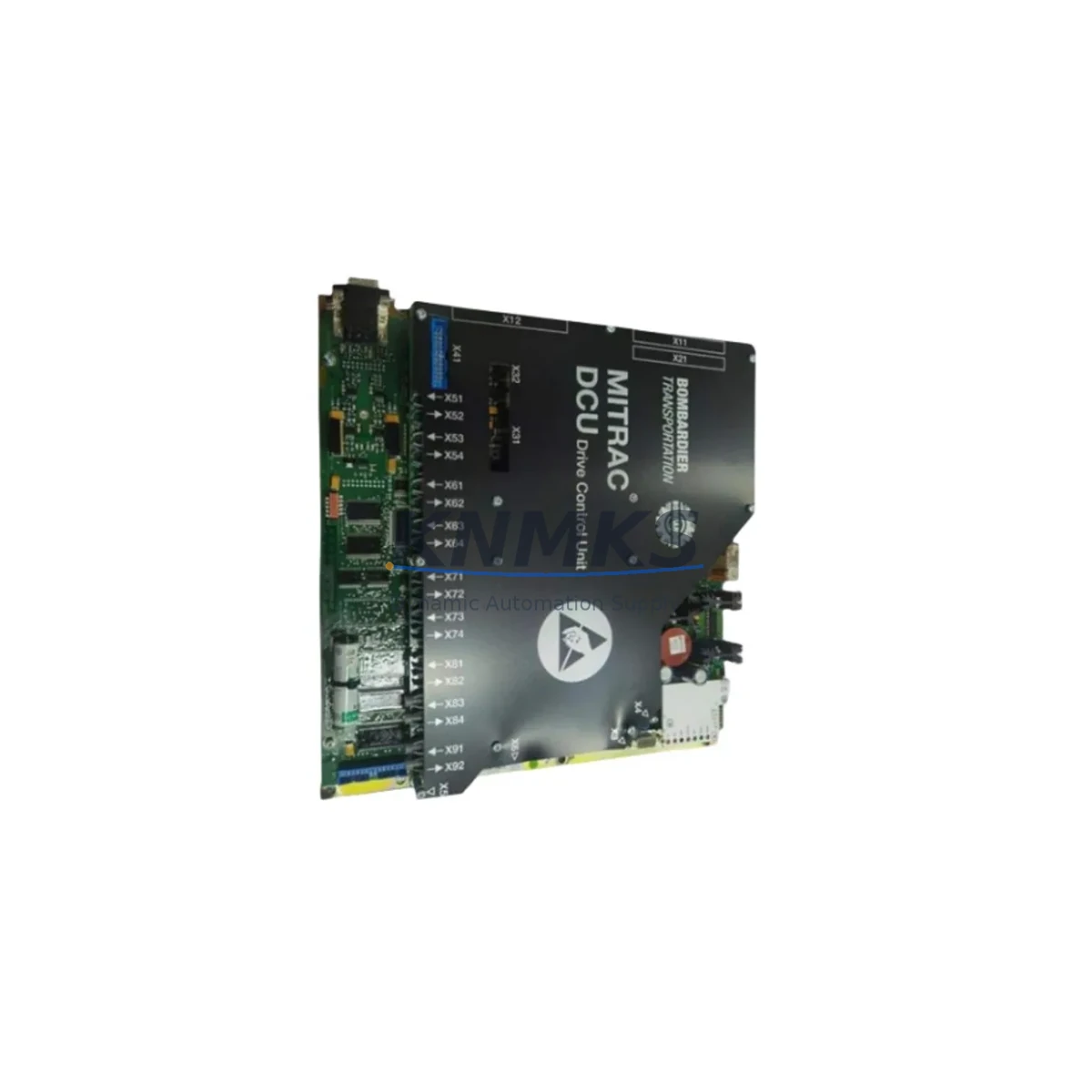

BOMBARDIER DCC2223A Migration-Ready Drive Control Unit

Overview

BOMBARDIER DCC2223A Migration-Ready Drive Control Unit for Legacy Control Systems

The BOMBARDIER DCC2223A is a migration-ready drive control unit engineered for direct replacement of discontinued propulsion and traction control modules in legacy rail and industrial automation systems. Whether you are managing a scheduled overhaul, responding to an unplanned failure, or executing a phased control cabinet upgrade, the DCC2223A provides a verified drop-in solution that minimizes engineering risk and reduces total downtime. Each unit is pre-shipment tested against OEM electrical and functional specifications, backed by a support terms confirmed by quotation, and available from verified inventory for immediate dispatch.

Before committing to a replacement, engineers should confirm the following parameters against the existing installation: supply voltage range and power rail capacity within the control cabinet, terminal block wiring layout and conductor gauge compatibility, backplane slot assignment and module addressing scheme, program logic compatibility with the existing PLC or traction controller, HMI screen bindings and variable mapping, communication link integrity (particularly where CANopen, Profibus-DP, or MVB protocols are in use), physical installation envelope and DIN rail or rack mounting clearance, and firmware revision requirements for the target control platform. Addressing each of these checkpoints before removal of the legacy unit is the most reliable method for controlling commissioning time on site.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the DCC2223A into an existing control architecture requires a structured approach to component sequencing. In most traction and propulsion control cabinets, the drive control unit operates in close coordination with the system power supply module, which must be verified for adequate current headroom before the new unit is energized. Where the legacy system uses a distributed I/O architecture, the associated I/O expansion modules should be audited for address conflicts that could arise after the drive controller is replaced.

Communication continuity is a frequent concern during drive control upgrades. If the existing network backbone relies on a Profibus-DP master or a CANopen network manager, the replacement DCC2223A must be configured with the correct node identifier and cycle time parameters before the network is brought back online. In systems where an HMI panel — such as a legacy operator display or a touch-screen driver console — is mapped directly to drive status variables, the variable binding table should be exported and preserved prior to removal of the original unit to avoid screen mapping errors during recommissioning.

For installations that include a signal isolator or galvanic separation module between the drive controller and field sensors, the isolation barrier ratings should be re-confirmed after the swap to ensure signal integrity is maintained. Where the control cabinet also houses a programmable logic controller managing sequencing logic, the PLC program should be backed up and the relevant function blocks reviewed for any hard-coded references to the legacy drive module’s diagnostic registers. Programming cables and configuration software compatible with the BOMBARDIER control platform should be on hand during commissioning to allow parameter adjustment without additional delays.

Downtime Control During System Migration

Minimizing unplanned downtime during a drive control unit replacement begins with preparation completed before the maintenance window opens. A full backup of the existing PLC program, HMI project, and drive parameter set should be stored on a portable medium and verified readable before the legacy DCC2223A is removed from service. Where the system supports hot-standby or redundant control paths, the switchover sequence should be tested in advance to confirm that the backup path holds the process stable during the physical swap.

On arrival, the replacement DCC2223A should be bench-verified against the recorded parameter set before installation. Terminal connections should be labeled and photographed prior to disconnection to eliminate wiring errors during reassembly. Module address settings, communication parameters, and firmware revision should all be confirmed against the engineering record before the unit is powered. Following installation, a structured commissioning sequence — covering power-on self-test, communication link verification, I/O channel check, and a supervised low-load functional run — provides the fastest path to confirmed operational status. With pre-shipment testing already completed on each DCC2223A unit, the on-site commissioning sequence is typically straightforward, and the support terms confirmed by quotation provides continued assurance through the post-retrofit stabilization period.

Retrofit Support FAQ

Q: Is the DCC2223A a direct replacement for the original BOMBARDIER drive control unit in legacy traction systems?
A: Yes. The DCC2223A is designed as a form-fit-function replacement for the original unit. Terminal layout, backplane interface, and communication protocol compatibility are maintained. Engineers should confirm firmware revision and module address settings against the existing system record before installation.

Q: What pre-shipment testing is performed on each unit?
A: Every DCC2223A undergoes electrical continuity verification, functional power-on testing, and communication interface validation prior to dispatch. A test record is available on request. The support terms confirmed by quotation cover the unit from the date of shipment.

Q: How should terminal wiring be managed during the swap to avoid errors?
A: Label and photograph all terminal connections before disconnection. The DCC2223A uses an identical terminal block layout to the legacy unit, allowing the existing cable harness to be reconnected directly. Verify conductor gauge and torque specifications against the installation manual before tightening.

Q: What is the typical lead time and inventory availability?
A: The DCC2223A is held in verified stock and available for immediate dispatch. Standard lead time is subject to current inventory levels at time of order. Contact the sales team for confirmed availability and volume pricing for multi-unit or long-term supply agreements.
