Bently Nevada CB2W100-064 Migration-Ready Proximity Cable

Overview

Bently Nevada CB2W100-064 Migration-Ready Proximity Cable for Legacy Control Systems

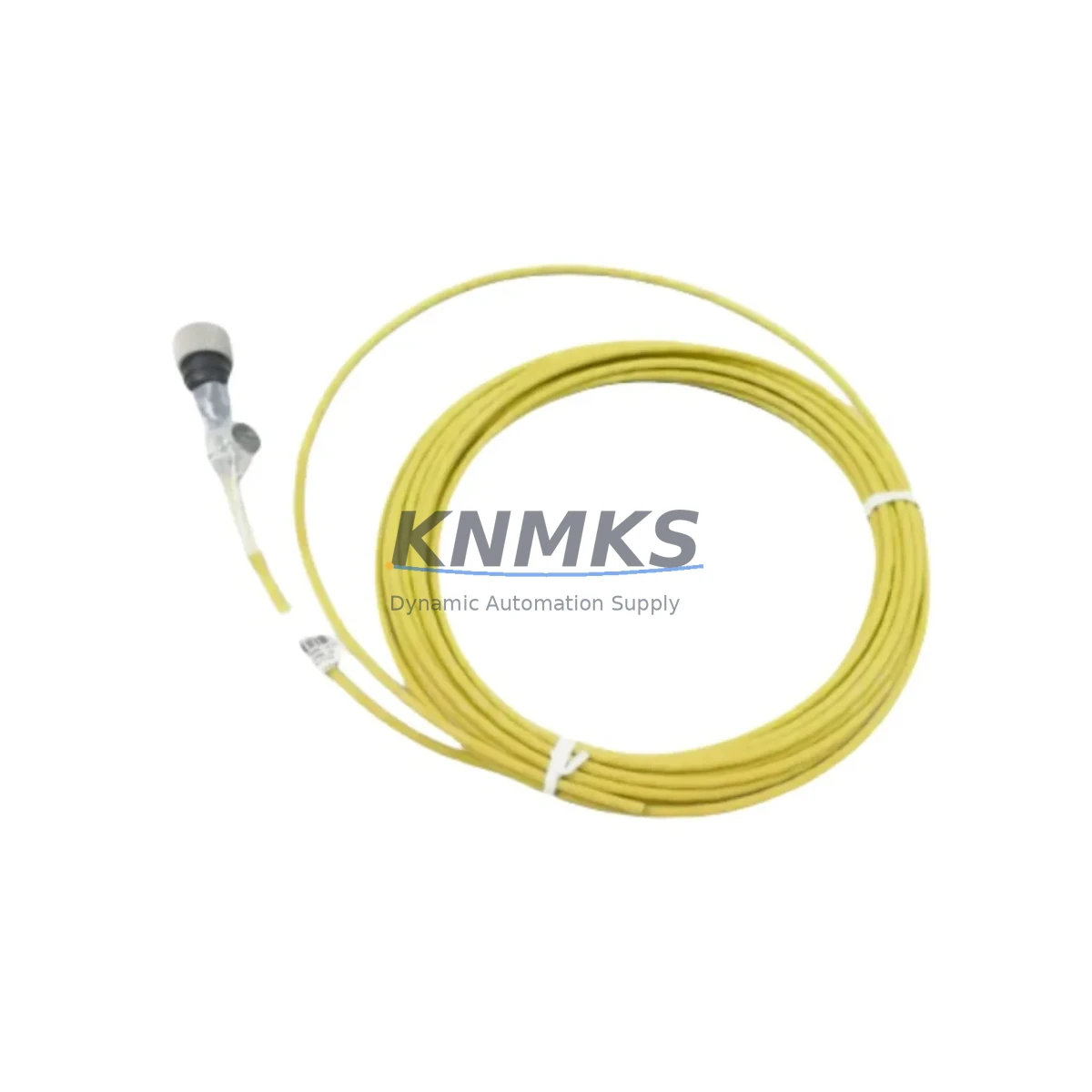

The Bently Nevada CB2W100-064 is a 64-foot (approximately 20-meter) proximity interconnect cable engineered for seamless integration into legacy vibration monitoring and machinery protection systems. As original Bently Nevada 330130 XL-series cables reach end-of-life or become increasingly difficult to source, the CB2W100-064 provides a verified migration-ready replacement that preserves signal integrity, maintains connector compatibility, and eliminates the need for custom wiring adapters during system retrofit projects.

For maintenance engineers and automation integrators managing aging turbomachinery protection panels, the CB2W100-064 is a critical component in sustaining continuous monitoring without triggering full system overhauls. Its shielded construction and precision-matched impedance characteristics ensure that proximity probe signals from eddy-current sensors are transmitted without attenuation or noise interference — a non-negotiable requirement when monitoring rotor dynamics, shaft displacement, and bearing clearance on rotating equipment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the CB2W100-064 into an existing machinery protection architecture requires a structured pre-retrofit assessment. Before disconnecting the legacy cable, engineers should document the current gap voltage readings at each proximity probe location — typically between −10 VDC and −18 VDC for a properly installed eddy-current system. These baseline values serve as the acceptance criteria after the new cable is installed and the system is re-energized.

In systems built around the Bently Nevada 3500 Series rack, the CB2W100-064 interfaces directly with monitor cards such as the 3500/42M Proximitor/Seismic Monitor or the 3500/45 Position Monitor. The cable runs from the field-mounted Proximitor sensor — for example, a 3300 XL 8mm or 3300 XL 11mm proximity probe assembly — back to the I/O terminal block on the front of the monitor card. Engineers should verify that the existing terminal block wiring labels (typically marked COM, SIG, and PWR) match the cable’s conductor color coding before making final terminations.

For control cabinets that also house a Bently Nevada 3500/20 rack power supply module, it is important to confirm that the 24 VDC or 28 VDC supply rail can sustain the additional load if multiple cables are being replaced simultaneously during a planned shutdown. In multi-channel racks, replacing all proximity cables in a single maintenance window reduces cumulative downtime compared to a phased approach.

Where the machinery protection system feeds vibration data into a DCS or SCADA platform — such as through a 3500/92 Communication Gateway Module using Modbus RTU or Ethernet/IP — the cable replacement itself does not affect the communication link. However, after re-termination, it is advisable to verify that the monitor card’s OK relay output and the alarm setpoints (Alert and Danger thresholds) are still correctly configured in the System 1 Evolution software or equivalent condition monitoring platform.

In older installations where the proximity cable routes through a marshalling cabinet before reaching the monitor rack, engineers should also inspect the intermediate junction terminals and replace any corroded ferrules or loose terminal blocks as part of the same retrofit cycle. This is also an appropriate time to audit the installation of any signal isolators or barriers in the signal path, particularly in hazardous area (Zone 1 or Zone 2) installations where intrinsic safety barriers may be present between the field device and the control room.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any proximity cable replacement project on live rotating equipment. The CB2W100-064 is pre-tested and shipped ready for installation, which eliminates the need for on-site cable fabrication or connector crimping — a common source of delay and error in field retrofit work.

The recommended migration sequence begins with a controlled shutdown of the affected machine train, followed by immediate documentation of all existing gap voltages, alarm setpoints, and OK relay states. The legacy cable is then disconnected at both the Proximitor sensor end and the monitor card terminal block, with conductor labels photographed or tagged before removal. The CB2W100-064 is routed through the existing conduit or cable tray — its identical outer diameter and bend radius ensure no mechanical interference — and terminated according to the original wiring diagram.

After termination, the system is re-energized and gap voltage is re-measured at each channel. If the gap voltage falls within the acceptable window (typically −10 VDC to −18 VDC), the monitor card’s OK relay will close and the channel will return to normal monitoring status. The entire process — from shutdown to verified re-commissioning — can typically be completed within a two-to-four hour maintenance window for a single-channel replacement, making the CB2W100-064 a practical choice for turnaround maintenance schedules where machine availability is critical.

For facilities operating under a predictive maintenance program, pre-ordering the CB2W100-064 as a certified spare and storing it in the control room spares cabinet ensures that the replacement can be executed immediately upon detection of cable degradation — without waiting for procurement lead times that can extend to several weeks for legacy components.

Retrofit Support FAQ

Q1: Is the CB2W100-064 a direct replacement for the Bently Nevada 330130 XL proximity interconnect cable?
Yes. The CB2W100-064 is designed as a migration-ready replacement for the 330130 XL series. It uses the same connector interface, cable geometry, and shielding configuration, allowing direct installation without modification to the existing Proximitor sensor or monitor card terminal block.

Q2: What commissioning steps are required after installing the CB2W100-064?
After installation, measure the gap voltage at the Proximitor output to confirm the probe is correctly positioned within the linear range of the eddy-current sensor. Verify that the monitor card’s OK relay has closed and that vibration readings are within expected baseline values. If the system uses System 1 Evolution or a similar condition monitoring platform, confirm that the channel data is updating correctly before returning the machine to service.

Q3: Does the cable require any firmware updates on the 3500 or 3300 rack modules?
No. The CB2W100-064 is a passive interconnect cable with no embedded electronics. It does not interact with the firmware of the monitor rack, power supply module, or communication gateway. No firmware updates are required on any rack component as a result of this cable replacement.

Q4: What are the support terms terms and how quickly can the CB2W100-064 be shipped?
The CB2W100-064 is covered by a support terms confirmed by quotation from the date of shipment, including replacement for dead-on-arrival (DOA) units. Stock is maintained for prompt dispatch, with most orders processed within 1–2 business days. Each unit undergoes pre-shipment functional testing to verify connector integrity and cable continuity before leaving the warehouse.
