Bently Nevada 330101-00-18-10-12-00 Migration-Ready Extension Cable

Overview

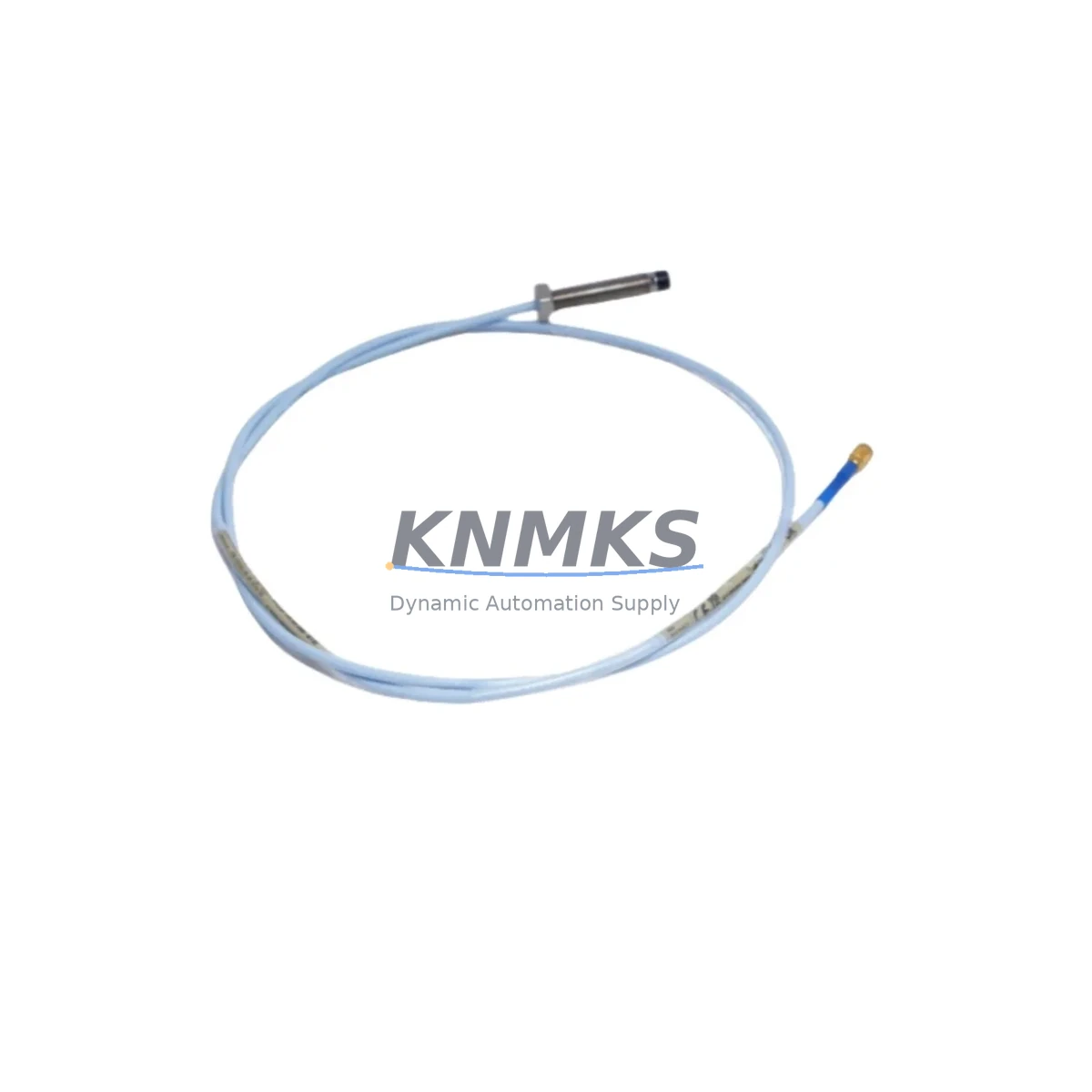

Bently Nevada 330101-00-18-10-12-00 Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330101-00-18-10-12-00 is an 18-inch (457 mm) extension cable designed for the 3300XL 8mm proximity probe system, one of the most widely deployed vibration monitoring platforms in rotating machinery protection. As legacy 3300 Series installations approach end-of-life and plant engineers face increasing pressure to maintain uptime while sourcing discontinued components, this migration-ready replacement cable provides a direct, wiring-compatible solution that eliminates the need for full system overhaul.

Whether you are restoring a turbine protection panel, upgrading a compressor monitoring rack, or extending the service life of an existing 3300XL installation, the 330101-00-18-10-12-00 extension cable is engineered to integrate without modification to existing terminal blocks, conduit runs, or driver electronics. The cable maintains the standard 3-wire coaxial architecture used across the 3300XL probe series, ensuring signal integrity from the probe tip through to the Proximitor sensor and ultimately to the monitoring system input card.

Before installation, engineers should verify the following parameters against the existing system: power supply voltage to the Proximitor sensor (typically –24 VDC), the gap voltage range established during original commissioning, the cable routing distance relative to the driver module, and the terminal labeling on the junction box or marshalling panel. In multi-channel racks using the 3500/42M or 3500/44M monitor modules, confirm that the channel address assignments remain consistent with the original configuration to avoid alarm mapping errors after replacement.

For plants running parallel migration paths — for example, transitioning from a legacy 3300 rack to a 3500 Series rack while keeping selected 3300XL probes in service — the 330101-00-18-10-12-00 extension cable supports phased cutover strategies. During this process, the Bently Nevada 330130-080-00-00 Proximitor sensor and the 330103-00-08-10-02-00 armored probe cable are commonly used alongside this extension cable to complete the probe-to-monitor signal chain. Ensuring that all three components share compatible sensitivity ratings (typically 7.87 V/mm or 200 mV/mil) is essential before energizing the loop.

In control cabinet retrofit projects, installation space is frequently a constraint. The 330101-00-18-10-12-00 extension cable’s compact 18-inch length is specifically suited for tight panel layouts where longer cables would create routing congestion. When combined with the 330780-50-00 field barrier or a compatible signal conditioner, the cable can also support installations in hazardous area classifications, provided the overall system is reviewed against the applicable SIL or ATEX documentation.

Program compatibility is another critical checkpoint during migration. If the host DCS or safety system reads vibration data via a 3500 rack over Modbus or Ethernet/IP, verify that the I/O mapping in the control program reflects the correct engineering units and alarm setpoints after the cable replacement. HMI faceplate displays tied to the vibration channel should be tested in simulation mode before returning the machine to service. Firmware version alignment between the monitor module and the System 1 software (or equivalent condition monitoring platform) should also be confirmed to prevent communication dropouts.

Downtime during cable replacement is typically minimal when a pre-tested spare is available on-site. KNMKS ships each 330101-00-18-10-12-00 extension cable with a factory continuity and insulation resistance test report, reducing field verification time. All units are covered by a support terms confirmed by quotation against manufacturing defects, and stock availability is maintained to support urgent MRO requirements across global plant sites.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete bill-of-materials audit of the existing probe loop. In a typical 3300XL installation, the signal chain includes the proximity probe (such as the 330103-00-08-10-02-00 armored probe), the extension cable (330101-00-18-10-12-00), and the Proximitor sensor (330130-080-00-00), all mounted within a defined distance from the observed shaft. When any one of these components is replaced, the entire loop should be re-gapped and re-calibrated to the original voltage setpoints documented in the machine’s vibration baseline records.

For plants upgrading from a 3300 rack to a 3500/42M or 3500/44M monitor module, the extension cable itself requires no modification — the interface remains coaxial and the signal levels are unchanged. However, the rack backplane wiring, I/O termination module (such as the 3500/20 Rack Interface Module), and any associated signal isolators should be inspected for compatibility with the new monitor firmware. In some installations, a 3500/05-01-02-00-00-00 power supply module replacement is also required to meet the increased current draw of the expanded rack configuration.

Communication protocol migration — for example, from a hardwired relay output to a Modbus TCP or PROFIBUS DP interface — does not affect the probe cable layer but does require updates to the 3500 rack’s communication gateway module and corresponding PLC or DCS tag assignments. Engineers should document all existing alarm setpoints, danger levels, and time-delay settings before initiating any rack-level changes, as these parameters are not automatically preserved during firmware upgrades.

Where I/O expansion is required as part of the retrofit — for instance, adding radial vibration channels for a previously unmonitored bearing — additional 330101-series extension cables and matched probes can be integrated into the existing rack without disrupting active channels, provided sufficient backplane slots are available.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe cable replacement requires preparation at three levels: component availability, program backup, and field procedure documentation. KNMKS maintains ready stock of the 330101-00-18-10-12-00 to support same-day dispatch for urgent MRO orders, reducing the risk of extended outages caused by supply chain delays.

Before disconnecting the existing cable, technicians should capture the current gap voltage reading at the Proximitor output terminal and record the vibration baseline values displayed on the System 1 or equivalent condition monitoring platform. This data serves as the acceptance criterion after reinstallation. The replacement cable should be pre-tested for continuity and insulation resistance before entering the field, using the factory test report supplied with each KNMKS unit as a reference baseline.

During the cutover window, the affected machine channel should be placed in bypass mode within the safety system (if applicable) and the corresponding HMI alarm suppressed to prevent spurious trips. After the new cable is installed and the probe re-gapped to the target voltage (typically –10.0 VDC ±0.5 V at the design air gap), the channel should be restored to active monitoring and the bypass removed. A 30-minute observation period at normal operating speed is recommended before returning the machine to full load, allowing the monitoring system to confirm stable vibration readings within the established baseline band.

Maintaining a documented retrofit procedure — including wiring diagrams, gap voltage targets, alarm setpoints, and firmware version records — ensures that future replacements can be executed with minimal engineering review time, further compressing the maintenance window on subsequent outages.

Retrofit Support FAQ

Q: Is the 330101-00-18-10-12-00 a direct replacement for the original Bently Nevada part?
A: Yes. The KNMKS 330101-00-18-10-12-00 is manufactured to the same dimensional and electrical specifications as the original Bently Nevada part. It is a direct drop-in replacement requiring no modification to existing probe, Proximitor, or monitor wiring.

Q: What commissioning steps are required after installing the replacement cable?
A: After installation, re-gap the proximity probe to achieve the target gap voltage (typically –10.0 VDC at the design air gap), verify the output sensitivity (200 mV/mil or 7.87 V/mm), and confirm that the vibration reading on the monitor module matches the pre-replacement baseline. Update the maintenance log with the new gap voltage and cable serial number.

Q: Does KNMKS provide pre-shipment testing for this cable?
A: Yes. Every 330101-00-18-10-12-00 unit shipped by KNMKS is tested for continuity and insulation resistance before dispatch. A factory test report is included with each shipment to support incoming inspection and reduce field verification time.

Q: What support terms and supply terms apply?
A: All KNMKS units carry a support terms confirmed by quotation from the date of shipment against manufacturing defects. Stock is maintained for immediate dispatch to support urgent MRO and planned maintenance schedules globally.
