Bently Nevada 330101-00-14-10-10-02-05 Maintenance Spare

Overview

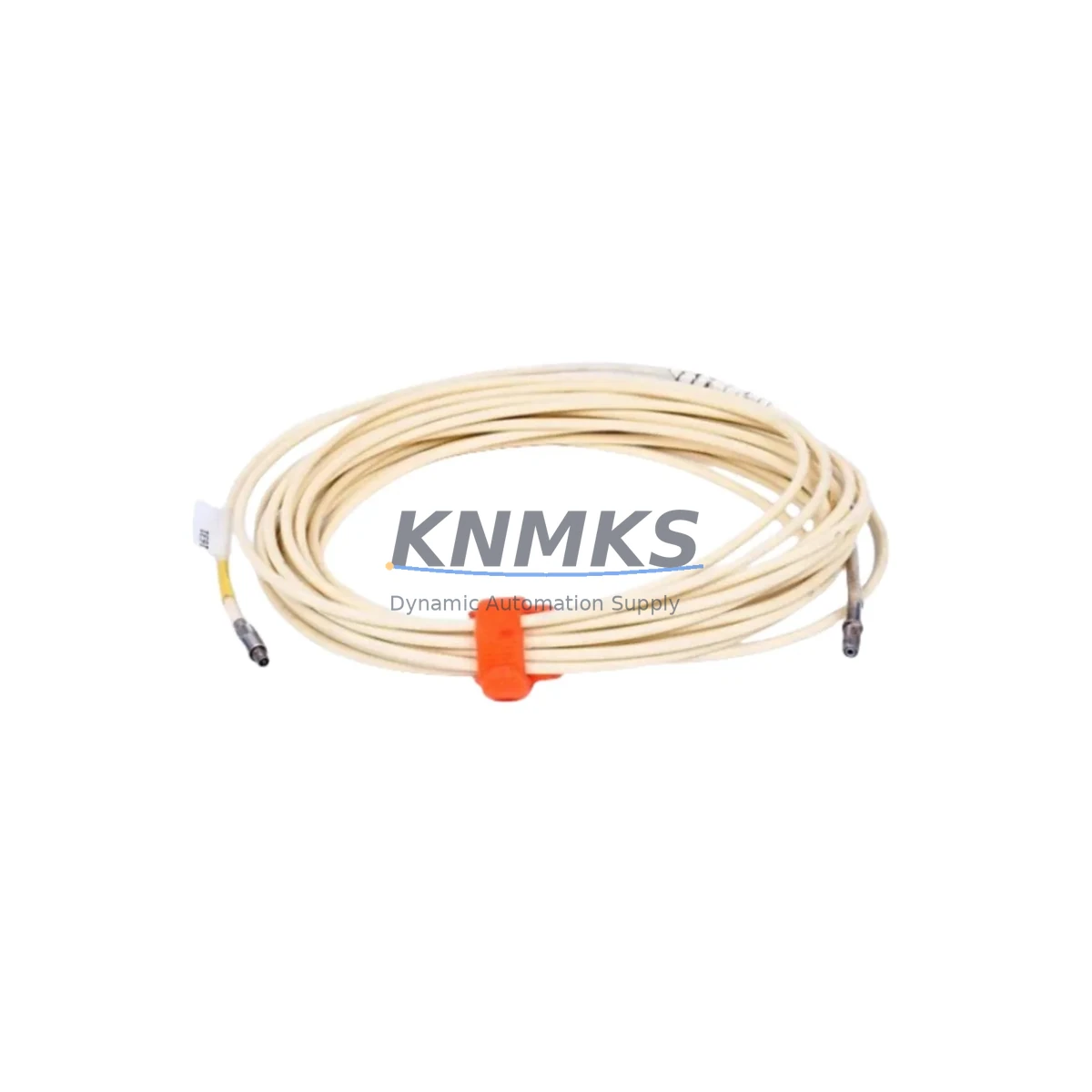

Bently Nevada 330101-00-14-10-10-02-05 Maintenance Spare: Proximity Extension Cable for Factory Uptime

The Bently Nevada 330101-00-14-10-10-02-05 is a 14-foot proximity extension cable engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this cable forms the critical signal path between the eddy-current proximity probe and the Bently Nevada 3300 XL monitor rack. Signal integrity across this cable directly determines the accuracy of shaft displacement readings, gap voltage calibration, and ultimately the reliability of your machinery protection trip logic.

Maintenance engineers managing turbomachinery or critical rotating assets understand that a degraded or failed extension cable is one of the most common causes of false trips, erratic vibration readings, and unplanned shutdowns. Stocking a verified OEM replacement — pre-tested and ready for immediate installation — is the single most effective way to contain downtime when a cable fault is identified during a routine inspection or emergency callout.

This unit ships from verified inventory, undergoes pre-shipment electrical continuity and impedance testing, and is covered by a support terms confirmed by quotation from the date of delivery. Lead time is contained through forward stock management, ensuring rapid dispatch for both planned annual overhauls and emergency replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-14-10-10-02-05 extension cable during a planned outage or emergency callout, a disciplined maintenance engineer will not stop at the cable alone. The 3300 XL proximity measurement chain is a system — and any weak link can compromise the entire vibration channel.

Begin by inspecting the 330101-series proximity probe at the bearing housing end. Check the probe tip for wear, contamination, or physical damage from shaft contact. Verify the probe gap voltage using a calibrated voltmeter against the Bently Nevada gap chart for the target material — typically –10 VDC ±0.5 V at the nominal gap. If the probe is at or beyond its service interval, replace it concurrently with the extension cable to avoid a repeat outage.

At the driver end, inspect the 330180 or 330130 Proximitor® sensor mounted in the junction box or field enclosure. Check the driver output voltage, verify the OK relay status, and confirm that the driver is not in a latched fault condition. A faulty driver will produce erratic readings even with a new cable installed.

Inside the control cabinet, verify the 3300 XL monitor card (such as the 3300/16 or 3300/20 series) is seated correctly in the backplane and that the channel configuration — gap, direct, 1X, 2X — matches the machine’s alarm setpoints. Loose backplane connectors are a common source of intermittent channel faults that are misdiagnosed as cable failures.

Check all terminal blocks and field wiring between the junction box and the monitor rack. Corroded terminals, loose ferrules, or reversed polarity on the coaxial shield drain wire will introduce noise into the proximity signal. Use a torque screwdriver to verify terminal tightness to the manufacturer’s specification.

If the machine is in a high-EMI environment — near variable frequency drives, large motor starters, or welding equipment — inspect the signal cable routing and shielding continuity. The 330101 extension cable shield must be grounded at one end only (typically the driver end) to prevent ground loops that manifest as 50/60 Hz noise on the vibration channel.

For sites running System 1® condition monitoring software or a third-party DCS historian, confirm that the channel tag, engineering unit scaling, and full-scale range are correctly configured after the cable replacement. A misconfigured scale factor will produce readings that appear plausible but are systematically offset — a risk that is easy to miss during a rushed return-to-service.

Procurement engineers should maintain a minimum buffer of one extension cable per critical machine train, with a recommended 12-month forward stock for high-criticality assets such as main steam turbines, boiler feed pumps, and gas compressors. Pairing the 330101-00-14-10-10-02-05 with a spare 330180 Proximitor® driver and a matched 330101 proximity probe in a sealed, labeled kit eliminates the most common single points of failure in the vibration monitoring chain.

Site Replacement Workflow

Step 1 — Isolate and document. Before disconnecting the existing cable, record the gap voltage, direct vibration reading, and 1X amplitude/phase from the monitor display or historian. This baseline is essential for post-installation verification.

Step 2 — De-energize the channel. Place the 3300 XL monitor channel in bypass or inhibit mode to prevent a false trip during cable removal. Confirm with the control room that the bypass is active and logged.

Step 3 — Remove the failed cable. Disconnect at both the probe end (bearing housing junction box) and the driver end (field enclosure or marshalling cabinet). Inspect both connectors for corrosion, bent pins, or damaged threads. Clean mating connectors with contact cleaner before installing the replacement.

Step 4 — Install 330101-00-14-10-10-02-05. Route the new cable following the original cable path. Avoid sharp bends below the minimum bend radius. Secure with cable ties at the same intervals as the original. Torque connectors to specification — finger-tight plus one-quarter turn for MIL-style connectors.

Step 5 — Re-energize and verify gap voltage. Restore power to the Proximitor® driver. Measure gap voltage at the driver output. Adjust probe position if gap voltage is outside the –10 VDC ±0.5 V target. Do not release the channel from bypass until gap voltage is confirmed.

Step 6 — Functional verification. Release the channel from bypass. Confirm that the 3300 XL monitor shows a valid OK status, that direct vibration and 1X readings are within expected range for the machine’s operating condition, and that no alarms are active. Compare against the pre-removal baseline recorded in Step 1.

Step 7 — Update maintenance records. Log the replacement in the CMMS with the new cable’s serial number, installation date, and post-installation gap voltage. Schedule the next inspection interval per the site’s predictive maintenance program.

This workflow is compatible with legacy 3300 Series installations as well as current 3300 XL deployments, making the 330101-00-14-10-10-02-05 a suitable replacement for older 330101 cable variants where the connector and length specifications match.

Spare Parts Support FAQ

Q1: Is the 330101-00-14-10-10-02-05 compatible with both 3300 and 3300 XL series monitors?
Yes. The 330101 extension cable series is designed for use with Bently Nevada 3300 XL monitors and is backward-compatible with earlier 3300 Series installations provided the probe, driver, and cable length specifications are matched. Always verify the full system configuration — probe model, driver model, and monitor card — before ordering to confirm compatibility.

Q2: What pre-shipment testing is performed on this cable?
Each unit undergoes electrical continuity testing across the full cable length, coaxial impedance verification, and physical inspection of both connectors for pin integrity and thread condition. A test record is available upon request. The support terms confirmed by quotation cover defects in materials and workmanship from the date of delivery.

Q3: How should this cable be stored as a long-term spare?
Store in a clean, dry environment at 15–35°C, away from direct sunlight and sources of electromagnetic interference. Keep connectors capped with the supplied dust caps or equivalent protective covers. Inspect stored cables annually for connector corrosion and jacket integrity. Cables stored under these conditions maintain full serviceability for the duration of the support terms confirmed by quotation period and typically well beyond.

Q4: Can you support long-term supply agreements for this part?
Yes. For high-criticality sites requiring guaranteed stock availability, we support blanket purchase orders and forward-stock programs for the 330101-00-14-10-10-02-05 and related 3300 XL proximity system components. Contact our team to discuss volume pricing, lead-time commitments, and consignment stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-14-10-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-14-10-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
