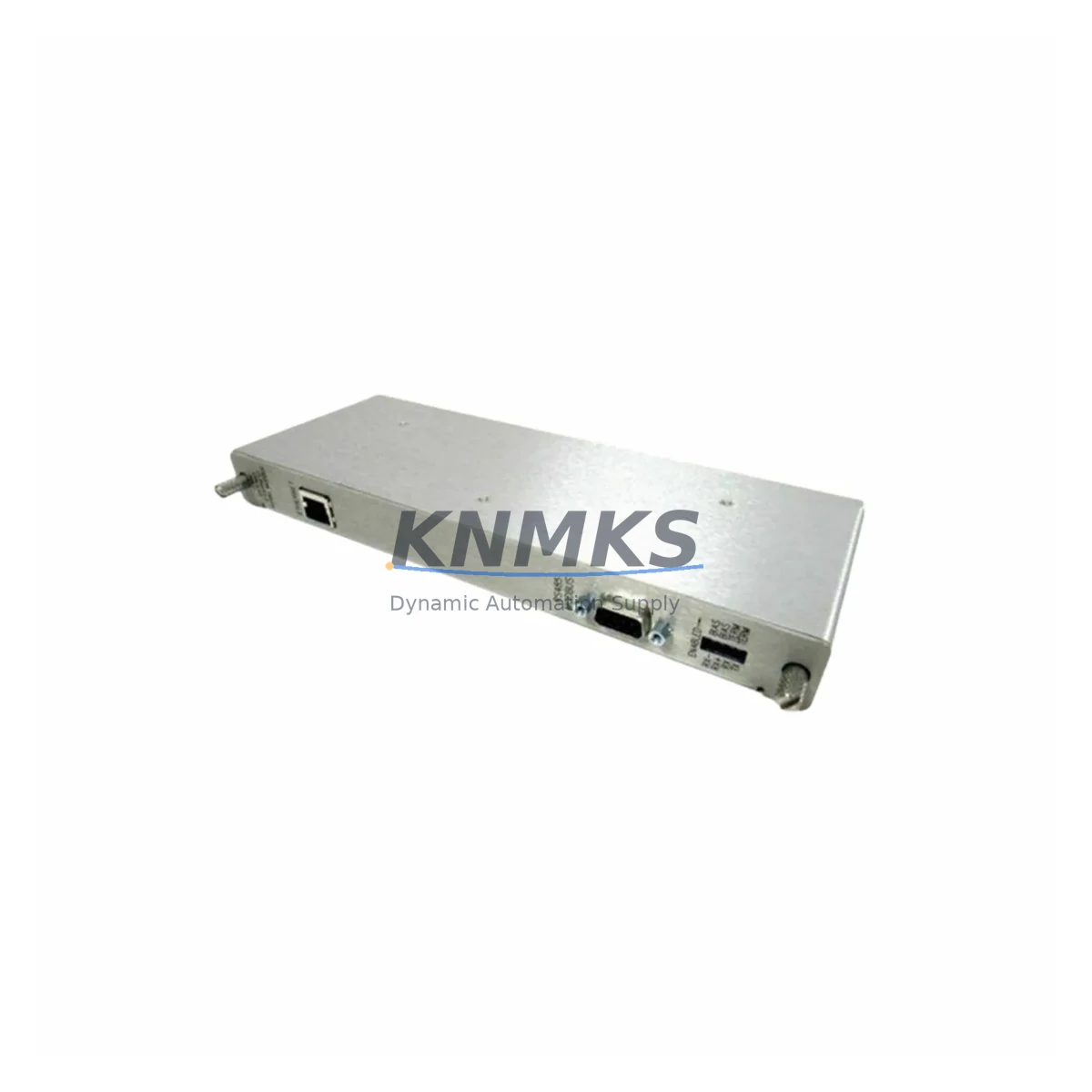

Bently Nevada 3500/92/04-01-00 Spare Part for Factory Uptime

Overview

Bently Nevada 3500/92/04-01-00 Spare Part for Factory Uptime

The Bently Nevada 3500/92/04-01-00 (also referenced as 136180-01 and 136188-02) is a Communication Gateway Module within the Bently Nevada 3500 Series machinery protection system — one of the most widely deployed continuous monitoring platforms in rotating equipment applications including turbines, compressors, pumps, and generators. Maintaining a verified spare of this module is a critical element of any uptime-focused maintenance strategy. When this gateway fails or degrades, the entire 3500 rack loses its ability to communicate alarm and vibration data to the plant DCS or historian, creating a blind spot in your condition monitoring coverage.

Our stock of the 3500/92/04-01-00 is sourced from original production runs, individually pre-tested prior to shipment, and backed by a support terms confirmed by quotation. We maintain multi-region inventory to support both emergency callouts and planned annual outage schedules, with fast global dispatch to minimize your exposure window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 3500/92/04-01-00 sits at the intersection of your machinery protection hardware and your plant-level data infrastructure. When planning a replacement or annual inspection, maintenance engineers should treat this module as part of a broader communication and power integrity check across the 3500 rack.

Begin with the rack power supply — the Bently Nevada 3500/15 Power Supply Module feeds the backplane that powers the gateway. A degraded power module can cause intermittent communication faults that are misdiagnosed as gateway failures. Verify output voltage stability before condemning the 3500/92/04-01-00.

Next, inspect the 3500/05 Rack Interface Module, which manages internal rack communication. A failing rack interface can prevent the gateway from correctly polling monitor modules, producing false data dropouts at the DCS level. Confirm firmware revision compatibility between the rack interface and the gateway module during any replacement.

On the network side, check the Ethernet patch cables and managed switch ports connected to the gateway. Industrial environments with high EMI — common near large motors or VFDs — can degrade copper Ethernet links. If your plant uses Modbus RTU over RS-485 as a secondary communication path, inspect the terminal block connections and shielding continuity on the serial cable run.

For sites running Bently Nevada 3500/22M Transient Data Interface or 3500/42M Proximitor/Seismic Monitor modules in the same rack, confirm that those modules are still reporting correctly after the gateway swap. A rack reset during module replacement can temporarily clear alarm setpoints stored in volatile memory on older firmware versions — always verify setpoints post-installation.

Procurement engineers should note that the 3500/92/04-01-00 has a long lead time on the open market due to the age of the 3500 platform. Holding at least one verified spare in your on-site critical spares kit — alongside the power supply module and rack interface — is the most cost-effective insurance against an unplanned outage on a high-value rotating asset. We offer long-term supply agreements for sites managing multiple 3500 racks across a facility.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement module part number matches 3500/92/04-01-00 or its accepted alternates (136180-01, 136188-02). Check the firmware label on the outgoing module and request a matching or compatible firmware version from your supplier if your DCS integration requires a specific revision.

Step 2 — Safe isolation: Notify the control room before removing the gateway. The 3500 rack will continue to monitor and protect the machine locally, but DCS communication and remote alarm visibility will be interrupted during the swap. Confirm with operations that the machine can remain in service under local monitoring only for the duration of the replacement.

Step 3 — Module removal and installation: Power down the rack only if required by your site safety procedure. The 3500/92 is typically hot-swappable in standard configurations — verify this against your rack revision documentation. Seat the replacement module firmly into the backplane slot and secure the front panel fasteners.

Step 4 — Communication restoration: After insertion, allow 60–90 seconds for the module to initialize and re-establish the Ethernet link. Confirm the DCS or historian is receiving live data from all monitor channels. Verify alarm and trip setpoints are intact in the rack configuration software (System 1 or Rack Configuration Software).

Step 5 — Documentation: Record the replaced module serial number, firmware version, installation date, and technician name in your maintenance management system. Initiate a replacement spare order immediately to restore your critical spares inventory level.

This workflow applies equally to scheduled outage replacements and emergency callouts. Our pre-tested units are ready to install without bench calibration, reducing your mean time to restore (MTTR) to the minimum achievable.

Spare Parts Support FAQ

Q: Is the 3500/92/04-01-00 still available as a new original part?
A: The Bently Nevada 3500 platform is mature and some sub-variants have limited new production availability. We source from original production stock and verified surplus channels. Every unit is individually tested before shipment and covered by our support terms confirmed by quotation, providing equivalent assurance to new OEM supply for maintenance applications.

Q: How do I confirm compatibility with my existing 3500 rack before ordering?
A: Provide your rack model number, current gateway firmware version (visible on the module label or in your rack configuration software), and your DCS communication protocol (Ethernet/IP, Modbus TCP, or serial Modbus). Our technical team will confirm compatibility before the order is processed.

Q: What is your lead time for emergency orders?
A: In-stock units ship within 24 hours of order confirmation. We maintain multi-region inventory to support expedited delivery to major industrial hubs in Asia, Europe, and the Americas. Contact [email protected] or +86 18359268345 for urgent requirements.

Q: What does the support terms confirmed by quotation cover?
A: The support terms covers functional failure under normal operating conditions within the 3500 rack environment. It does not cover damage from incorrect installation, overvoltage events, or physical mishandling. Support requests are processed with a replacement-first policy to minimize your downtime exposure.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/92/04-01-00 136180-01 136188-02
3500 Series

Product Family

Communication Modules

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Network range

Ethernet, fieldbus and gateway modules

Common needs

Protocol, port and controller family

Project support

Machine networking and data integration

Inquiry Support

• Industrial Ethernet and fieldbus module inquiry
• Protocol compatibility review
• Integration project inquiry support

What to Send Us

• Brand and exact model number: Bently Nevada 3500/92/04-01-00 136180-01 136188-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
