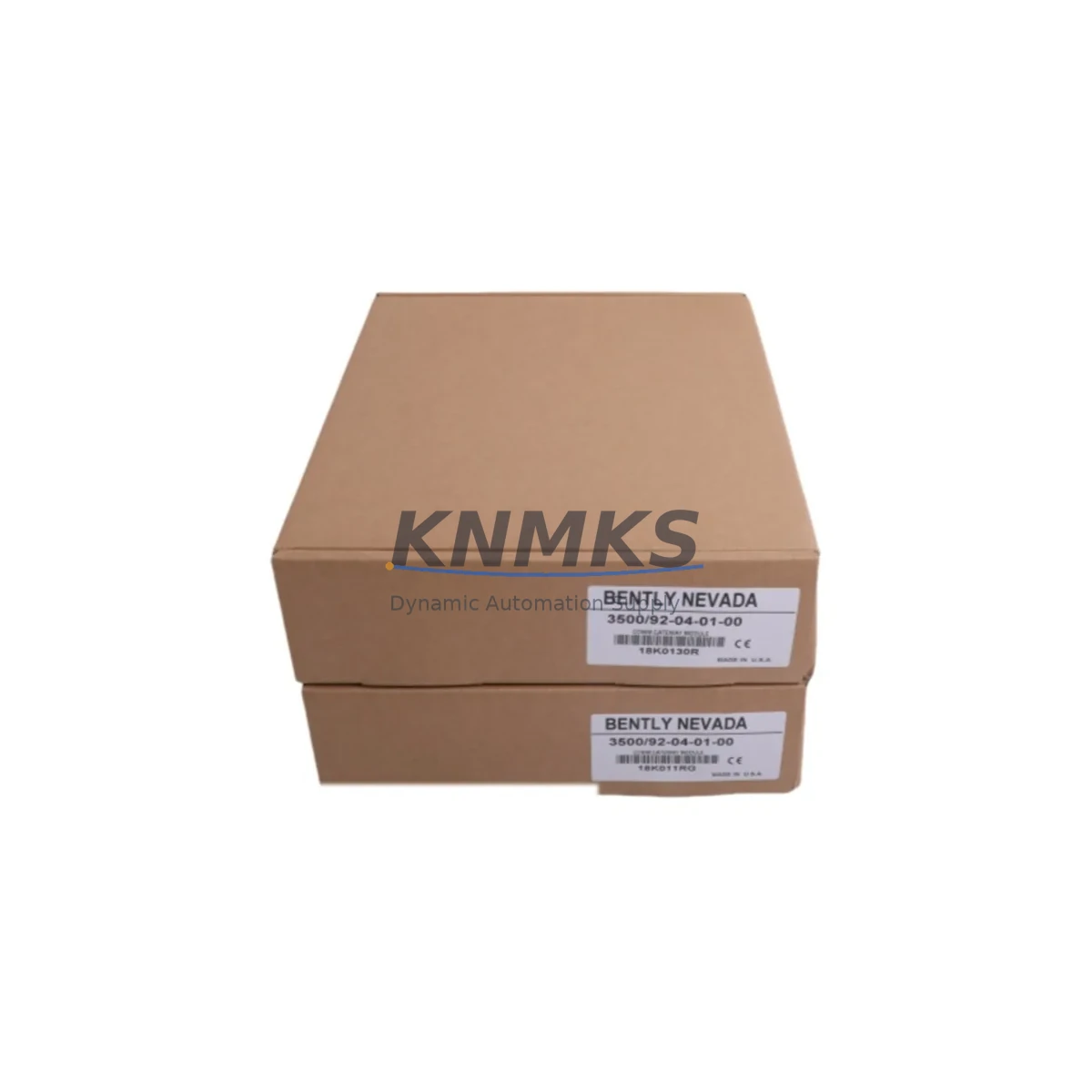

Bently Nevada 3500/92-04-01-00 Migration-Ready Communication Gateway

Overview

Bently Nevada 3500/92-04-01-00 Migration-Ready Communication Gateway for Legacy Control Systems

The Bently Nevada 3500/92-04-01-00 is a communication gateway module designed for the 3500 Series machinery protection system platform. As legacy 3500 Series installations approach end-of-support milestones, plant engineers and reliability teams face increasing pressure to source verified replacement modules that maintain backward compatibility with existing rack configurations, wiring infrastructure, and host communication links. The 3500/92-04-01-00 addresses this challenge directly: it is a drop-in migration-ready replacement that preserves the original communication architecture while enabling controlled system upgrades without full platform replacement.

This module supports Ethernet TCP/IP and Modbus communication protocols, allowing it to interface with existing DCS, SCADA, and historian platforms without requiring protocol conversion middleware. For facilities running legacy Honeywell TDC 3000, Emerson DeltaV, or ABB System 800xA as the supervisory layer, the 3500/92-04-01-00 maintains the data pathway integrity that operations teams depend on for continuous vibration and process monitoring. The module slots directly into the 3500 Series rack backplane, eliminating the need for rack replacement or rewiring of field termination assemblies.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the 3500/92-04-01-00 in an operating plant environment requires a structured pre-outage assessment. Before the module is swapped, the engineering team should document the existing IP address, subnet mask, default gateway, and Modbus node ID currently assigned to the outgoing unit. These parameters must be replicated exactly on the replacement module to avoid communication loss to the DCS or SCADA host upon restart.

The 3500 Series rack power supply — typically the 3500/15 Power Supply module — must be verified to have sufficient capacity to support the gateway module alongside all installed monitor cards. In racks running a full complement of 3500/40M Proximitor/Seismic Monitor modules, 3500/42M Proximitor/Seismic Monitor modules, or 3500/45 Position Monitor modules, the total rack current draw should be recalculated against the power supply’s rated output before the replacement module is installed. Undersized power supply capacity is a common root cause of intermittent communication faults following module replacement.

For facilities that use the 3500/20 Rack Interface Module (RIM) as the primary communication path to a legacy host, the 3500/92-04-01-00 gateway provides a parallel Ethernet communication channel that can be used to migrate the host interface from the older serial-based RIM architecture to a modern TCP/IP link without disrupting the existing alarm and trip logic. This migration path is particularly valuable in plants where the DCS historian or condition monitoring platform has already been upgraded to support OPC-UA or Modbus TCP but the rack communication module has not yet been replaced.

Terminal wiring at the rear I/O termination panel should be inspected during the replacement outage. The RJ-45 Ethernet port and any RS-232 configuration cable connections should be verified for continuity and correct pinout before the rack is powered back up. In installations where the communication cable runs exceed 50 meters, shielded Cat5e or Cat6 cabling should be confirmed to be in place to prevent signal degradation that can cause intermittent Modbus timeouts or dropped Ethernet frames.

If the plant’s condition monitoring platform uses Bently Nevada System 1 software, the replacement module must be recognized by the System 1 server before alarm and trend data collection resumes. This typically requires a brief re-discovery sequence within the System 1 configuration interface, after which historical trend continuity is maintained without data gap.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3500/92-04-01-00 replacement requires pre-staging the replacement module with the correct IP configuration and Modbus parameters before the maintenance window begins. Using Bently Nevada Rack Configuration Software (RCS) on a laptop connected via RS-232 or Ethernet, the replacement module can be fully configured and verified on the bench prior to installation. This bench pre-configuration approach reduces the in-rack commissioning time to under 30 minutes in most cases.

During the swap, the existing rack does not need to be powered down if the installation follows a hot-swap procedure supported by the 3500 platform architecture. However, plant safety procedures and the specific rack revision should be confirmed before attempting a live swap. In most refinery and petrochemical applications, a controlled shutdown of the affected rack — with bypass of the associated machinery protection trips — is the preferred approach to ensure personnel safety and protect the integrity of the original program logic stored in the monitor modules.

After the replacement module is seated and the rack is powered up, the first verification step is to confirm that the gateway module’s status LED indicates normal operation and that the DCS or SCADA host re-establishes its Modbus or Ethernet connection within the expected timeout window. Alarm setpoints, trip multipliers, and channel configuration stored in the individual monitor modules are not affected by the gateway replacement and do not require re-entry. This significantly reduces the post-maintenance verification workload and shortens the return-to-service timeline.

All replacement modules supplied by KNMKS are function-tested prior to shipment. Each unit undergoes communication link verification, power-up self-test confirmation, and visual inspection before dispatch. This pre-shipment testing protocol reduces the risk of receiving a non-functional module and eliminates one of the most common causes of extended maintenance windows during spare parts replacement.

Retrofit Support FAQ

Q1: Is the 3500/92-04-01-00 a direct drop-in replacement for earlier revisions of the same part number?
Yes. The 3500/92-04-01-00 is designed for direct slot replacement within the 3500 Series rack. Earlier hardware revisions of the same module are fully replaced by this unit. The backplane connector, slot dimensions, and communication interface are consistent across revisions. Verify the firmware version compatibility with your installed System 1 software version before installation.

Q2: What commissioning steps are required after installing the replacement gateway module?
After physical installation, connect a laptop running Bently Nevada Rack Configuration Software (RCS) to the module via RS-232 or Ethernet. Confirm the IP address, subnet mask, default gateway, and Modbus node ID match the outgoing module’s configuration. Verify that the DCS or SCADA host re-establishes its communication link and that all monitored channels are reporting correctly in the host system before releasing the rack to normal operation.

Q3: Can the 3500/92-04-01-00 be used to migrate from a serial Modbus RTU host interface to an Ethernet Modbus TCP connection?
Yes. The 3500/92-04-01-00 supports both Modbus RTU (via RS-232/RS-485 adapter) and Modbus TCP over Ethernet. This makes it suitable for protocol migration projects where the host DCS or historian has been upgraded to support Ethernet-based communication but the existing rack gateway has not yet been replaced. The migration can be executed during a planned maintenance window without changes to the monitor module configuration or field wiring.

Q4: What does the support terms confirmed by quotation cover, and what is the stock availability?
All 3500/92-04-01-00 units supplied by KNMKS carry a support terms confirmed by quotation covering hardware defects and functional performance. Each module is function-tested prior to shipment. Stock is maintained in regional warehouses to support urgent spare parts requirements. Contact the sales team for current inventory status and lead time confirmation before placing an order for critical applications.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

3500/92-04-01-00
3500 Series

Product Family

Communication Modules

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Network range

Ethernet, fieldbus and gateway modules

Common needs

Protocol, port and controller family

Project support

Machine networking and data integration

Inquiry Support

• Industrial Ethernet and fieldbus module inquiry
• Protocol compatibility review
• Integration project inquiry support

What to Send Us

• Brand and exact model number: Bently Nevada 3500/92-04-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
