Bently Nevada 3330130-045-02-00 Fail-Safe Extension Cable

Overview

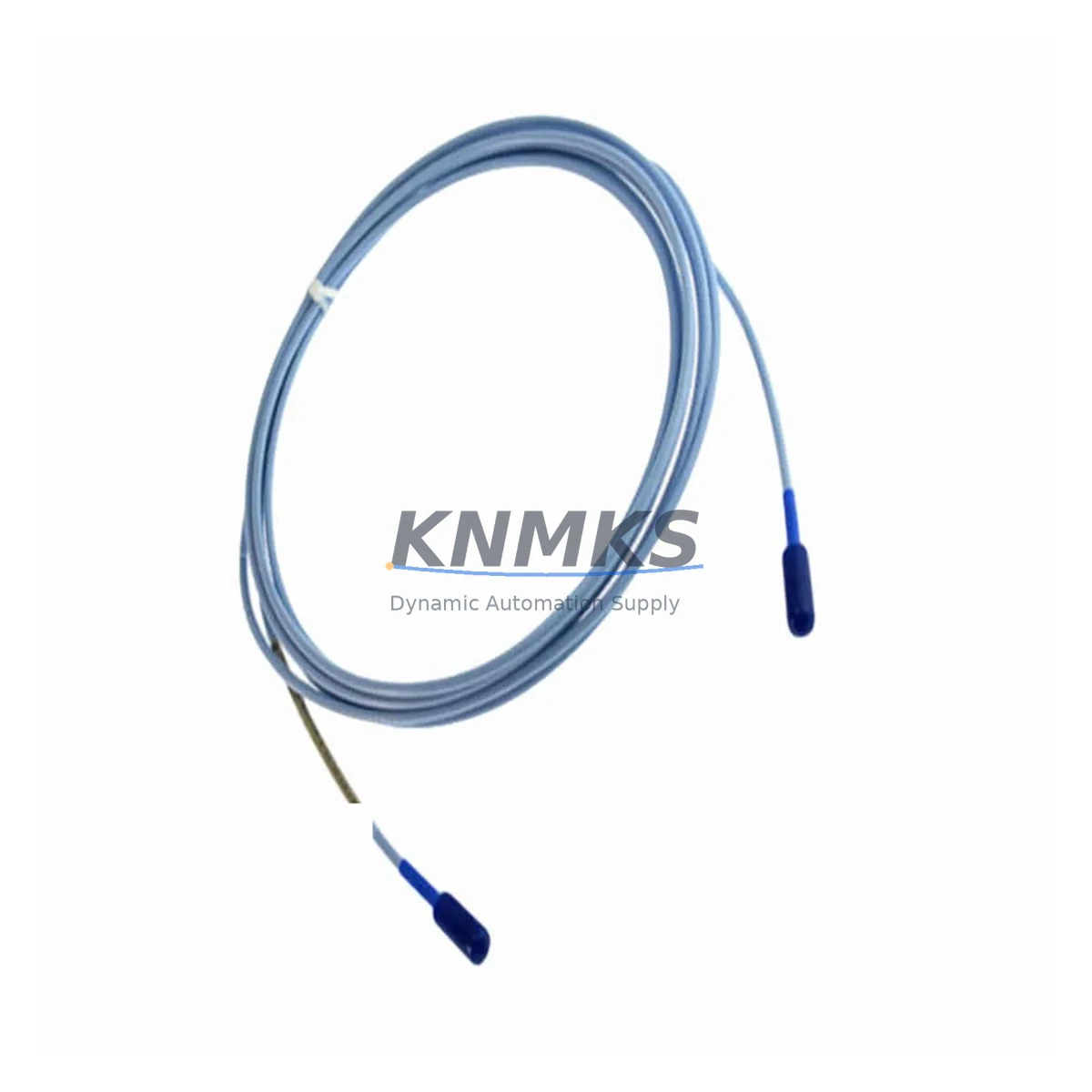

Bently Nevada 3330130-045-02-00 Fail-Safe Extension Cable: Fault-Protected Signal Integrity for Critical Industrial Control

The Bently Nevada 3330130-045-02-00 is a precision-engineered proximity transducer extension cable designed for the Bently Nevada 3300 XL Series eddy-current proximity measurement system. In continuous production environments — from petrochemical compressor trains and power generation turbines to mining hoists and metallurgical rolling mills — uninterrupted vibration and position monitoring is not optional. Signal degradation, cable-induced noise, or connector failure in a proximity loop can trigger false trips, mask genuine machinery faults, or cause unplanned shutdowns that cost tens of thousands of dollars per hour. The 3330130-045-02-00 is engineered to eliminate these failure modes at the cable level, delivering fail-safe signal transmission from transducer to monitor under the most demanding field conditions.

Constructed with a low-capacitance, impedance-matched coaxial core and a multi-layer EMI/RFI shielding braid, this extension cable maintains signal fidelity across its full rated length even in high-electromagnetic-interference environments typical of variable-frequency drive (VFD) cabinets, large motor control centers, and arc furnace installations. The cable’s controlled characteristic impedance ensures that the eddy-current driver circuit within the Bently Nevada 3300 XL Proximitor Sensor operates within its calibrated range, preventing the signal drift and sensitivity errors that can compromise vibration alarm setpoints and API 670 compliance.

In harsh field installations — dusty cement plants, humid water treatment facilities, high-temperature steel mill environments, and offshore platform machinery spaces — cable jacket integrity is a primary reliability concern. The 3330130-045-02-00 features a chemically resistant, abrasion-rated outer jacket rated for continuous operation across a wide temperature range, resisting oil, coolant, and cleaning agent exposure that would degrade standard instrumentation cables. The armored connector terminations are designed for secure, vibration-resistant mating with the Bently Nevada 3300 XL Proximity Transducer probe and the corresponding Proximitor monitor input, eliminating the intermittent contact failures that generate spurious high-vibration trips in rotating machinery protection systems.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A proximity measurement loop is only as reliable as its weakest link. In a typical rotating machinery protection cabinet, the 3330130-045-02-00 extension cable bridges the gap between the Bently Nevada 3300 XL Proximity Transducer mounted at the bearing housing and the Bently Nevada 3300 XL Proximitor Sensor — the monitor-mounted signal conditioner that converts the raw eddy-current signal into calibrated DC gap voltage and AC vibration amplitude. Any impedance mismatch or shield discontinuity in this cable segment directly corrupts the measurement that the monitor uses to calculate shaft displacement and vibration amplitude, undermining the integrity of the entire protection loop.

In control cabinets housing multiple protection channels — such as those integrating the Bently Nevada 3500/42M Proximitor/Seismic Monitor for combined radial vibration and axial position protection — cable routing discipline and shield grounding practice are critical. The 3330130-045-02-00‘s factory-terminated, impedance-controlled construction eliminates field-assembly variables that introduce ground loops or capacitive coupling from adjacent power conductors. When installed alongside Bently Nevada 3500/15 Power Supply modules and Bently Nevada 3500/22M Transient Data Interface cards in a 3500 rack, the cable’s shielding performance prevents switching noise from the power supply from coupling into the low-level proximity signal path — a common source of elevated noise floors that mask early-stage bearing wear signatures.

For installations in high-EMI environments — such as those adjacent to Bently Nevada 3500/40M Proximitor Monitor racks sharing cabinet space with relay output modules and solenoid valve drivers — the cable’s multi-layer braid shield provides the isolation margin needed to maintain signal-to-noise ratios within API 670 alarm accuracy requirements. In surge-prone installations, pairing the 3330130-045-02-00 with appropriate Bently Nevada 3500 Series barrier or isolator modules provides a complete galvanic isolation strategy that protects both the Proximitor sensor and the monitor card from transient overvoltage events originating from field wiring exposed to lightning or switching surges — a critical safeguard in outdoor compressor stations and coastal petrochemical facilities.

Critical Industrial Safety Applications

Petrochemical & Refinery Compressor Trains: In API 670-compliant machinery protection systems on centrifugal and reciprocating compressors, the 3330130-045-02-00 provides the signal path integrity required for radial shaft vibration and axial position monitoring. False trips caused by cable-induced noise in these applications can trigger emergency depressurization sequences with significant safety and production consequences. The cable’s shielding and connector integrity directly support the reliability of the protective shutdown logic, reducing the risk of both nuisance trips and missed fault detection.

Power Generation Turbines: Steam and gas turbine protection systems demand continuous, drift-free proximity signal transmission across the full operating temperature range of the turbine hall environment. The extension cable’s temperature-rated jacket and vibration-resistant terminations maintain measurement accuracy from cold startup through full-load operation, supporting the differential expansion and eccentricity monitoring channels that protect against catastrophic rotor-stator contact.

Mining Hoists & Grinding Mills: In mining applications, proximity systems monitor the shaft position and vibration of hoist motors, SAG mill pinion bearings, and crusher main shafts. The cable’s abrasion-resistant jacket and robust connector design withstand the dust, vibration, and mechanical abuse typical of underground and open-pit mining environments, ensuring that protection system availability meets the safety integrity requirements of hoist control interlock circuits.

Water Treatment & Pump Stations: Pump protection systems in water and wastewater facilities operate in humid, chemically aggressive environments. The 3330130-045-02-00‘s chemical-resistant jacket prevents degradation from chlorine, hydrogen sulfide, and cleaning agents, maintaining the insulation resistance needed to prevent shield-to-core leakage that would corrupt the proximity signal and generate nuisance trips on critical supply pumps.

Metallurgical & Steel Mill Rolling Lines: High-temperature, high-vibration environments in steel mills place extreme demands on instrumentation cables. The cable’s rated operating temperature range and vibration-resistant terminations support continuous monitoring of rolling mill drive train bearings and gearbox shafts, where undetected vibration increases can lead to catastrophic gear or bearing failures with major safety and production impact.

Port & Marine Machinery: In port crane drives and marine propulsion systems, the cable’s corrosion-resistant jacket and sealed connector terminations resist salt-laden humid air, ensuring reliable proximity signal transmission in shipboard machinery spaces and quayside equipment where conventional instrumentation cables fail prematurely due to environmental ingress.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 3330130-045-02-00?
The support terms confirmed by quotation cover all manufacturing defects including connector termination integrity, shield continuity, jacket material defects, and signal performance within the specified impedance and capacitance tolerances. Every unit undergoes 100% outgoing inspection — including continuity, insulation resistance, and shield coverage verification — before shipment. Support requests are supported with direct technical response and replacement dispatch.

Q2: How is compatibility with the Bently Nevada 3300 XL system verified before shipment?
The 3330130-045-02-00 is an OEM-specified extension cable for the Bently Nevada 3300 XL proximity measurement system. Compatibility is verified by part number cross-reference against the 3300 XL system documentation. The cable’s characteristic impedance, connector interface, and electrical parameters are matched to the 3300 XL Proximitor Sensor driver circuit specifications, ensuring calibrated system performance without field adjustment.

Q3: Is the 3330130-045-02-00 safe for use in hazardous area (Ex) classified installations?
For installations in ATEX or IECEx classified hazardous areas, the applicable hazardous area approval documentation for the complete 3300 XL proximity system — including the transducer, extension cable, and Proximitor sensor — must be reviewed. The 3330130-045-02-00 is used within the certified system boundary as specified by Bently Nevada’s hazardous area approval documentation. Consult the system’s Ex certificate and installation drawing before deploying in Zone 1 or Zone 2 classified locations.

Q4: What is the long-term supply availability for this part number?
KNMKS maintains dedicated stock of the 3330130-045-02-00 to support both planned maintenance schedules and emergency replacement requirements. As a critical spare part for rotating machinery protection systems, this cable is stocked to support immediate dispatch for unplanned outage recovery. Long-term supply continuity is supported through our global sourcing network, and customers with recurring maintenance requirements are encouraged to contact our team to discuss scheduled supply agreements that eliminate procurement lead-time risk.
