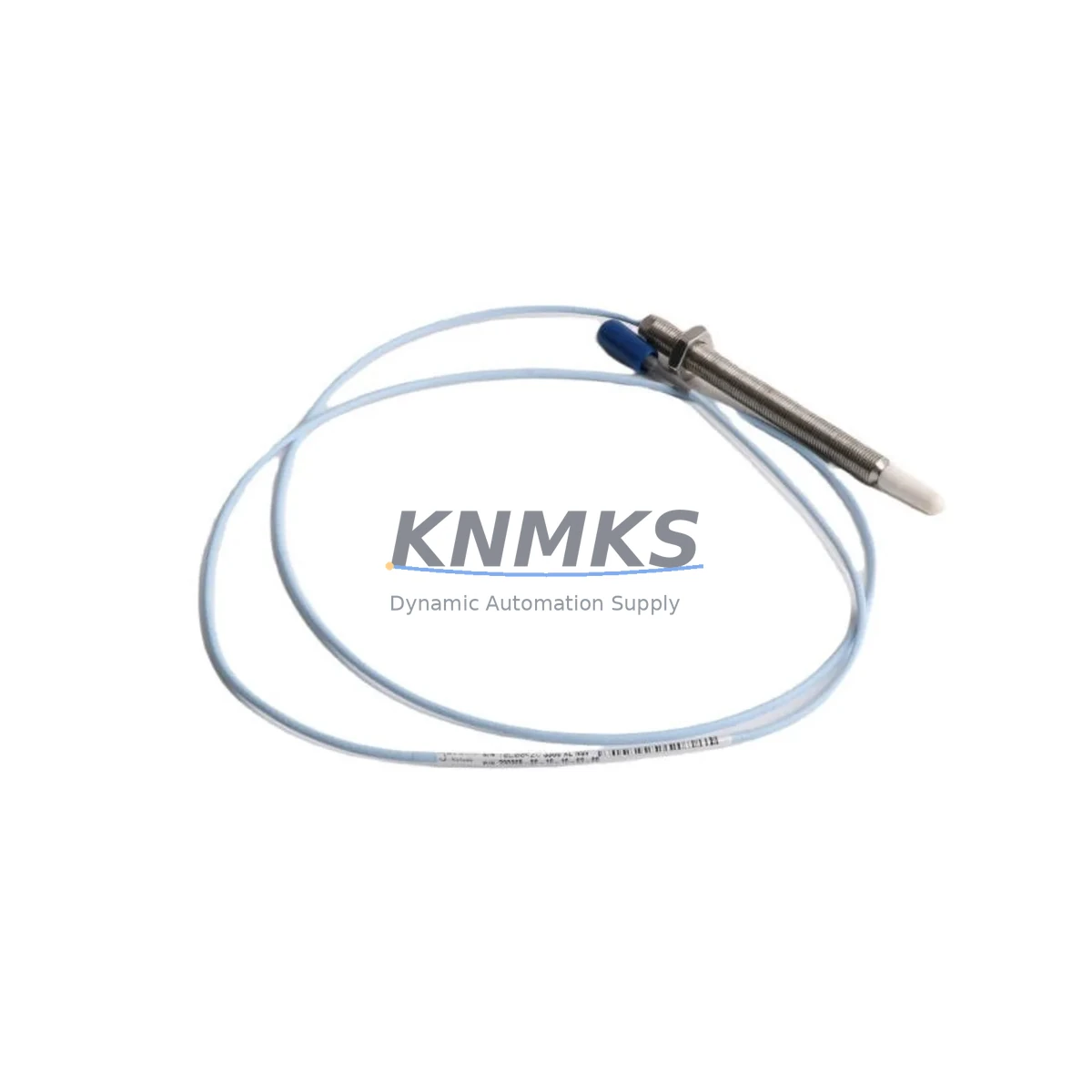

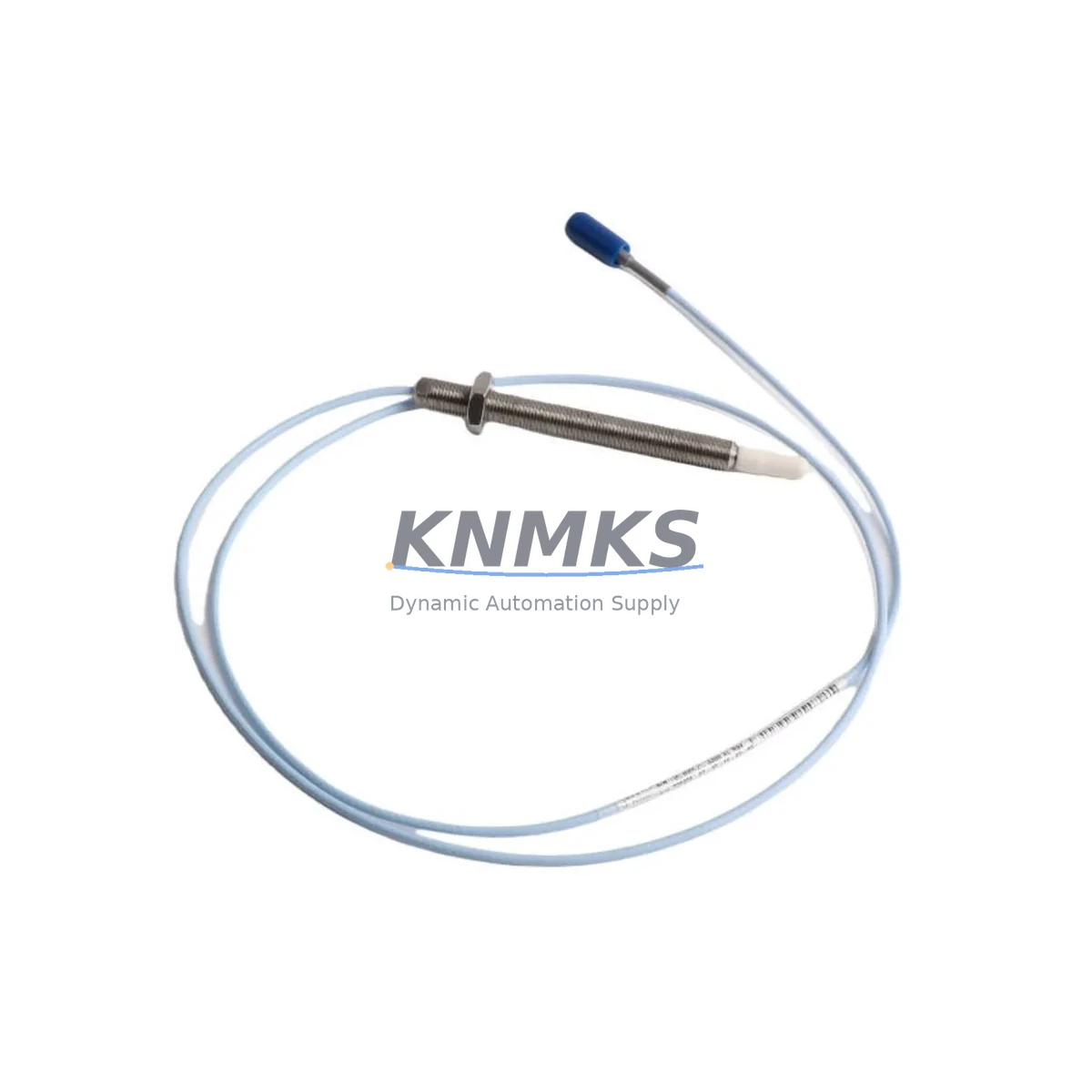

Bently Nevada 330905-00-06-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330905-00-06-10-02-00 is an 8mm proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy machinery protection systems reach end-of-life and OEM support for discontinued probe assemblies becomes increasingly scarce, this unit serves as a verified drop-in replacement that preserves existing wiring infrastructure, proximitor compatibility, and program logic without requiring a full system overhaul. Whether you are managing a planned retrofit, responding to an unplanned failure, or building a strategic spare parts inventory, the 330905-00-06-10-02-00 delivers the dimensional accuracy, signal linearity, and environmental resilience demanded by continuous industrial operation.

Before committing to a replacement or upgrade path, engineers must confirm several critical parameters. Power supply capacity at the control cabinet must support the probe’s operating range of -18 VDC to -24 VDC, consistent with the 3300 XL system architecture. Terminal wiring at the junction box should be verified against the original loop drawing — the 330905 series uses a standard three-conductor shielded cable arrangement (drive, return, and shield) that is directly compatible with existing field wiring in most installations. Backplane interface at the 3300 XL rack must be confirmed for slot assignment and module addressing, particularly when the replacement is being installed alongside active channels on a shared rack. If the proximitor in service is a 330180 Series Proximitor, no recalibration of the gap voltage setpoint is required, as the 330905-00-06-10-02-00 maintains the same sensitivity factor of 200 mV/mil (7.87 V/mm). Firmware version on the monitoring system should be reviewed if the installation involves a 3500 Series rack migration, where additional configuration steps in the 3500/42M or 3500/45 monitor may be necessary. HMI screen tag assignments linked to the original probe channel should be validated in the DCS or SCADA layer to ensure alarm thresholds and trend displays remain correctly mapped after the swap.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 330905-00-06-10-02-00 typically begins well before the probe itself is swapped. In most legacy installations, the probe is one component in a measurement chain that includes the 330130-080-00-00 extension cable, the 330180-X1-05 proximitor, and the 3300 XL monitor card seated in a 3300/16 or 3300/20 rack. When the probe is being replaced as part of a broader control cabinet upgrade, it is common to simultaneously evaluate the condition of the extension cable — particularly the connector at the proximitor end, which is susceptible to corrosion in high-humidity environments. If the extension cable shows impedance drift or insulation degradation, replacing it alongside the probe eliminates a second unplanned outage.

For facilities migrating from the 3300 XL platform to the 3500 Series, the probe itself remains compatible, but the signal conditioning path changes. The 3500/42M Proximitor I/O Module or the 3500/45 Position Monitor must be configured to accept the 330905 probe’s sensitivity factor, and the I/O module’s internal termination resistors must be verified against the new rack’s power budget. In parallel, the 3500/20 Rack Interface Module handles communication to the plant DCS, typically via Modbus RTU or FOUNDATION Fieldbus, and the tag mapping exercise in the HMI layer must account for any channel renumbering introduced by the new rack layout.

Where the retrofit scope extends to I/O expansion — for example, adding radial vibration monitoring on a previously unmonitored bearing — the 3300 XL system’s I/O capacity should be assessed before assuming the existing rack can absorb additional channels. If rack slots are exhausted, a supplementary 3300/16 rack or a migration to the 3500 platform with its higher channel density may be the more cost-effective path. Signal isolators, such as the 990-04-70-02-00 series, are sometimes introduced in the signal path when the control room is located at a distance that introduces ground loop interference, and their insertion gain must be accounted for in the overall loop calibration.

Downtime Control During System Migration

Minimizing production interruption during a probe replacement or platform migration requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 330905-00-06-10-02-00 should be bench-tested against a reference target to confirm gap voltage output and sensitivity factor. All terminal wiring documentation — loop drawings, junction box schedules, and DCS tag lists — should be reviewed and printed for field reference, as reliance on live system access during the outage introduces unnecessary risk.

During the outage, the original probe should be removed with the machine at rest and the proximitor de-energized. The new probe should be installed to the manufacturer’s specified gap (typically 1.0 mm to 1.5 mm for an 8 mm probe on a steel target), and the gap voltage should be measured at the proximitor output before the monitor card is re-enabled. If the installation is part of a rack migration from 3300 XL to 3500 Series, the original program logic — including alarm setpoints, danger thresholds, and time-delay parameters — should be documented and re-entered into the new monitor configuration before the machine is returned to service. The 3500 System’s configuration software (System 1 or Rack Configuration Software) allows offline pre-configuration, which significantly reduces the time the machine spends in an unprotected state.

Post-installation, a short run-up test under no-load conditions should be performed to confirm that vibration trend data is being correctly received at the DCS and that no spurious alarms are triggered by wiring noise or incorrect gap settings. This step is particularly important when the probe has been installed in a location with high electromagnetic interference, such as near variable-frequency drives or large motor starters. Keeping a detailed commissioning record — including gap voltage readings, alarm acknowledgment logs, and firmware version numbers — supports future audits and reduces troubleshooting time if issues arise during normal operation.

Retrofit Support FAQ

Q: Is the 330905-00-06-10-02-00 a direct replacement for other 330905 variants?
A: The 330905 series uses a suffix-based part numbering system where each segment encodes probe cable length, armored cable option, connector type, and temperature rating. The -00-06-10-02-00 configuration specifies a 0.6 m probe cable, standard (non-armored) construction, standard connector, and standard temperature range. Before substituting a different suffix variant, confirm that the cable length, connector type, and temperature rating match the original installation requirements. In most standard industrial environments, the -00-06-10-02-00 is the most commonly stocked configuration and serves as the baseline replacement.

Q: What commissioning steps are required after installation?
A: After mechanical installation, energize the proximitor and measure the DC gap voltage at the proximitor output with the probe at the nominal air gap. For a 330180 proximitor with a 330905 probe, the target gap voltage is approximately –10 VDC ±0.5 V at a 1.0 mm gap on a steel target. Confirm that the monitor card is receiving a valid signal and that the vibration channel is displaying a baseline reading consistent with machine-at-rest conditions. Acknowledge any latched alarms in the DCS, verify that trend logging has resumed, and document the as-found and as-left gap voltage readings in the maintenance record.

Q: Can this probe be used in a 3500 Series rack without modification?
A: Yes. The 330905-00-06-10-02-00 is electrically compatible with the 3500 Series proximitor I/O modules, including the 3500/42M and 3500/45. However, the 3500 rack requires the probe’s sensitivity factor (200 mV/mil) to be entered in the rack configuration software, and the I/O module’s internal power supply must be verified to support the probe’s operating voltage range. No physical modification to the probe or cable is required.

Q: What does the support terms confirmed by quotation cover, and what is your stock availability?
A: The support terms confirmed by quotation cover manufacturing defects, signal performance outside published specifications, and connector integrity under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Stock is maintained for immediate shipment, and each unit undergoes pre-shipment functional testing to verify gap voltage output and cable continuity before dispatch. For volume orders or urgent requirements, contact our sales team directly to confirm lead time and reserve allocation.
