Bently Nevada 330100-50-00 Migration-Ready Proximitor for Legacy 3300 XL

Overview

Bently Nevada 330100-50-00 Migration-Ready Proximitor for Legacy 3300 XL Control Systems

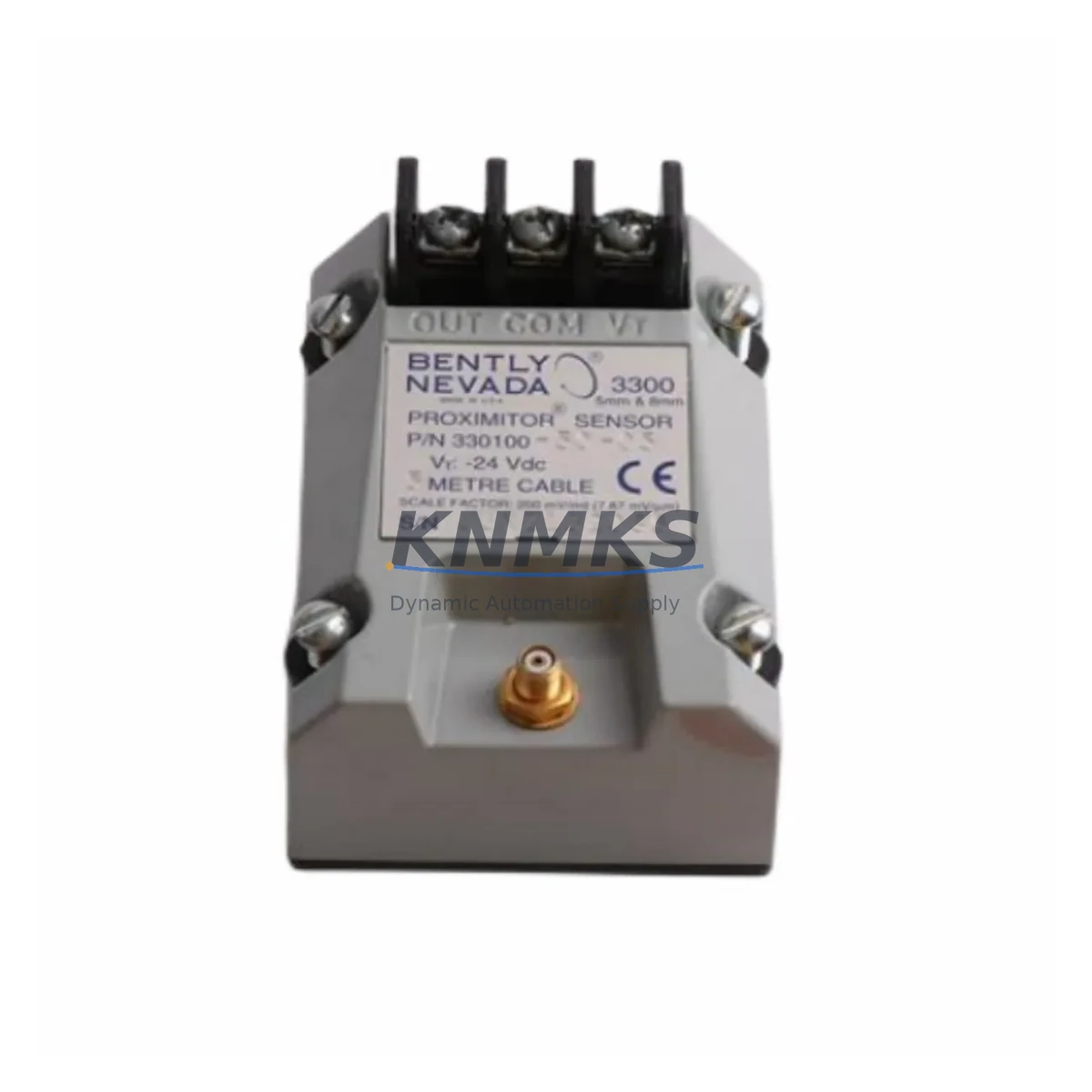

The Bently Nevada 330100-50-00 is an 8mm eddy-current Proximitor® Sensor engineered for continuous shaft proximity and vibration measurement in rotating machinery protection systems. As legacy 3300 XL monitoring racks approach end-of-service life and OEM support windows close, plant engineers and reliability teams are increasingly sourcing verified replacement units to sustain uptime without committing to a full platform migration. The 330100-50-00 is a direct, wiring-compatible replacement for discontinued or degraded sensors in existing 3300 XL installations, making it a preferred choice for brownfield retrofit projects, emergency spare replenishment, and planned system life extension programs.

This Proximitor sensor operates within the standard Bently Nevada 3300 XL signal conditioning architecture, interfacing directly with the 3300 XL 8mm Extension Cable and the corresponding 3300 XL Proximitor driver module housed in the monitoring rack. Before installation, engineers should confirm the existing cable length and gap voltage calibration range to ensure the replacement unit matches the original system’s sensitivity factor (typically 7.87 V/mm for 8mm probes). The output signal is a DC voltage proportional to the gap between the probe tip and the observed shaft surface, feeding directly into the 3300 XL monitor card for alarm and trip processing.

Migration Compatibility Table

Retrofit Planning for Existing Automation and Machinery Protection Systems

Successful integration of the 330100-50-00 into a legacy monitoring system begins well before the unit arrives on-site. Retrofit planning for 3300 XL-based machinery protection systems typically involves a coordinated review of the entire signal chain — from the probe tip through the extension cable, into the Proximitor driver, and finally to the monitor card that processes alarm and trip logic.

The first step is to audit the existing 3300 XL Extension Cable (part of the 330130 or 330180 series, depending on total system cable length). The integral cable on the 330100-50-00 is 5.0m; if the total required distance from probe to driver exceeds this, a compatible extension cable must be confirmed availability confirmed by RFQ before scheduling the replacement window. Mismatched cable lengths alter the system’s overall sensitivity and can cause gap voltage readings to fall outside the calibrated linear range, triggering nuisance alarms or masking real machinery faults.

At the rack level, engineers should inspect the 3300 XL Monitor Card (such as the 3300/16 or 3300/20 series) to confirm that channel configuration — including full-scale range, alarm setpoints, and OK relay logic — remains valid for the replacement probe. If the rack also houses a 3300 XL Power Supply module, verify that the −24 VDC rail is within tolerance before energizing the new sensor; a degraded PSU can cause erratic output even from a fully functional replacement probe.

For plants running parallel condition monitoring on a DCS or safety system, the analog output from the 3300 XL monitor card may feed into a third-party I/O module or a 4–20 mA signal isolator before reaching the control room historian. Confirm that signal isolator input impedance and loop power configuration are unchanged after the probe swap, as any shift in source impedance can introduce offset errors in the trended vibration data.

Where the 3300 XL system interfaces with an HMI or SCADA display, no screen reconfiguration is typically required for a like-for-like probe replacement — the monitor card’s output characteristics remain identical. However, if the retrofit is part of a broader upgrade that introduces a new communication gateway (such as a Modbus RTU or PROFIBUS DP interface module), HMI tag mapping and scaling should be validated before returning the machine to service.

Finally, for plants considering a longer-term migration from the 3300 XL platform to a newer Bently Nevada 3500 series rack, the 330100-50-00 can serve as an interim solution that maintains measurement continuity while the 3500 infrastructure is staged and commissioned in parallel. The 3500 series uses the same 8mm probe family, so probe brackets, observation ports, and machinery modifications made for the 330100-50-00 will carry forward without rework.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity sensor replacement requires a structured hot-swap or planned-outage protocol. For non-redundant 3300 XL channels, the safest approach is to schedule the replacement during a planned maintenance window, coordinate with the control room to inhibit the affected channel’s trip output, and pre-gap the replacement probe on a bench fixture before installation to reduce on-machine adjustment time.

Where machinery cannot be taken offline, some plants implement a temporary bypass relay on the trip circuit while the probe is exchanged, restoring the trip path immediately after the new sensor is gapped and its OK status confirmed by the monitor card. This approach preserves the original program logic and alarm setpoints in the 3300 XL monitor card without any software modification — the card simply resumes normal operation once the new probe’s gap voltage falls within the configured OK window (typically −10 VDC ± 2 VDC for an 8mm probe at nominal gap).

All replacement units supplied by KNMKS are bench-tested prior to shipment to confirm output linearity, OK relay function, and sensitivity within factory specification. This pre-shipment verification reduces the risk of discovering a defective unit during a live maintenance window — a scenario that can extend unplanned downtime significantly on critical rotating equipment. Units are shipped with a test report confirming gap voltage at a reference gap distance, providing the commissioning engineer with a baseline for on-machine verification.

Post-installation, the commissioning checklist should include: gap voltage measurement at the monitor card terminal, OK relay status confirmation, alarm and trip setpoint verification against the original configuration record, and a short run-up observation period to confirm that vibration trend data resumes within the expected baseline range. These steps, completed in sequence, allow the machine to return to service with confidence and provide a documented record for the plant’s maintenance management system.

Retrofit Support FAQ

Q1: Is the 330100-50-00 a direct replacement for the original Bently Nevada unit of the same part number?
Yes. The 330100-50-00 is a like-for-like replacement. It maintains the same probe diameter (8mm), sensitivity (7.87 V/mm), integral cable length (5.0m), and connector type as the original factory unit. No modifications to the existing 3300 XL monitor card configuration, wiring terminations, or alarm setpoints are required for a direct swap.

Q2: What commissioning steps are required after installation?
After mechanical installation and cable connection, the primary commissioning step is gap adjustment. Position the probe tip at the manufacturer-specified nominal gap (typically 1.0–1.5mm for an 8mm probe) and confirm that the gap voltage at the monitor card input reads within the OK window defined in the channel configuration. Verify that the OK relay energizes and that the vibration trend channel resumes data logging. No software or firmware changes are required on the monitor card for a like-for-like replacement.

Q3: Can this unit be used with a 3300 XL Extension Cable from a different cable-length variant?
Yes, provided the total system cable length (integral probe cable + extension cable) matches the length for which the Proximitor driver in the rack was calibrated. Bently Nevada 3300 XL systems are calibrated as a matched set: probe, extension cable, and driver. If the extension cable length changes, the system sensitivity and gap voltage calibration must be re-verified. KNMKS recommends confirming the existing extension cable part number before ordering to ensure the replacement probe is compatible with the installed cable assembly.

Q4: What support terms and supply terms apply to this unit?
All 330100-50-00 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Units are in-stock and available for immediate shipment. Each unit is bench-tested and ships with a functional test report. For volume orders, scheduled delivery, or emergency spare requirements, contact the KNMKS sales team directly to confirm lead time and availability.
