Bently Nevada 330100-50-05 Proximitor Spare Part: Maintenance-Proven for Factory Uptime

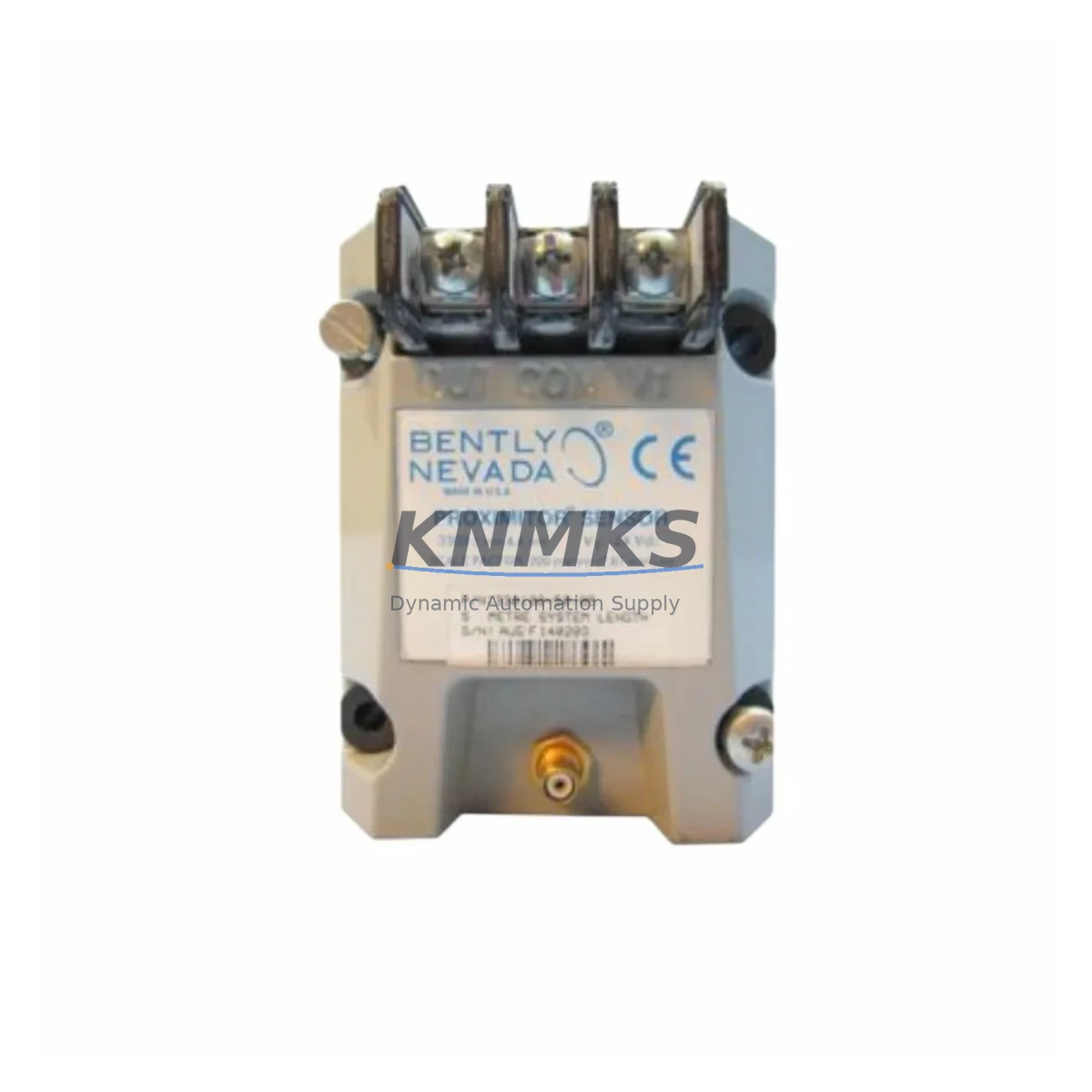

The Bently Nevada 330100-50-05 is an 8mm Proximitor Sensor designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. As a maintenance-proven spare part, the 330100-50-05 is essential for any plant engineer managing turbines, compressors, pumps, or gearboxes that rely on continuous shaft vibration and position monitoring. Sourced as an original component, each unit is tested before shipment and backed by a support terms confirmed by quotation, ensuring your replacement program carries zero compromise on signal integrity or system compatibility.

For maintenance engineers and spare parts procurement teams, having a verified 330100-50-05 on the shelf is not optional — it is a core element of any rotating machinery uptime strategy. Sensor failure in a 3300 XL loop can trigger a false trip or, worse, a missed alarm, both of which carry significant operational and safety consequences. Stocking this sensor as a ready-to-install spare eliminates the lead-time risk that turns a minor fault into an extended outage.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing a 330100-50-05 in the field, a disciplined maintenance engineer will not stop at the sensor alone. The 3300 XL proximity measurement loop is a three-component system: the probe (such as the 330101 series), the extension cable (typically a 330130 series armored cable), and the Proximitor sensor itself. All three must be from the same matched system to maintain calibration accuracy. If the sensor is being replaced due to drift or output anomaly, the extension cable and probe tip should be inspected for mechanical damage, contamination, or connector corrosion before the new 330100-50-05 is installed.

At the monitor rack level, verify that the 3300/16-24-05 or equivalent 3300 XL monitor card is functioning correctly and that the OK relay output is healthy before commissioning the new sensor. A faulty monitor card can mask sensor performance issues or generate nuisance trips post-replacement. If the facility also operates 3500 Series racks, confirm that the correct interface module is in place, as the 3500/42M or 3500/40M proximity monitor modules require specific sensor compatibility verification.

For control cabinet inspections associated with this replacement, check the 24 VDC power supply rail feeding the Proximitor — voltage sag or ripple above specification will degrade sensor output linearity. Inspect terminal blocks and shielded cable grounding at the junction box. Signal isolation barriers, if installed between the Proximitor output and the DCS analog input card, should be verified for correct span and zero calibration. Fuse holders on the sensor power circuit should be checked for continuity and correct rating. Where the vibration signal feeds a safety instrumented system, coordinate with the SIS engineer before breaking the loop.

Annual maintenance schedules for rotating equipment should include a bench-test of the standby 330100-50-05 using a calibrated gap simulator to confirm output voltage at known gap distances. This practice prevents the scenario where a stored spare has degraded in storage and fails immediately upon installation during an emergency. Document the test result and date on the spare part label for traceability.

Site Replacement Workflow

The 330100-50-05 is a direct replacement for earlier 3300 XL 8mm Proximitor variants. Before installation, confirm the target gap range for your specific shaft material — the standard calibration is for AISI 4140 steel, and correction factors apply for other alloys. Set the initial gap to the manufacturer-specified range (typically 1.0–1.5 mm for 8mm probes) using a calibrated gap gauge before energizing the loop.

Isolate the monitor channel and place the machinery protection system in bypass mode per your site MOC procedure before disconnecting the old sensor. Label all connectors before removal. Install the new 330100-50-05, torque the connector to specification, and restore power. Verify the OK LED on the monitor card illuminates and that the DC gap voltage reads within the expected window. Perform a slow-roll check if the machine can be safely rotated to confirm dynamic signal quality before returning the channel to normal protection mode.

For legacy systems where the original 330100-50-05 has been discontinued or is difficult to source, this unit provides a verified compatible replacement that maintains the original system’s alarm and trip setpoints without requiring recalibration of the monitor card — reducing downtime and eliminating the need for a full loop recertification in most standard installations.

Spare Parts Support FAQ

Q: Is the 330100-50-05 compatible with both 3300 XL and 3500 Series monitor racks?
A: The 330100-50-05 is natively designed for the 3300 XL Series. It can be used with 3500 Series racks when the appropriate interface module is installed. Always verify the monitor card part number and consult the system wiring diagram before cross-series installation.

Q: How is the unit tested before shipment?
A: Each 330100-50-05 undergoes functional output verification against a calibrated reference gap before dispatch. Test records are available upon request. The unit is shipped with protective end caps on all connectors to prevent transit damage.

Q: What is the recommended spare parts inventory strategy for this sensor?
A: For facilities with four or more 3300 XL measurement points, maintaining a minimum of two 330100-50-05 units on-site is recommended. Given that the full proximity loop requires matched probe, cable, and sensor, consider stocking a complete matched set as a single line item in your critical spare parts register to eliminate compatibility risk during emergency replacement.

Q: What support terms and long-term supply commitment is provided?
A: All units carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Long-term supply is supported through established sourcing channels, and repeat orders can be fulfilled with consistent lead times. Contact our team for blanket order arrangements if your maintenance program requires scheduled annual replenishment.
