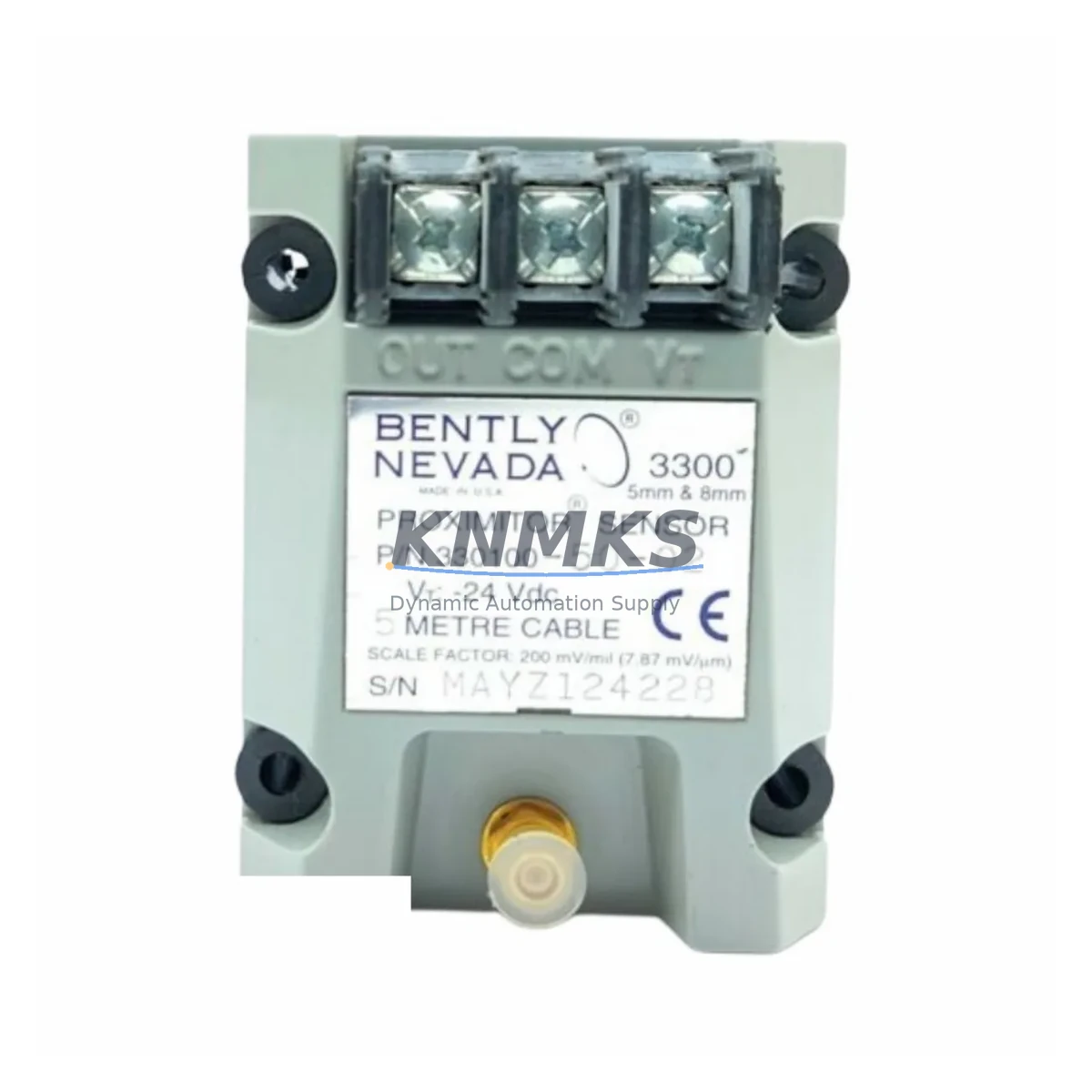

Bently Nevada 330100-50-02 Fail-Safe Proximitor Sensor

Overview

Bently Nevada 330100-50-02 Fail-Safe Proximitor Sensor: Fault Protection and Critical Industrial Reliability

The Bently Nevada 330100-50-02 is a high-performance eddy-current Proximitor Sensor from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, and offshore platforms, this sensor delivers the signal integrity and fault-protection capability that critical rotating machinery protection systems demand.

In high-stakes control environments — where a single missed vibration anomaly can cascade into unplanned downtime, equipment damage, or personnel safety incidents — the 330100-50-02 provides the measurement confidence that plant engineers and reliability teams depend on. Its eddy-current sensing principle is inherently immune to contamination from oil mist, dust, moisture, and non-conductive process fluids, making it the preferred choice for turbine bearing monitoring, compressor shaft displacement, pump seal gap measurement, and motor rotor eccentricity detection.

When integrated into a Bently Nevada 3300 XL System — alongside the 3300/16-24-01 Proximitor I/O Module, 3300/20 Rack Power Supply, and 3500/42M Proximitor/Seismic Monitor — the 330100-50-02 forms a complete, redundant machinery protection architecture. The system continuously evaluates shaft position and dynamic vibration data, triggering alarm and trip outputs through the safety relay chain before mechanical damage can propagate. This closed-loop protection strategy is essential in facilities where API 670 compliance is mandatory and where machinery trip logic must be validated against functional safety standards.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the sensor but depends on a coherent, fault-tolerant signal chain throughout the control cabinet. The 330100-50-02 outputs a stable DC voltage signal that feeds directly into the Bently Nevada 3300/16-24-01 Proximitor I/O Module, which conditions and isolates the signal before it reaches the monitor rack. This isolation stage is critical in environments with high electromagnetic interference — common in motor control centers, variable frequency drive (VFD) cabinets, and high-voltage switchgear rooms — where ground loops and induced noise can corrupt vibration readings and trigger false trips.

Within the 3500 Series Monitor Rack, the conditioned signal is processed by the 3500/42M Proximitor/Seismic Monitor, which applies configurable alarm and danger setpoints. The rack’s internal power supply — typically the 3500/15 Power Supply Module — provides regulated, redundant DC power to all monitoring channels, ensuring that a single power rail fault does not compromise the entire protection system. For plants operating under IEC 61511 functional safety requirements, this redundant power architecture is a key element of the Safety Instrumented System (SIS) design.

In high-temperature or high-vibration installations, the sensor cable routing and connector integrity are equally important. The 330100-50-02’s shielded coaxial cable and robust connector design resist mechanical fatigue and signal degradation even when routed through cable trays adjacent to high-current power conductors. When combined with the 330130-080-00-00 Extension Cable for longer probe-to-proximitor runs, the system maintains calibrated sensitivity across the full linear range without signal attenuation or impedance mismatch.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units — crude distillation columns, catalytic crackers, and compressor trains — unplanned machinery trips carry enormous financial and safety consequences. The 330100-50-02 monitors shaft radial vibration and axial position on critical rotating equipment, providing early warning of bearing wear, rotor imbalance, and seal degradation before they escalate to catastrophic failure. Its resistance to hydrocarbon vapors, high ambient temperatures, and process fluid ingress makes it a standard specification in API 670-compliant protection systems across refinery environments.

Power Generation — Steam and Gas Turbines: Turbine shaft monitoring is among the most safety-critical applications in power generation. The 330100-50-02, installed at bearing housings on steam turbines, gas turbines, and generator rotors, provides the real-time displacement data that operators and DCS systems use to evaluate rotor dynamic health. In combined-cycle plants where turbine availability directly determines grid stability, the sensor’s fail-safe output behavior — driving the monitor to a trip condition on signal loss — ensures that a sensor fault never results in an unprotected machine run.

Mining and Mineral Processing: Ball mills, SAG mills, conveyor drive gearboxes, and slurry pump trains operate in environments characterized by extreme dust loading, high vibration, and wide temperature swings. The 330100-50-02’s non-contact measurement principle eliminates the wear and drift associated with contact-type sensors, while its IP67-rated construction resists dust and moisture ingress. Continuous shaft monitoring in these applications enables condition-based maintenance strategies that reduce unplanned downtime and extend equipment service intervals.

Water and Wastewater Treatment: Large centrifugal pumps and blower trains in water treatment facilities require continuous vibration monitoring to detect cavitation, impeller wear, and bearing deterioration. The 330100-50-02 integrates seamlessly into existing Bently Nevada 3500 Series racks already deployed in many municipal and industrial water treatment plants, providing a direct replacement path for aging sensors without requiring rack reconfiguration or recalibration of monitor setpoints.

Metallurgical and Steel Processing: Rolling mill drives, continuous caster pinch rolls, and induction furnace cooling pumps operate under severe mechanical loading and high electromagnetic interference from large thyristor drives. The 330100-50-02’s shielded construction and high EMI immunity ensure measurement integrity in these electrically noisy environments, supporting the predictive maintenance programs that modern steel producers rely on to maximize campaign lengths and minimize unscheduled outages.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330100-50-02?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and calibration deviations identified under normal operating conditions. If the sensor fails to meet its specified sensitivity, linearity, or output characteristics within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed promptly to minimize impact on your plant’s protection system availability.

Q2: How is the 330100-50-02 tested before shipment?
Every unit undergoes a full pre-shipment functional verification, including sensitivity calibration check (7.87 V/mm ± tolerance), linear range confirmation, cable continuity and insulation resistance test, and connector integrity inspection. Test records are available upon request and accompany each shipment to support your incoming inspection and quality documentation requirements.

Q3: Is the 330100-50-02 compatible with existing Bently Nevada 3500 Series monitor racks?
Yes. The 330100-50-02 is fully compatible with the Bently Nevada 3300 XL and 3500 Series monitor architectures. It is a direct functional replacement for worn or failed sensors in existing installations, requiring no rack hardware changes or monitor reconfiguration in standard applications. Confirm your existing probe and extension cable part numbers to ensure matched system impedance before installation.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain dedicated inventory of the 330100-50-02 and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. For facilities with critical machinery protection requirements, we recommend establishing a consignment or blanket order arrangement to ensure immediate availability when unplanned sensor replacement is required. Contact our technical sales team to discuss long-term supply program options.
